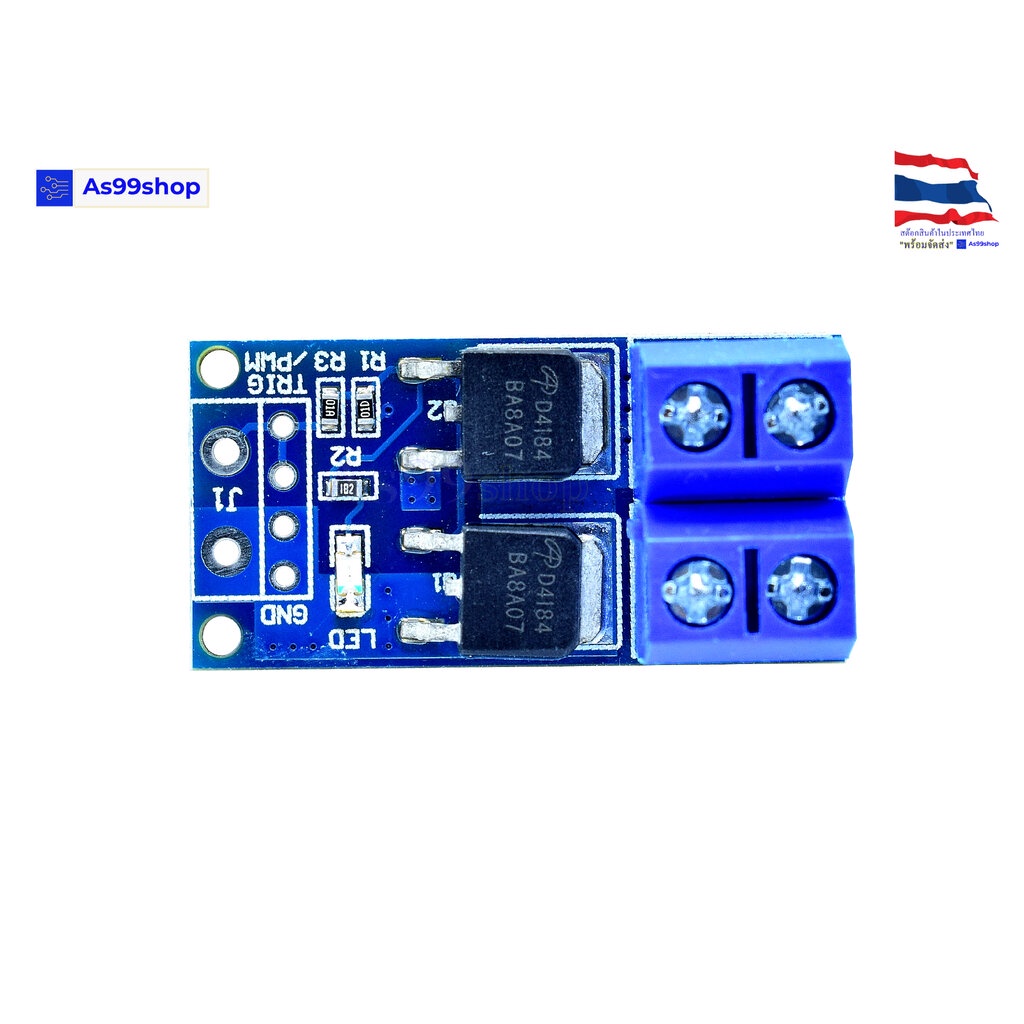

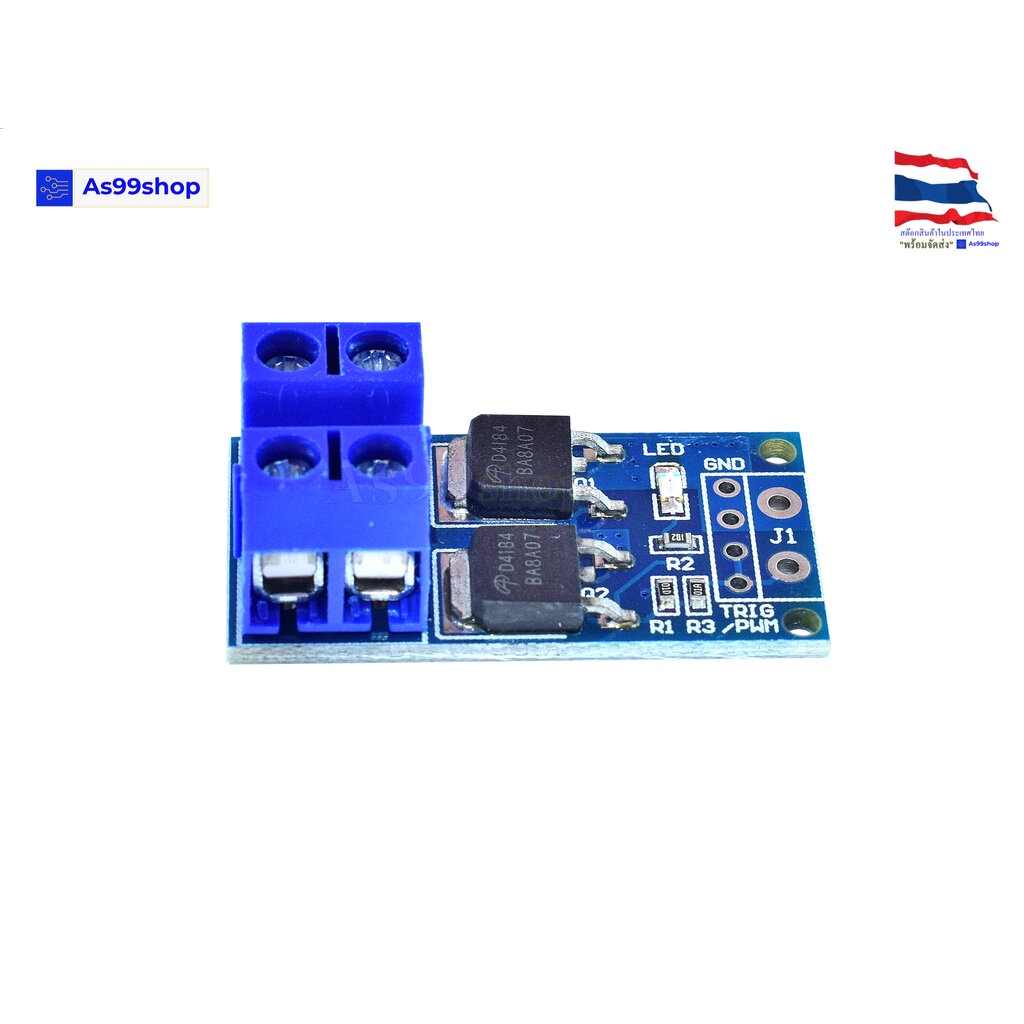

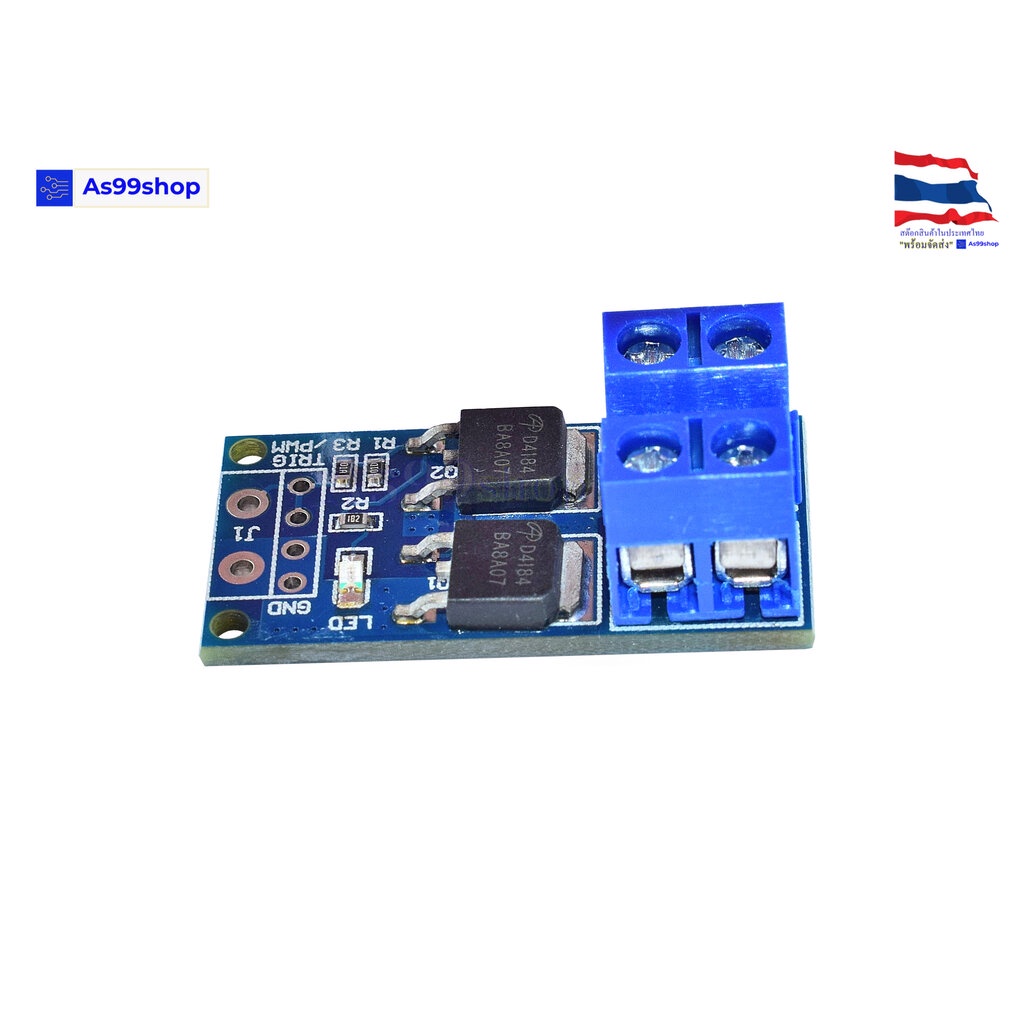

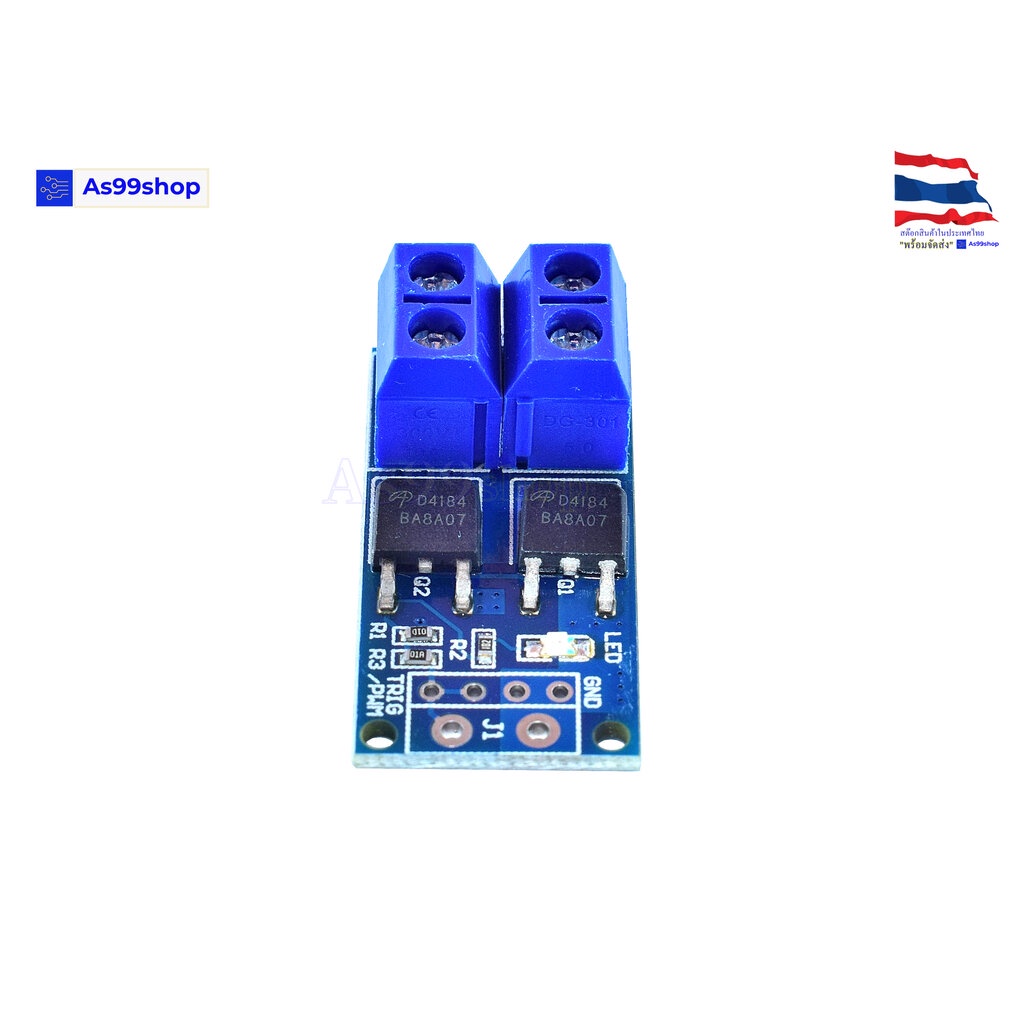

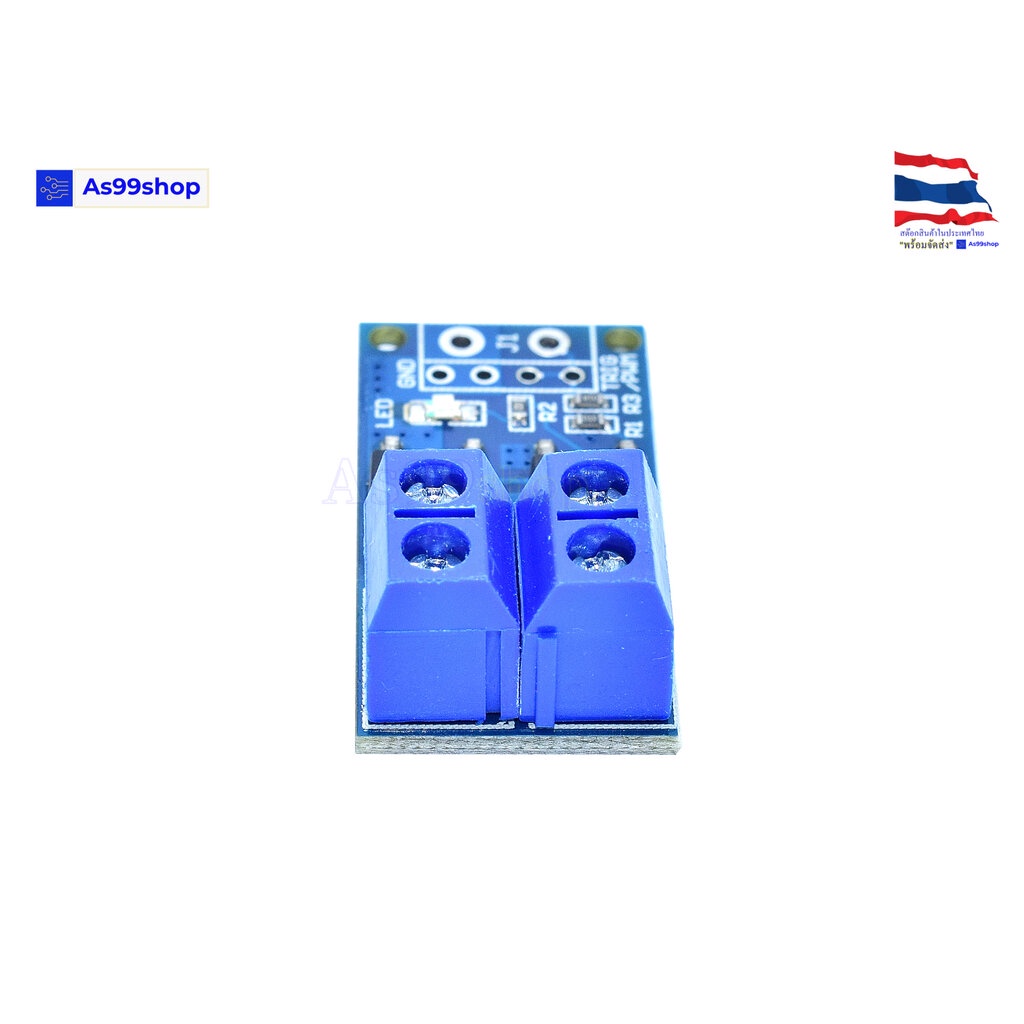

โมดูลขับสัญญาณ Power MOSFET Trigger Switch Drive Module 15A 400W 5-36V PWM Control

โมดูลขับสัญญาณ Power MOSFET Trigger Switch Drive Module 15A 400W 5-36V PWM Control - Operating Voltage: DC 5V 36V - Trigger source: digital high-low (DC3.3V 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 020KHZ perfect support. - Output capacity: DC DC 5V 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A. - Application: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., you can enter PWM, motor speed control, lamp brightness.
