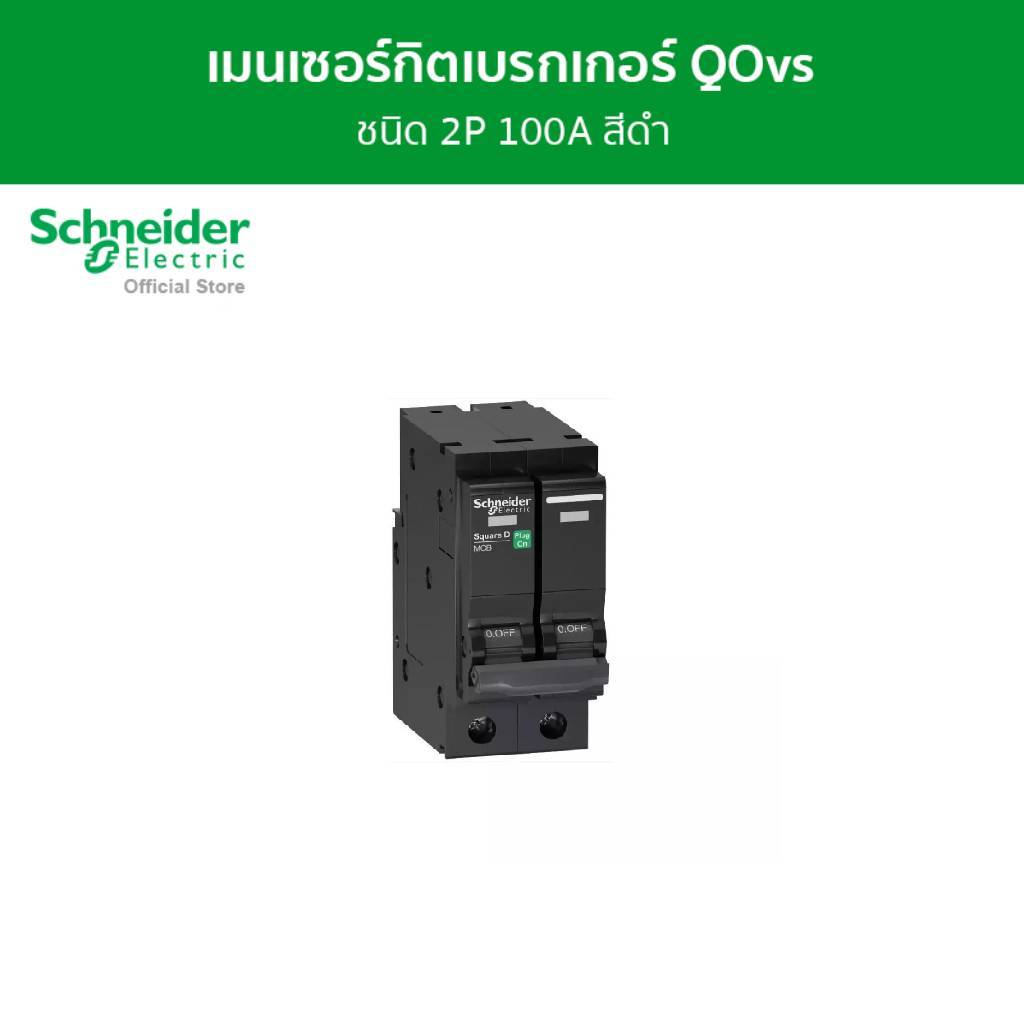

Schneider Electric เมนเซอร์กิตเบรกเกอร์ ชนิด 2 โพล ขนาด100A 10kA รหัส QO2100MBXT

Main Device application : Distribution Range : Square D Product name : QO MBX Product or component type : Miniature circuit-breaker Poles description : 2P Number of protected poles : 2 [In] rated current : 100 A Network type : AC Curve code : C Breaking capacity : 10 kA Icn at 240/415 V AC 50/60 Hz conforming to IEC 60947-2 Complementary Network frequency : 50/60 Hz [Ue] rated operational voltage : 240/415 V AC 50/60 Hz [Ics] rated service breaking capacity : 10000 A 25 % conforming to IEC 60947-2 - 240 V AC 50/60 Hz Contact position indicator : Yes Control type : Toggle Local signalling : ON/OFF indication Mounting mode : Plug-on 9 mm pitches : 4 Height : 74 mm Width : 38 mm Depth : 89 mm Colour : Black Mechanical durability : 8500 cycles Electrical durability : 1500 cycles Connections - terminals Plug-in connector (top) Tunnel type terminals (bottom) Environment Standards : IEC 60947-2 Product certifications : IEC
