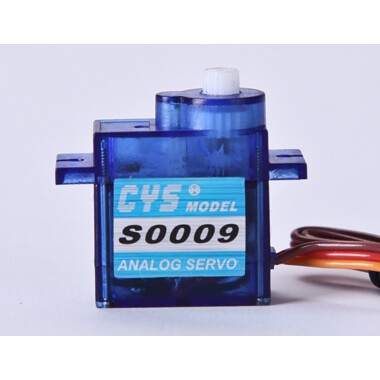

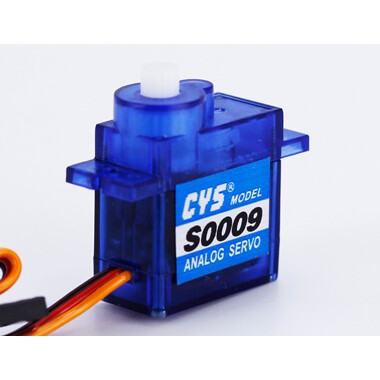

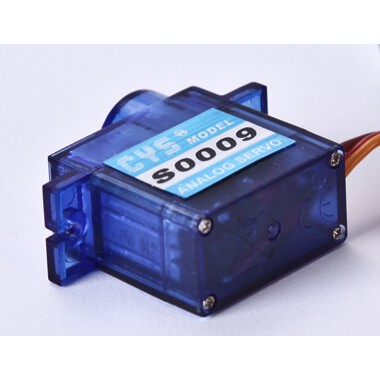

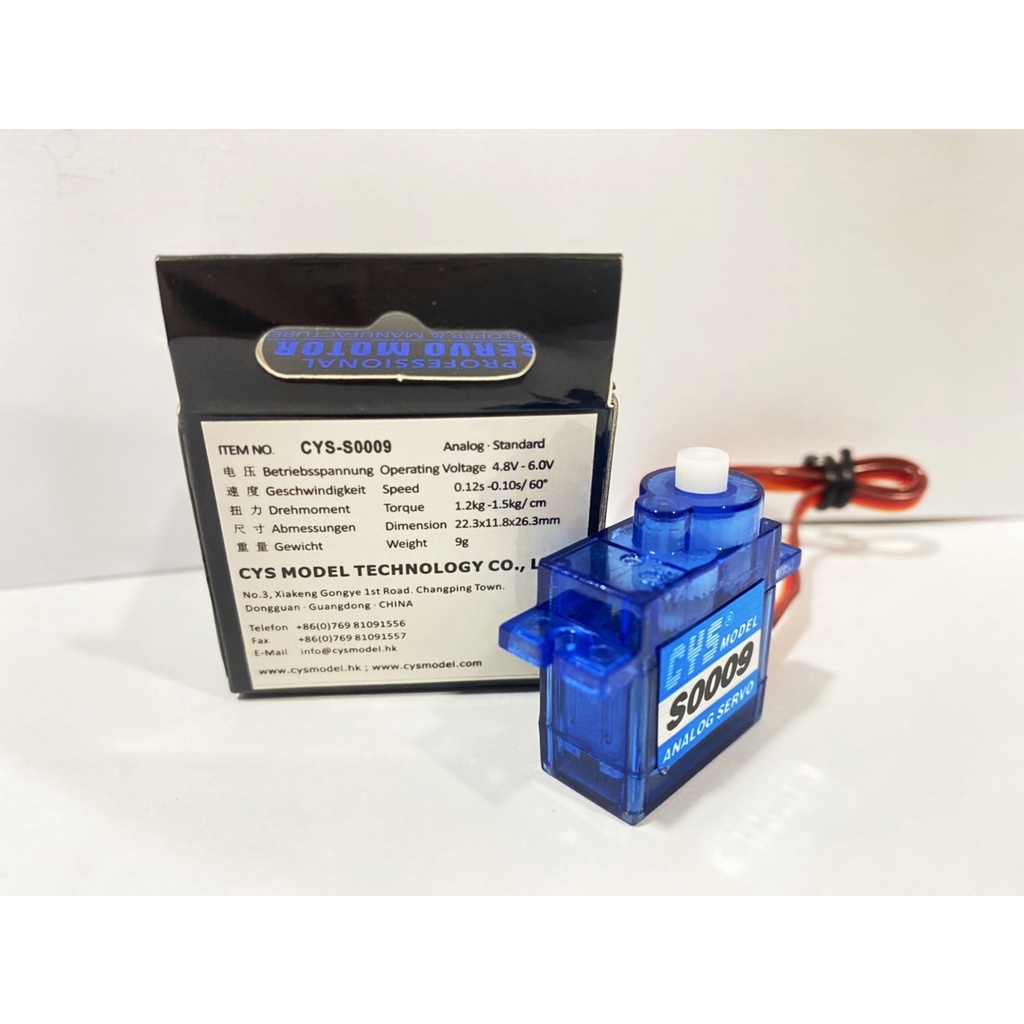

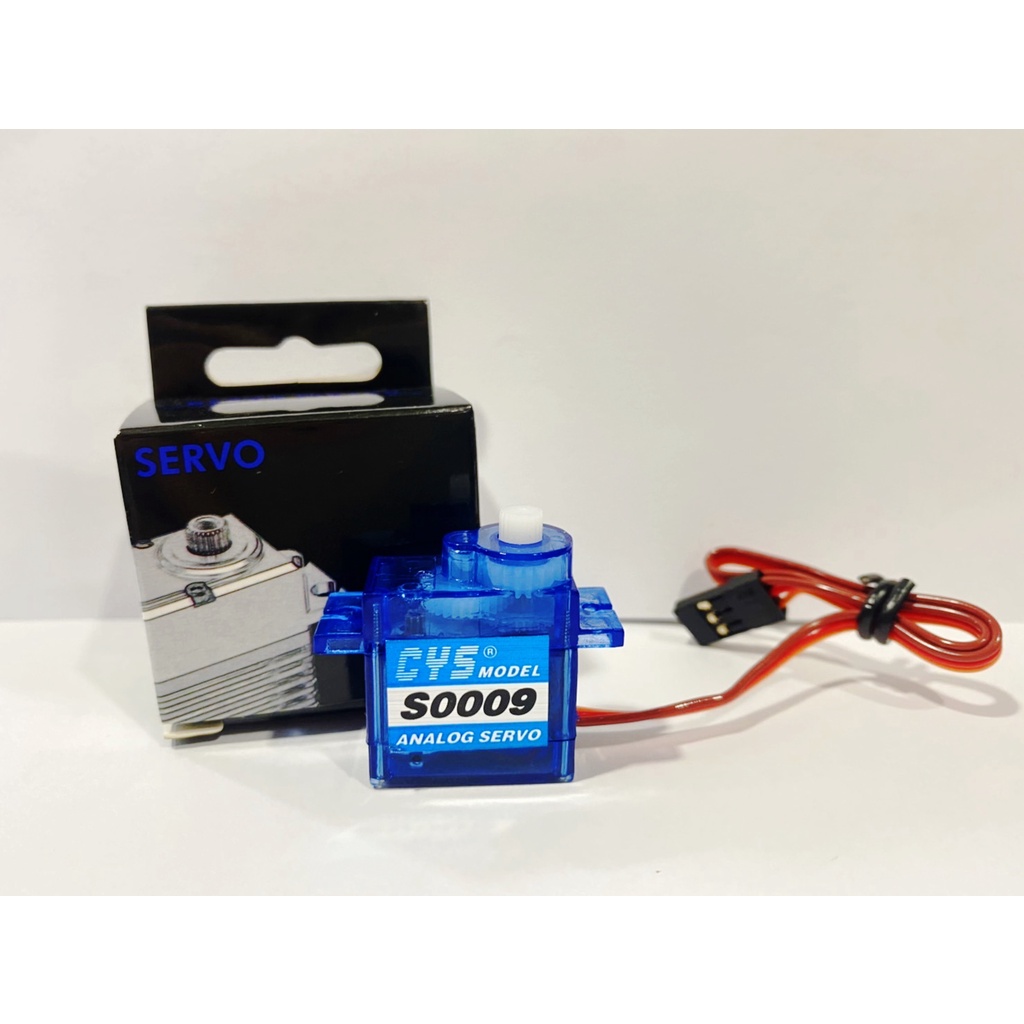

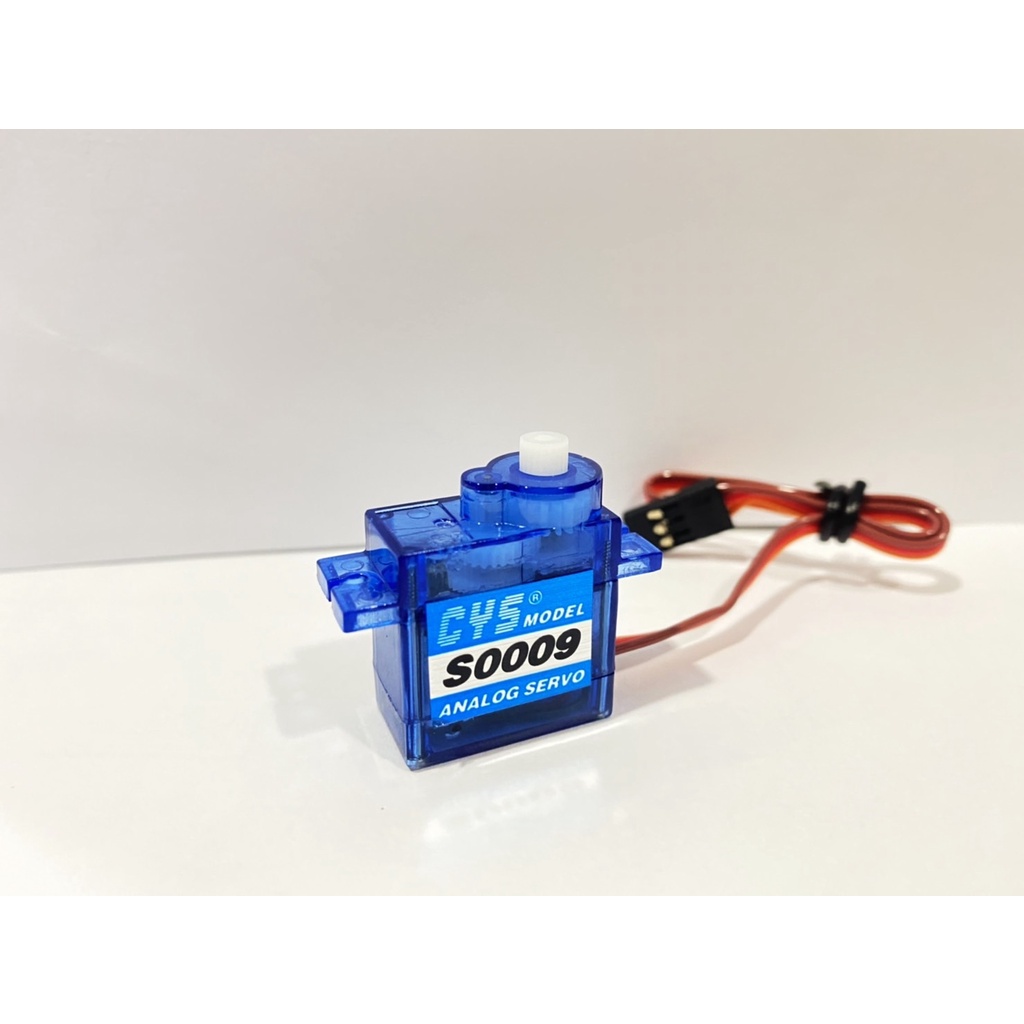

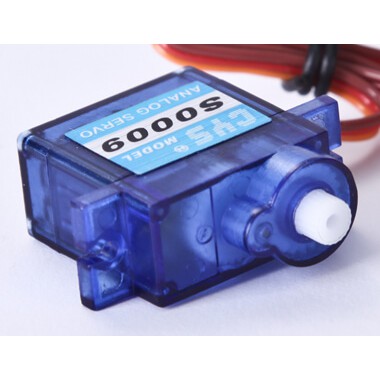

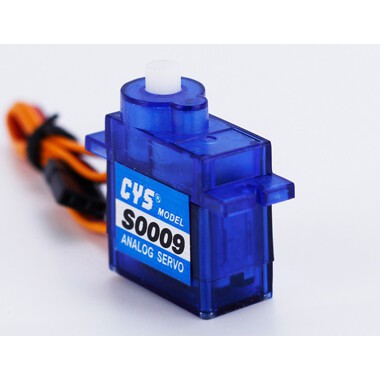

เซอร์โวCYS-S0009 9g micro servo analog plastic gear สำหรับใส่เครื่องบิน

Item NO.: CYS-S0009 9g servo motor Description : 9g analog plastic gear servo motor Torque : 1.2Kg.cm ~ 1.5Kg.cm Speed : 0.12sec ~ 0.10sec/60 degree Voltage : 4.8 Volts ~6.0Volts Weight :9± 1g Application&Features Type Analog Weight 9g Size 22.3*11.8*26.3mm Control System (+)Pulse Width Control 1500usec Neutral Operating Voltage 4.8~6.0Volts Operating Temperature Range (-)10 to +50 degree C Operating Speed (4.8V) 0.12sec/60° at no load Operating Speed (6.0V) 0.10sec/60° at no load Stall Torque (4.8V) 1.2kg.cm Stall Torque (6.0V) 1.5kg.cm Operating Angle 45deg.one side pulse traveling 500 usec Direction Anticlockwise/Pulse Traveling 1000~2000usec Current Drain (4.8V) 10mA/idle and 260mA no load operating Current Drain (6.0V) 10mA/idle and 300mA no load operating Stall Current 0.8A/0.9A Dead Band Width 4usec Motor Type Iron core Horn gear spline 21T Gear Type Plastic Connector Wire Length 180mm Wire info Brown/Black = Negative Red = Positive Orange/White = Signal
