hc - sr 501 HC-SR501 โมดูลตรวจจับความเคลื่อนไหวอินฟราเรดสําหรับ arduino

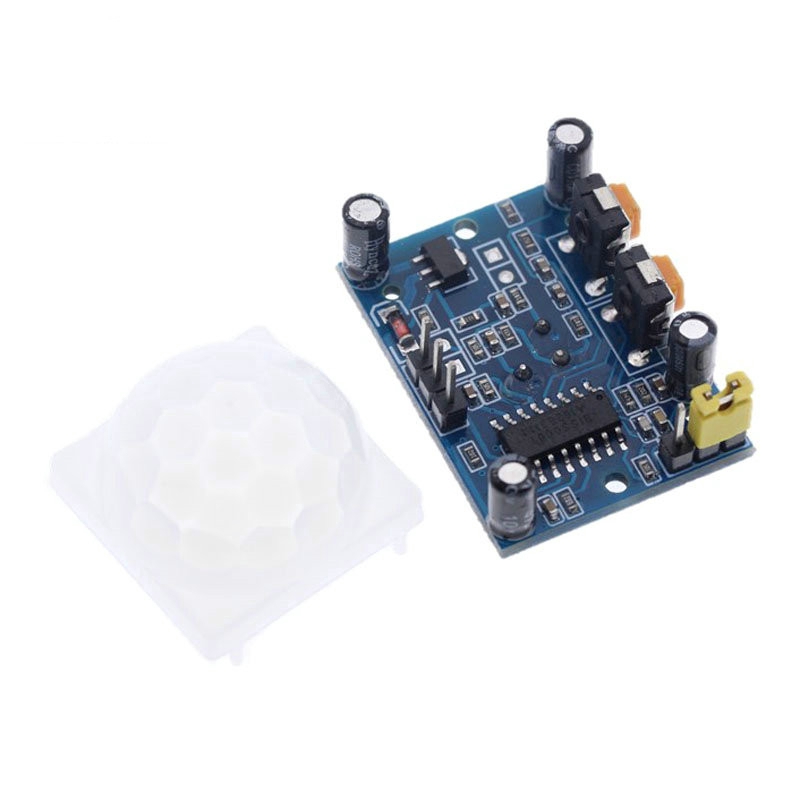

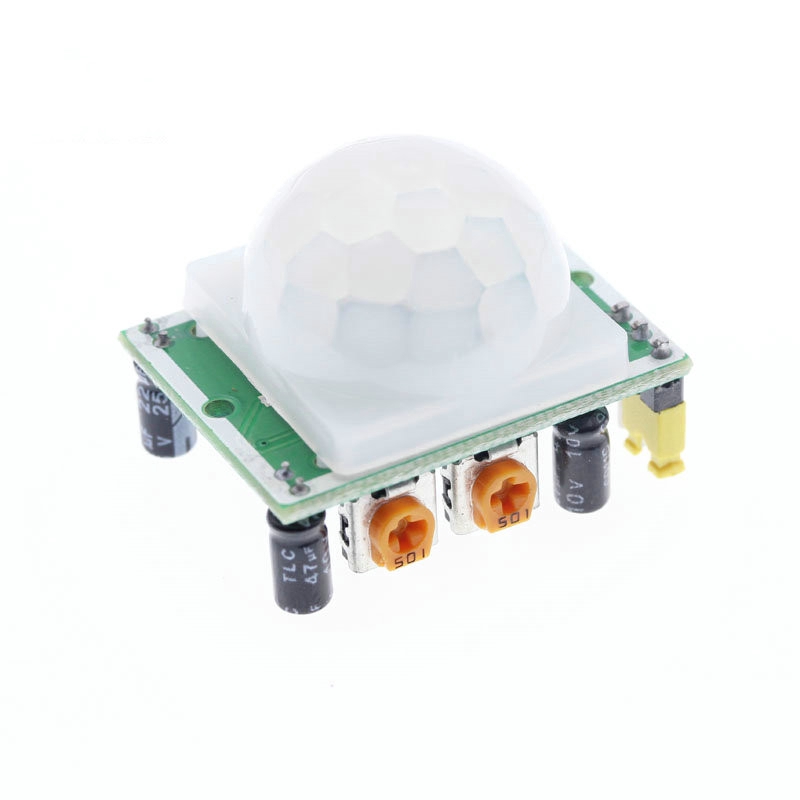

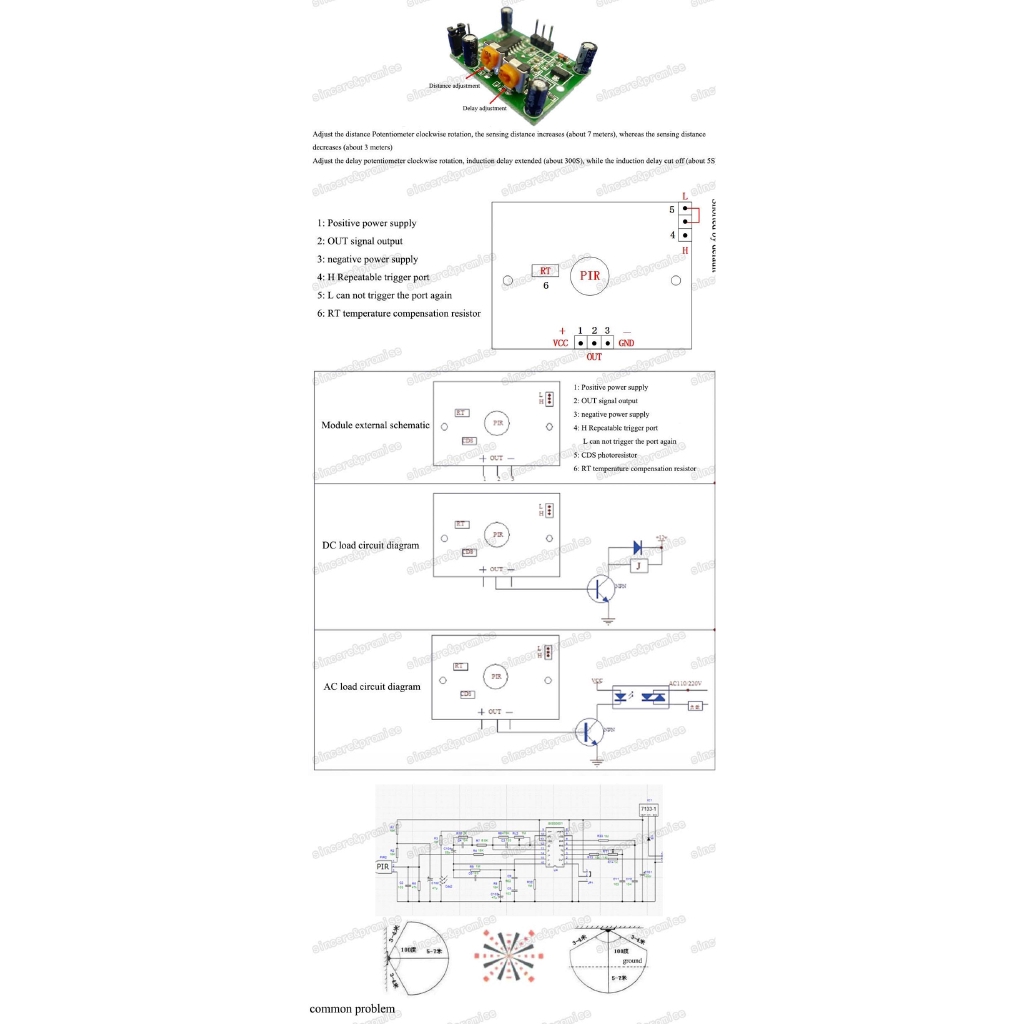

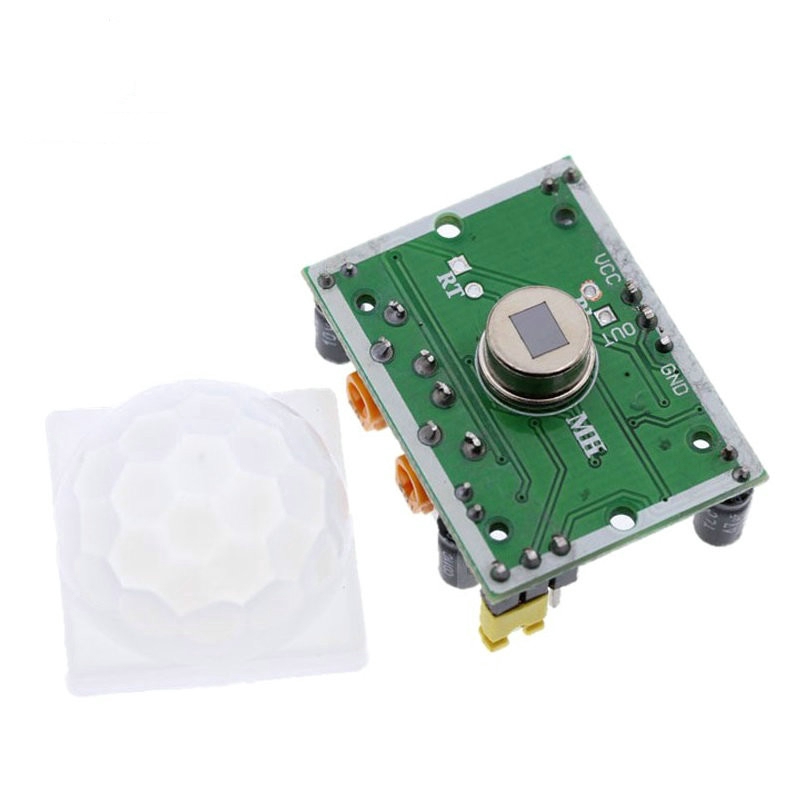

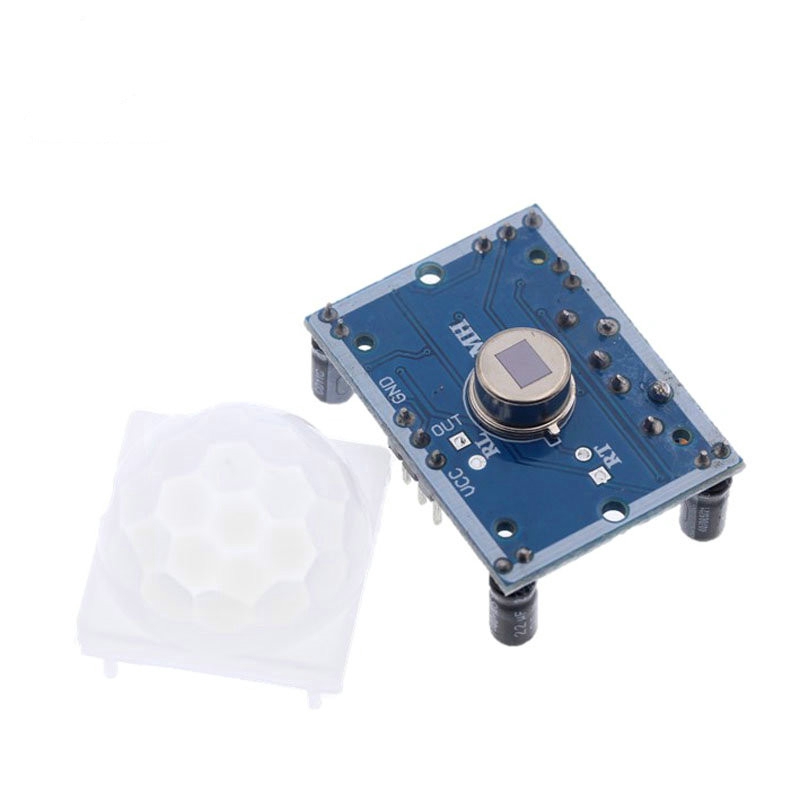

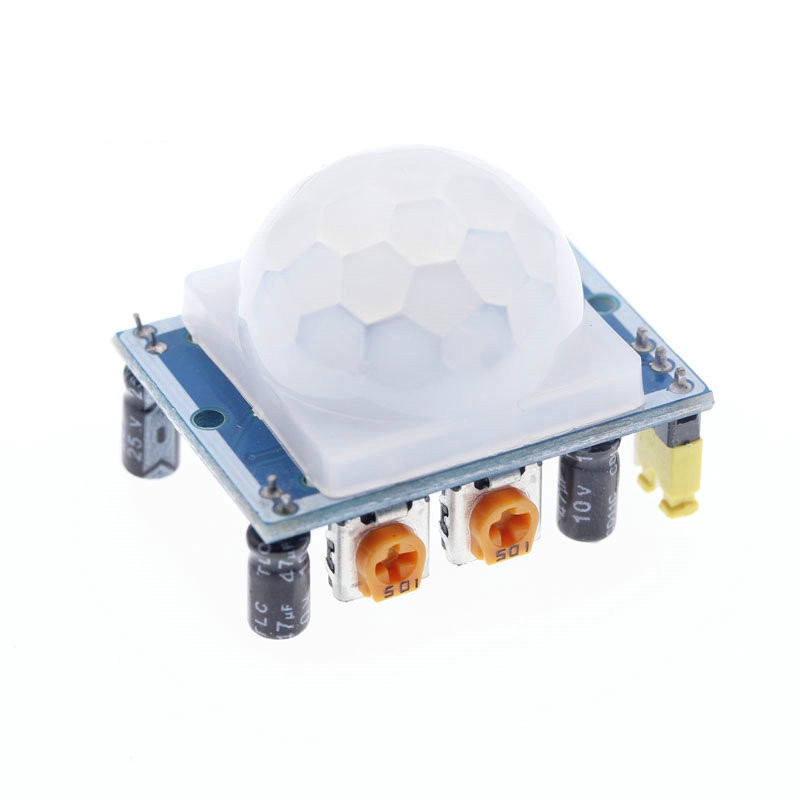

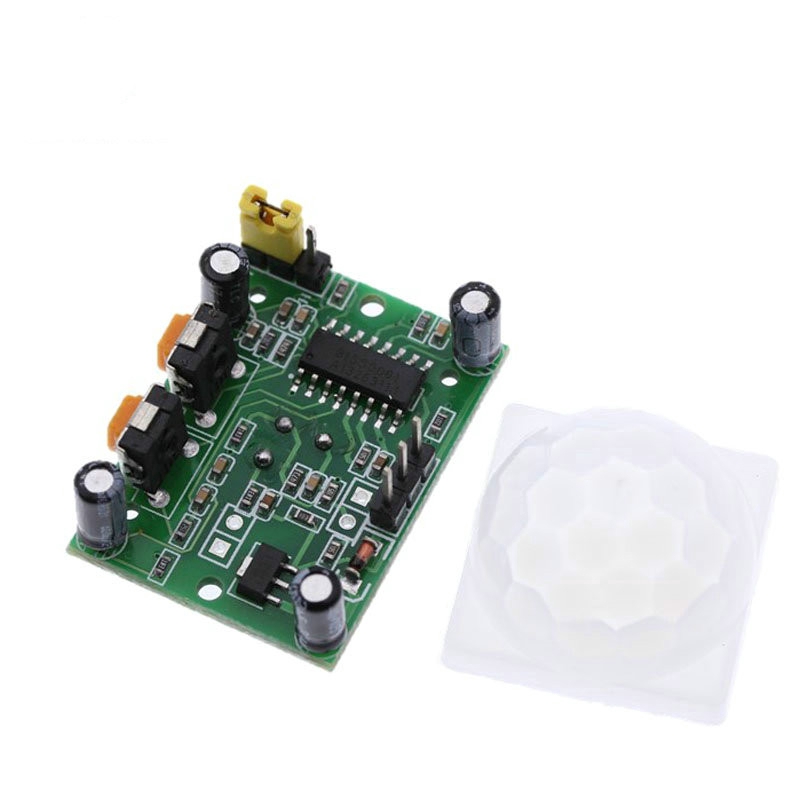

HC-SR501 Adjust IR Pyroelectric Infrared PIR Motion Sensor Detector Module for Arduino for raspberry pi kits Description: Dimension: 3.2cm x 2.4cm x 1.8cm (approx) Infrared sensor with control circuit board The sensitivity and holding time can be adjusted Working Voltage Range: DC 4.5V- 20V Current drain:<60uA Voltage Output: High/Low level signal:3.3V TTL output Detection distance: 3--7M(can be adjusted) Detection range: <140° Delay time: 5-200S(can be adjusted, default 5s +-3%) Blockade time: 2.5 S (default) Trigger: L: Non-repeatable trigger H: Repeat Trigger (default) Work temperature:-20-+80°C Trigger Method: L unrepeatable trigger / H repeatable trigger Features: 1. Automatic induction: When someone enters its induction range, enter the high level, people leave the sensor range is automatically delayed off high. Output low. 2. photosensitive control (optional): the module reserved for location, can be set to photosensitive control, strong light during the day or not induction. Photosensitive control is optional, the factory did not install photosensitive resistor. If necessary, please buy a separate photosensitive resistor to install. 3. Two trigger modes: L is not repeatable, H is repeatable. Can be jumper selected, the default is H. A. non-repeatable trigger mode: the induction output high, the delay time is over, the output will automatically change from high to low. B. Repeated trigger mode: that is, after sensing the output high, in the delay time period, if the human body in its sensing range of activities, its output will remain high until the delay after the person will leave the high The level changes to low level (the sensing module automatically delays a delay time after every activity of the human body, and takes the time of the last activity as the starting point of the delay time). 4. Induction blocking time (default setting: 3-4 seconds): After each sensing output (high level goes low), the sensing module can be followed by a blocking time, during which it is sensed The device does not receive any sense signals. This function can be used to achieve the interval between the sensing output time and the blocking time. It can be applied to the interval detection products. At the same time, this function can effectively suppress all kinds of interference in the process of load switching. 5. Wide operating voltage range: the default operating voltage DC4.5V to 20V 6. Micro-power: Quiescent current 65 microamps, especially for dry battery-powered electrical products. 7. Output high-level signal: can be easily with various types of circuits to achieve docking. Before purchase: 1.All the goods are ready stock, we will arrange the shipment at once if we receive the order. 2.Use the vouchers for more saving. Shipment： 1.1-2 days to ship(except for the pro-order item) After purchase: 1.If you are satisfied，please give us 5 stars praise. #HC-SR501 #Adjust #IR #Pyroelectric# Infrared #PIR #Motion #Sensor #Detector #Module
