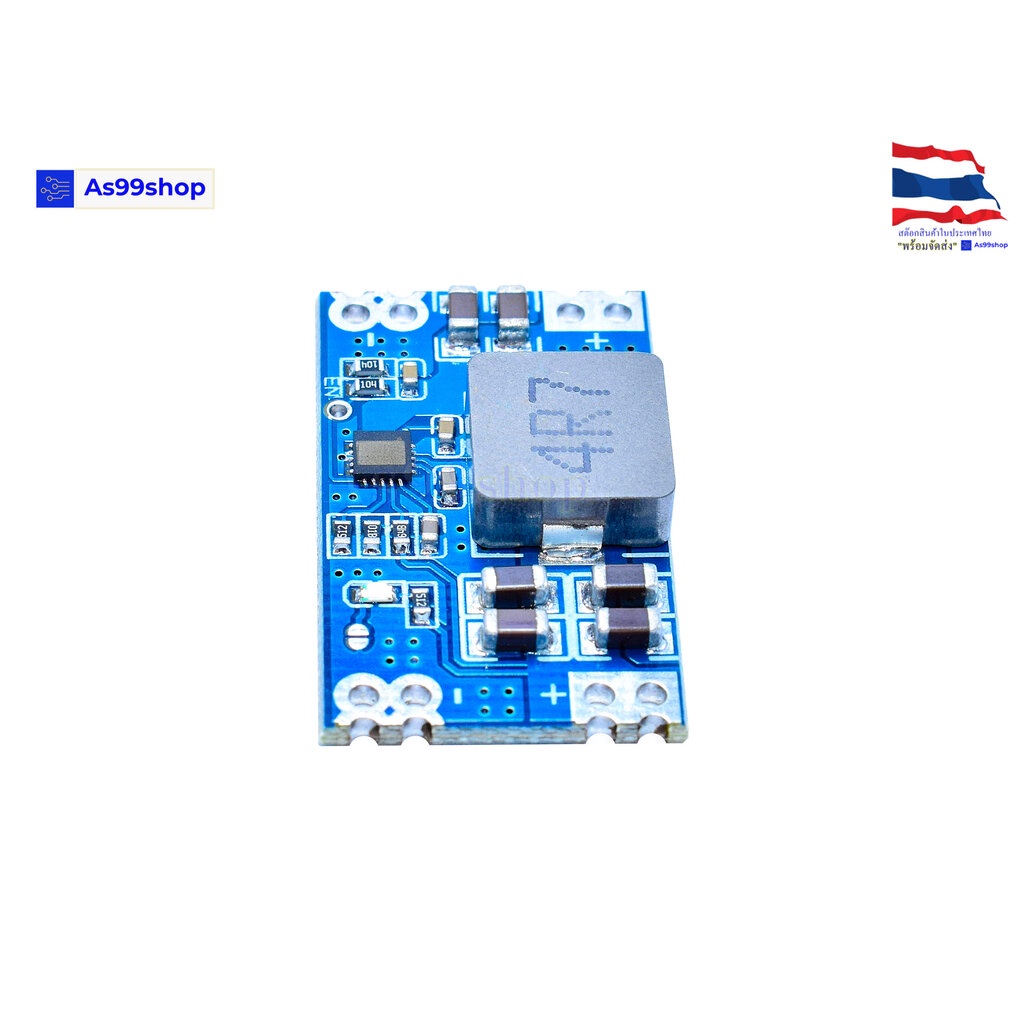

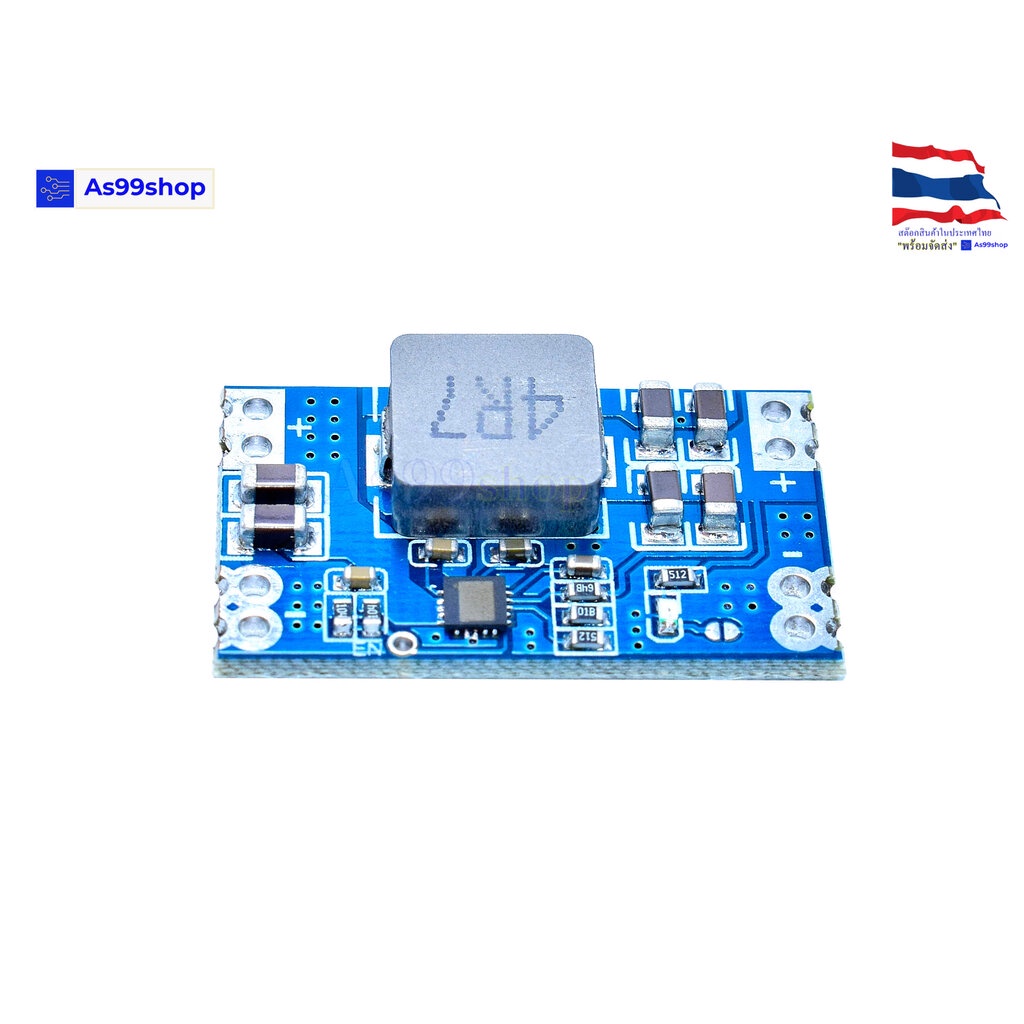

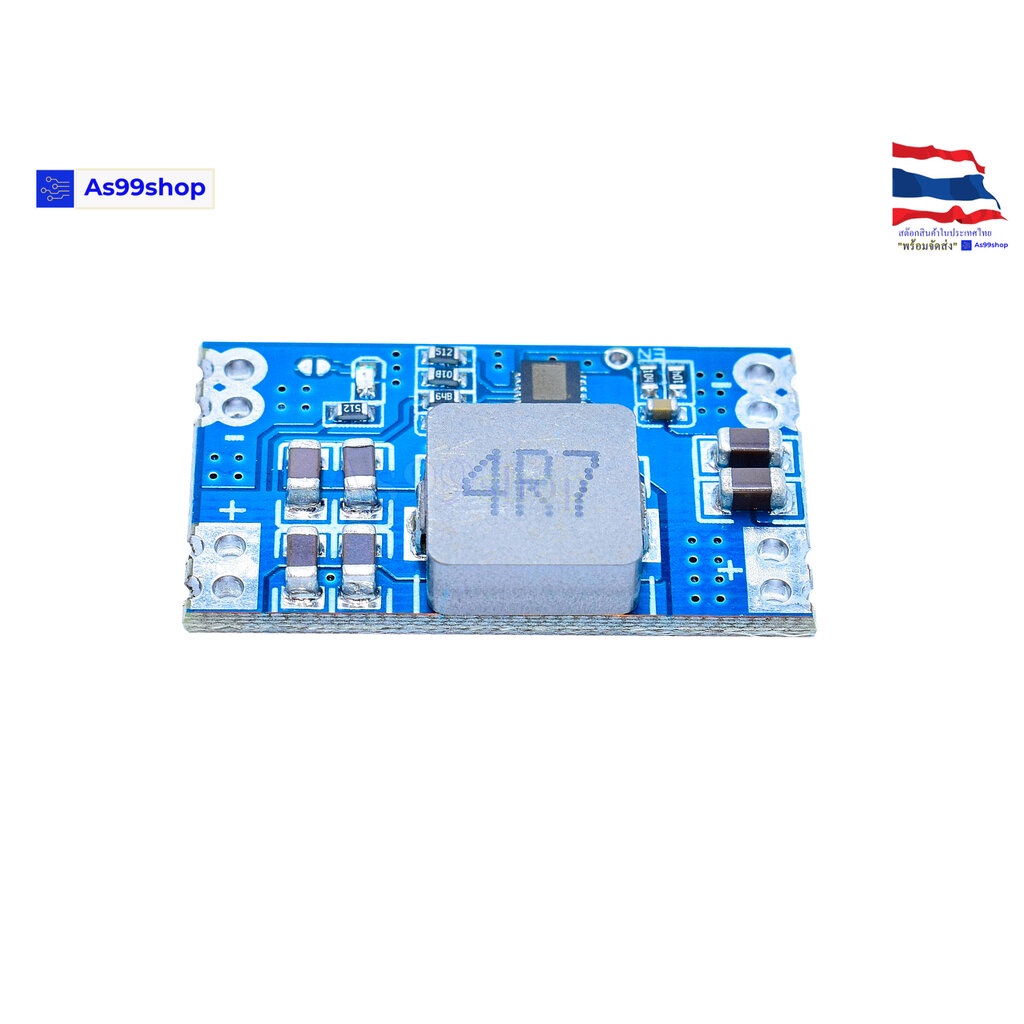

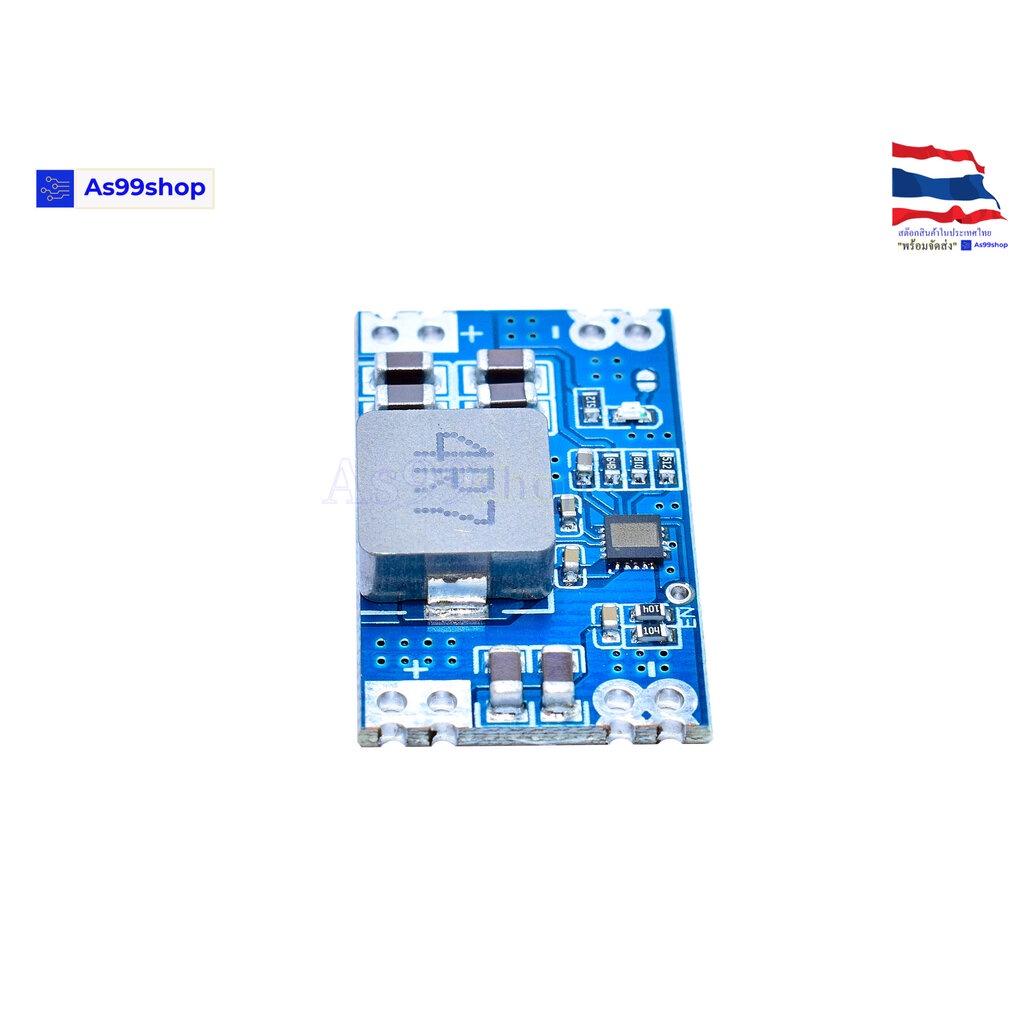

mini560 14-20V เป็น 12V กระแสสูงสุด 4A Step down Module

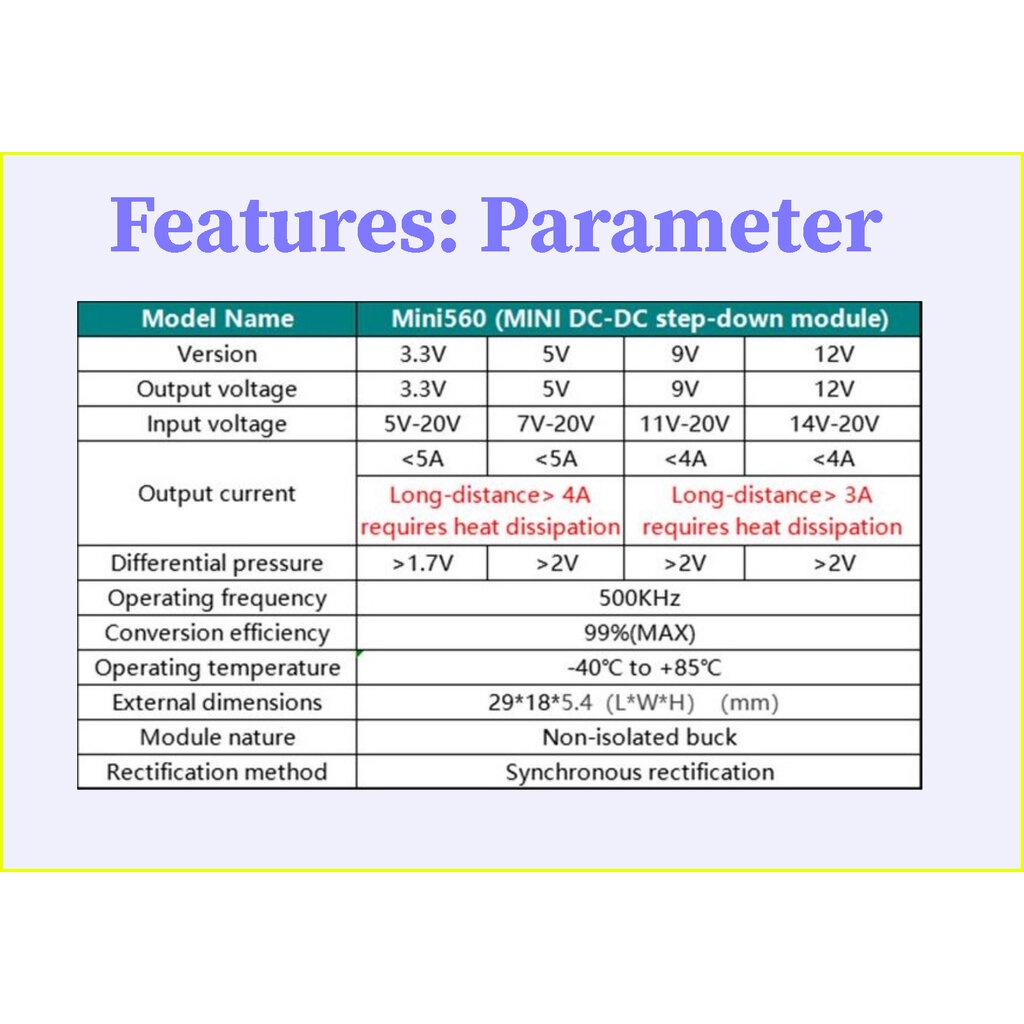

mini560 14-20V เป็น 12V กระแสสูงสุด 4A Step down Module Features: High efficiency, high stability, high cost performance. Ultra-small size, very easy to be embedded in each system Stamp hole design, user-friendly welding. It is also convenient for industrial use of patches High conversion efficiency and low heat generation. Parameters: - Model: Mini560 (small size DC-DC synchronous rectifier step-down module) - Voltage Input: 14V - 20V - Voltage Output: 12V - Switching frequency: 500KHz - Conversion efficiency: 99% (maximum) - Working temperature: -40 to 85C - Module nature: non-isolated step-down - Rectification method: Synchronous rectification - Module size: 29*18*5.4mm
