ตัวสีเงิน 1ตัว NEUTRIK NP2X ของแท้ ปลั๊กไมค์โมโน (Mono Phone Plug) โฟนปลั๊ก โฟนโมโน Phone mono NP 2X NP-2X ปลั๊กโมโน ...

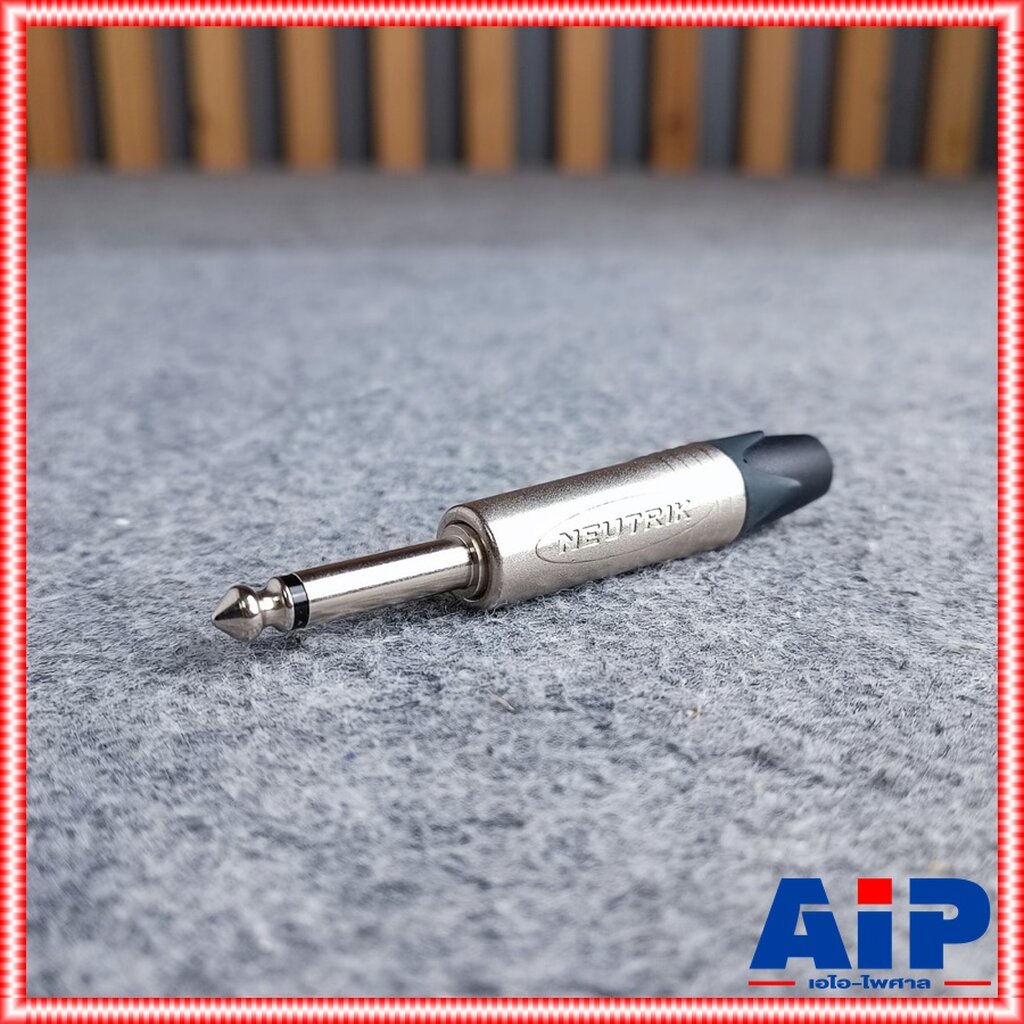

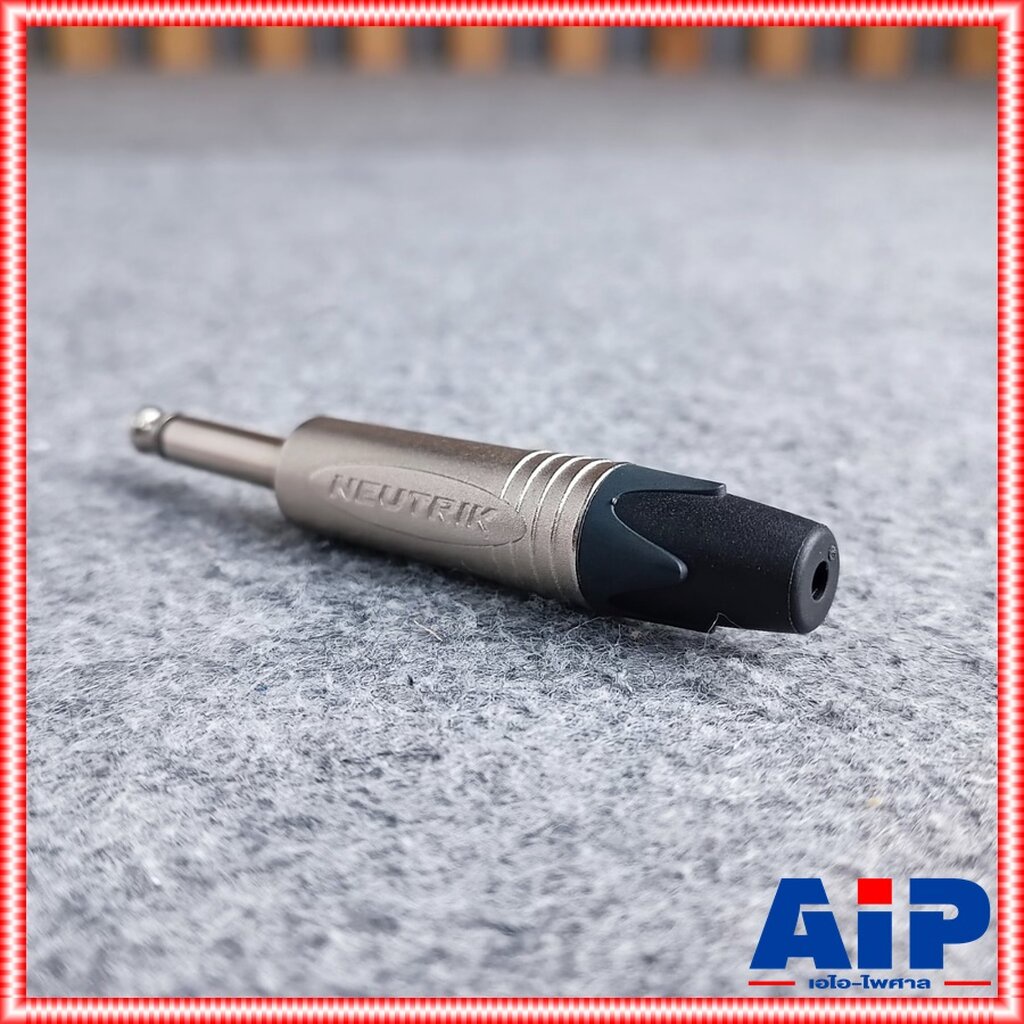

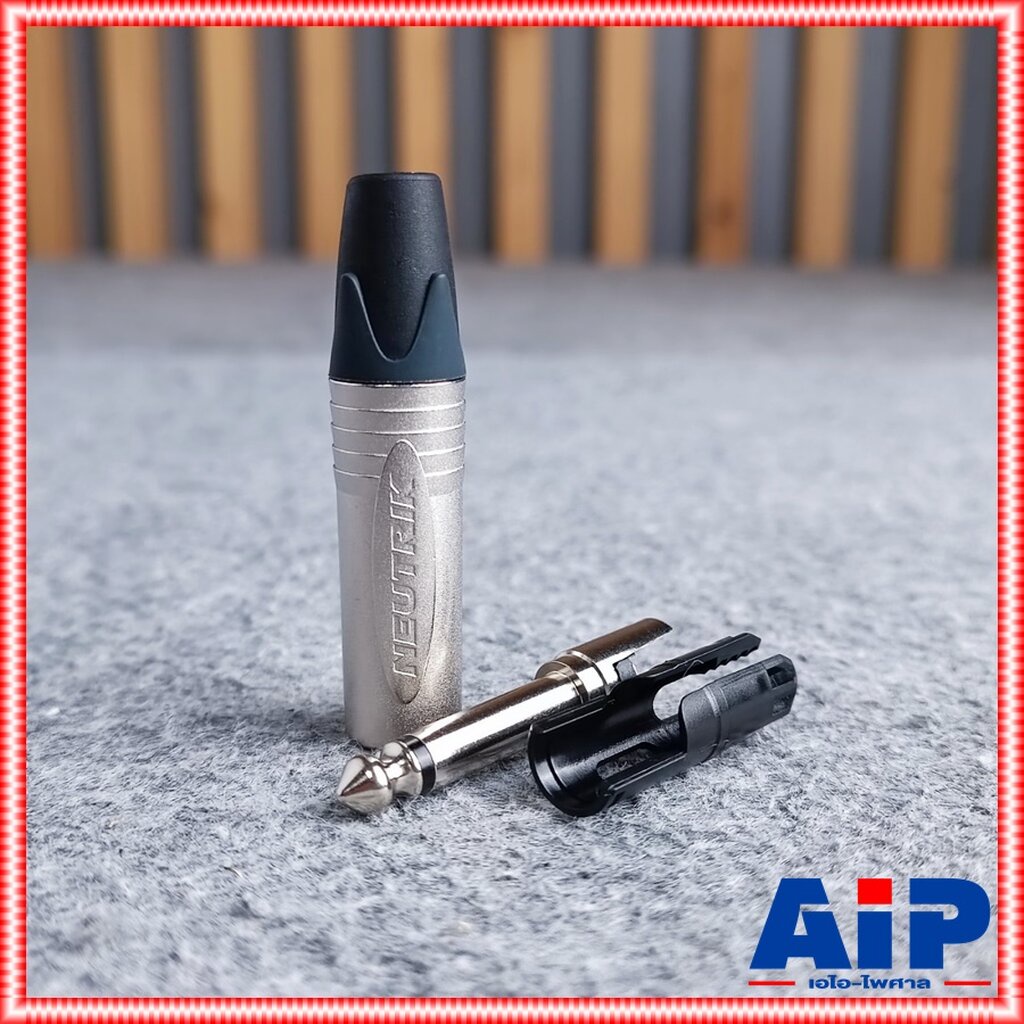

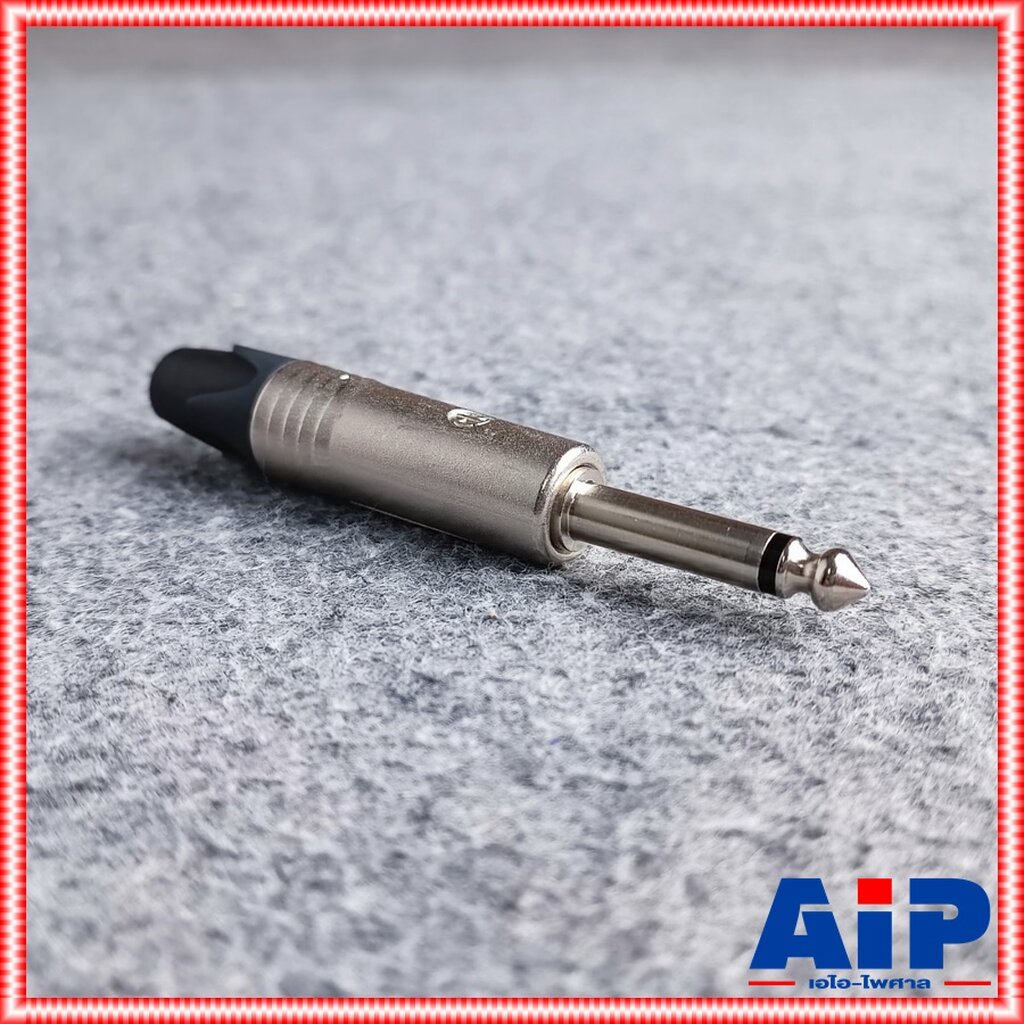

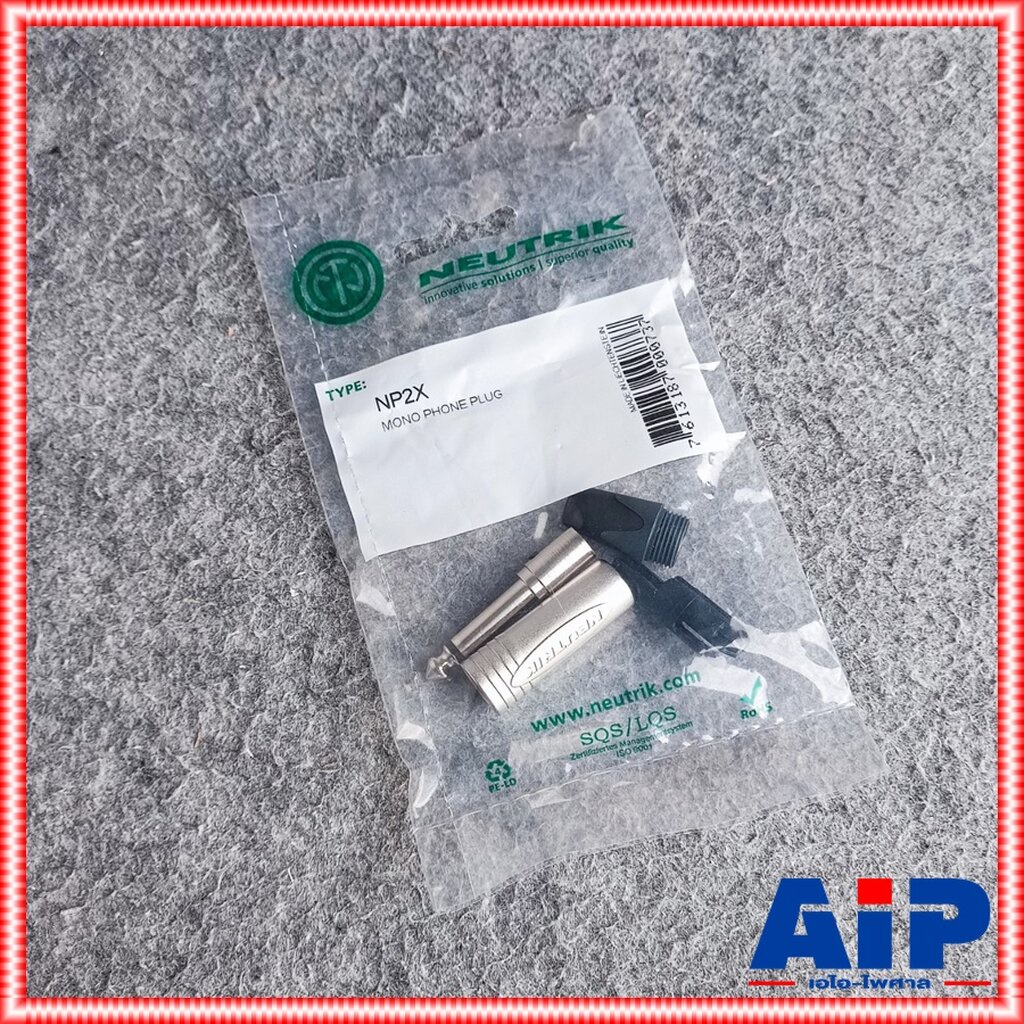

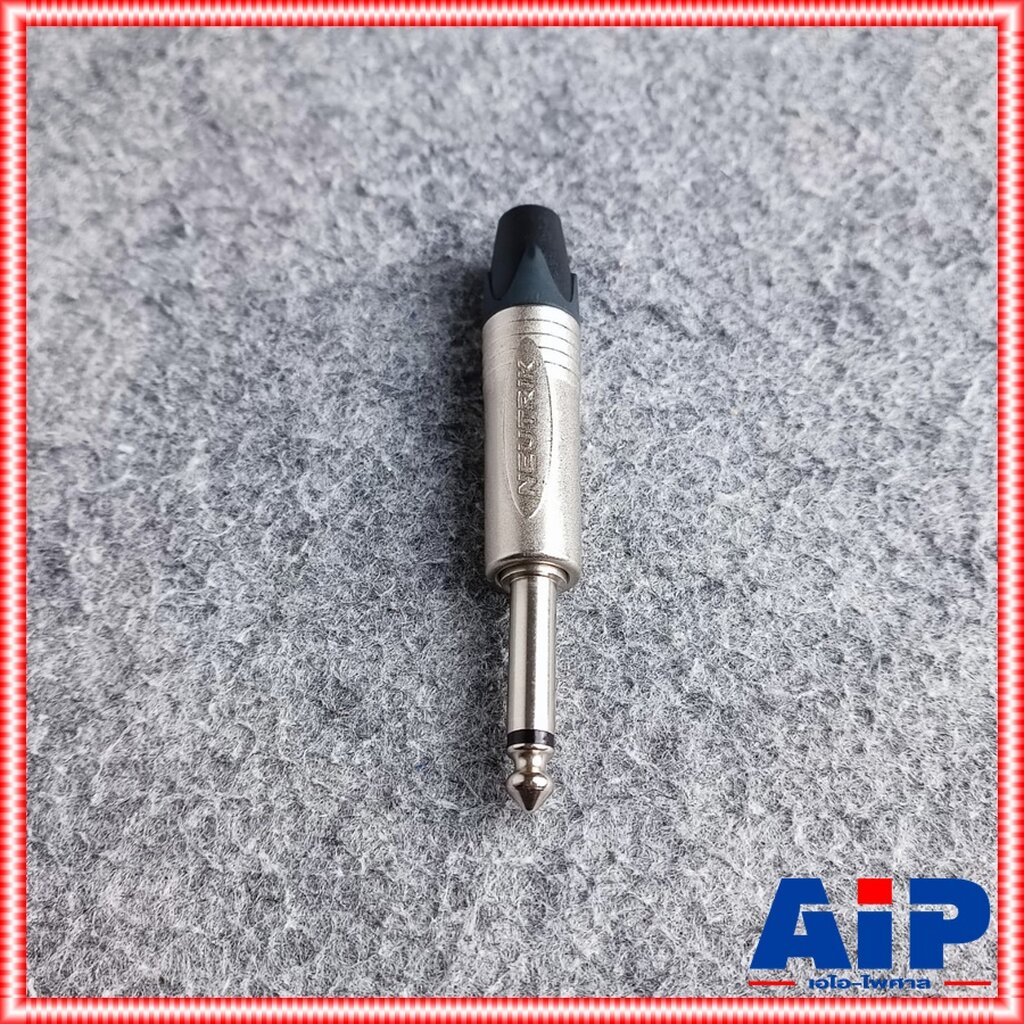

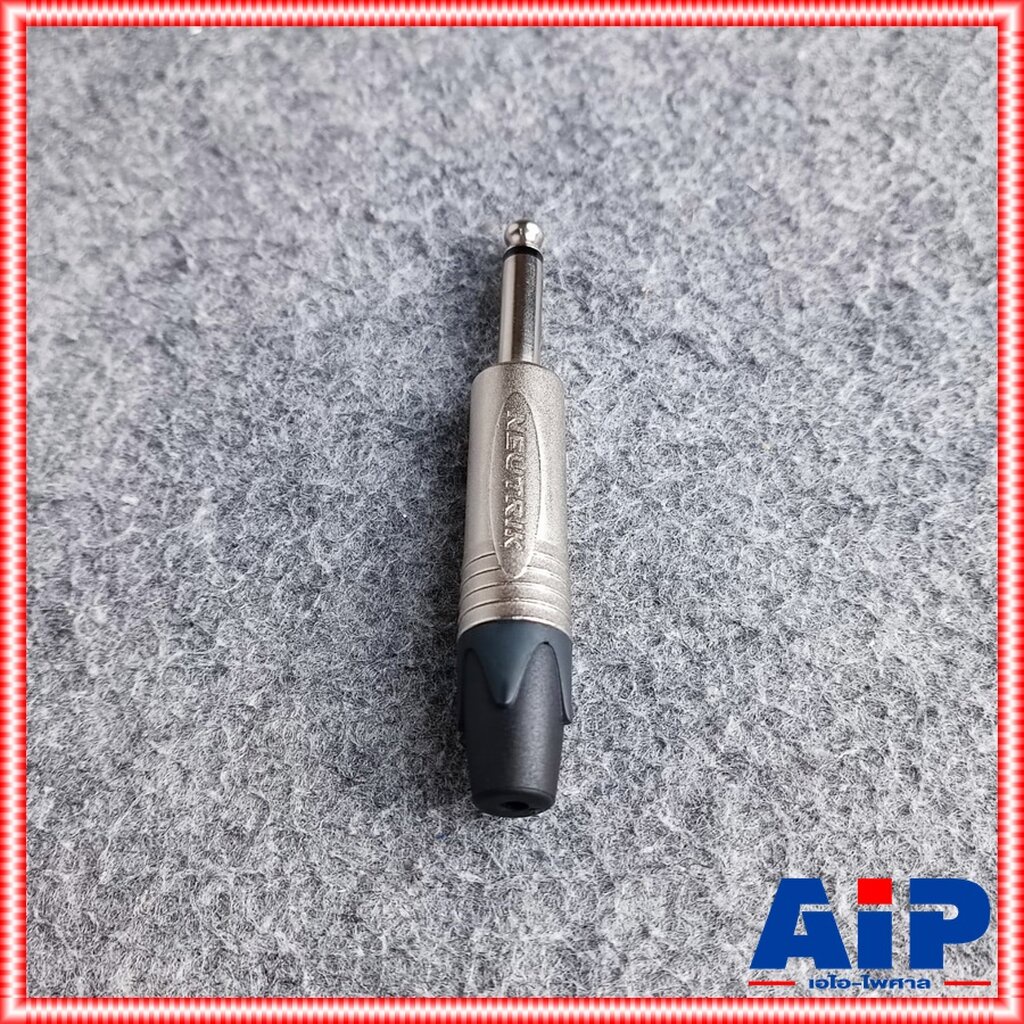

Neutrik NP2X (Phone Mono) NP2X The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks. 1/4" professional phone plug, 2 pole, nickel contacts, nickel shell Features & Benefits Extra slim 1/4" plug for highest packing density Robust diecast shell in stylish design Improved chuck type strain relief for reliable cable retention Sleek design for best handling convenience Precision machined one-piece contacts - avoid hook up of tip contact Product Connector Type Plug Gender male Electrical Contact resistance depends on mating connector mΩ Dielectric strength 1 kVdc Insulation resistance > 2 GΩ (initial) Insulation resistance ≥ 1 GΩ (after damp heat test) Rated current per contact ≤ 15 A Mechanical Cable O.D. 4 - 7 mm Wire size 1 mm² Wire size 18 AWG Wiring Solder contacts Material Bushing Polyacetal (POM) + PU Contact plating 2 µm Ni (Su) Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 6.6 30 % GR) Shell Zinc diecast (ZnAl4Cu1) Shell plating Nickel Strain relief Polyacetal (POM) Environmental Standard compliance IEC 60603-11 / EIA RS-453 Solderability Complies with IEC 68-2-20 Temperature range -20 °C to +65 °C
