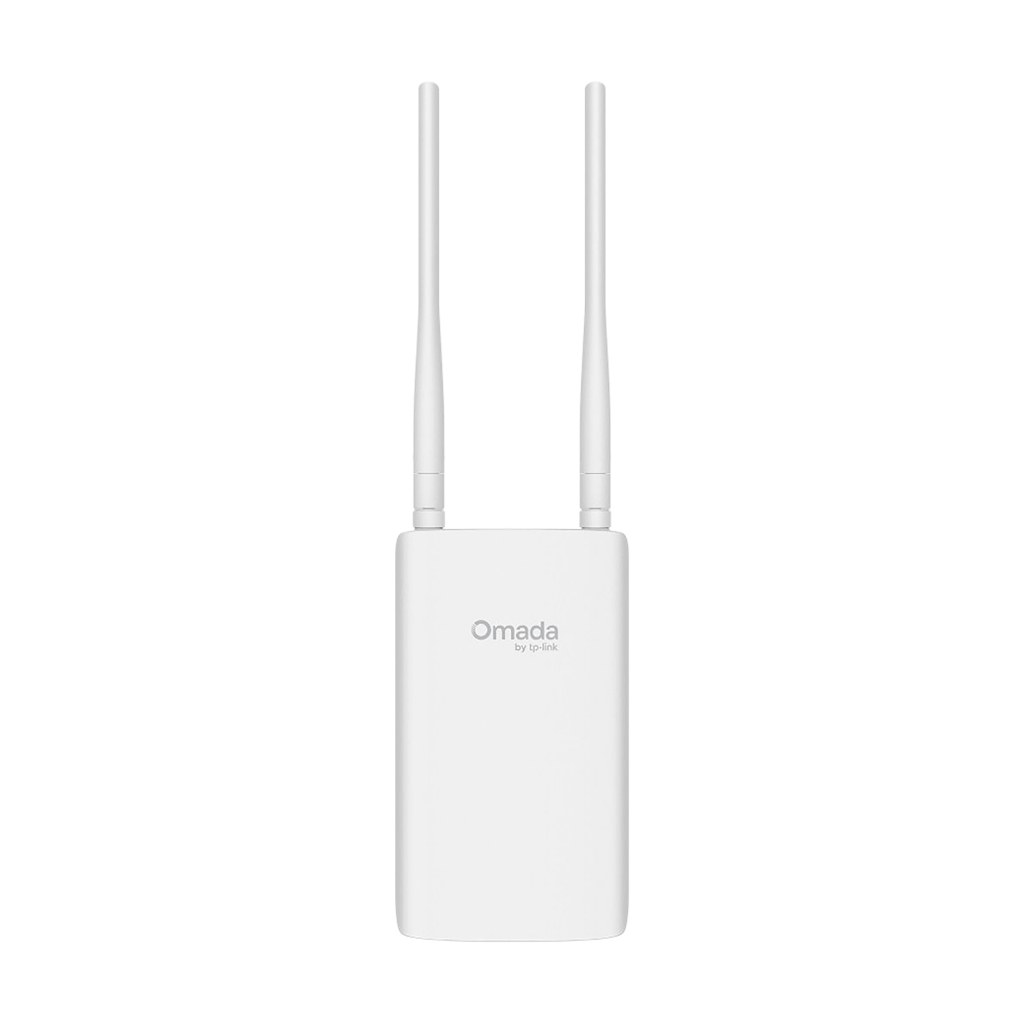

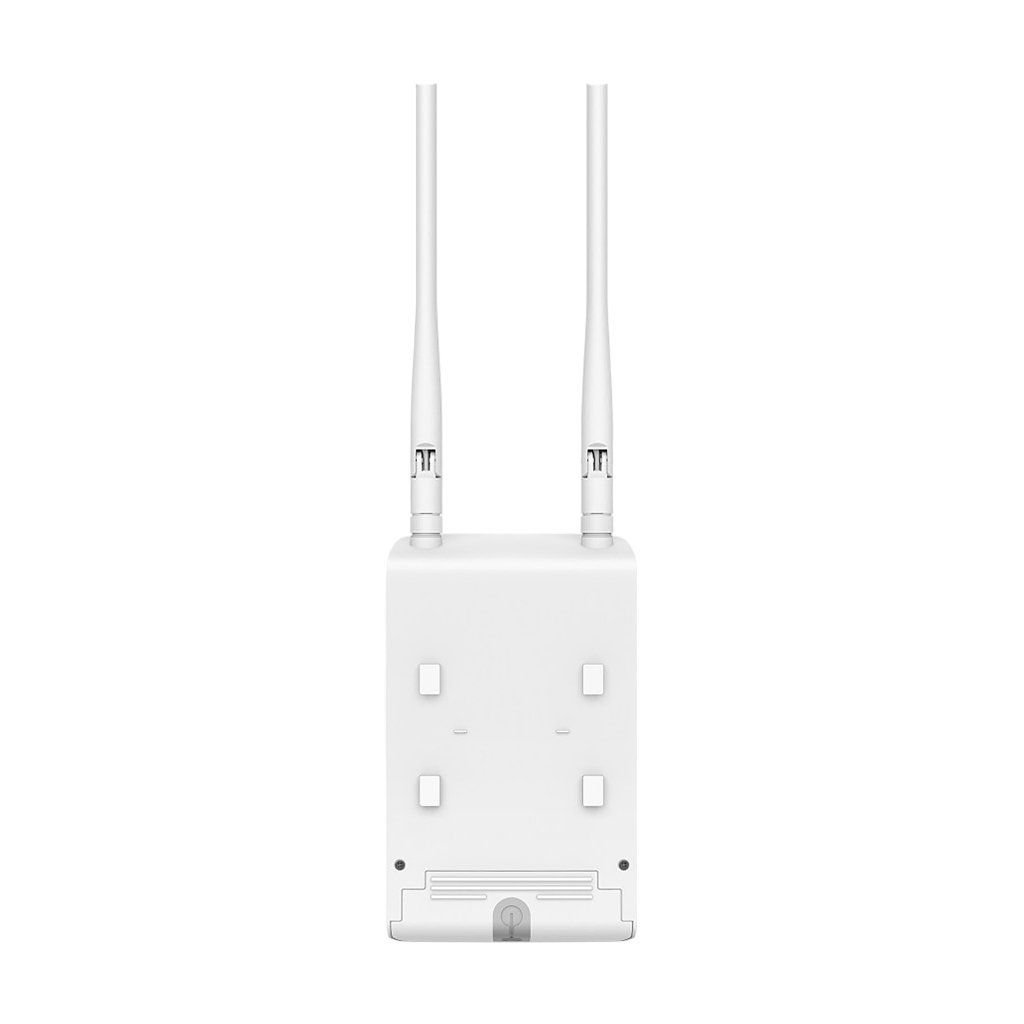

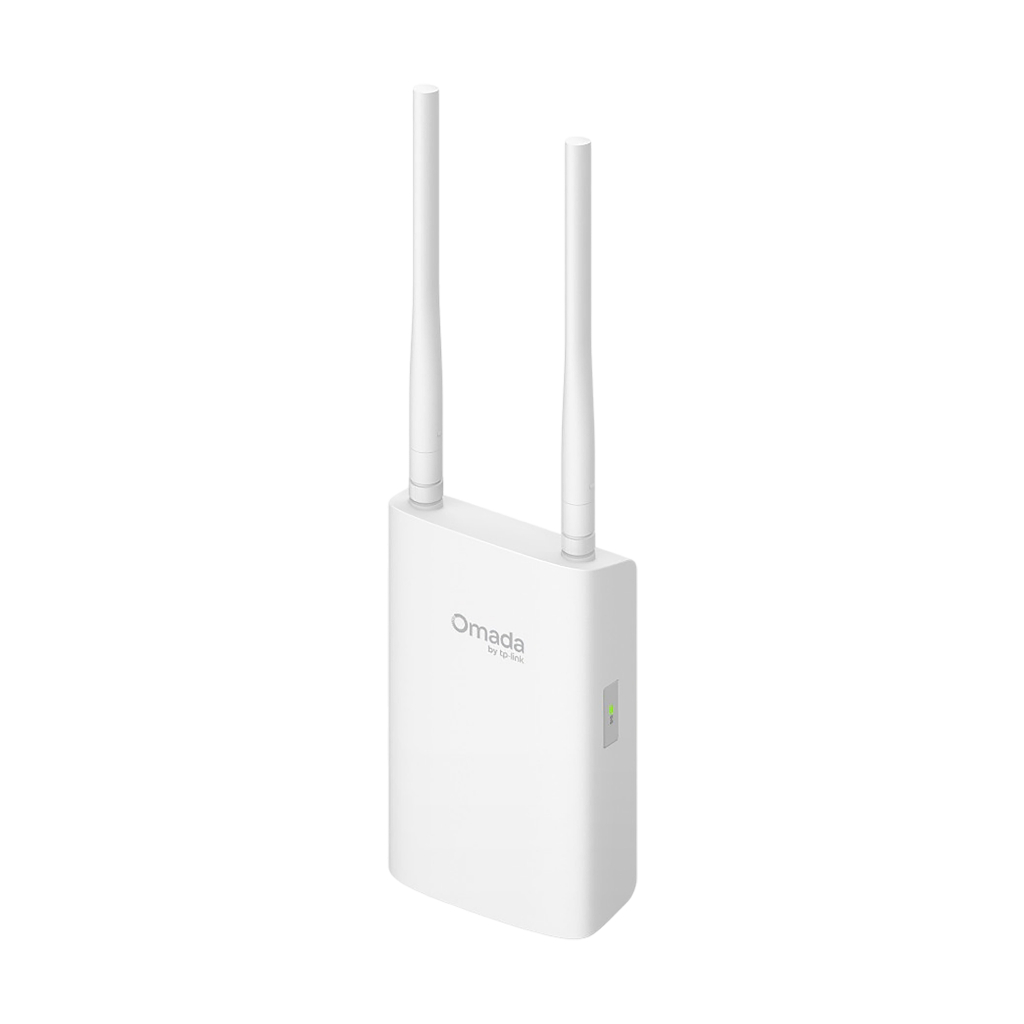

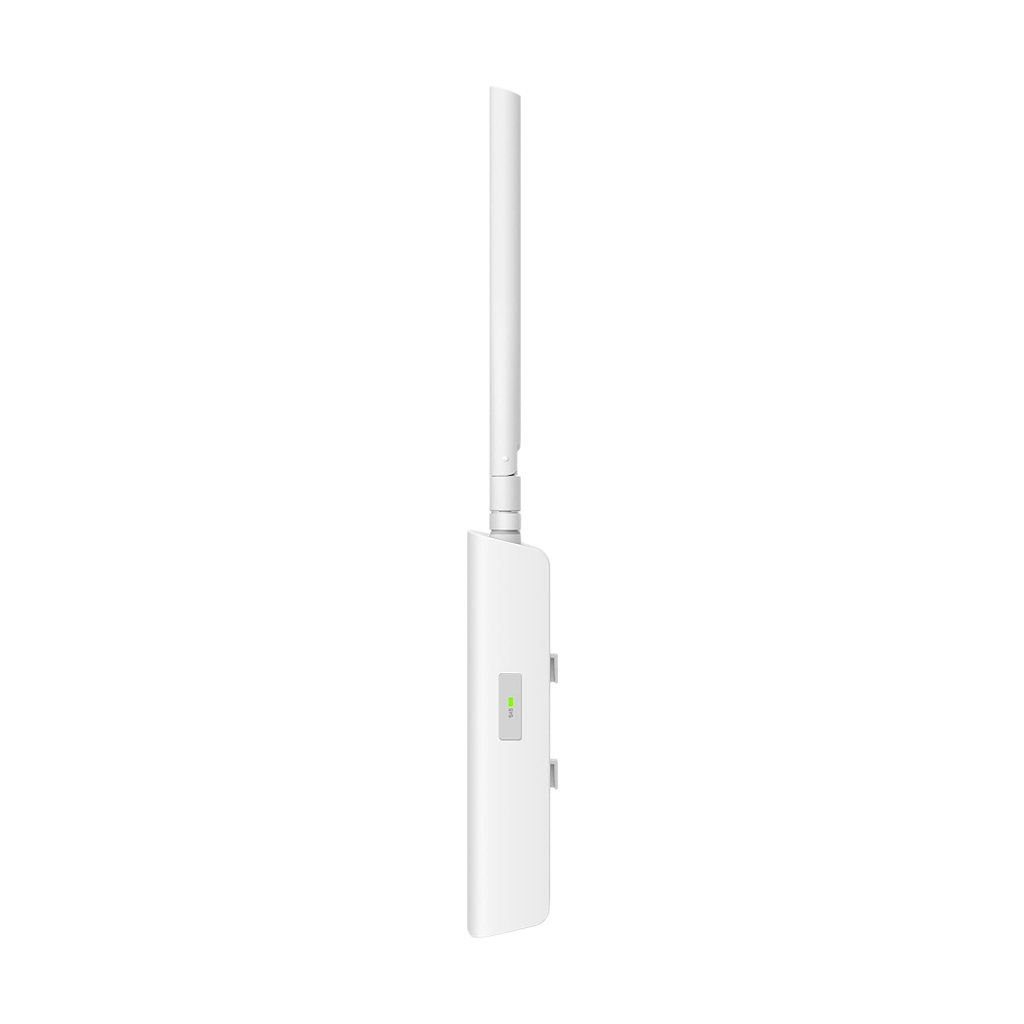

TP-Link EAP603-Outdoor AX1800 Indoor/ Outdoor Wi-Fi 6 Access Point (EAP603-Outdoor)

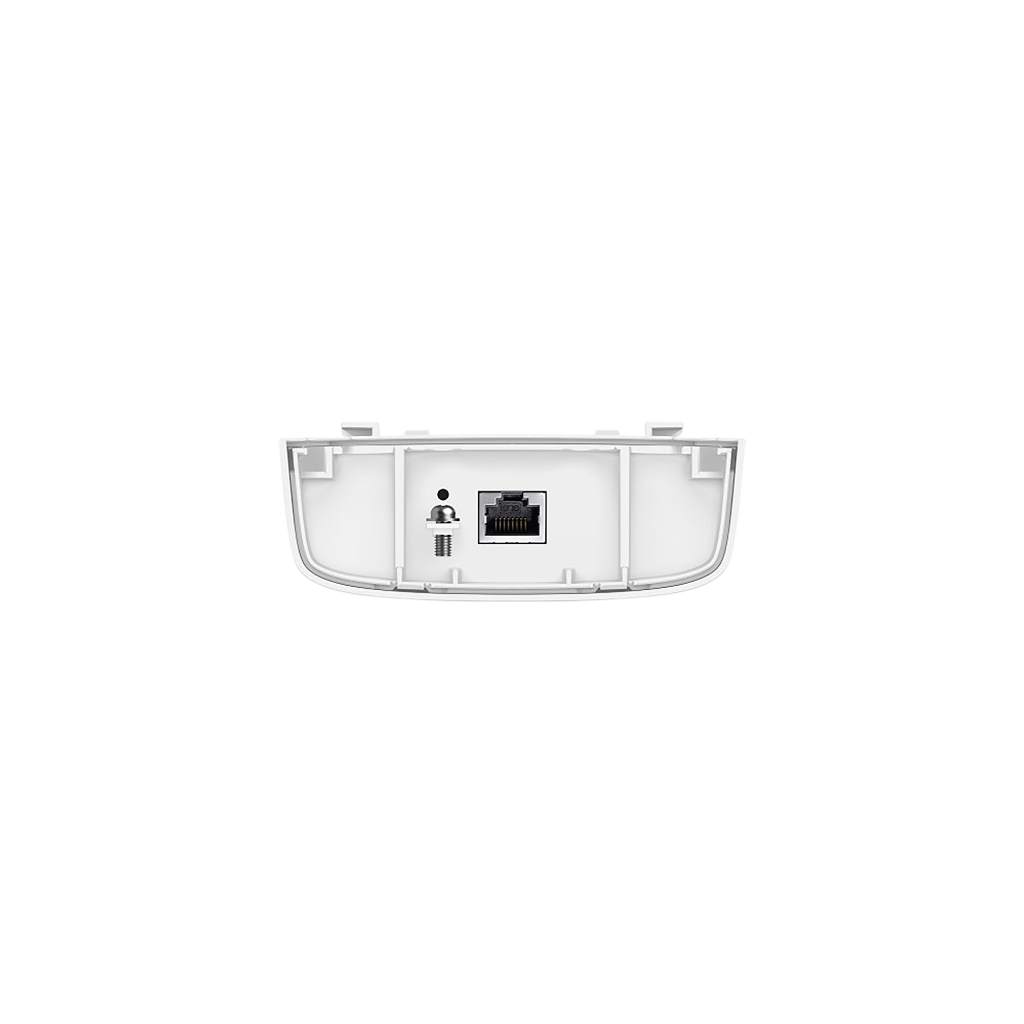

HARDWARE FEATURES Interface • 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in • 1× Grounding Termina Button • 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. Power Supply • Input: 802.3at PoE+: 42.5 - 57 V, 0.36A Max. Power Consumption • 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc. • Idle mode: 4.8W(PoE) Dimensions ( W x D x H ) • Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.) • Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.) Antenna Wi-Fi • 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas • 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas *Note: The gains above are the single-antenna peak gains. IoT • Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas Bluetooth • Yes Weatherproof Enclosure • IP66 for Wall Mount • IP65 for Pole Mount Mounting • Pole Mount (Kits included) • Wall Mount (Kits included) WIRELESS FEATURES Coverage • 2.4 GHz: up to 2,150 ft (200 m) • 5 GHz: up to 3,200 ft (300 m) Wireless Standards • 5 GHz: IEEE 802.11a/n/ac/ax • 2.4 GHz: IEEE 802.11b/g/n/ax Frequency • 5 GHz • 2.4 GHz Signal Rate • 2.4 GHz: up to 573 Mbps • 5 GHz: up to 1201 Mbps *Note: Country-Specific Restriction Apply Wireless Functions • Maximum number of BSSIDs: 16 (8 on each band) • Maximum number of associated STAs: 250+ • Guest Network • ACS (Automatic Channel Selection) • Airtime Fairness • Band Steering • 802.11 Rate Control • Rogue AP Detection • URL Filtering • WLAN Optimization • Lock to AP • SSID/Client Rate Limit • Load Balance • Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§ • Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit) • QoS (Quality of Service) Wireless Security • ACL • MAC Filter • 802.1X Authentication • MAC-Based Authentication • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None • Radius Accounting • PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC) • Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client • EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1 Transmission Power Maximum transmit power: CE (ERIP) • 2.4 GHz: 20 dBm • 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power) • 2.4 GHz: 25 dBm • 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3 Minimum transmit power CE (ERIP) • 2.4 GHz: 7 dBm • 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3 FCC (Conducted Power) • 2.4 GHz: 4 dBm • 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3 Adjustable power increment: 1 dBm *Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations Management Features Omada App • Yes Restore & Backup • Yes Firmware update via Web • Yes NTP Yes Centralized Management • Omada Hardware Controller • Omada Software Controller • Omada Central (Cloud-Based) • Omada App Cloud Access • Yes. Require the use of an Omada controller. Email Alerts • Yes LED ON/OFF Control • Yes Management MAC Access Control • Yes SNMP • v1, v2c, v3 SSH • Yes Web-based Management • Yes OTHERS Certification • CE, FCC, RoHS Package Content • EAP603-Outdoor • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit Environment • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
