XY-LPWM โมดูลเครื่องกําเนิดสัญญาณ Pwm - Lpwm 1hz - 150 Khz XY-LPWM 1Hz-150Khz Signal Generator PWM Board Module Pulse Frequency Duty Cycle Adjustable Module

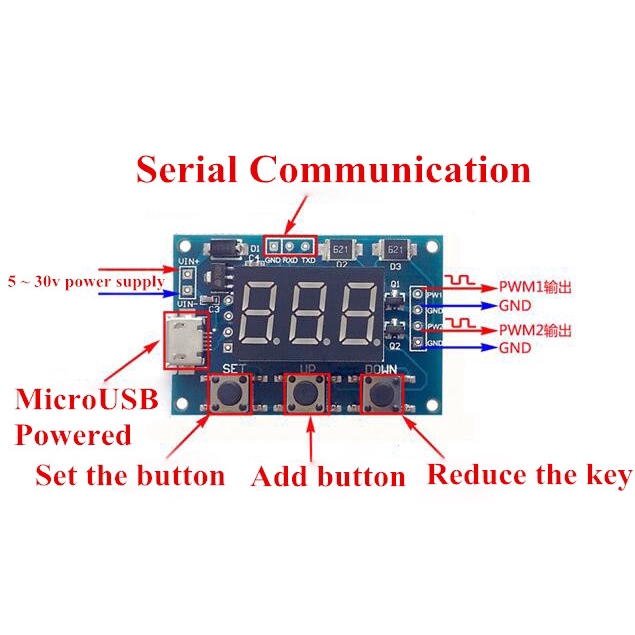

XY-LPWM 1Hz-150Khz Signal Generator PWM Board Module Pulse Frequency Duty Cycle Adjustable Module LCD Display 3.3V-30V For more details, please see the link picture, thank you Highlights 1 LCD display frequency and duty cycle, very clear, PWM output can be set separately frequency and duty cycle; 2. Wide frequency range, high precision; 3. It can use serial communication Description PWM output, you can set the frequency, duty cycle; Frequency is divided into four ranges, automatic switching: 1. XXX (no decimal point): the smallest unit is 1Hz, the value range of 1Hz ~ 999Hz; 2. X.XX (decimal point in the hundred) the smallest unit is 0.01Khz, the range of 1.00Khz ~ 9.99Khz; 3. XX.X (decimal point in ten): the smallest unit is 0.1Khz; value range of 10.0KHz ~ 99.9KHz 4. X.X.X (decimal point in ten and hundred): the smallest unit is 1Khz; value range 1KHz ~ 150KHz e.g. frequency display: 100 indicates PWM output 100Hz pulse; 1.01 indicates PWM output 1.01K pulse; 54.1 indicates that the PWM output has a pulse of 54.1 kHz; 1.2.4 indicates that the PWM output is 124 kHz pulse; Duty cycle range: 0 ~ 100%; All set parameters, power down save. Parameter settings The module has four independent keys, used to set the frequency and duty cycle, support short press (increase or decrease a unit) and long press (fast increase or decrease), very simple, set the parameters automatically save, power failure Lost. Module parameters 1. Working voltage: 3.3 ~ 30V; 2. Frequency range: 1Hz ~ 150KHz; 3. Frequency accuracy: the accuracy in each range is about 2%; 4. Signal load capacity: the output current can be about 5 ~ 30ma; 5. Output amplitude: PWM amplitude equal to the supply voltage; 6. Ambient temperature: -20 ~ +70 ℃. Scope of application 1. Used as a square wave signal generator, generate square wave signal for experimental development and use; 2. Used to generate a square wave signal that controls the motor driver; 3. generate adjustable pulse for MCU use; 4. Generate adjustable pulse, control related circuit (PWM dimming speed and other applications) For more details, please see the link picture, thank you Package Included: 1pcs * XY-LPWM 1Hz-150Khz Signal Generator PWM Board Module Before purchase: 1. All the goods are in stock and we will dispatch immediately if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. Shipment： 1.1-2 days to ship(except for the pro-order item) After purchase: 1.If you are satisfied，please give us 5 stars praise. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. if you receive a defect item,please contact us at once with item picture or video #XY-LPWM #1Hz-150Khz #Signal #Generator #PWM #Board #Module #Pulse #Frequency #Duty #Cycle #Adjustable #Module #LCD #Display #3.3V-30V
