เฟืองเกียร์มอเตอร์ 48DP 3.175 มม. 13T-15T 16T-18T 19T-21T 22T-24T 25T-27T 28T-30T 31T-33T

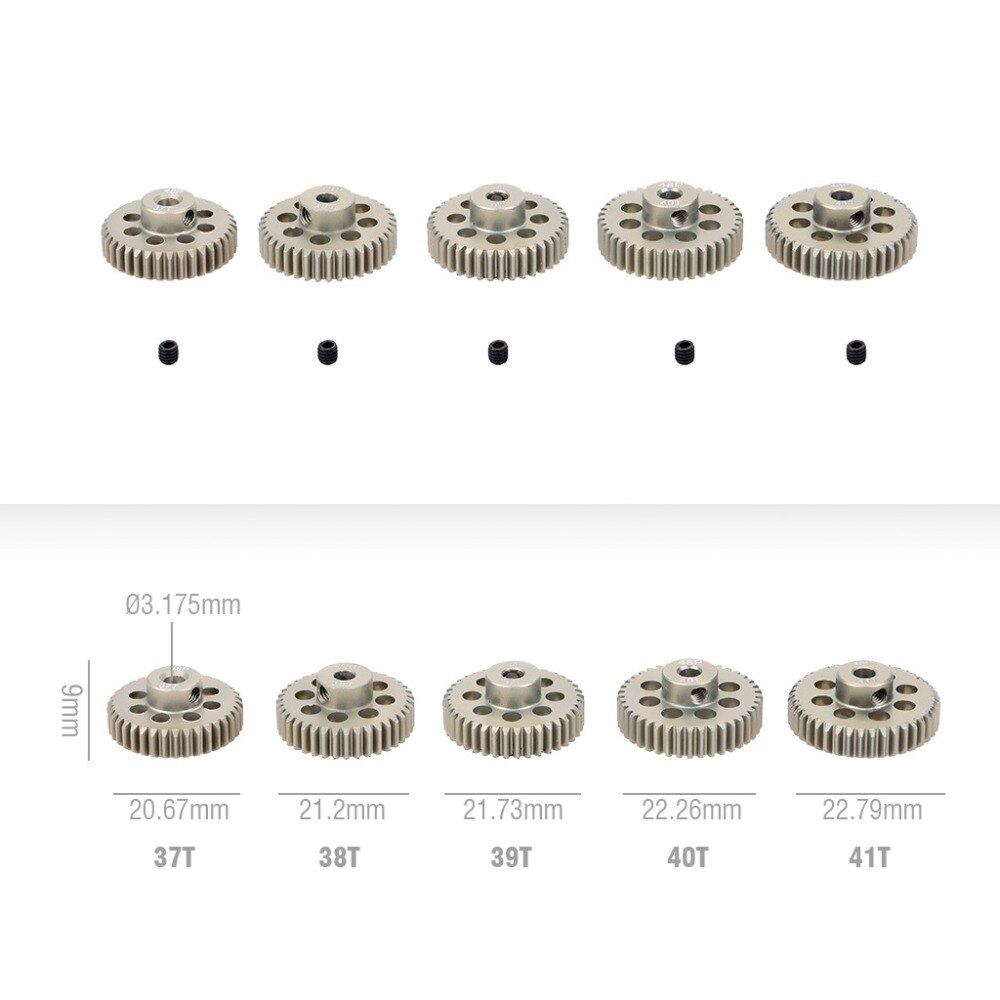

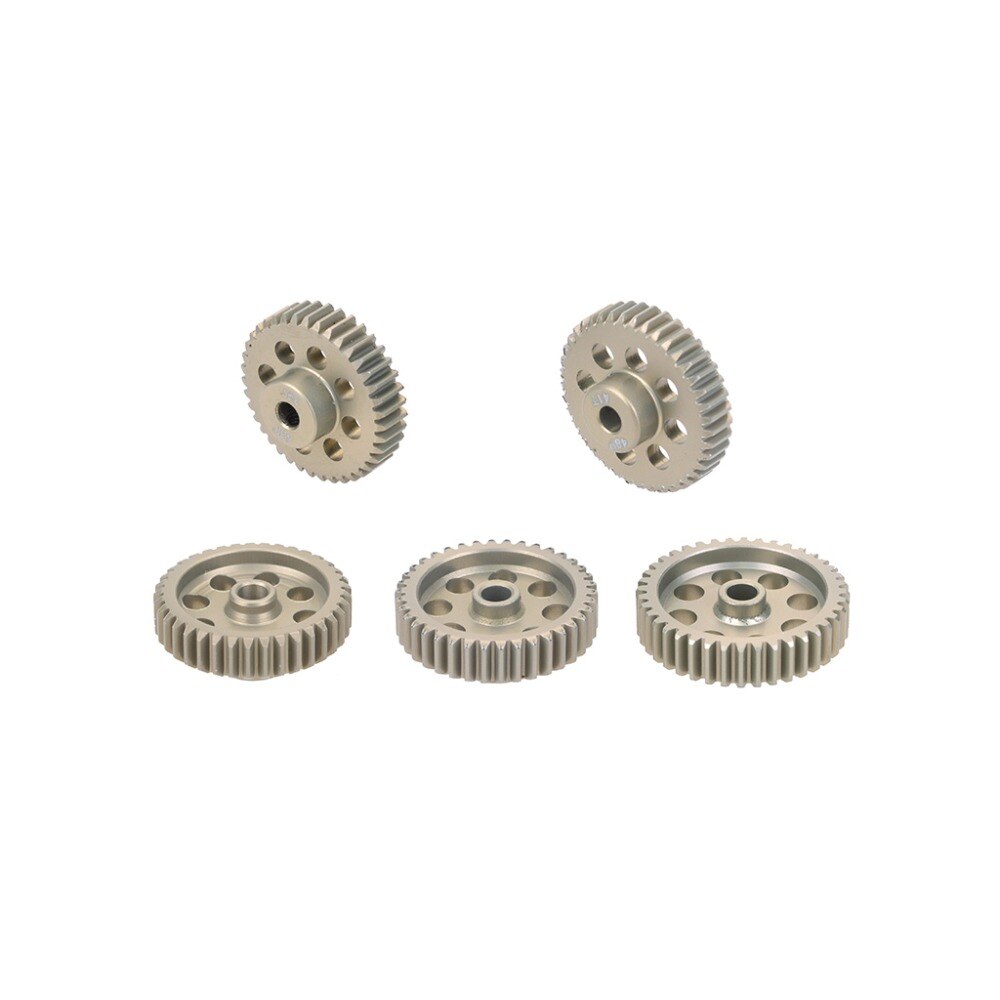

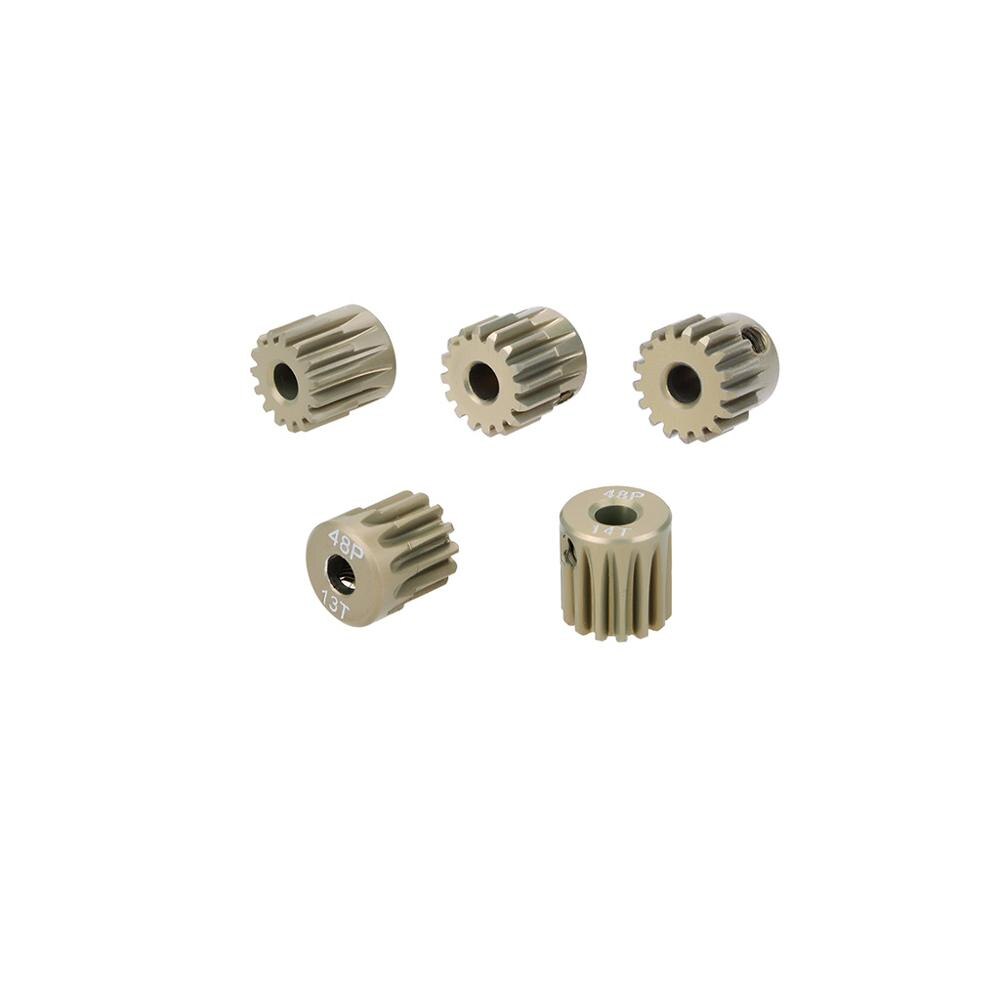

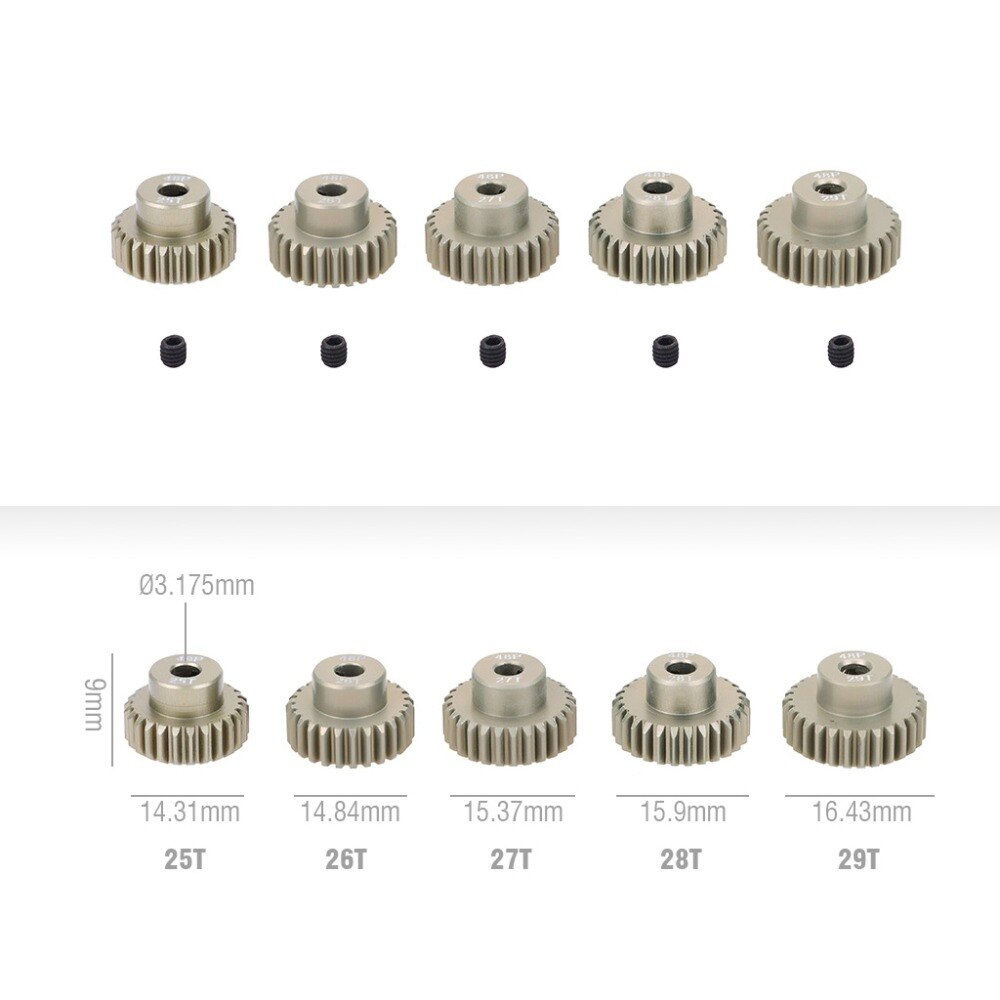

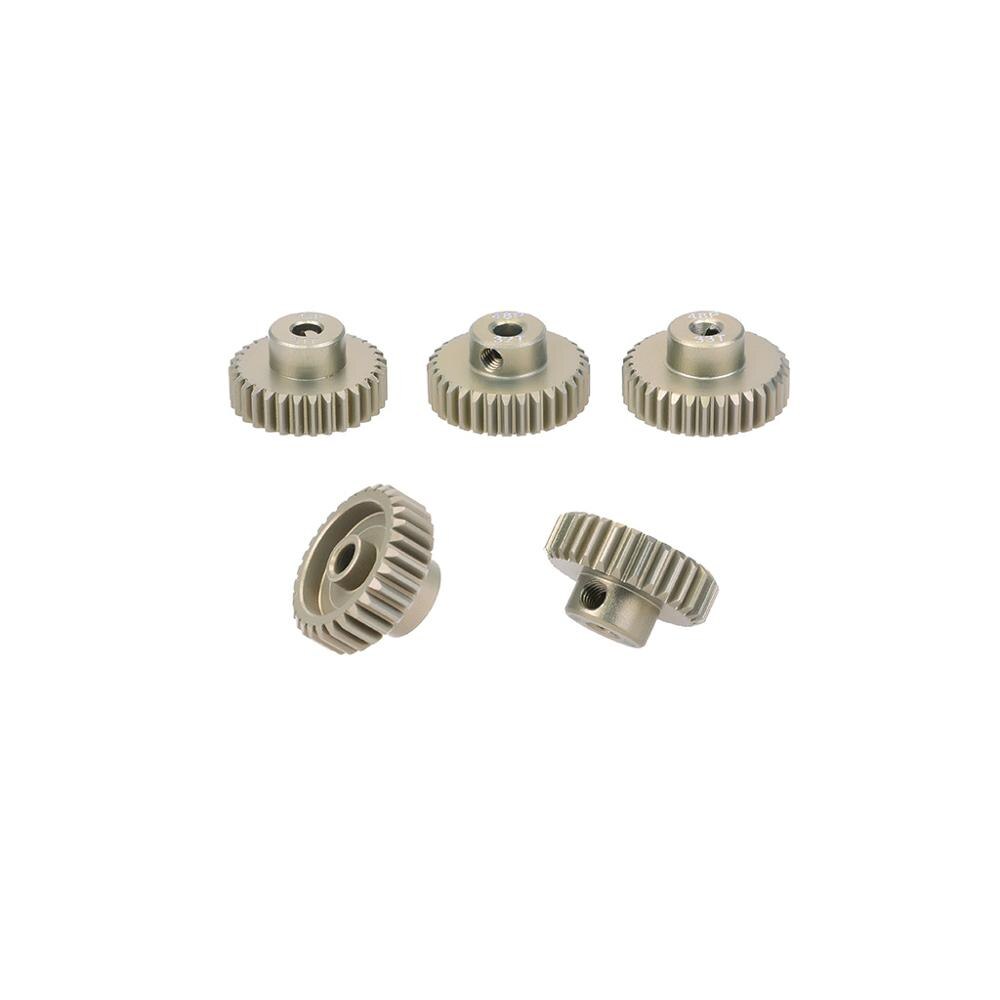

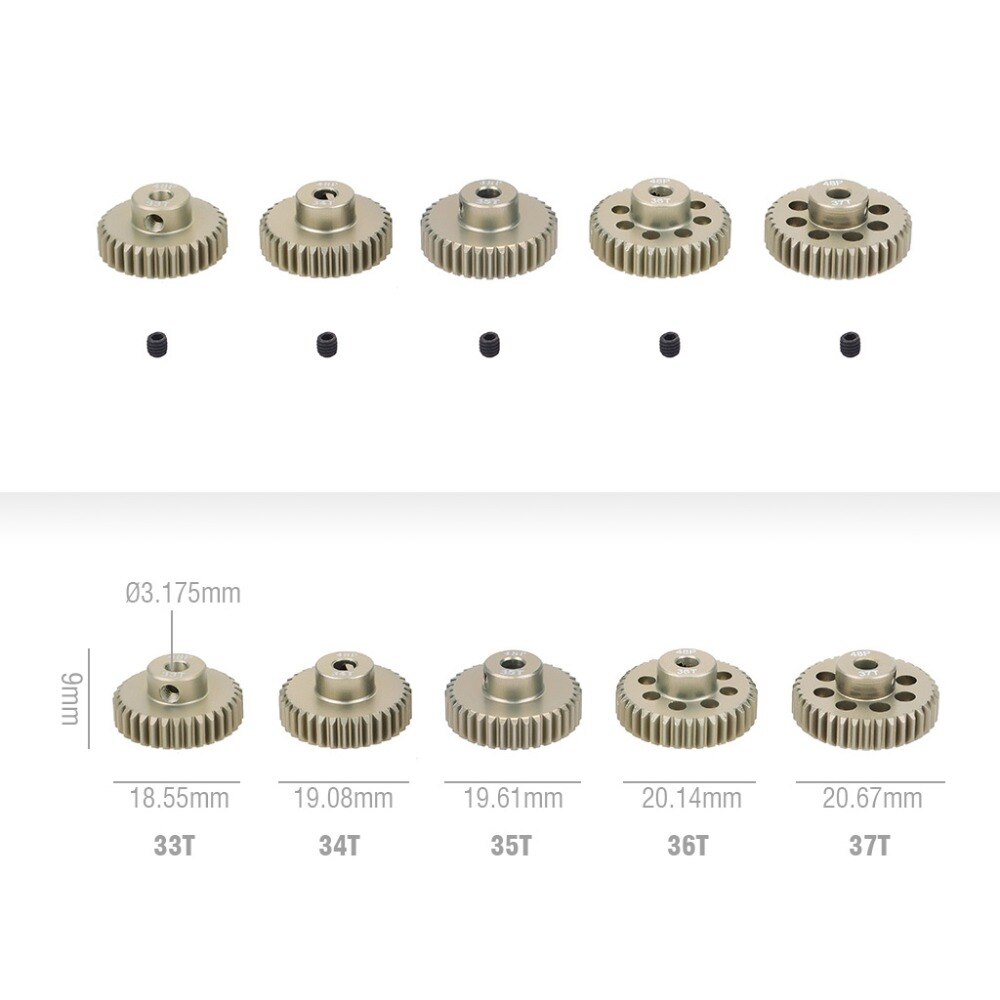

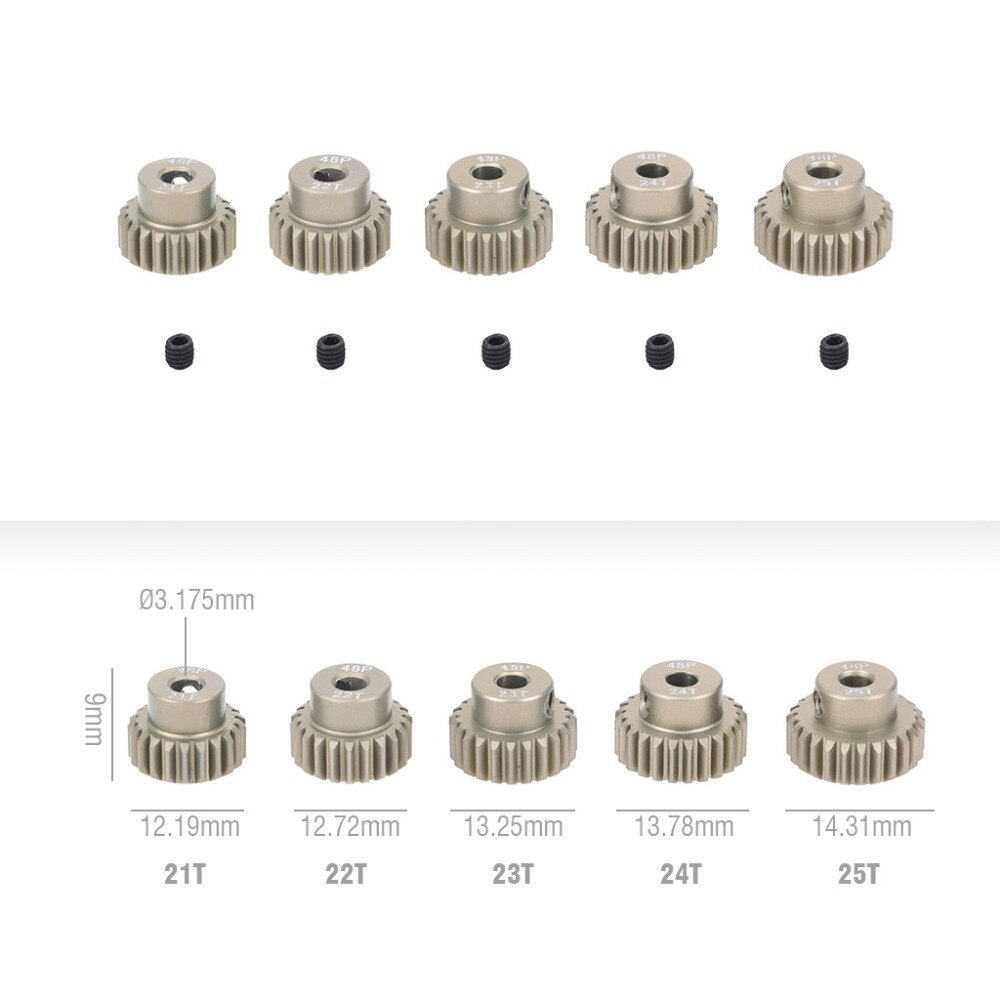

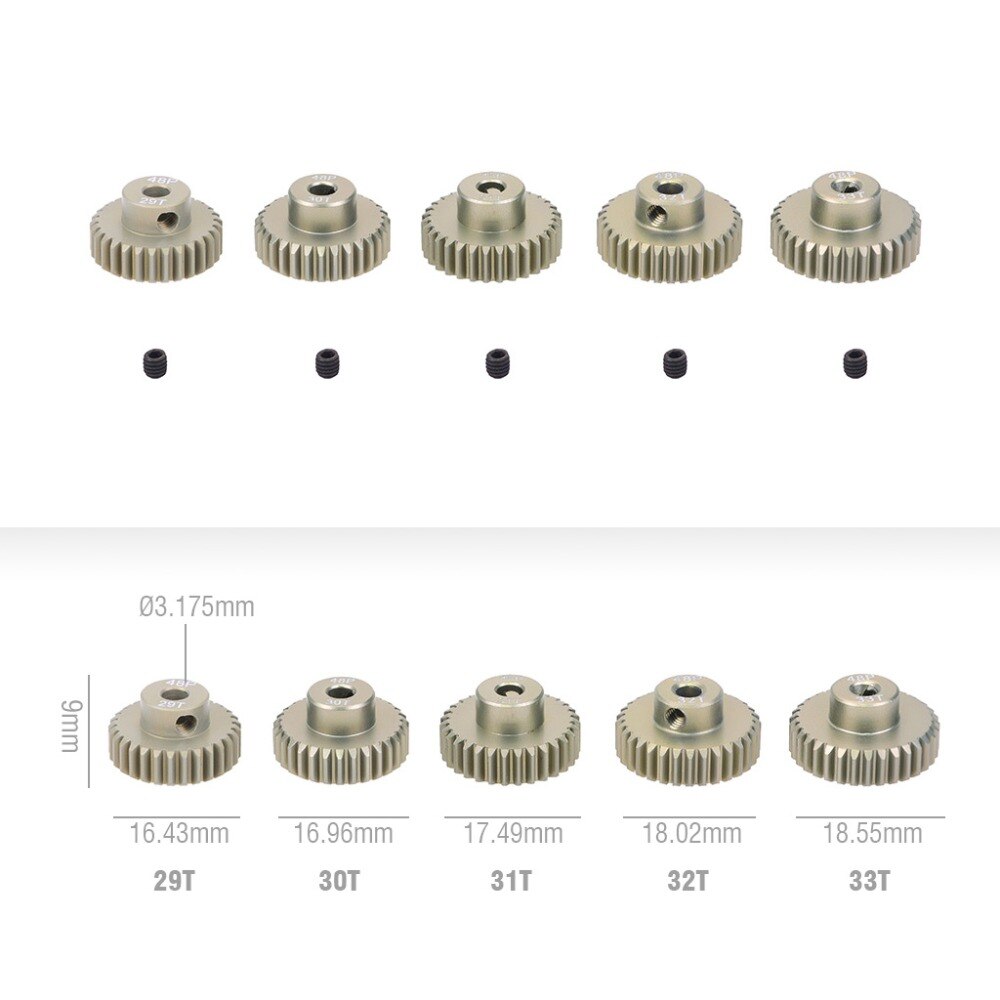

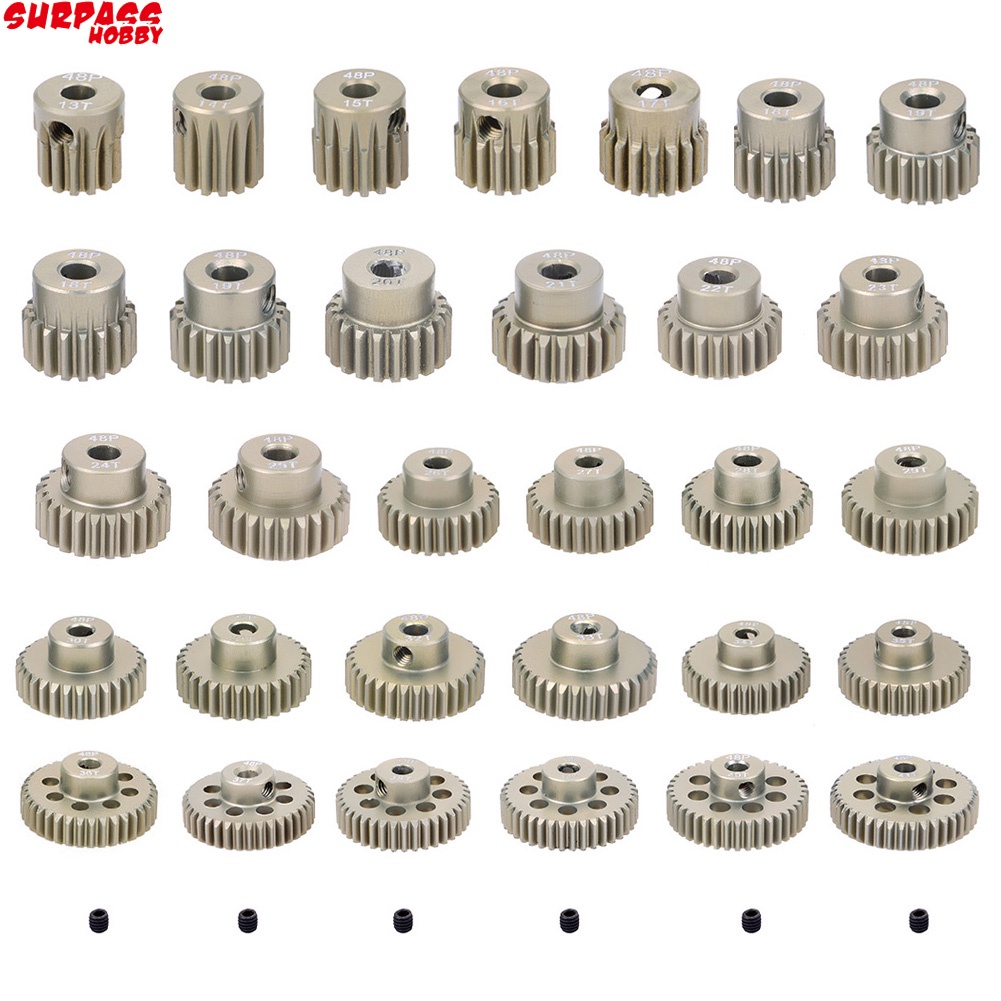

48DP 3.175mm 13T-15T 16T-18T 19T-21T 22T-24T 25T-27T 28T-30T 31T-33T 34T-36T 37T-39T 40T-42T 43T-45T 46T-48T Pinion Motor Gear Features: Easy installation, long service life and high quality. Hard anodized gear surface. Anti-rust treatment on the surface of the gear. Suitable for 1 / 10 RC model car 3.175mm shaft brushless brush motor. Specifications: Material: 7075 Aluminum Alloy Color:Titanium gold Diametral pitch: 48DP Teeth: 13T-48T 13T ￠3.175*￠7.95*9mm 14T ￠3.175*￠8.48*9mm 15T ￠3.175*￠9.01*9mm 16T ￠3.175*￠9.54*9mm 17T ￠3.175*￠10.07*9mm 18T ￠3.175*￠10.6*9mm 19T ￠3.175*￠11.13*9mm 20T ￠3.175*￠11.66*9mm 21T ￠3.175*￠12.19*9mm 22T ￠3.175*￠12.72*9mm 23T ￠3.175*￠13.25*9mm 24T ￠3.175*￠13.78*9mm 25T ￠3.175*￠14.31*9mm 26T ￠3.175*￠14.84*9mm 27T ￠3.175*￠15.37*9mm 28T ￠3.175*￠15.9*9mm 29T ￠3.175*￠16.43*9mm 30T ￠3.175*￠16.96*9mm 31T ￠3.175*￠17.49*9mm 32T ￠3.175*￠18.02*9mm 33T ￠3.175*￠18.55*9mm 34T ￠3.175*￠19.08*9mm 35T ￠3.175*￠19.61*9mm 36T ￠3.175*￠20.14*9mm 37T ￠3.175*￠20.67*9mm 38T ￠3.175*￠21.2*9mm 39T ￠3.175*￠21.73*9mm 40T ￠3.175*￠22.26*9mm 41T ￠3.175*￠22.79*9mm 42T ￠3.175*￠23.28*9mm 43T ￠3.175*￠23.81*9mm 44T ￠3.175*￠24.34*9mm 45T ￠3.175*￠24.87*9mm 46T ￠3.175*￠25.40*9mm 47T ￠3.175*￠25.93*9mm 48T ￠3.175*￠26.46*9mm Suitable shaft diameter: 3.175mm Suit for: 1/10 RC Car Brushed Brushless Motor
