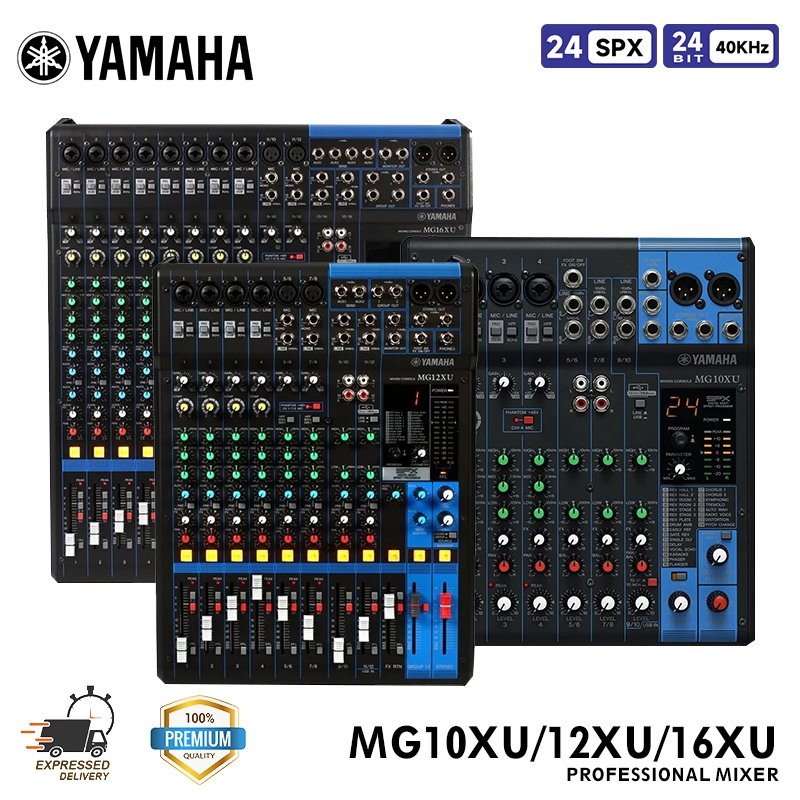

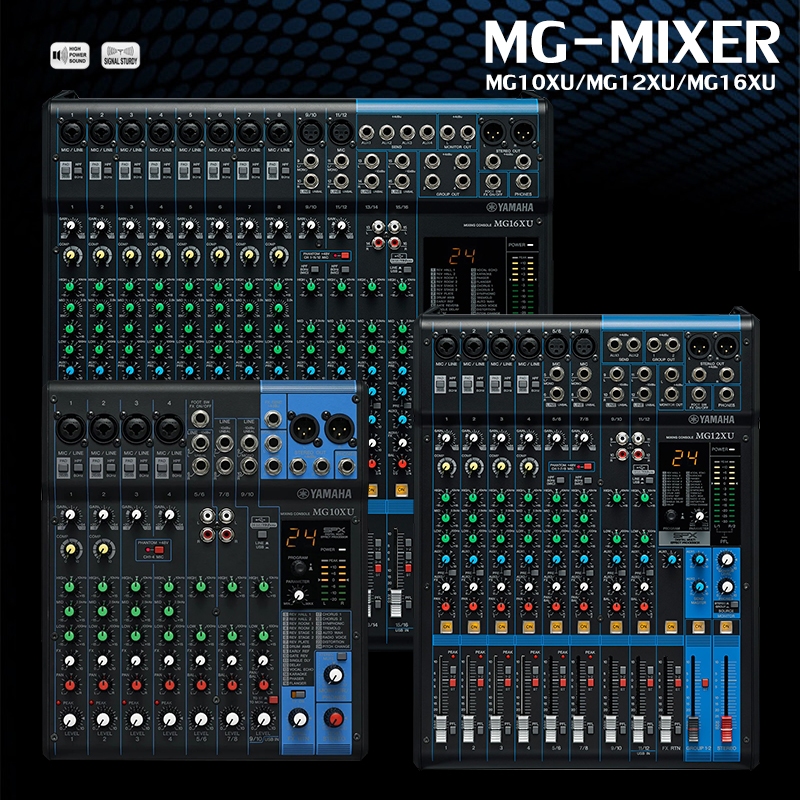

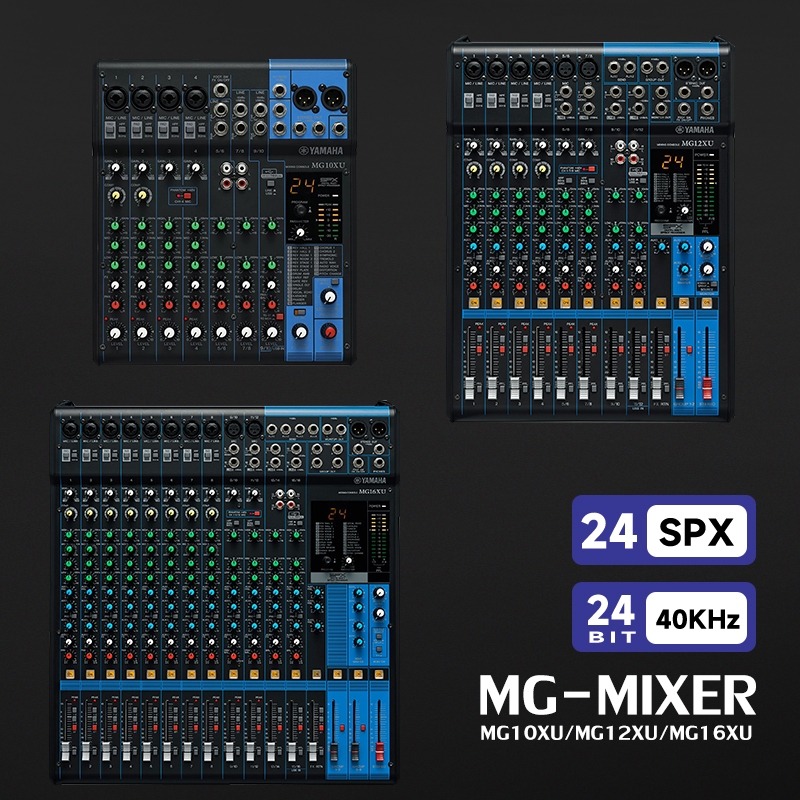

YAMAHA MG10XU MG12XU MG16XU มิกเซอร์ระดับมืออาชีพพร้อมเอฟเฟกต์ DSP ในตัว

YAMAHA MG-10XU MIXER 10-Channel Mixing Console Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo) 1 Stereo Bus 1 AUX (incl. FX) “D-PRE” mic preamps with an inverted Darlington circuit 1-Knob compressors High-grade effects: SPX with 24 programs 24-bit / 192kHz 2in / 2out USB Audio functions Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter Includes Cubase AI DAW software download version PAD switch on mono inputs +48V phantom power XLR balanced outputs Metal chassis Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6") Net Weight: 2.1 kg (4.63 lbs.) Specs Outline Mixing capability On-board processors SPX algorithm: 24 programs I/O Phantom power +48 V Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit Input Channels Mono[MIC/LINE] 4 Stereo[LINE] 3 Output Channels STEREO OUT 2 MONITOR OUT 1 PHONES 1 AUX SEND 1 Bus Stereo: 1, AUX[FX]: 1 Input Channel Function PAD 26 dB (Mono) HPF 80 Hz, 12 dB/oct (Mono) COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving PEAK LED LED turns on when post EQ signal reaches 3 below clipping Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0 -10, -20 dB] General specifications Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min Hum & noise level -Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) -Residual output noise -102 dBu (STEREO OUT, STEREO LEVE knob: Min) Crosstalk -83dB Power requirements PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha Power consumption 22.9 W Dimensions -W 244 mm (9.6") -H 71 mm (2.8") -D 294 mm (11.6") Net weight 2.1 kg (4.63 lbs.) Accessories Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5 Others Operating Temperature: 0 to +40˚C
