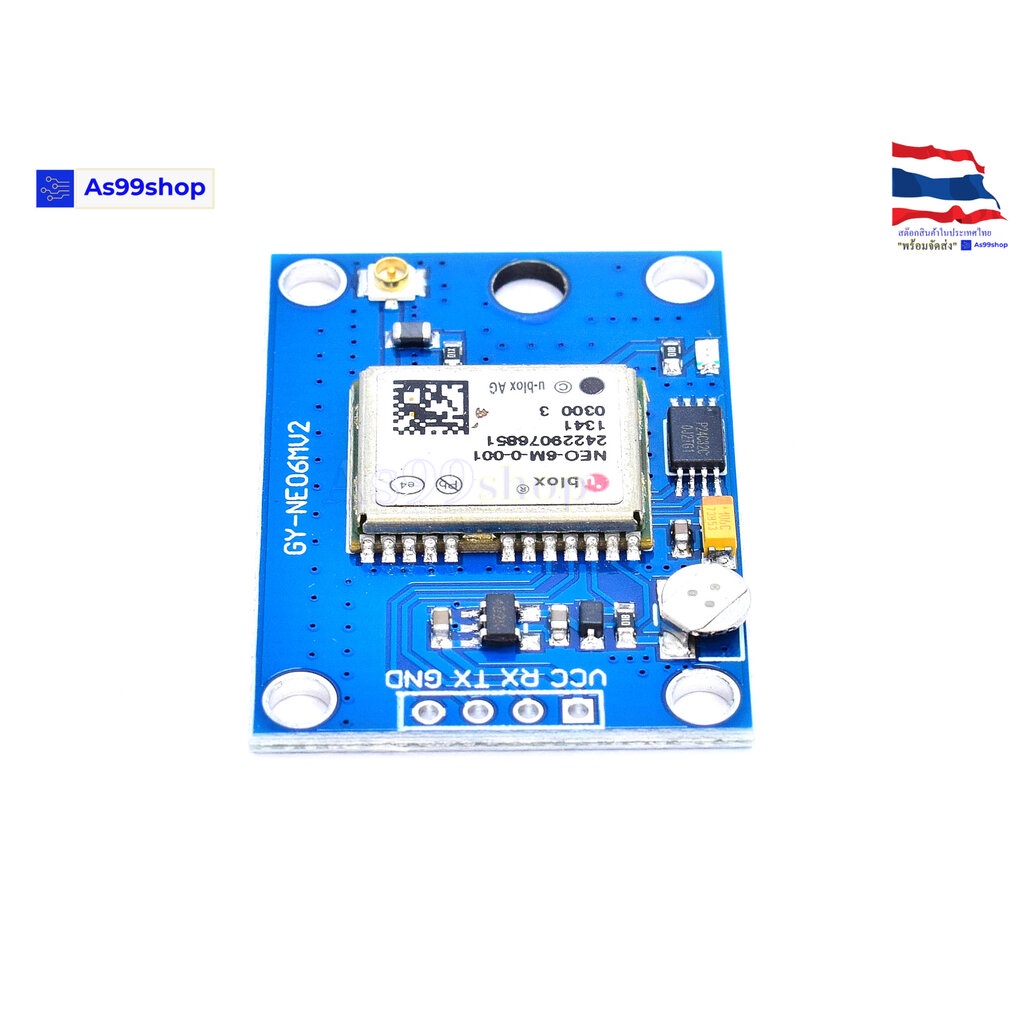

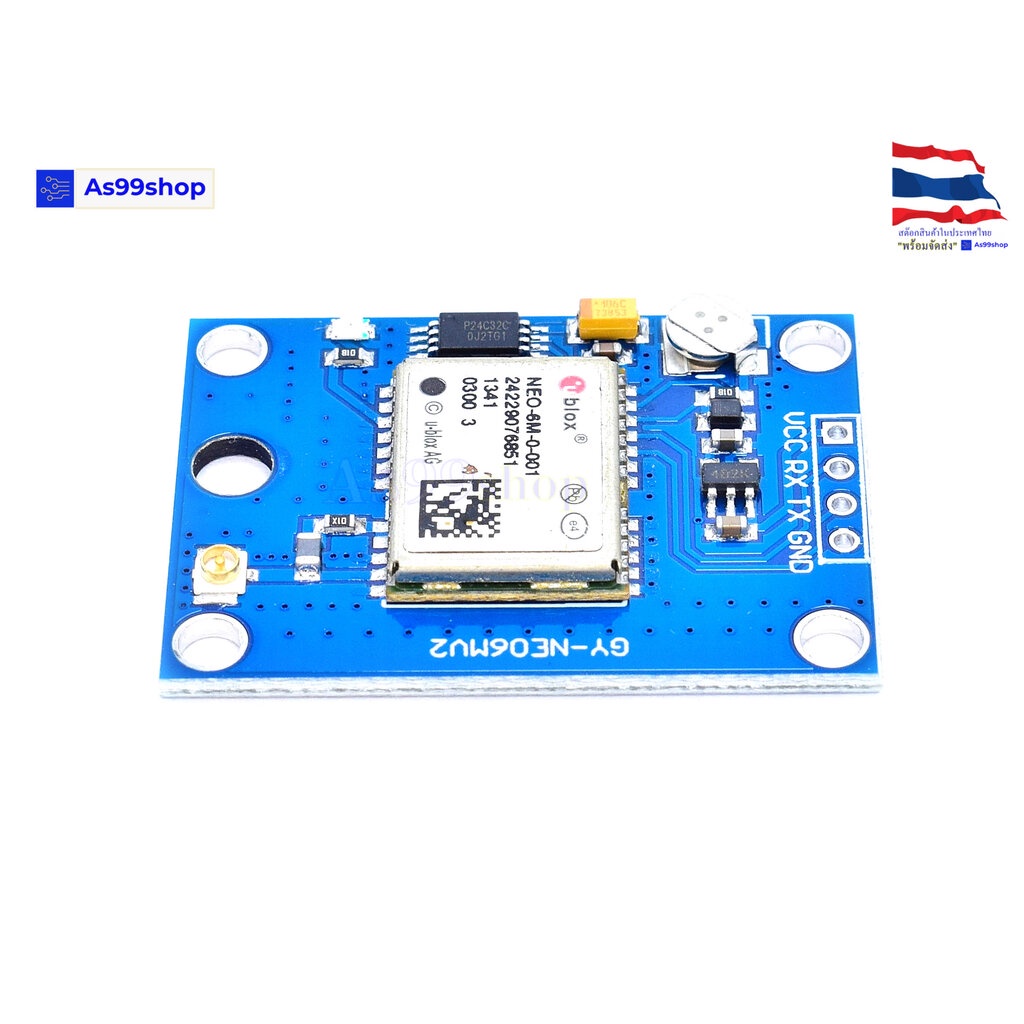

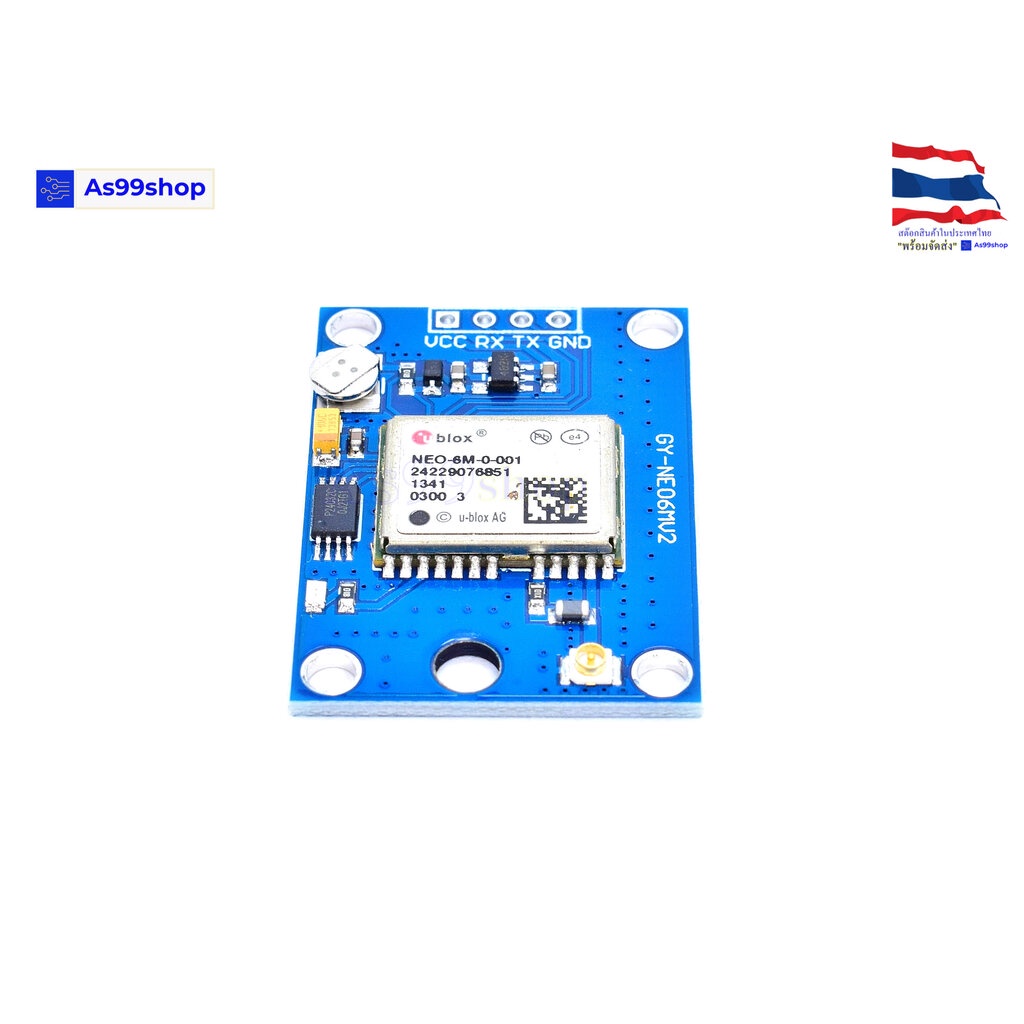

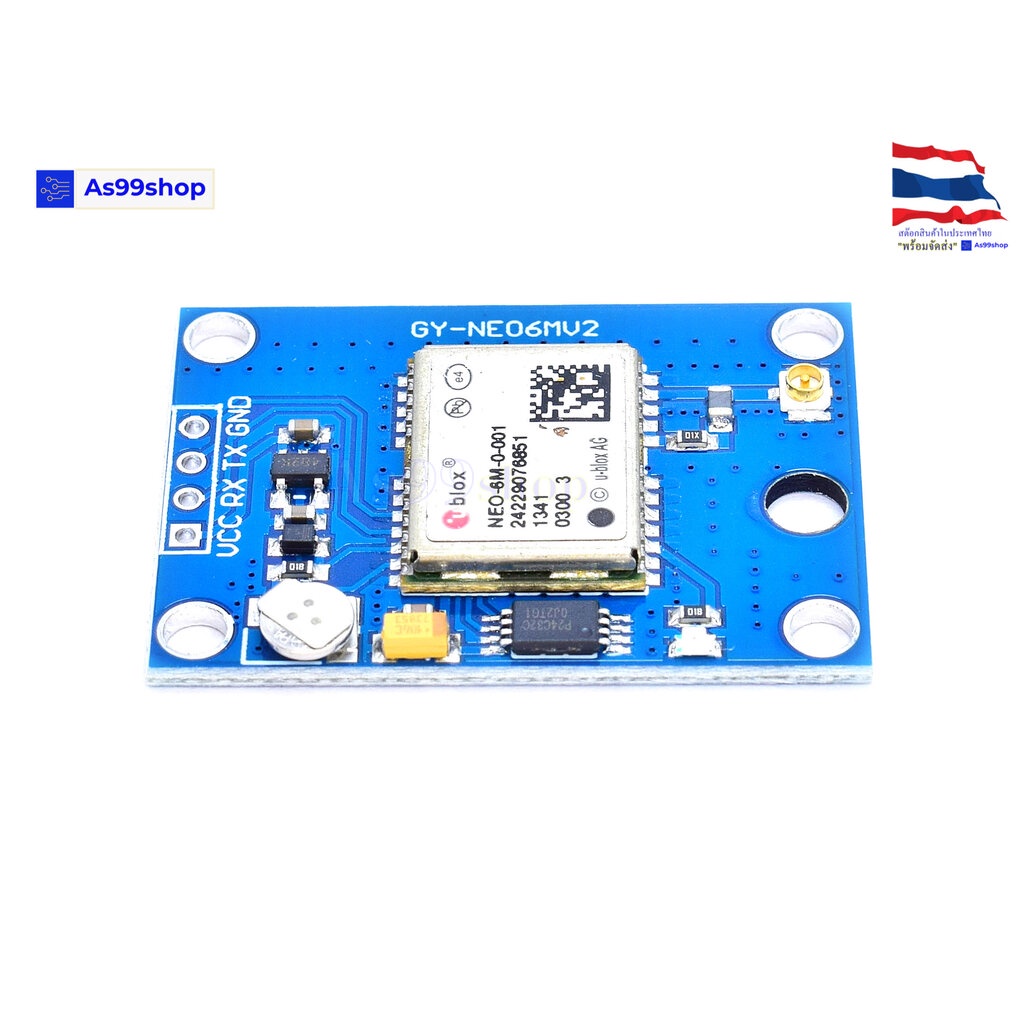

GY-NEO6MV2 GPS module NEO6MV2 (พร้อมเสาอากาศ)

GY-NEO6MV2 GPS module NEO6MV2 with antenna **หลังจาก GPS Start จะใช้เวลา1-5 นาที ในการหาตำแหน่ง รอจนไฟ LED สีแดงกระพริบถึงจะได้ตำแหน่ง( source code drive.) (มีสต็อกสินค้าในประเทศไทยพร้อมจัดส่ง) Features: - Based on u-blox NEO-6M GPS module with on-board backup battery and built-in EEPROM. - Comes with external U.FL ceramic antenna for better reception. - It is compatible with various flight controller boards designed to work with a GPS module, APM2.0 and APM2.5 just to name a few. - This module have built-in voltage regulator and it is sometime referred as GY-GPS6MV2. - Operating voltage: 3.3V to 5VDC. - Communication interface: UART TTL, 9600bps. - LED signal indicator. - Pin-out for power and interface - VCC: 3.3 to 5VDC - RX: Data receive in ( 6 input to GPS module) - TX: Data transmit out ( 5 Out from GPS module) - GND: Ground (Logic and power ground) - Dimension: 36 x 26 mm. - Weight: 22g. - https://drive.google.com/file/d/1fYtc5O6ZedOwyYj42iH60yV5AELvB01x/view
