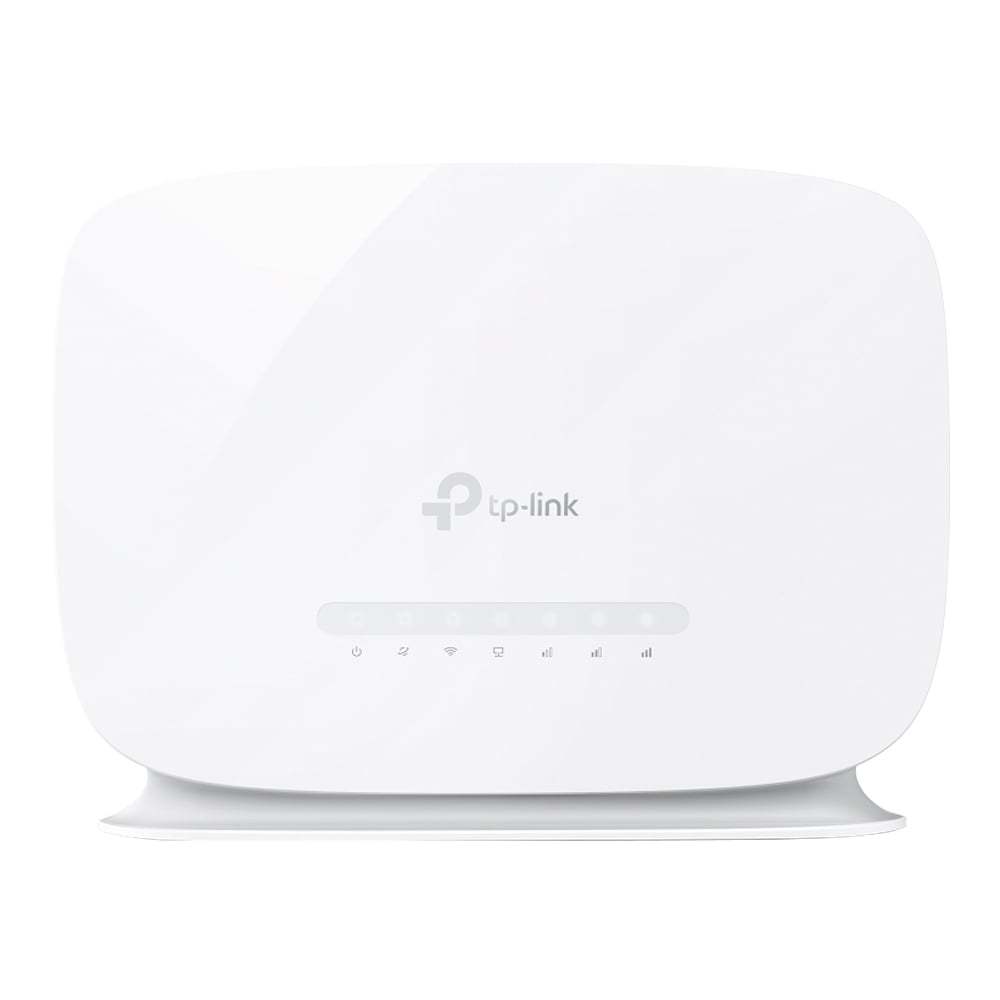

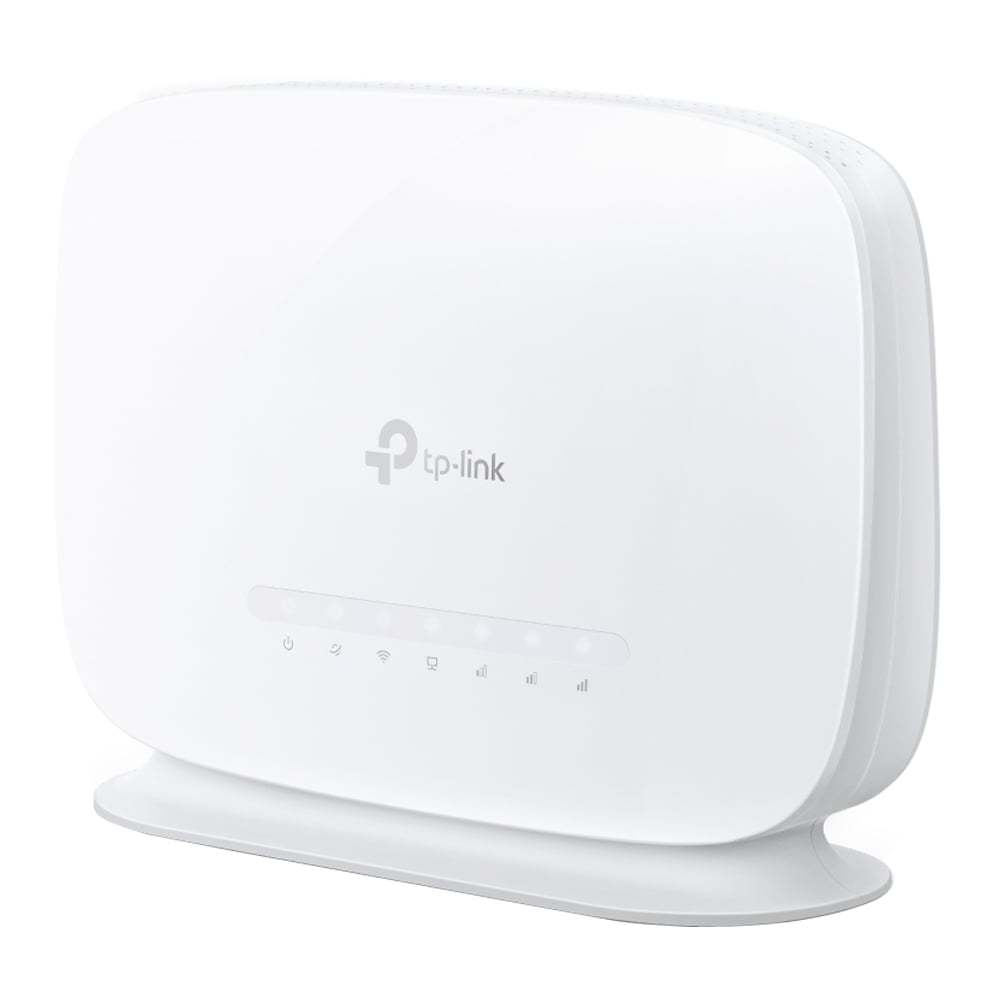

ROUTER WITH SIM CARD SLOT (เราเตอร์ใส่ซิมการ์ด) TP-LINK ARCHER MR505 - 4G+ CAT6 AC1200 WIRELESS DUAL BAND GIGABIT ROUTER

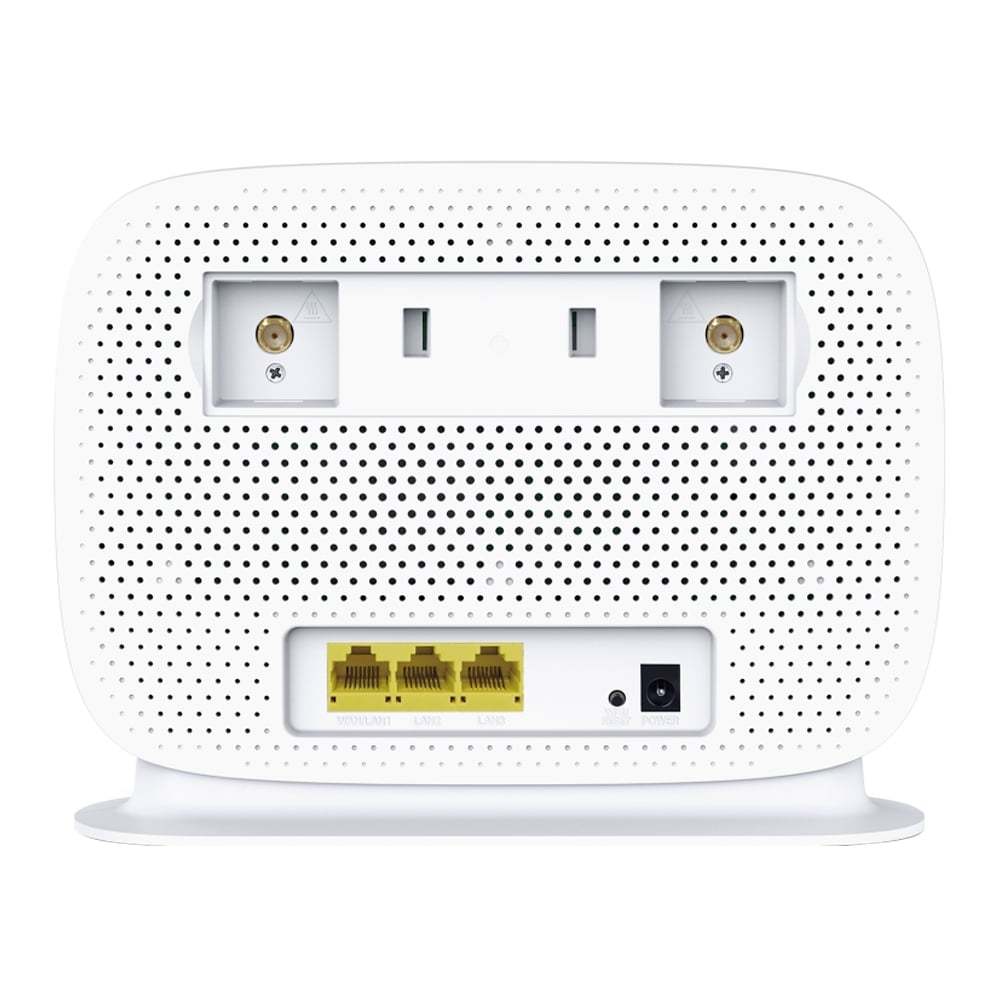

• Advanced 4G+ Router • Plug a SIM card and play • MU-MIMO supported • EasyMesh-Compatible • Better Signal for Connections Everywhere • Full Gigabit Ports • Wi-Fi Router Mode • Easy setup and management SPECIFICATION HARDWARE FEATURES Interface • 1 × 10/100/1000 Mbps LAN/WAN Port • 2 × 10/100/1000 Mbps LAN Ports • 1 × Nano SIM Card Slot • 2 × External SMA-F Antenna Interface • Power Supply : 12V/1.5A • Dimensions ( W x D x H ) : 212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in) • Antenna : 2 Detachable External LTE Antennas WIRELESS FEATURES • Wireless Standards : IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz • Frequency : 2.4 GHz and 5 GHz • Signal Rate : 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz Reception Sensitivity 5 GHz: 11a 54M: -77 dBm • 11ac HT20: -73 dBm • 11ac HT40: -68 dBm • 11ac HT80 : -64 dBm • 11n HT20: -77 dBm • 11n HT40: -73 dBm • 2.4 GHz: 11g 54M: -74 dBm • 11n HT20: -72 dBm • 11n HT40: -69 dBm • Transmit Power : < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) • Wireless Functions : Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics • WAN Failover : Yes • Wireless Security : 64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Network Type • Compatible with the majority of mobile operators and supports 4G/3G: • FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) • TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) • DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz) SOFTWARE FEATURES • Quality of Service : Prioritizes network traffic by device • Security : DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering • WAN Type : Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) • Management : TP-Link Cloud, Local Management, Remote Management • DHCP : Server, DHCP Client List, Address Reservation • Port Forwarding : ALG, Virtual Server, Port Triggering, UPnP, DMZ • Dynamic DNS : TP-Link, DynDns, NO-IP • VPN : VPN Server: PPTP VPN, OpenVPN • Parental Controls : URL Filtering, Time Controls • Protocols : IPv4, IPv6 • Guest Network : 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 OTHERS • Certification : CE, RoHS • Package Contents : 4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR505 • 1.5m Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide Environment • Operating Temperature: 0°C~40°C (32°F~104°F) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
