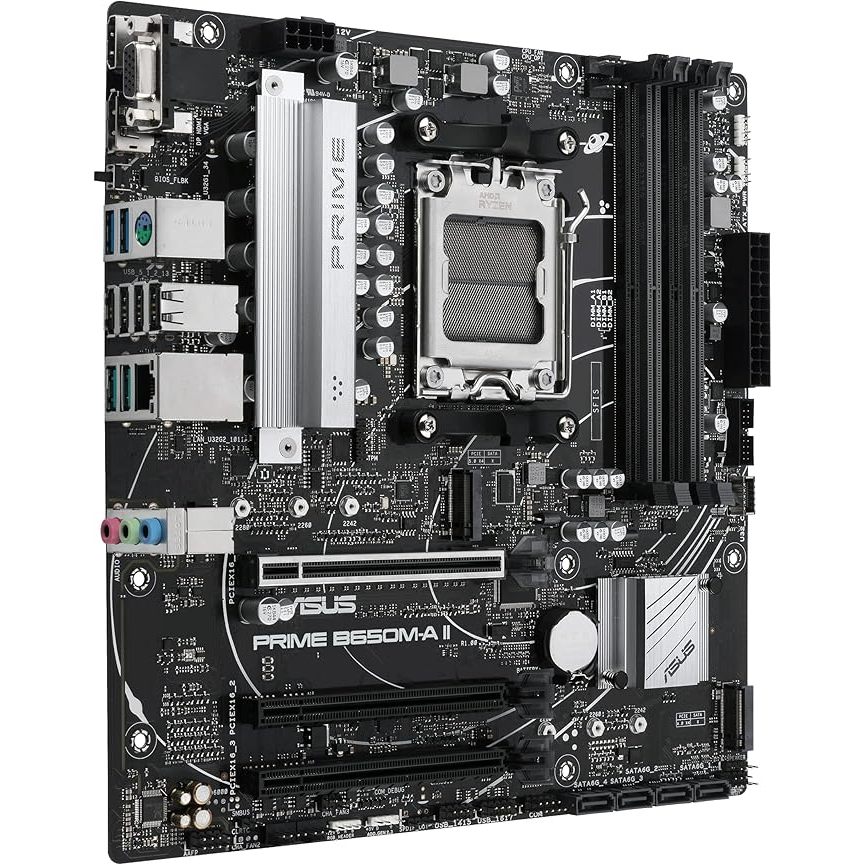

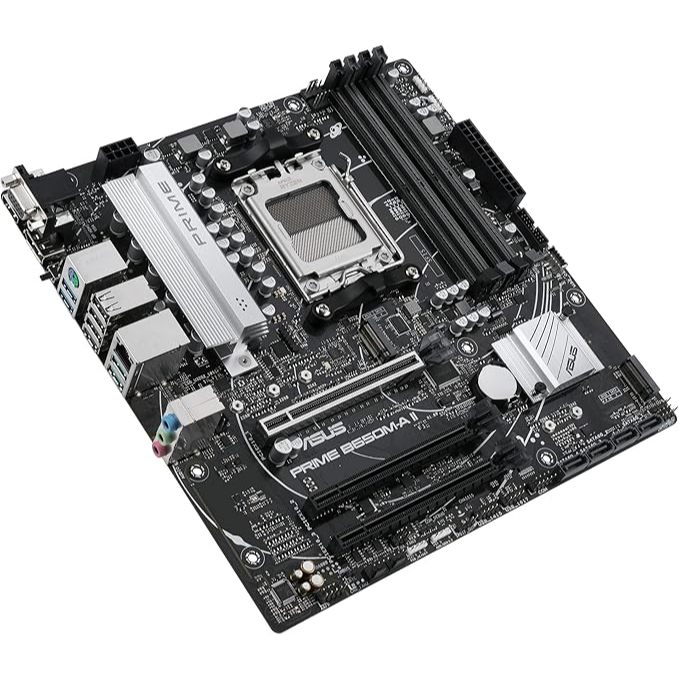

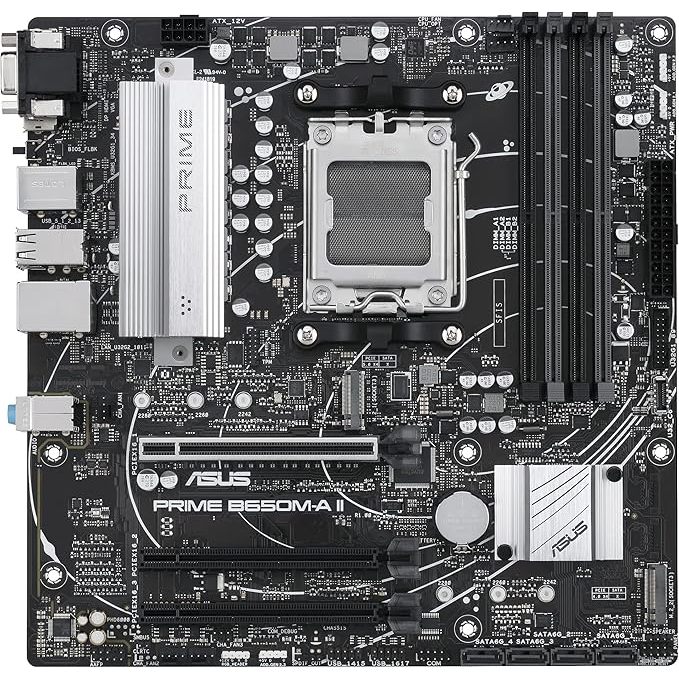

MAINBOARD (เมนบอร์ด) ASUS PRIME B650M-A II (DDR5) (SOCKET AM5) (MICRO-ATX)

model BrandAsus ModelPRIME B650M-A II CPU SocketAM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge) Wattage170W ChipsetAMD B650 SeriesRyzen 5 , Ryzen 7 , Ryzen 9 memory Slot4 Memory TypeDDR5 Max. Capacity128 GB Speed4800 , 5000 , 5000 (OC) , 5200 , 5200 (OC) , 5400 , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) Graphic & Audio GraphicRequires a CPU with Integrated Graphics. — • 1 x DisplayPort** • 1 x VGA port • 1 x HDMI port*** — * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. AudioRealtek 7.1 Surround Sound High Definition Audio Storage SATA 2- Port SATA 34 Port RAIDRAID 0, RAID 1, RAID 10 for SATA Storage Devices M.22 x M.2 slots — AMD Ryzen 7000 Series Desktop Processors • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) — AMD B650 Chipset • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Port expansion slots DetailsAMD Ryzen 7000 Series Desktop Processors • 1 x PCIe 4.0 x16 slot (supports x16 mode) — AMD B650 Chipset • 2 x PCIe 4.0 x16 slots (support x1 mode) — * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Slot3 x PCIe 4.0 x16 Slot network LANRealtek 2.5Gb Ethernet LAN Speed100/1000/2500 Mbps WirelessNo Back Panel I/O Ports USB 2.04 Port USB 3.0- Port USB 3.1- Port Serial- Port USB 3.22 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A Port D-Sub (VGA)1 Port DVI- Port HDMI1 Port DisplayPort1 Port Audio3 Port PS/21 (Keyboard/Mouse combo) Port Additional1 x BIOS FlashBack button LAN1 Port Form Factor Form FactorMicro-ATX Power Connector24 + 8 Pin Dimension24.4 x 24.4 cm warranty การรับประกัน3 Years
