【Ready Stock】220V/380V 0.75KW/1.5KW/2.2KW ประหยัด VFD Variable Frequency Drive Converter สำหรับมอเตอร์ควบคุมความเร็ว

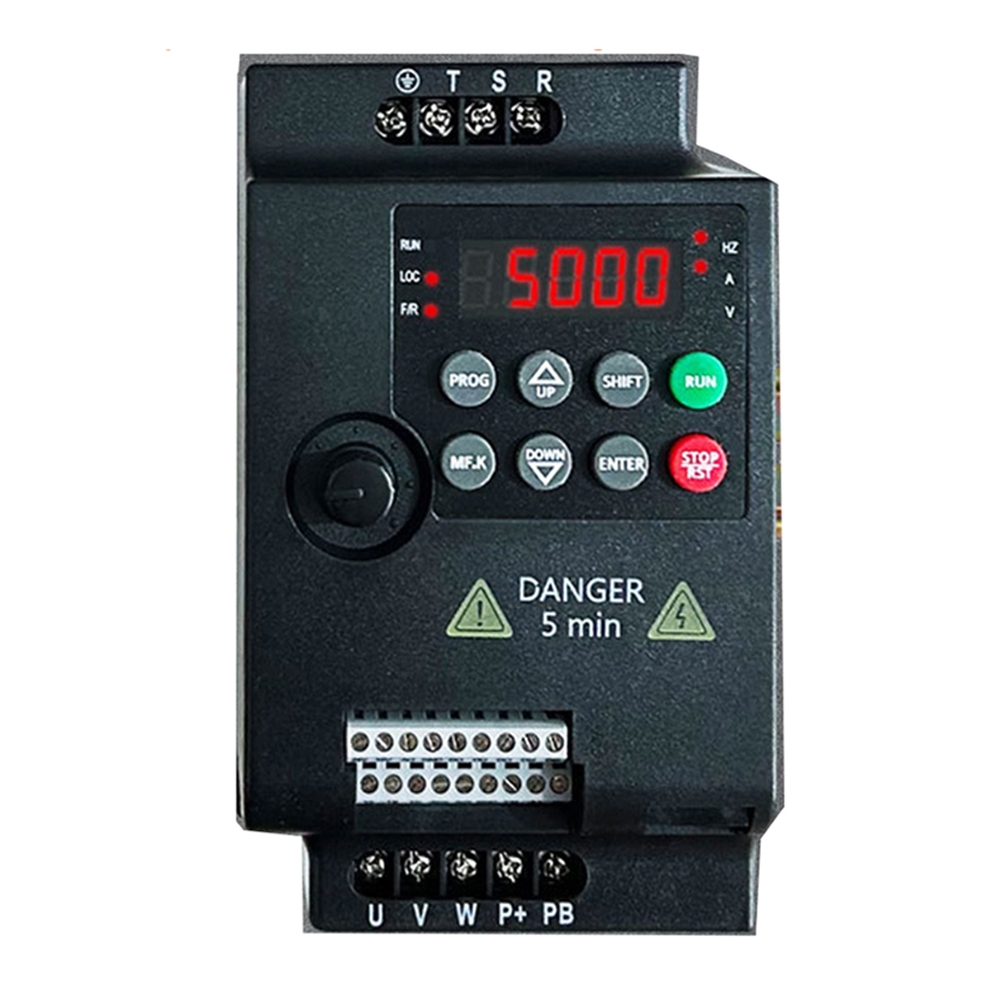

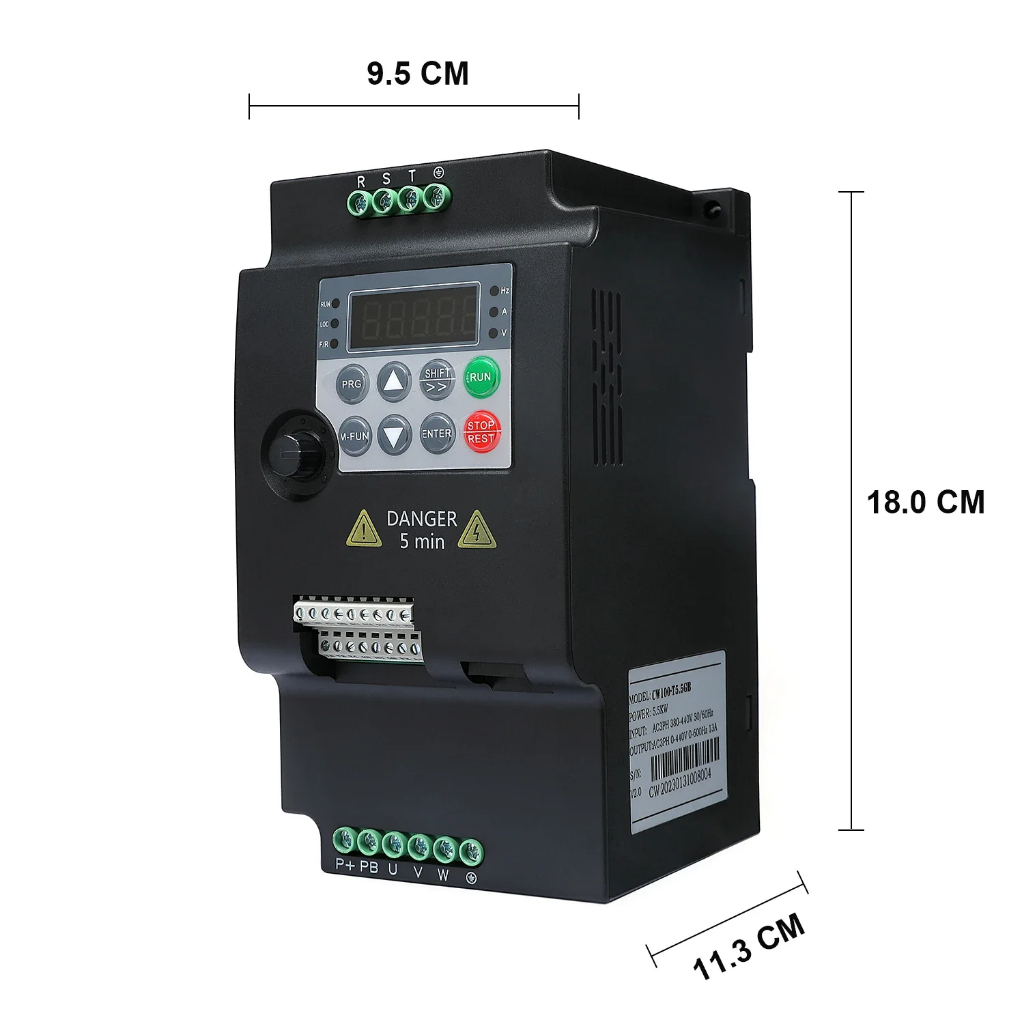

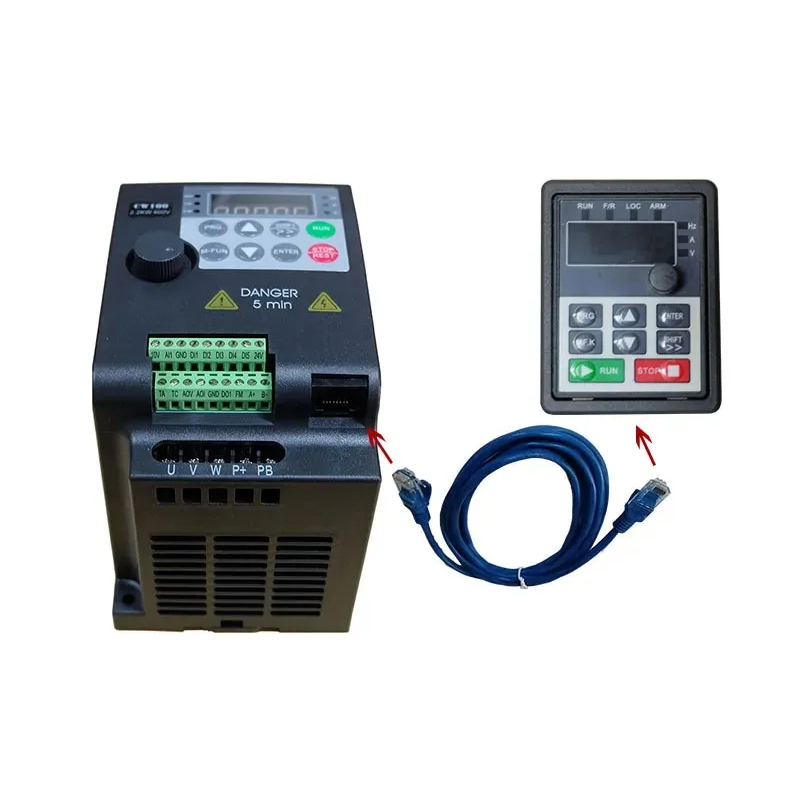

Product Introduction Function advantages: 1. Forward, reverse, start and stop controlled by panel or external terminals. 2. Adjust speed by panel potentiometer or external potentiometer. 3. Built-in brake unit (for connecting brake resistance). 4. PID function (Constant pressure water supply). 5. Multi-stage run. 6. RS485 communication protocol by PLC. 7. Vector control, low frequency high torque. 8. Optional external control panel(not included in the package). 9. Overload protection. Specifications: Rated power: 0.75kw/1.5kw/2.2kw Rated output current: 4A(for 0.75kw)/7A(for 1.5kw)/9.6A(for 2.2kw) Input voltage: 1 phase 220v Output voltage: 3 phase 220v Installation dimension: 130x73mm External dimension: 145x110x85mm Mounting hole dimension: 61x81mm Net Weight: 1kg Optional external control panel(not included in the package): Installation: Note：before wiring, please read【the safety precautions】carefully. Pay attention to life safety and prevent the equipment from danger. Feedback: Your positive (5 stars) feedback is highly appreciated. We guarantee the product quality and service. If you have any questions, please feel free to contact us.
