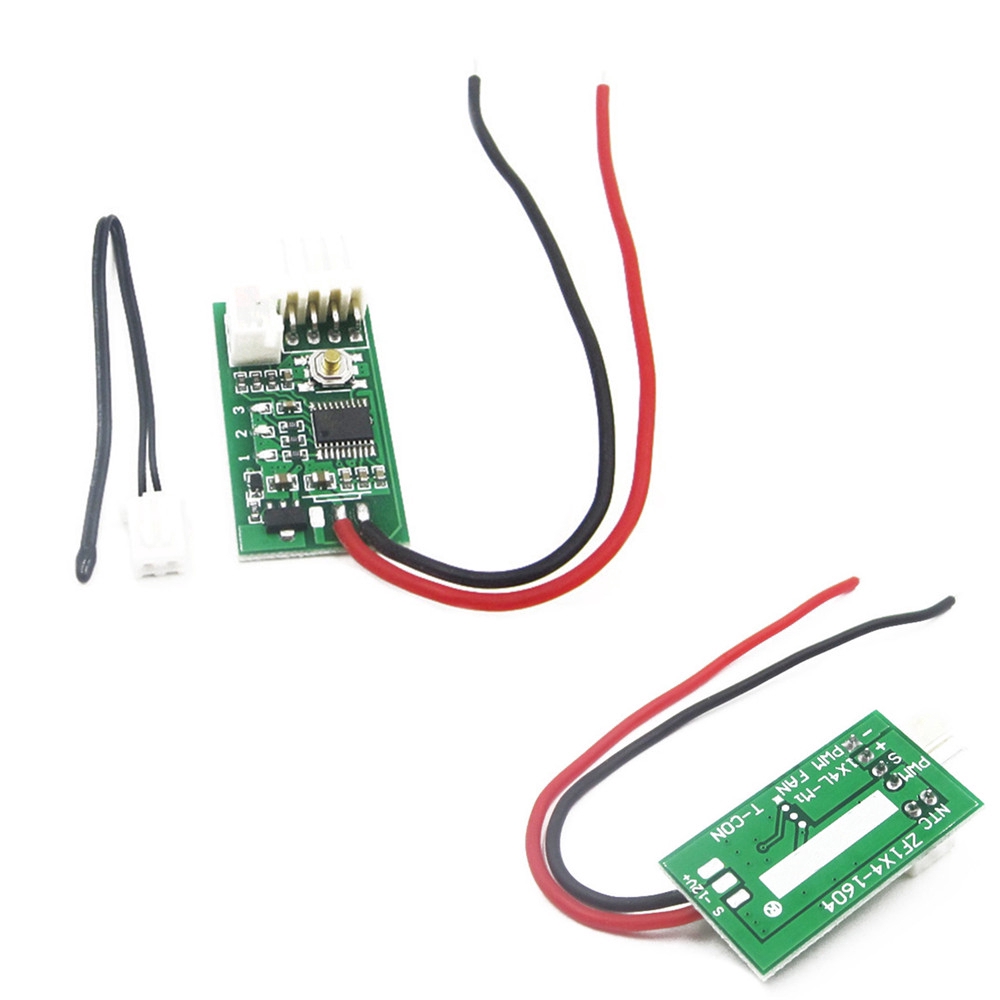

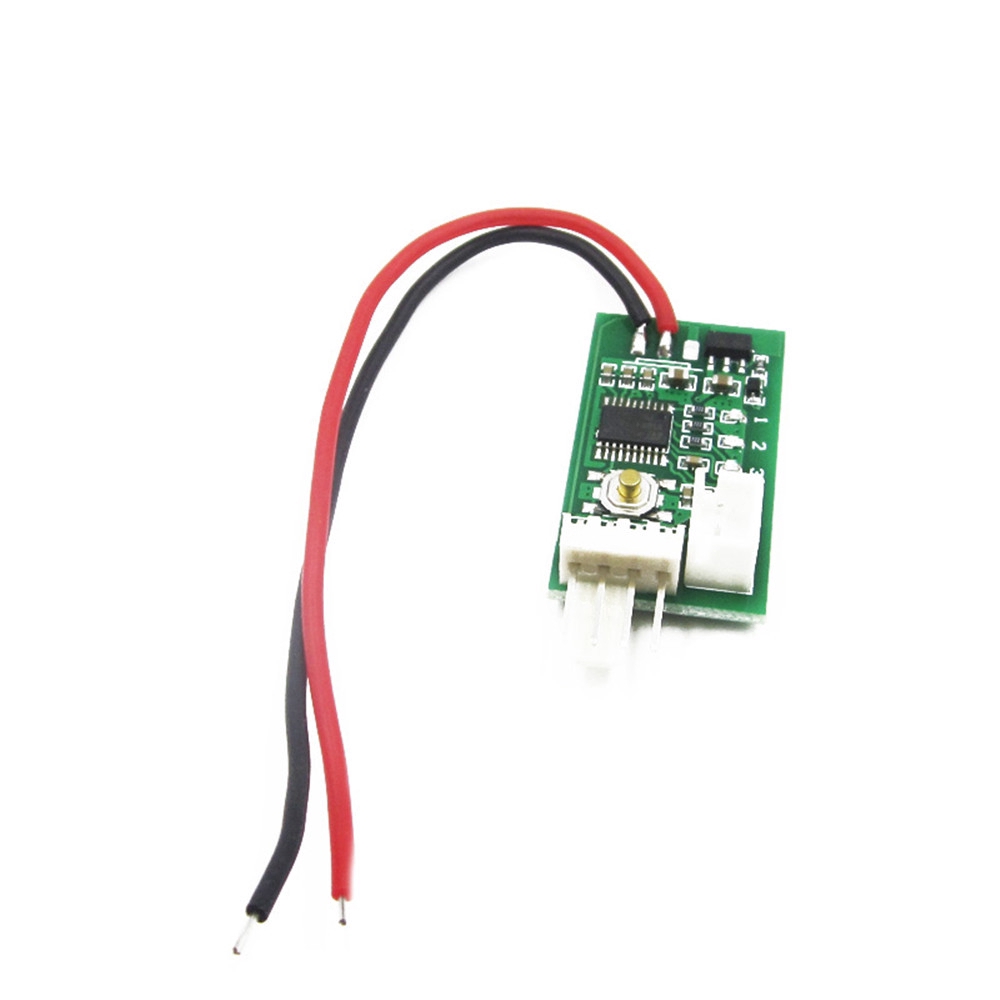

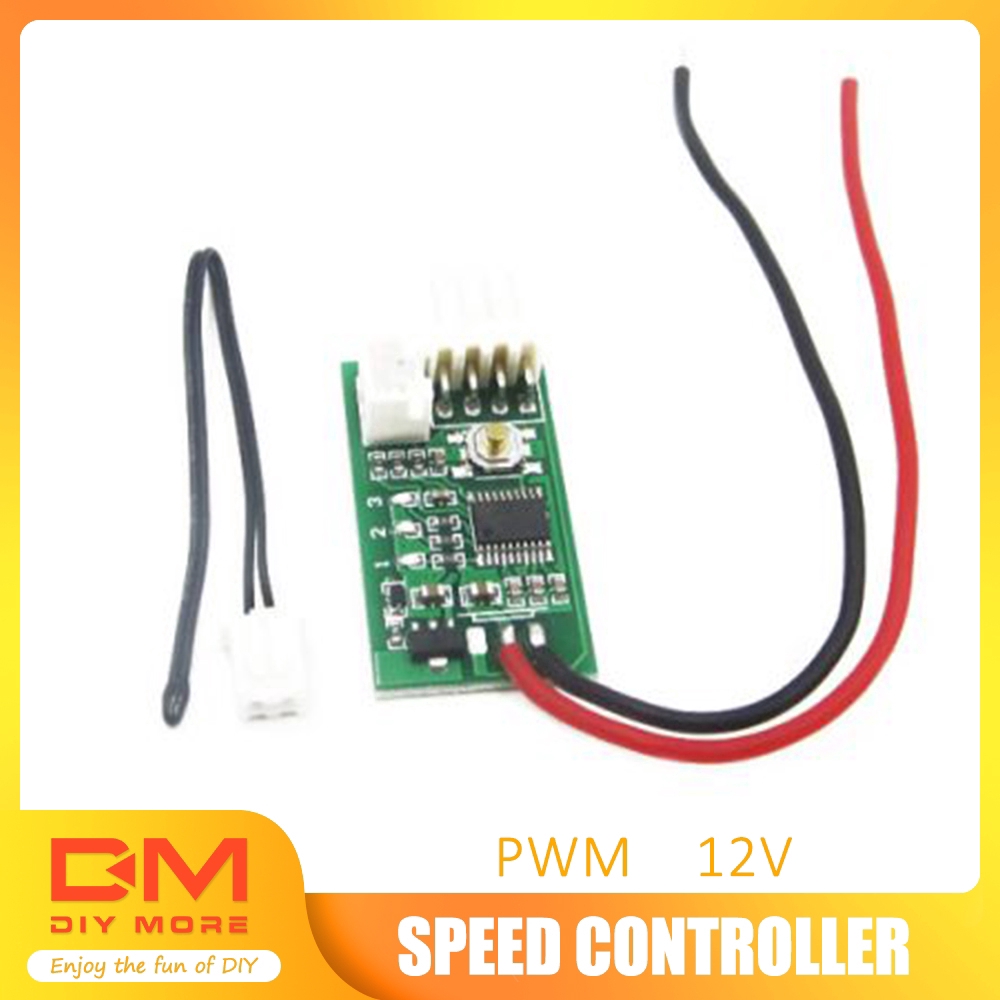

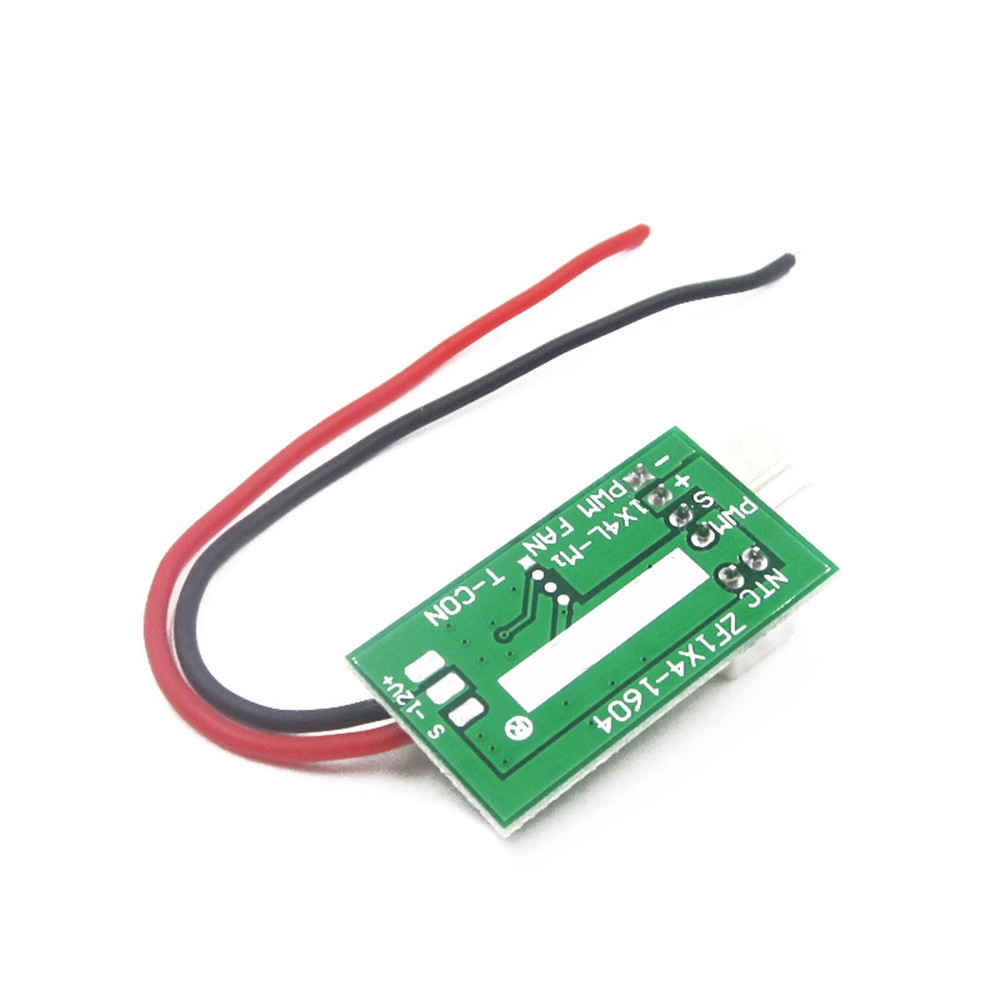

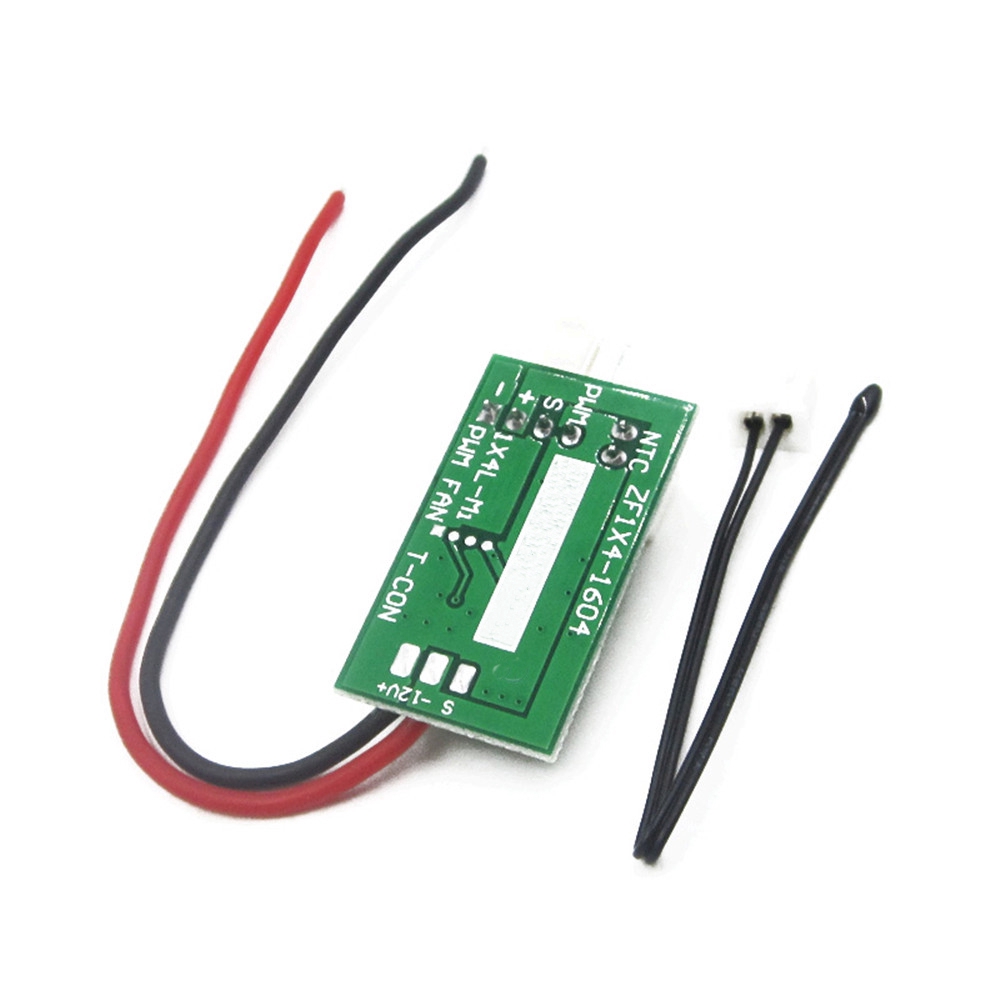

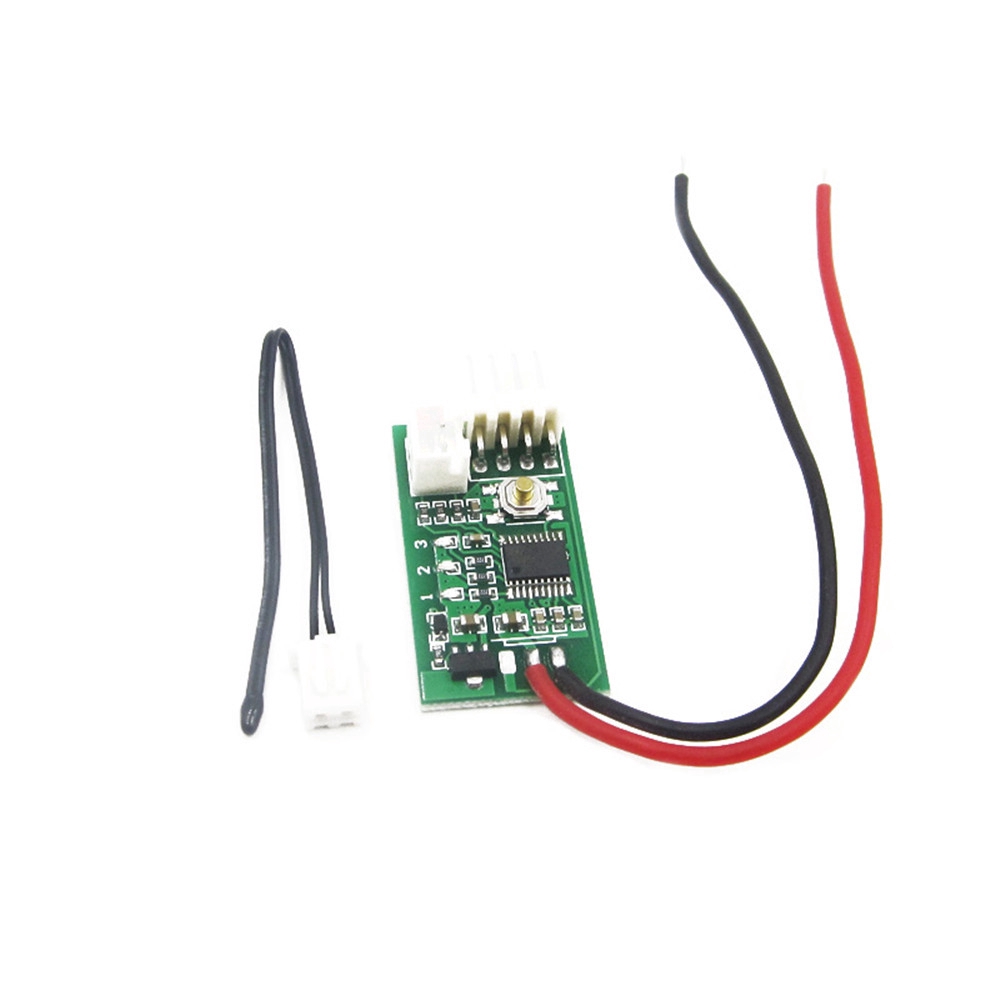

DIYMORE บอร์ดควบคุมอุณหภูมิความเร็วพัดลม 4 สาย dc 12v pwm

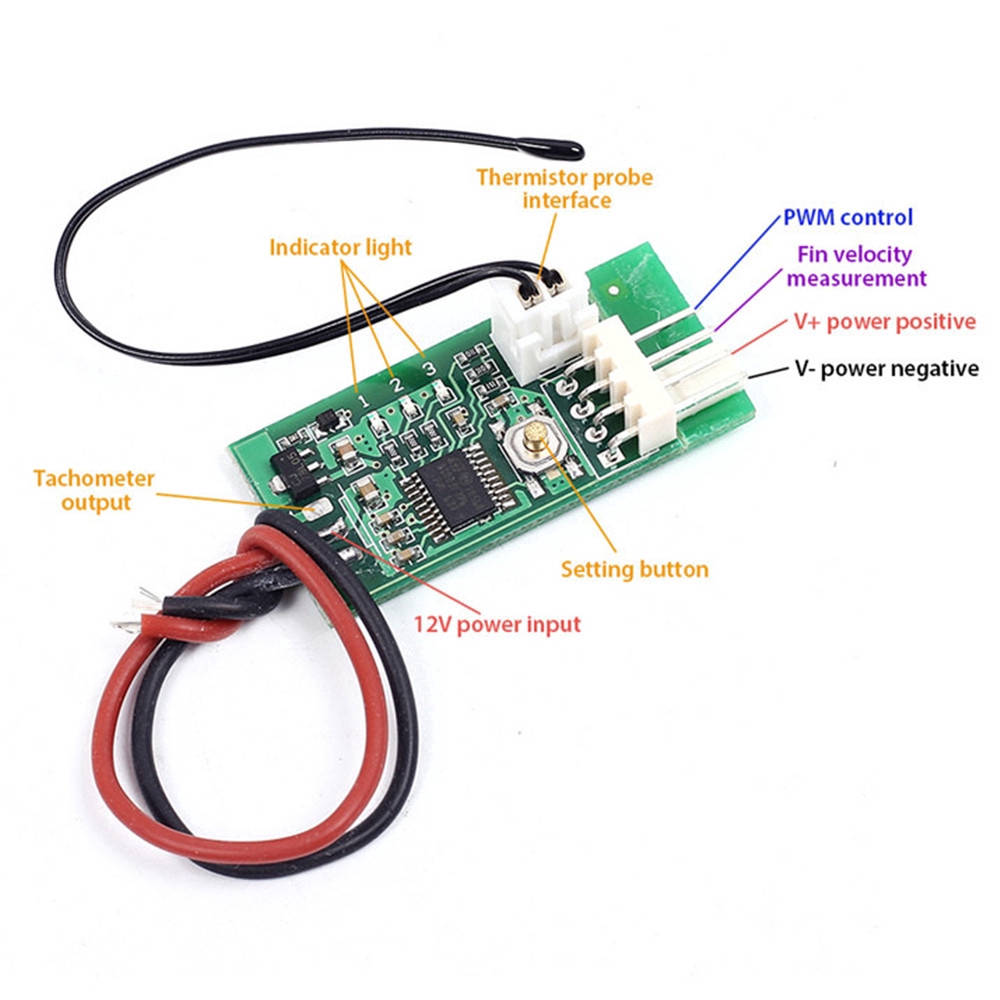

Description: The controller only controls the speed of the four line standard specification Intel PWM fan, do not turn off the fan. With full digital control, accurate temperature setting and precise control. It integrates manual speed regulation and automatic temperature control and speed regulation function. Manual speed control from 10%-100%, each 5% is a gear. Automatic temperature control speed from 30 degrees Celsius, there are 49 kinds of temperature zone combination. It supports three line to four line control, setting parameters automatically save. Operating voltage： DC12V can work in 8-18V range Fan interface：2510-4P lacks 1 bends (special interface for computer 4P fan Consumption current：No more than 20mA Fan current：Less than 3A Drive output range：10% -100% Operating temperature：-10 Celsius to 60 Celsius Temperature probe parameters：NTC 50K B=3950 Probe temperature：Small black head 120 degrees Ring probe 110 Celsius Board size：34mm*19mm*11mm (excluding extended interface) Fan interface extends 8mm Setting parameters default factory：Low speed 20%. Acceleration temperature 30 Celsius. Acceleration width 5 Celsius. Do not shut down the output. At this temperature setting, holding the probe with the palm of the hand will accelerate in a few minutes. If the probe is clamped into the armpit, it will reach full speed in 2 minutes. Components: 1>. Input line: red black power line is only welding 12V positive and negative power cord, as a general use. The three wire connector is equipped with a 2510-3P plug, which is used to measure the speed of some main board three wire fan ports. Large 4P interface facilitates power acquisition from chassis. 2>. temperature probe: small black line’s head is short, low heat capacity. It is suitable for testing narrow space and air temperature, and the response is relatively fast. The ring probe is enclosed inside a ring metal head with a diameter of 4.2mm. It is suitable for mounting on the radiator or other heating object surface with screws. Package included: 1pc DC 12V PWM 4-Wire Fan Temperature Controller Speed Governor Board #DIYMORE #DC #12V #PWM #Wire #Fan #Temperature #Controller #Speed #Governor #Board
