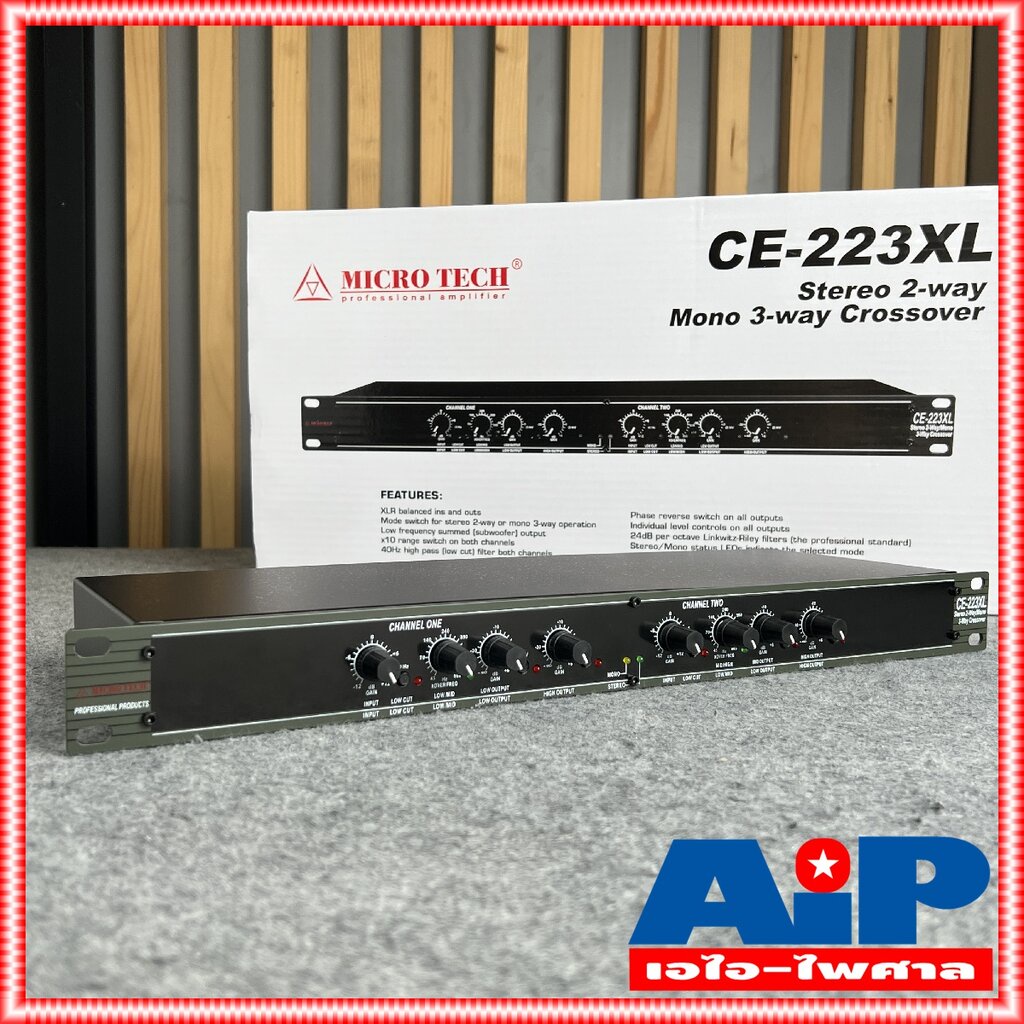

MICROTECH CE-223XL crossover MICRO TECH CE223XL ครอสโอเวอร์ CE 223 XL CE223 CE-223 ครอส3ทาง ครอส 2ทาง ครอสตัดเสียง ไม...

INPUTS Connectors 1/4" TRS or XLR Type: Electronically balanced/unbalanced, RF filtered Impedance: Balanced 40k, unbalanced 20K Max Input Level:>+21 dBu balanced or unbalaneed OUTPUT Connectors XLR Type:Impedance-balanced/unbalanced, RF filtered Impedance:Balanced 200Q, unbalanced 100Q Max Output Level:>+21 dBu balanced/unbalanced into 2 kQ or greater OUTPUT Connectors:XLR Type: Electronically-balanced/unbalanced, RF filtered Impedance:Balance 60Q, unbalanced 30Q Max Output Level:>+21 dBu balanced/unbalanced into 2KQ or greater PERFORMANCE:20Hz to 20kHz, +/-0.5dB Bandwidth:<3 Hz to > 90 kHz, +0/-3 dBt Frequency Response:>94dB (Low Output), >91dB (High Qutput) Signal-to-Noise(stereo mode)>94dB (Low Output), >93dB (Mid Output), >91dB (High Qutput) Signal-to-Noise (Mono Mode)> 106 dB, unweighted, any output Dynamic Range<0.004% at +4 dBu, 1 kHz, < 0.04% at 20 dBu, 1 kHz THD+Noise Activates 40 Hz Butterworth, 12 dB/octave Front Panel: high-pass filter, one switch per channel. Low Cut Inverts the phase at the output, one switch per output. Phase Invert:x1 / x10 Switch
