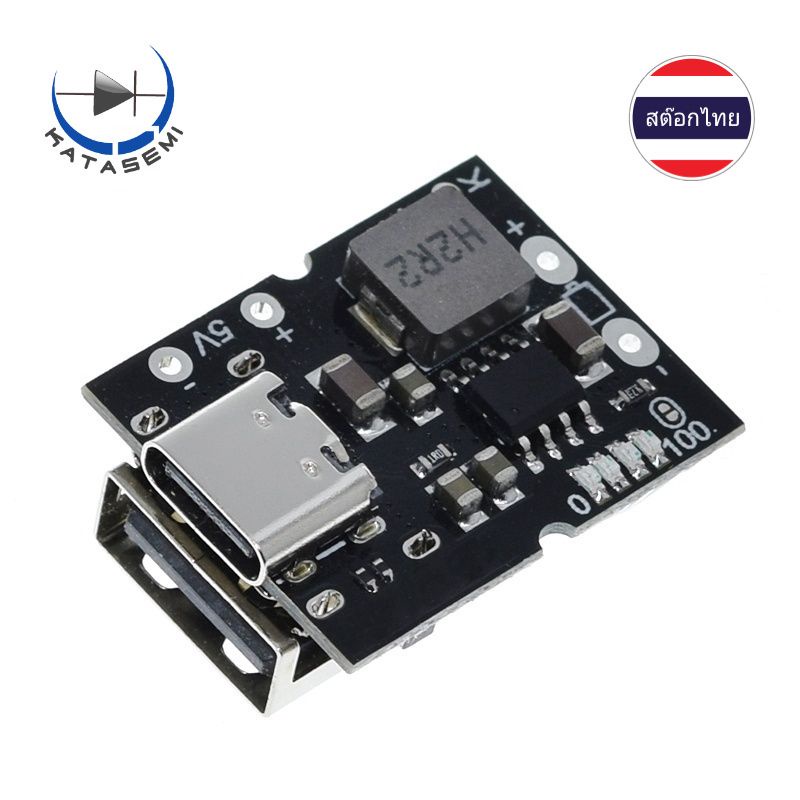

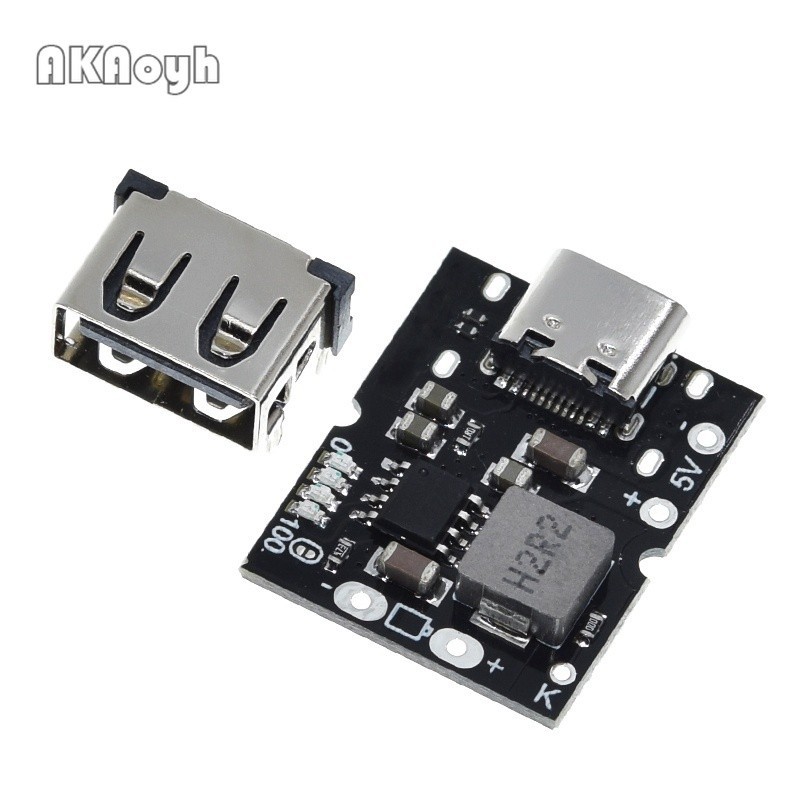

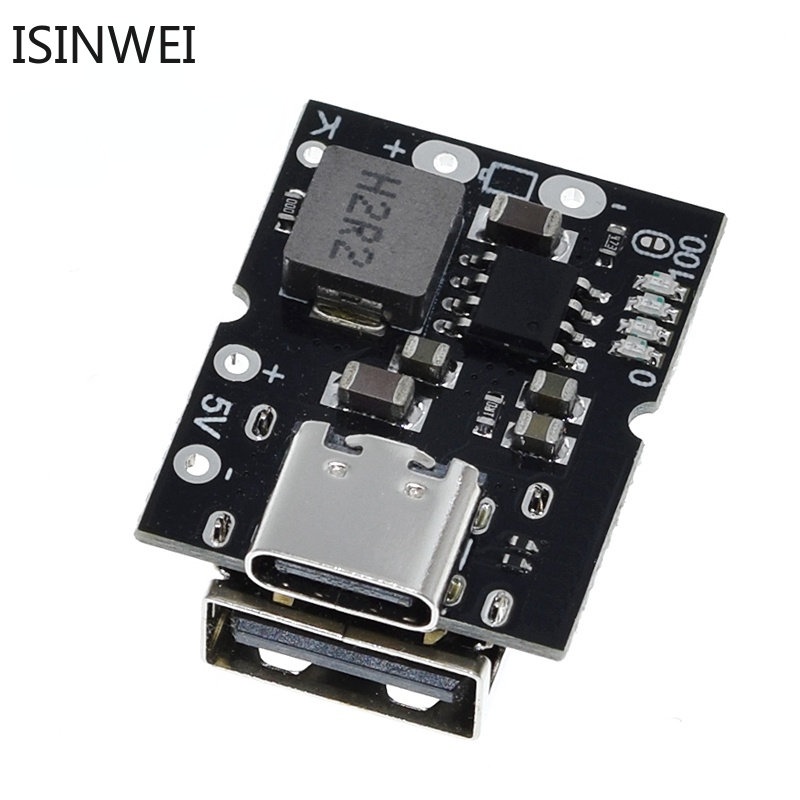

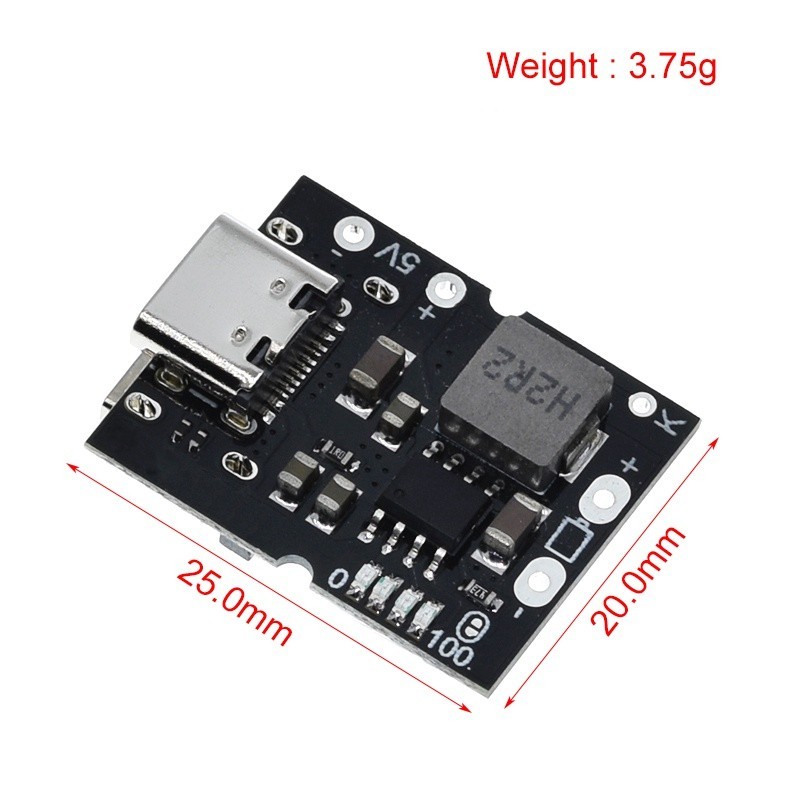

Type-c USB 5V 2A 18650 บอร์ดโมดูลเครื่องชาร์จ USB Boost Converter Step-Up โมดูลพลังงาน DIY

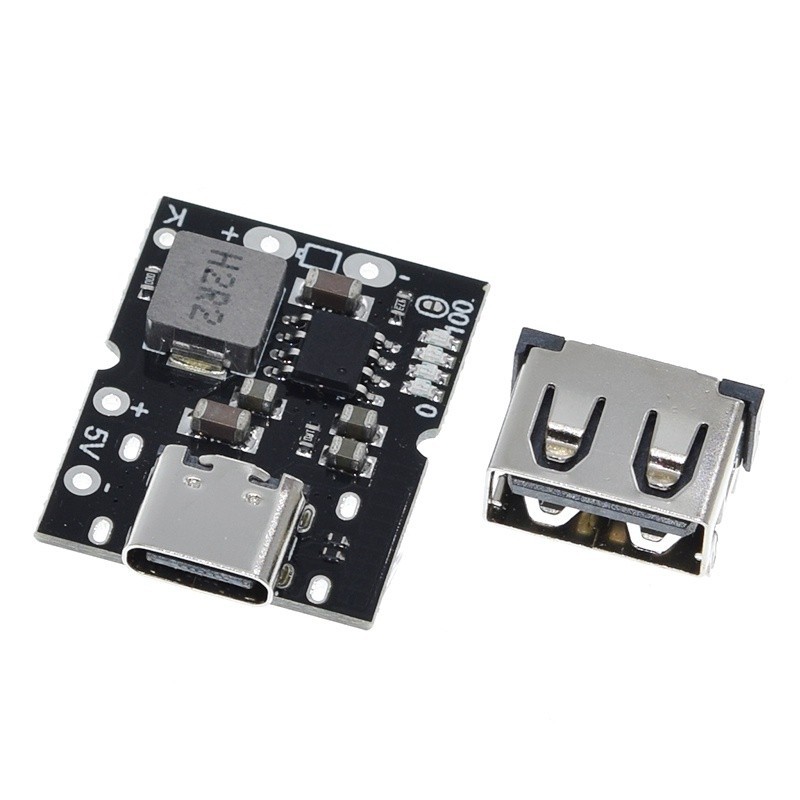

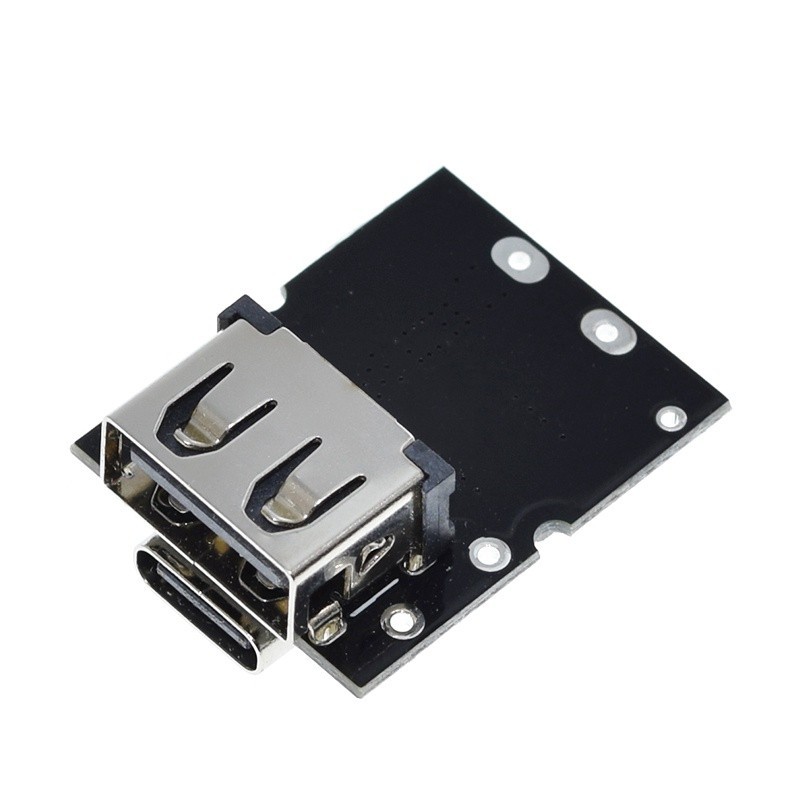

Type-C USB 5V 2A Boost Converter Step-Up Power Module Charging Protection Board USB DIY Charger Specification: Input voltage range: 5 ~ 5.5V Charging cut-off voltage: (4.2v/4.35v) ± 0.5% Charging current: 2.4a ± 5% Boost output voltage: 5V ~ 5.15v (line loss compensation) Boost output voltage ripple: 100mV Boost output current: 2A Boost conversion efficiency: 92.5% (3.6V input, 5v2a output) Static current at battery end: < 30uA Function introduction： When the load current is less than 50mA continuously, the output will be turned off. It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output. When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated. When the battery voltage drops below 4.1V, the charging cycle starts again. When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA. The usb-a base welding position is provided on the back of the product, which can be installed manually. It supports discharging while charging. Before purchase: 1. All the goods are in stock and we will dispatch immediately if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. Shipment： 1.1-2 days to ship(except for the pro-order item) After purchase: 1.If you are satisfied，please give us 5 stars praise. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. if you receive a defect item,please contact us at once with item picture or video #Type-C #USB #5V #2A #Boost #Converter #Step-Up #Power #Module #Lithium #Battery #Charging #Protection #Board #USB #DIY #Charger
