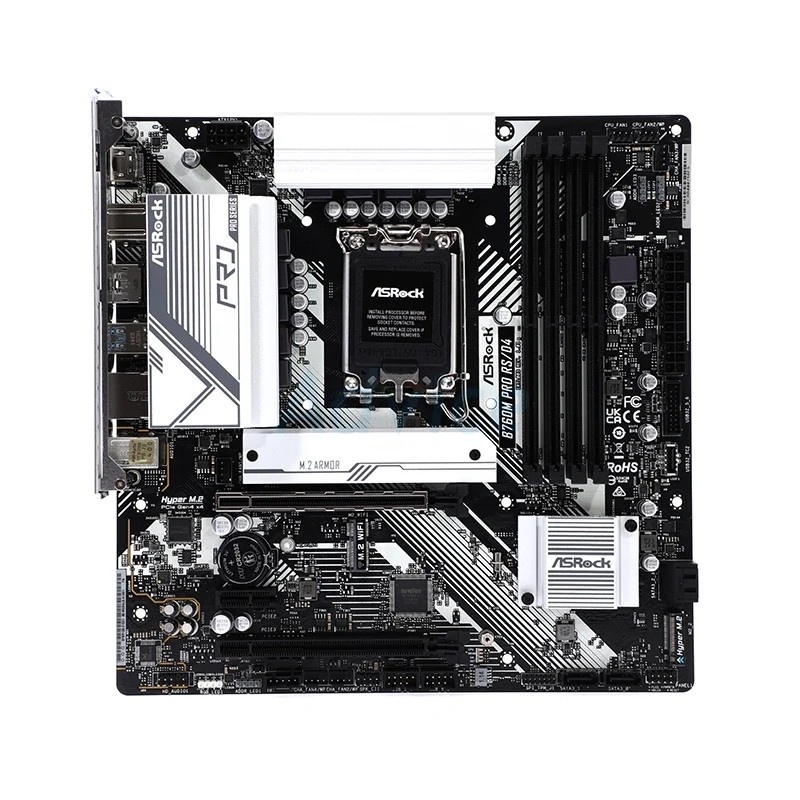

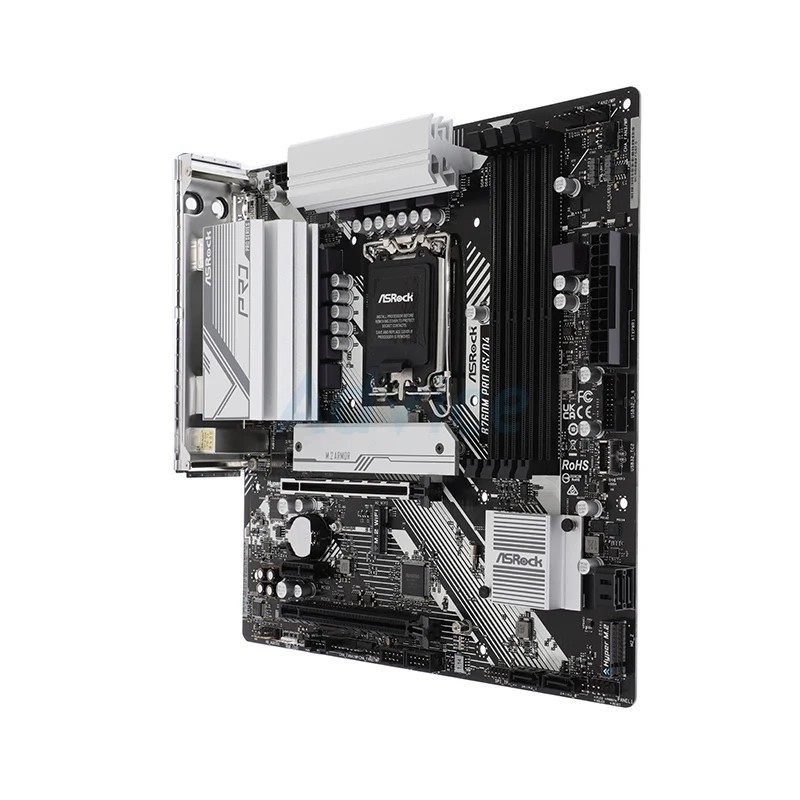

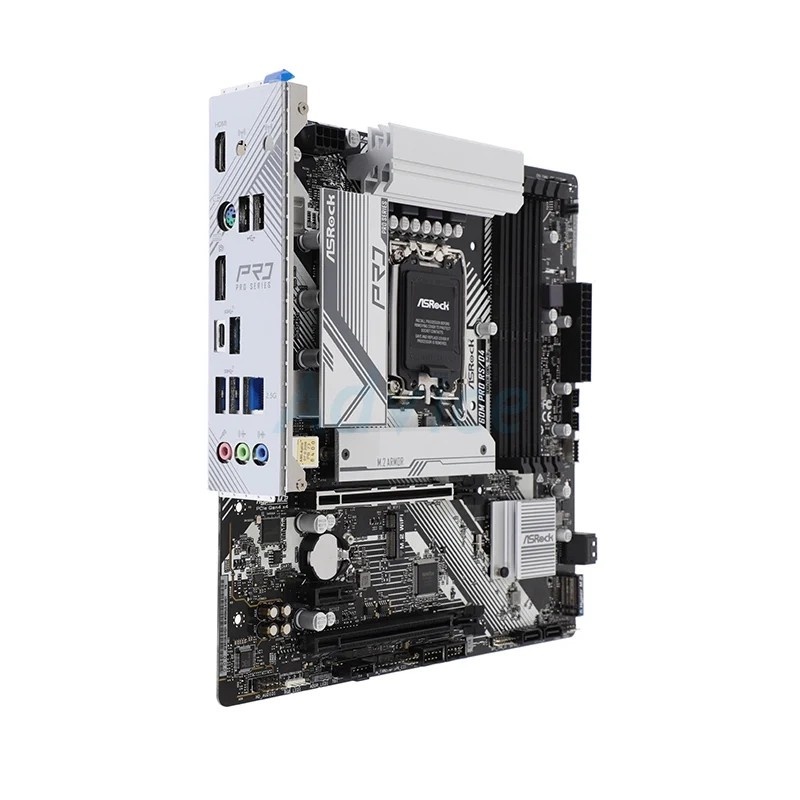

MAINBOARD (1700) ASROCK B760M PRO RS DDR4 - A0148529

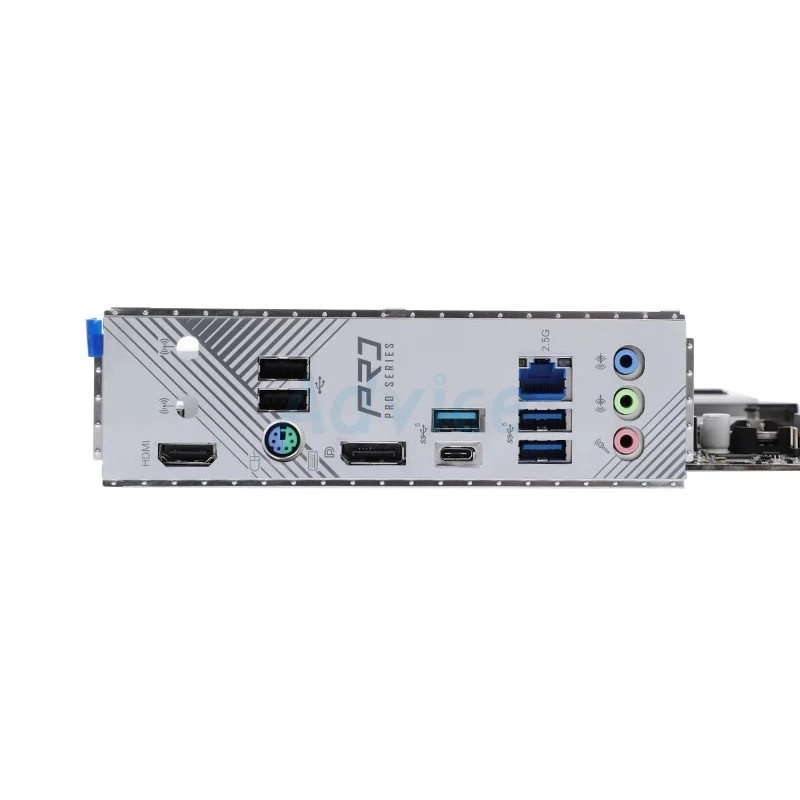

Brand ASROCK Model B760M Pro RS/D4 CPU Support - Supports 13th Gen & 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) CPU Brand Intel Socket 1700 Chipset Intel B760 Memory Support - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. Maximum Memory Bus 5333 Graphics - Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Multi Graphic Support N/A Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio Expansion Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode * Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks - Supports AMD CrossFire™ Maximum PCIe Version PCIe 4.0  Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks M.2 Storage Type Support NVMe M.2 Slot 2 USB 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection Internal I/O Connectors - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. Back Panel Connectors - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Wireless Data Network - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. Form Factor Micro ATX H/W Monitoring N/A BIOS 128Mb AMI UEFI Legal BIOS with GUI support Special Features Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield - ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6EModule EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker Software Features Software - ASRock Motherboard Utility (
