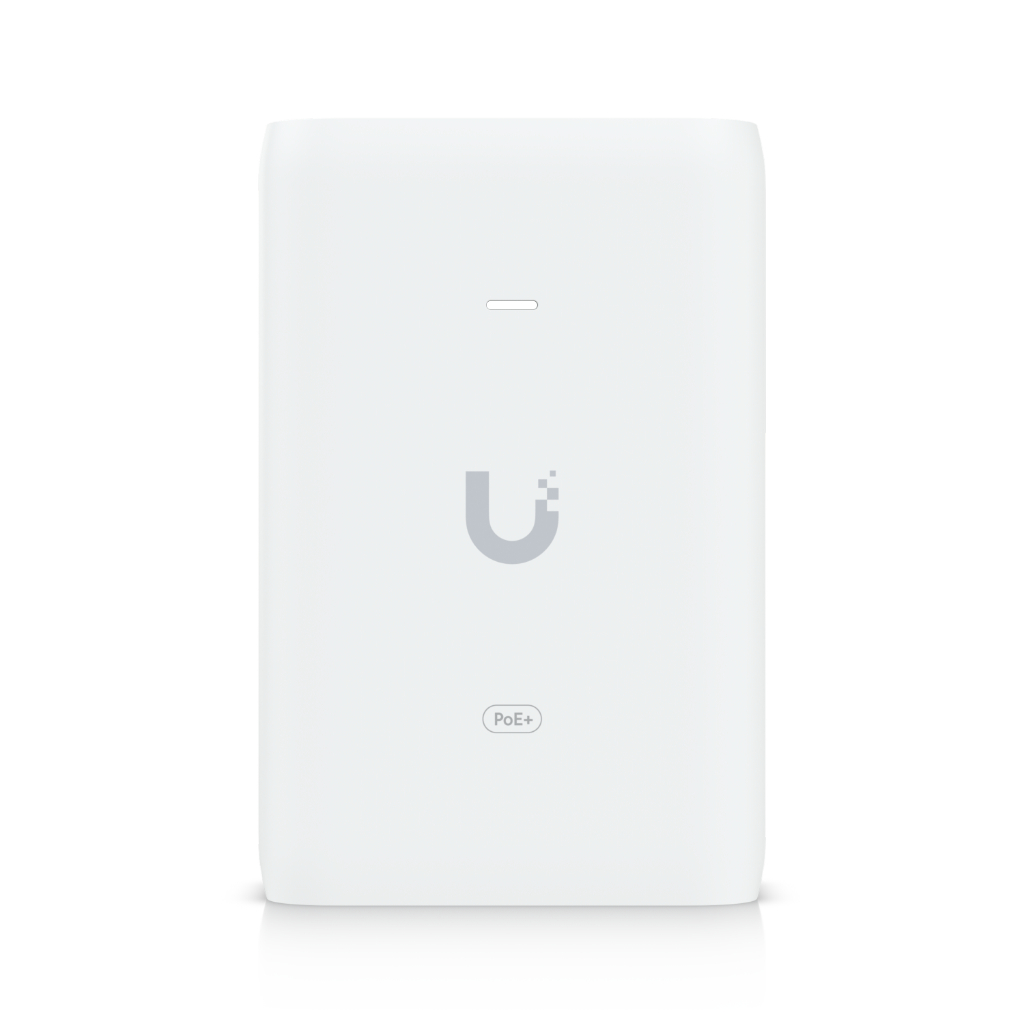

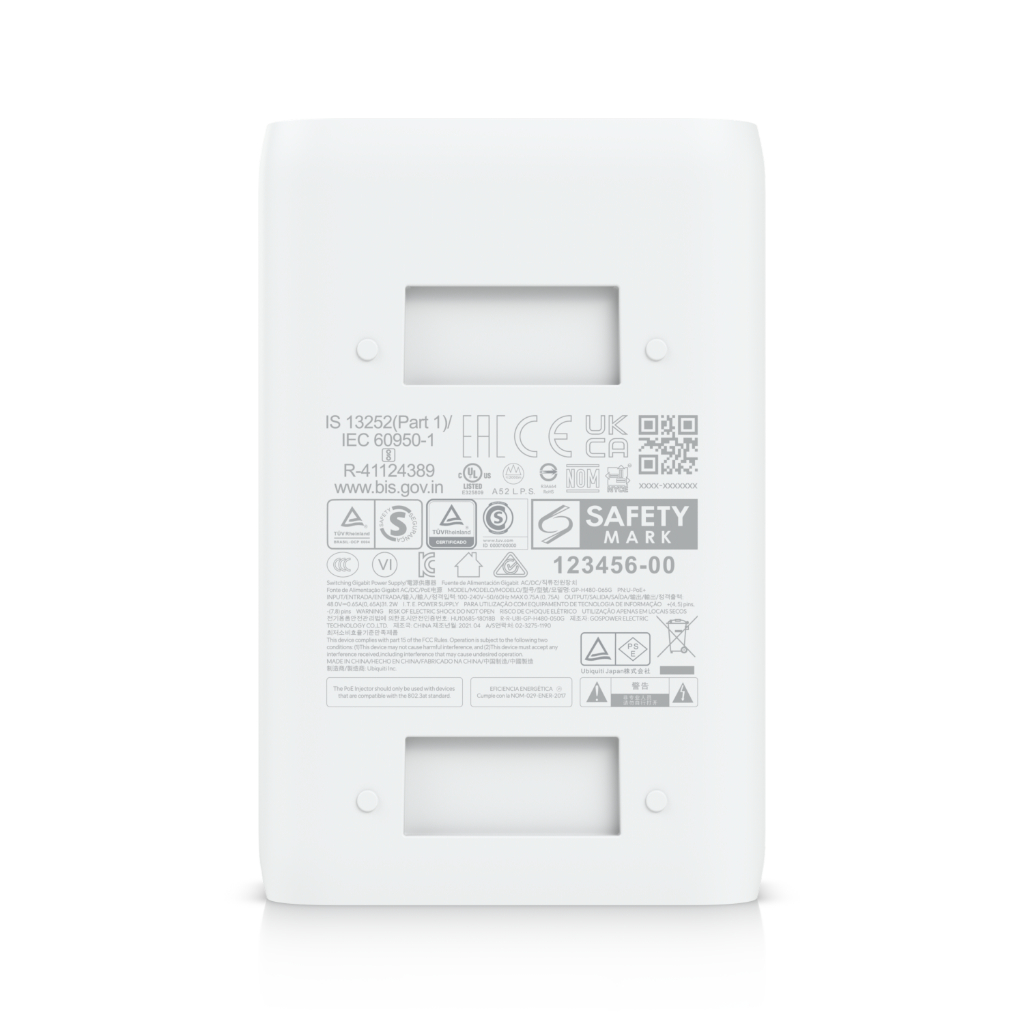

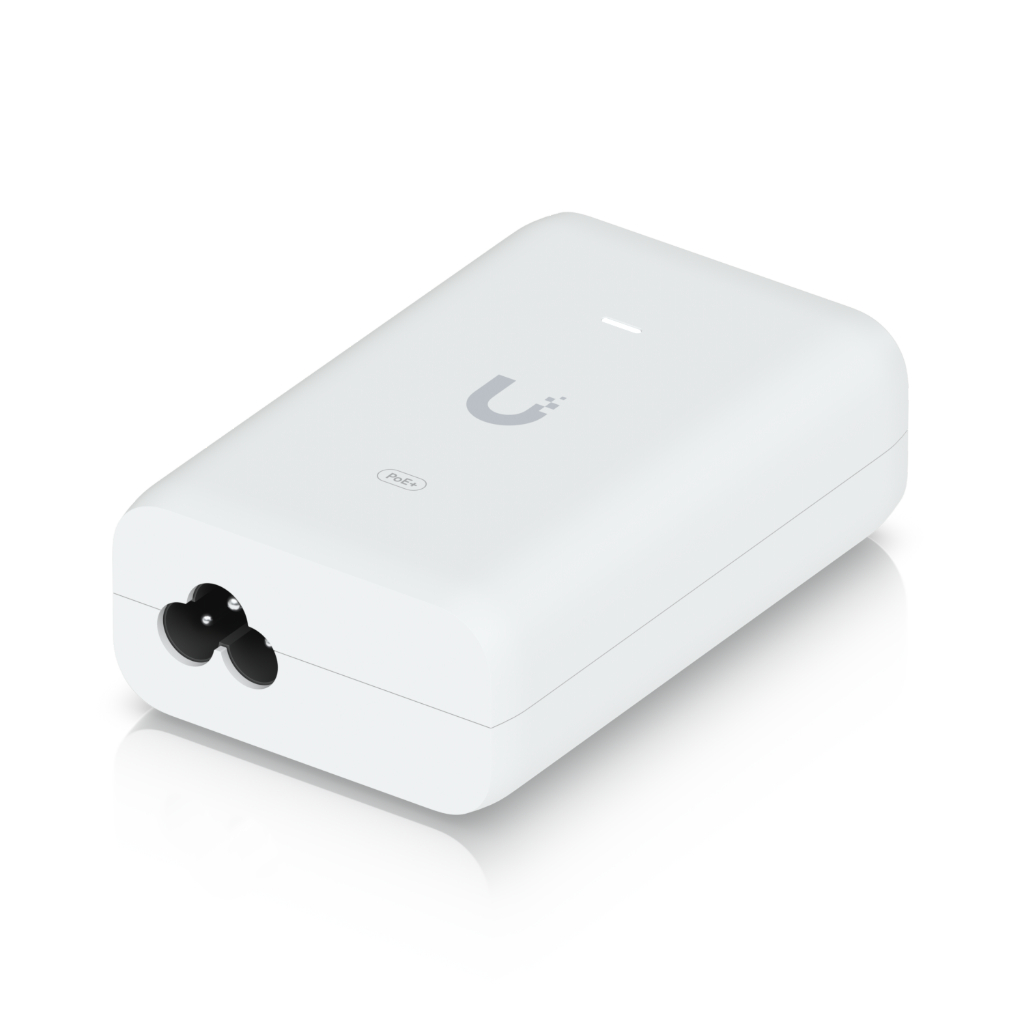

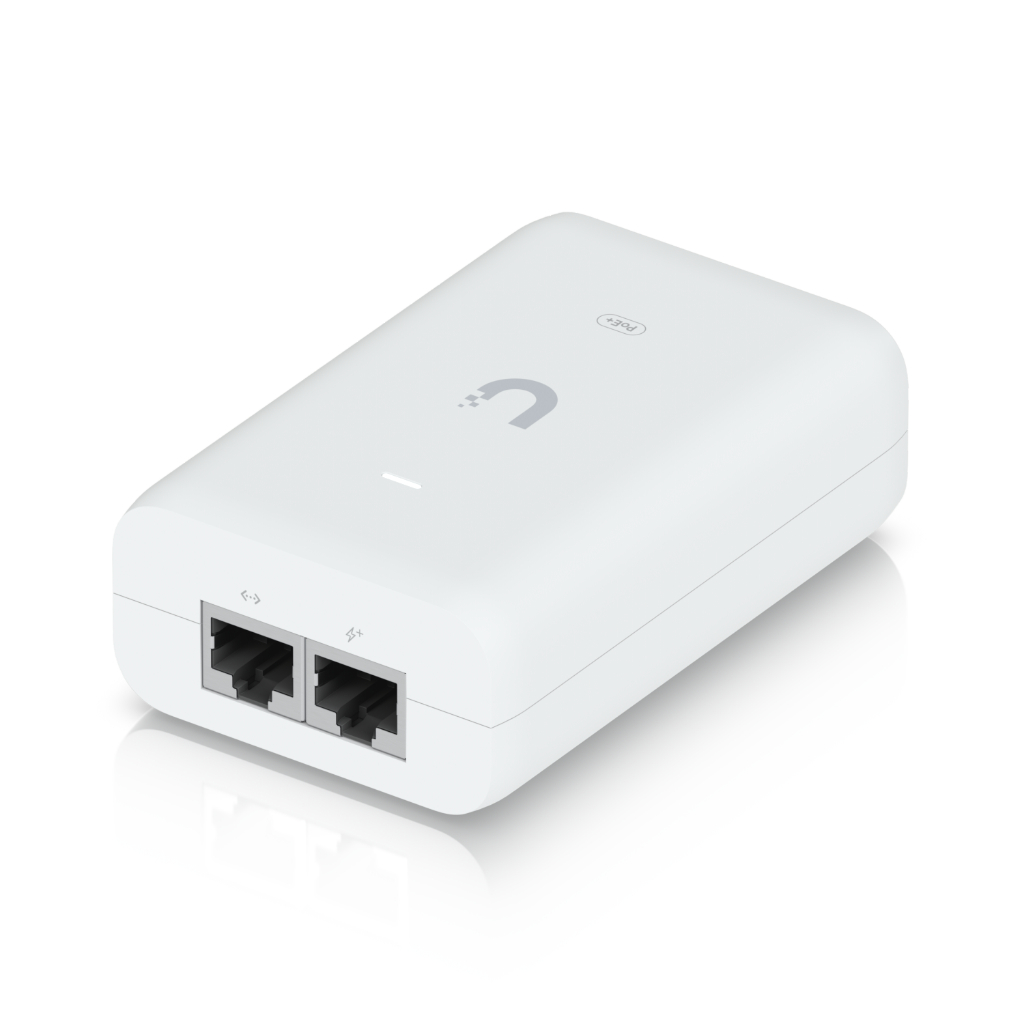

UniFi PoE+ Injector, 802.3at 30W (U-POE+) ของแท้ ประกัน 3 ปี ออกใบกำกับภาษีได้ ตัวแทนจำหน่ายไทย

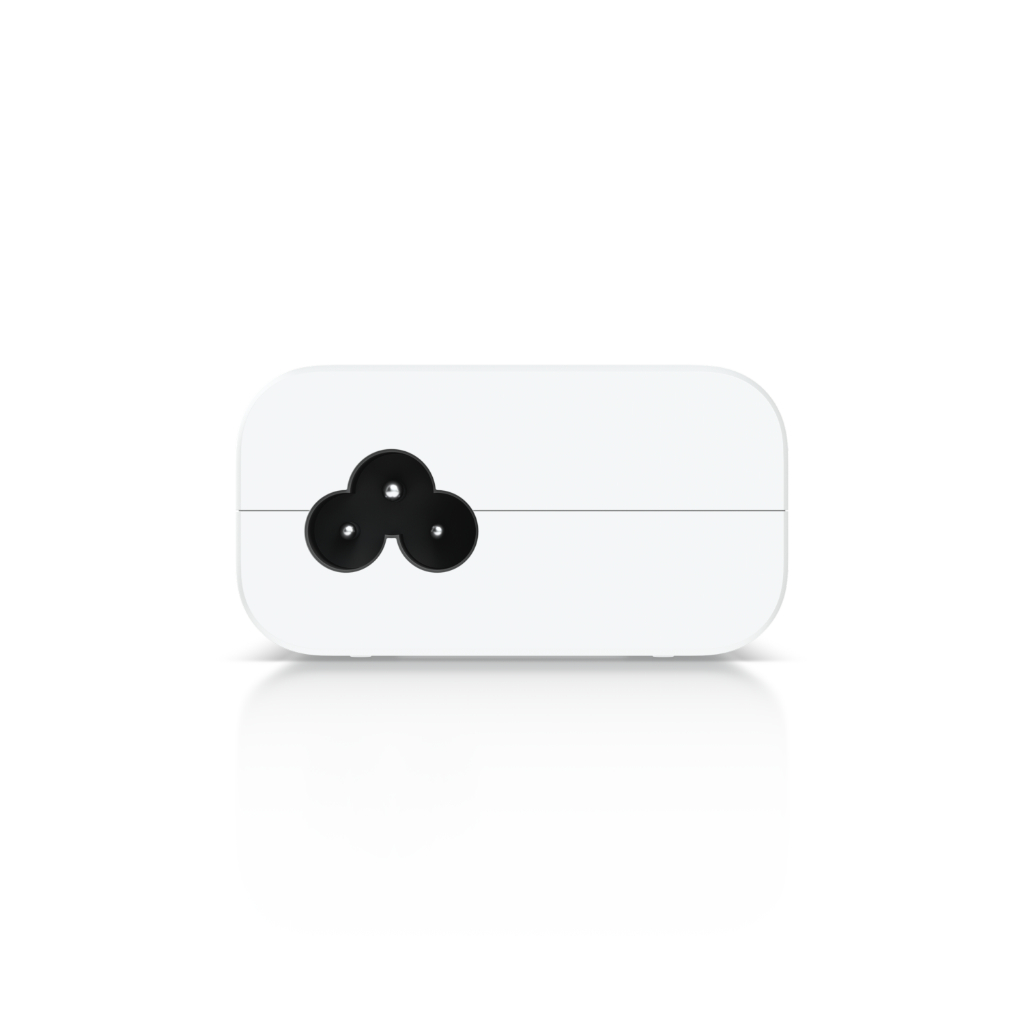

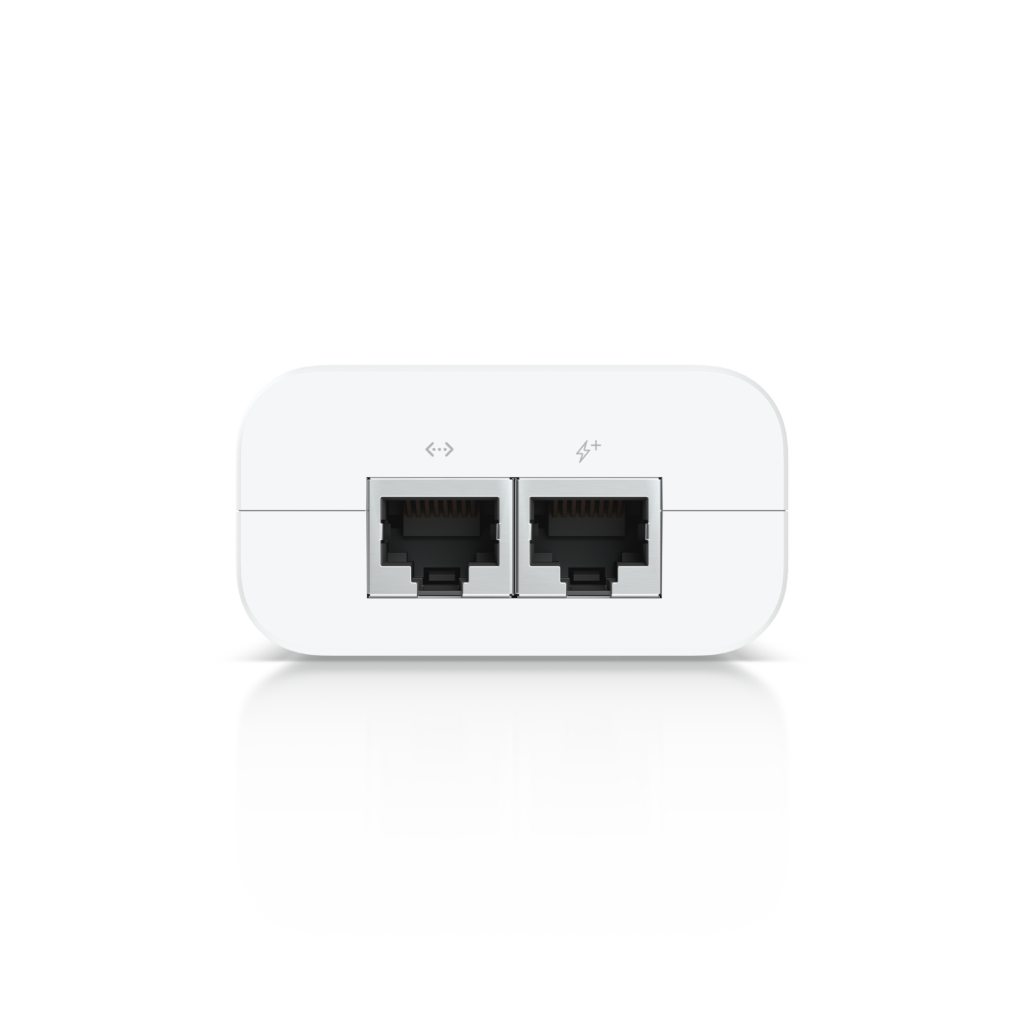

รหัสสินค้าเดิม U-POE-at ------------------------------------------------------------------------------------------------------------------------------------------ Specifications Model U-POE-at Dimensions 93 x 62 x 35 mm (3.66 x 2.44 x 1.38") Weight 156 g (5.5 oz) Output voltage 48V DC @ 0.65A LAN activity indicator No Gigabit LAN port Yes Remote reset capability No Reset button No Rated voltage 100—240V AC @ 50/60Hz Input current 0.75A Max. Inrush current <100A peak at 26_ Efficiency 87% Output ripple 1% max. Switching frequency 70 kHz max. Line regulation ≤ 3% Load regulation ≤ 5% 2-pair powering Pins 4, 5 (+) and 7, 8 (-) 4-pair powering No AC connector IEC-320 C6 Data In / PoE RJ45 shielded socket Surge protection Difference and common mode Clamping protection 11V data, 60V power Max. surge discharge 1500A (8/20 _s) power Peak pulse current 36A (10/1000 _s) data Shunt capacitance <5 pF data Response time <1 ns Operating temperature 0 to 40° C (32 to 104° F) Storage temperature -30 to 70°C (-22 to 158° F) Operating humidity 10 to 95% noncondensing Certifications CE, FCC, IC, UL
