[รีซีฟ] RadioMaster RP1 RP2 RP3 RP4TD ELRS ExpressLRS TX RX PWM Receiver

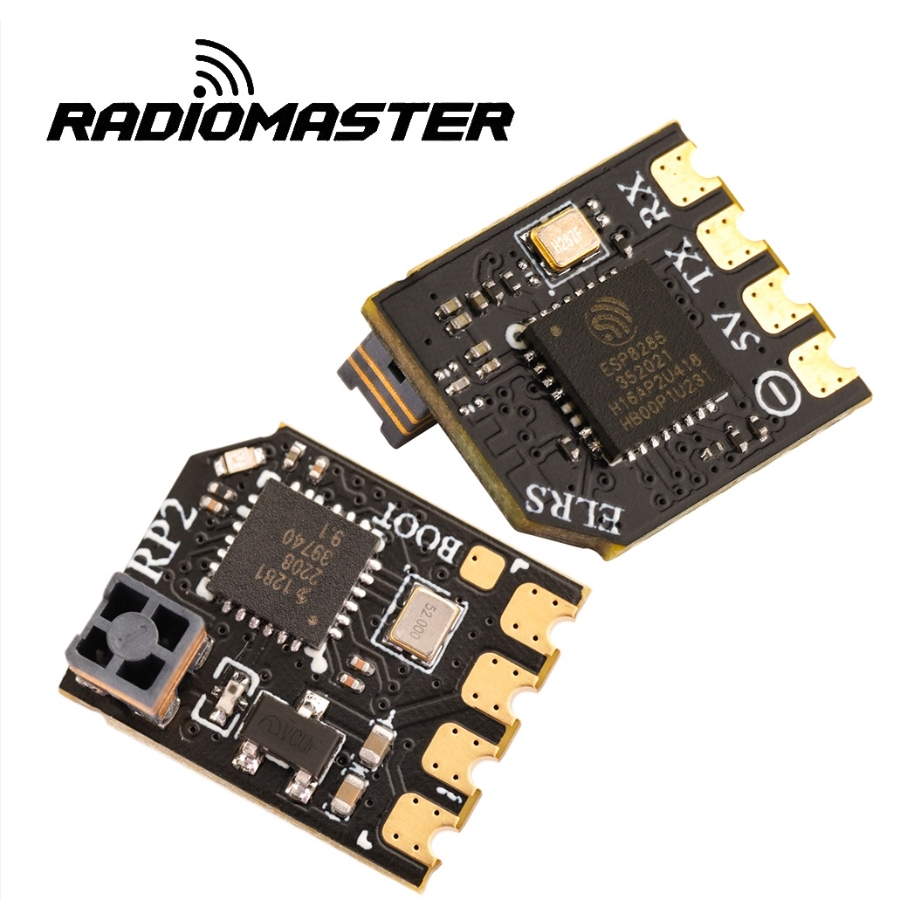

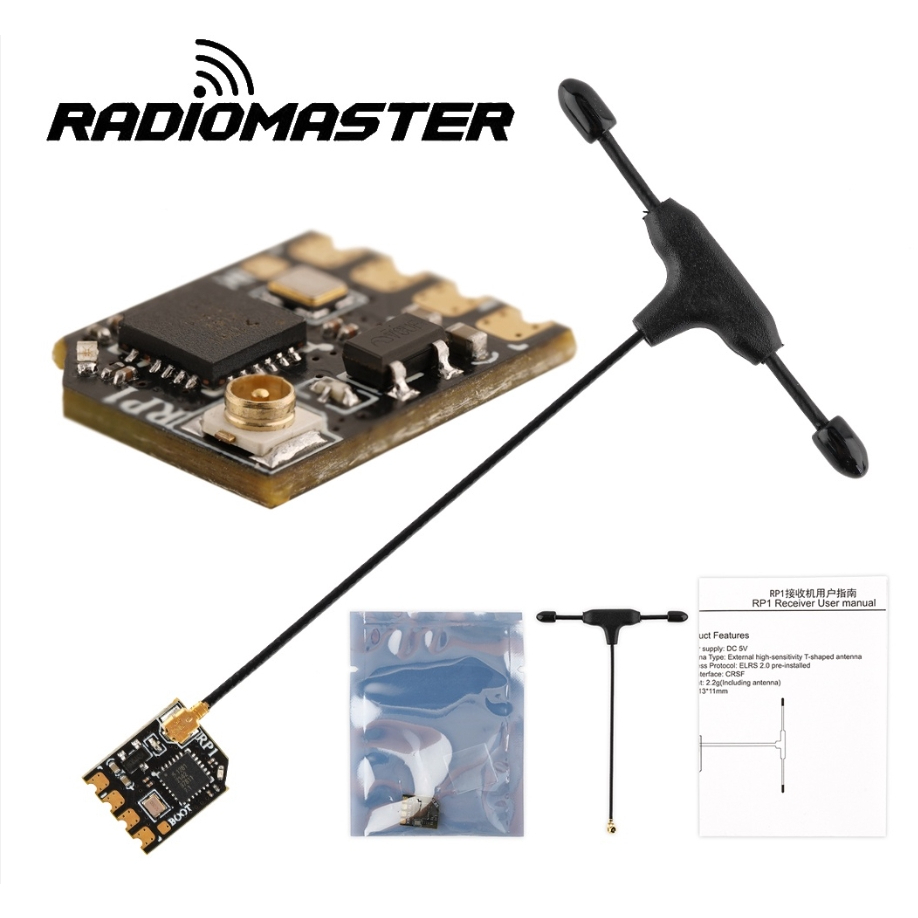

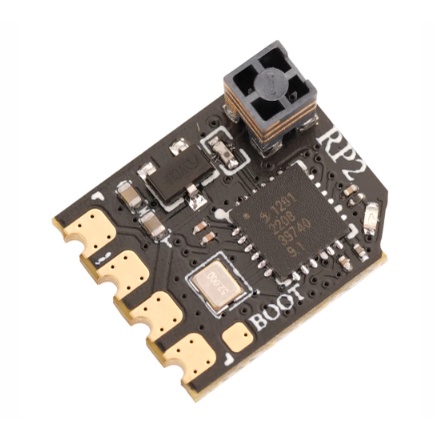

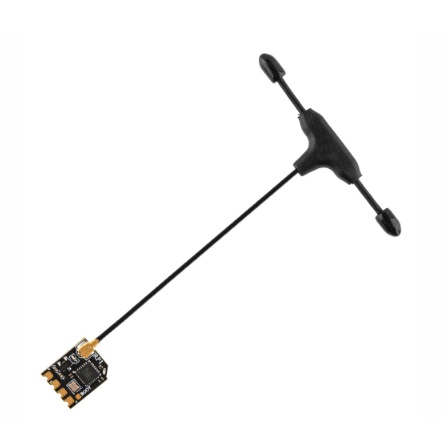

RadioMaster RP1 RP2 RP3 ER5A ER5C ELRS ExpressLRS TX RX PWM Receiver หลายรุ่น หลายระบบ ใช้กับโดรน และ เครื่องบิน RP1 ExpressLRS 2.4ghz Nano Receiver Bullet Point Improved PCB design is better for heat dissipation. Upgraded rigid antenna with greater durability and performance. LED on the top side of PCB. Solder pads are improved and easier to solder to. Specification Item: RP1 Nano ExpressLRS 2.4ghz Receiver Type: ISM Antenna: 65mm 2.4ghz T Antenna Maximum receive refresh rate: 500Hz / F1000Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 2.2g (Including antenna) Dimension: 13mm*11mm*3mm Firmware Version: ExpressLRS v2.4 pre-installed FW Target: RadioMaster RP1/2 2400 RX Bus interface: CRSF RP2 ExpressLRS 2.4ghz Nano Receiver Bullet Point Improved PCB design is better for heat dissipation. LED on the top side of PCB. Solder pads are improved and easier to solder to. Specification Item: RP2 Nano ExpressLRS 2.4ghz Receiver Type: ISM Antenna: On Board SMT Antenna Maximum receive refresh rate: 500Hz/F1000Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 0.55g (On Board antenna) Dimension: 13mm*11mm*7mm Firmware Version: ExpressLRS v2.4 pre-installed FW Target: RadioMaster RP1/2 2400 RX Bus interface: CRSF RP3 ExpressLRS 2.4ghz Nano Receiver Bullet Point Optimized PCB design for better heat dissipation. LNA for better receiver range. PA for better telemetry range. Antenna Diversity for improved signal stability and range. Specification Item: RP3 Diversity Receiver Type: ISM MCU: ESP8285 RF Chip: SX1280IMLTRT Telemetry RF power: max 100mw Antenna: 65mm 2.4ghz T Antenna x 2 Frequency Range: 2400 MHz to 2480 MHz Maximum receive refresh rate: 500Hz / F1000Hz Minimum receiver refresh rate: 25Hz Working voltage: 5v Weight: 4.6g (Including two antenna) Dimension: 22mm*13mm*4mm Firmware Version: ExpressLRS v3.0 pre-installed FW Target: RadioMaster RP3 Diversity 2400 RX Bus interface: CRSF ER5A Features Supports 8.4V HV servos and accessories Robust, injection-molded receiver casing Fast response speeds, incredible range Supports 4 proportional and 1 switch channel (ExpressLRS 2.x) Supports 5 proportional channels (ExpressLRS 3.x) Compact size, easy to install. Perfect for Surface, marine, and air R/C applications. Specification Item: ER5A 2.4GHz Receiver Power supply: DC 4.5-8.4V Antenna type: high sensitivity T-shape antenna Wireless Protocol: ELRS 2.0 pre-installed Output channel: CH1-4 standard PWM; CH5 switch (ON/OFF) PWM Weight: 6.6 grams Size: 37*19*13mm ER5C Features Supports 8.4V HV servos and accessories Robust, injection-molded receiver casing Fast response speeds, incredible range Supports 4 proportional and 1 switch channel (ExpressLRS 2.x) Supports 5 proportional channels (ExpressLRS 3.x) Compact size, easy to install. Perfect for Surface, marine, and air R/C applications. Specification Item: ER5C 2.4GHz Receiver Power supply: DC 4.5-8.4V Antenna type: high sensitivity T-shape antenna Wireless Protocol: ELRS 2.0 pre-installed Output channel: CH1-4 standard PWM; CH5 switch (ON/OFF) PWM Weight: 6.6 grams Size: 37*19*13mm
