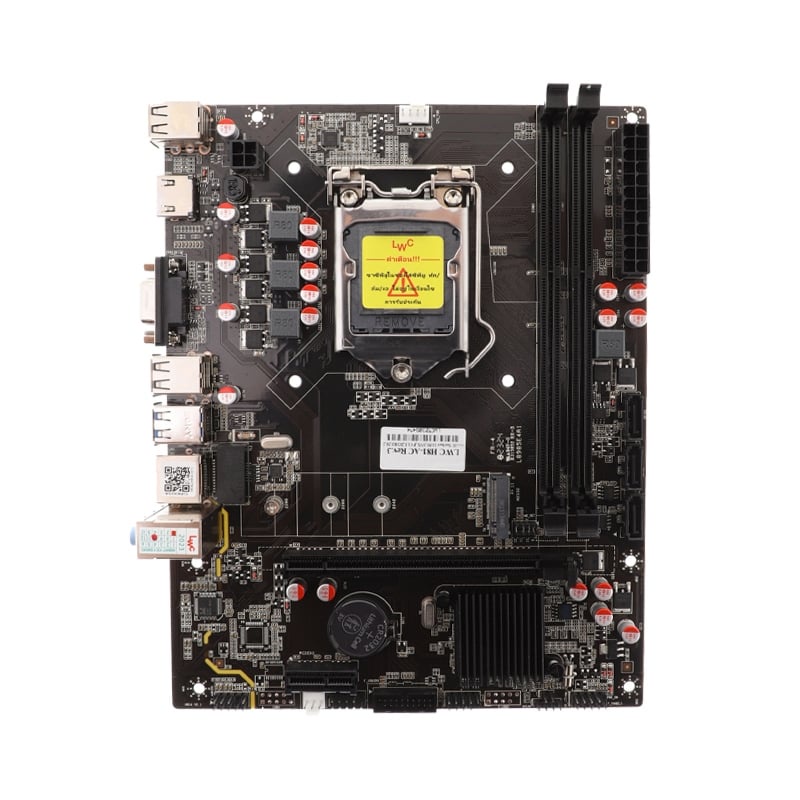

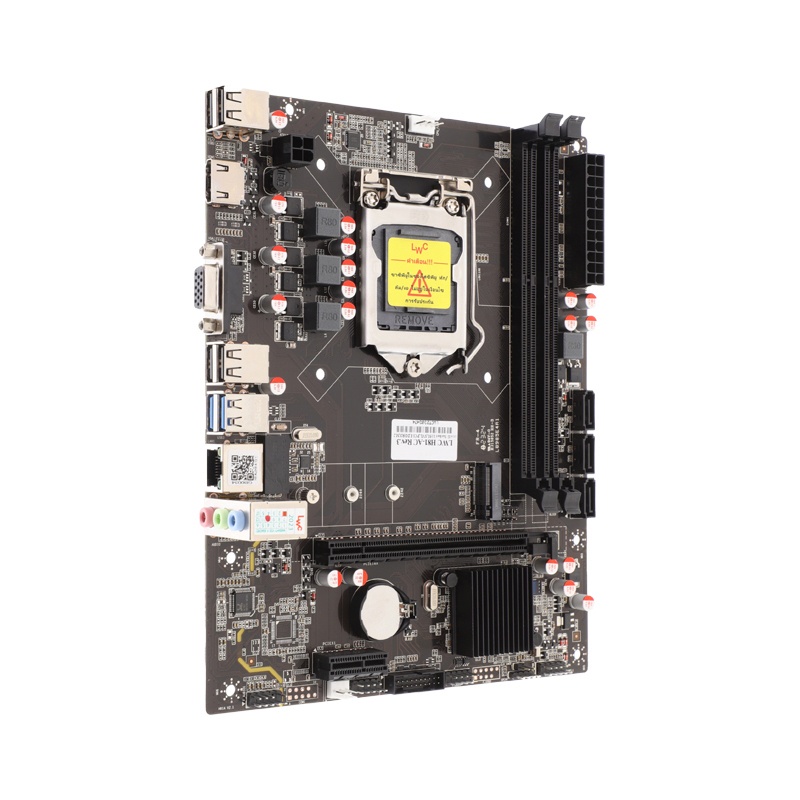

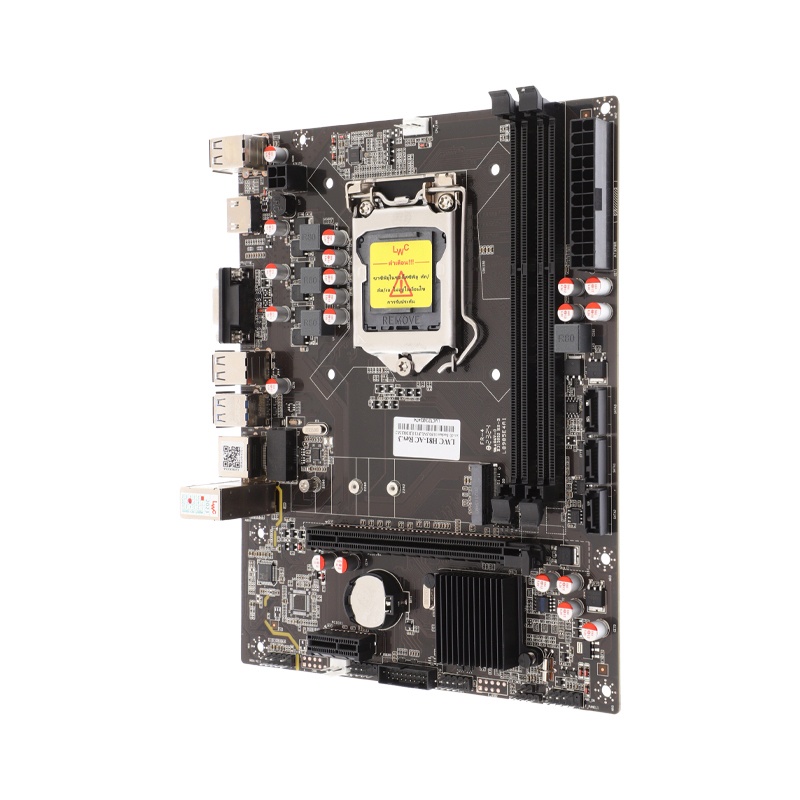

LONGWELL MAINBOARD (1155) P8H61-GL DDR3 (REV. 3.0) - A0163696

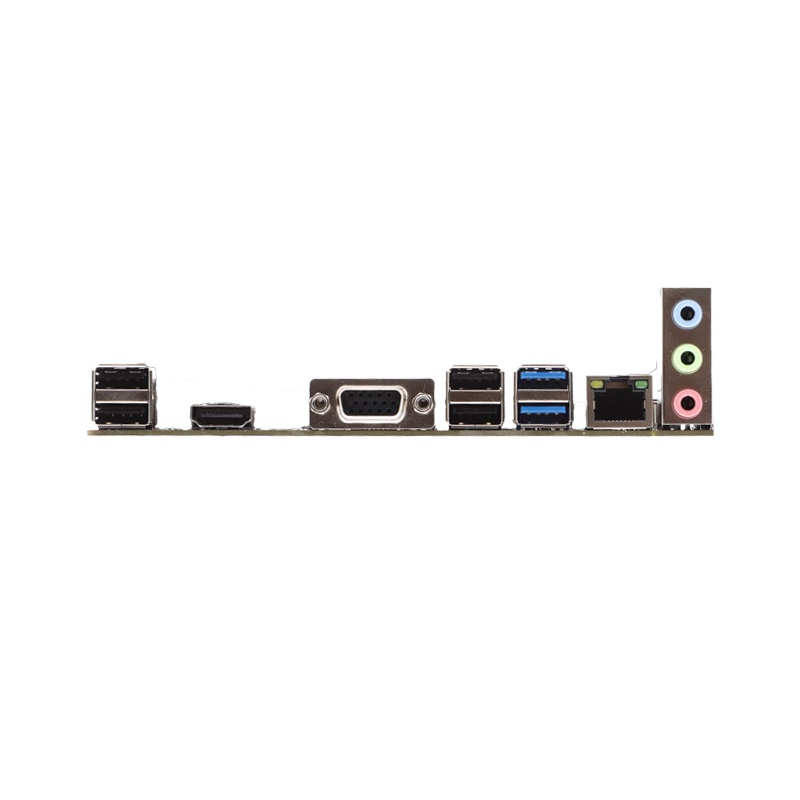

randLONGWELLModelP8H61-GL Rev3.0 CPU SupportCPU Support Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors CPU BrandIntel Socket1155 ChipsetIntel H61 Memory SupportMemory Dual Channel DDR3 Memory Technology 2 x DDR3 DIMM Slots Support DDR3 1600/1333 MHz Non-ECC, Un-Buffered Max.capacity up to 16GB Memory Maximum Memory Bus1600 GraphicsN/A Multi Graphic SupportNone AudioAudio Realtek® ALC 661,662 Channel High Definition Audio CODEC Expansion Slots1 x PCI Express 2.0 x16 (x16 mode)  1 x PCI Express 2.0 x1 Maximum PCIe VersionPCIe 2.0 Storage3 x SATA II 3.0Gb/s Connector 1 x M.2 NVME M.2 Storage Type SupportNVMe M.2 Slot1 USB4 x USB 2.0 Port Internal I/O Connectors1 x 24-pin ATX Power Connector 1 x 4-pin ATX 12V Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x USB 3.0 Connector 1 x USB 2.0 Connector 1 x Front Panel Audio Connector 1 x Speaker Connector Back Panel Connectors1 x HDMI Port 1 x VGA (D-Sub) Port 4 x USB 2.0 Port 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 3 x Audio Jacks: Line in / Speaker / Microphone LANLAN 10/100/1000 Mb/s auto negotiation Half/Full duplex capability Realtek® RTL8111E Wireless Data NetworkNone Form FactorMicro ATX H/W MonitoringN/A BIOSN/A Special FeaturesN/A Software FeaturesN/A Operating System SupportMicrosoft Window XP / Vista / 7 / 8 / 10 Package Contents1 x SATA cable 1 x I/O Rear Panel 1 x User Manual 1 x CD Driver
