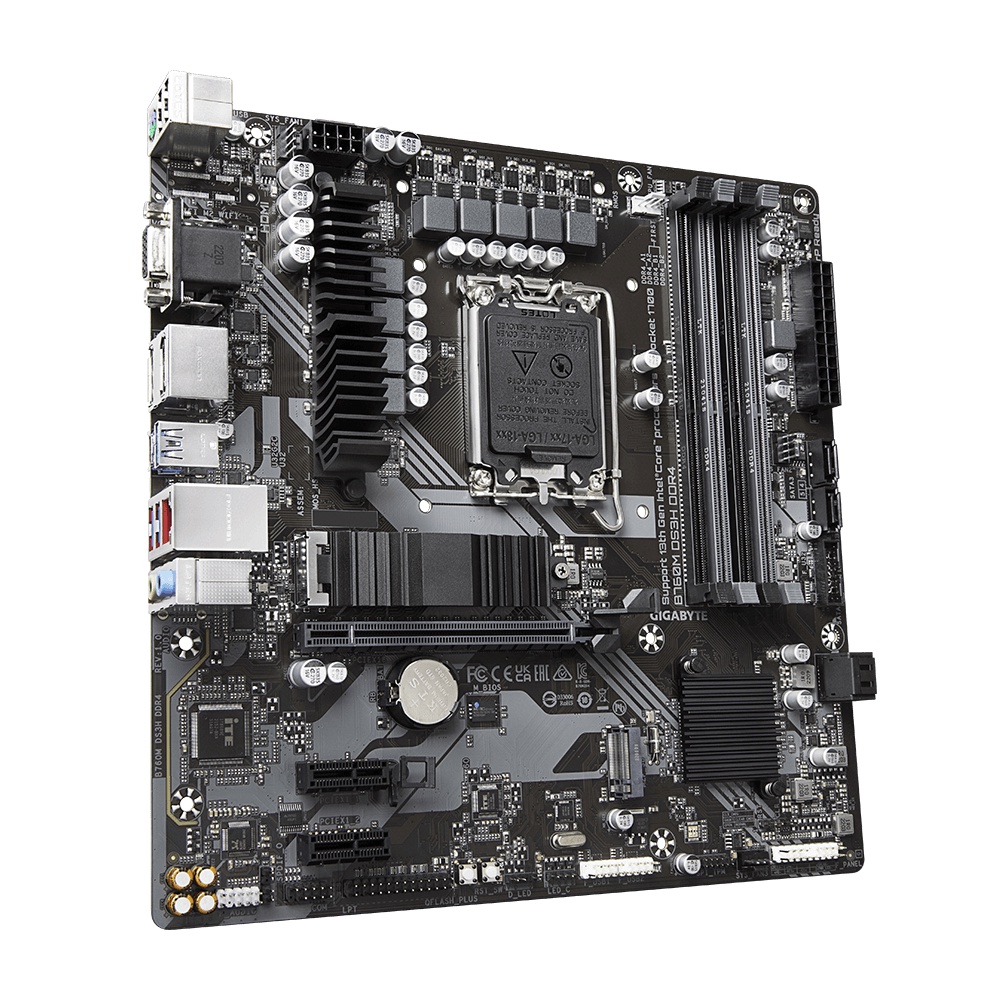

MAINBOARD เมนบอร์ด Gigabyte B760M D3HP DDR4 LGA-1700(รับประกัน3ปี)

CPU Socket Type               Intel LGA-1700 CPU Type             14th & 13th Gen Intel Core Processors Supported CPU Technologies       Rocket Lake Refresh Chipset Intel B760 Number of Memory Slots              4xDIMM Memory Standard            DDR4 Support up to 5300(OC) MHz Maximum Memory Supported   128GB Expansion Slot   1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1 slot Storage Devices 2x M.2 4.0 x4 slot, 4x SATA connector (Support SATA RAID 0/1/5/10) Onboard Video Chipset  Integrated Graphic on Processors Onboard Audio Chipset  Realtek Audio CODECHigh Definition Audio Audio Channels 7.1 Channel HD Audio Onboard LAN Chipset     Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Onboard LAN Speed        10/100/1000 Mbps Real Panel Ports PS/2, D-Sub, HDMI, DisplayPort, 3x USB3.2, 2x USB2.0, Gb LAN, Audio Jack Onboard USB     1x USB-C3.2 connector, 1x USB3.2 header, 2x USB2.0 header Dimensions W x D x H     24.4 x 24.4 cm Case spec             Micro-ATX Form Factor Power Pin            1x 24-pin Main Connector, 1x 8-pin Power Connector Warranty             3 YEAR
