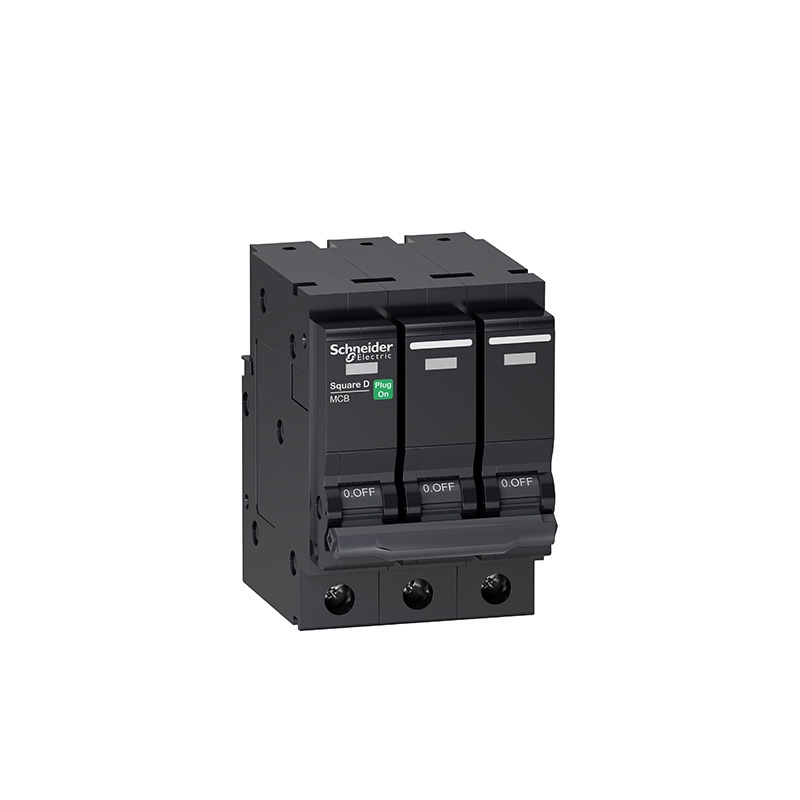

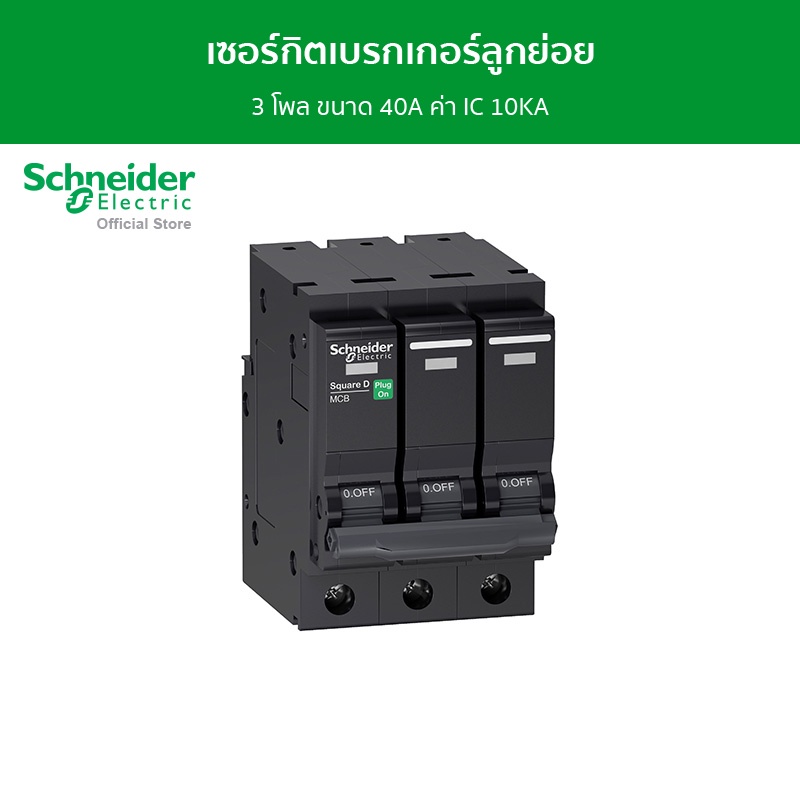

Schneider Electric เซอร์กิตเบรกเกอร์ลูกย่อย 3 โพล ขนาด 40A ค่า IC 10KA รหัส QO340VSC10T

Main Device application : Distribution Range : Square D Product name : QOvs Product or component type : Miniature circuit-breaker Poles description : 3P Number of protected poles : 3 [In] rated current : 40 A Network type : AC Curve code : C Breaking capacity : 10000 A Icn at 240/415 V AC 50/60 Hz conforming to EN/IEC 60898-1 Complementary Network frequency : 50/60 Hz [Ue] rated operational voltage : 240/415 V AC 50/60 Hz Magnetic tripping limit : 5...10 x In [Ics] rated service breaking capacity :7.5 kA 75 % conforming to EN/IEC 60898-1 - 240/415 V AC 50/60 Hz Limitation class : 3 [Ui] rated insulation voltage : 500 V AC 50/60 Hz [Uimp] rated impulse withstand voltage : 4 kV conforming to IEC 60898-1 Contact position indicator : Yes Control type : Toggle Local signalling Fault trip ON/OFF indication Mounting mode : Plug-on 9 mm pitches : 6 Height : 81 mm Width : 56.1 mm Depth : 86.3 mm Net weight : 312 kg Colour : Black Mechanical durability : 20000 cycles Electrical durability : 4000 cycles Connections - terminals Tunnel type terminals (bottom) 2.5…35 mm² rigid Tunnel type terminals (bottom) 2.5…35 mm² flexible Plug-in connector (top) Wire stripping length : 13 mm for bottom connection Tightening torque : 3.5 N.m bottom Environment Standards : EN/IEC 60898-1 Product certifications : IEC IP degree of protection : IP20 conforming to IEC 60529 Pollution degree : 3 Tropicalisation : 2 conforming to IEC 60068-1 Relative humidity : 95 % at 55 °C Ambient air temperature for operation : -5…60 °C Ambient air temperature for storage : -40…85 °C
