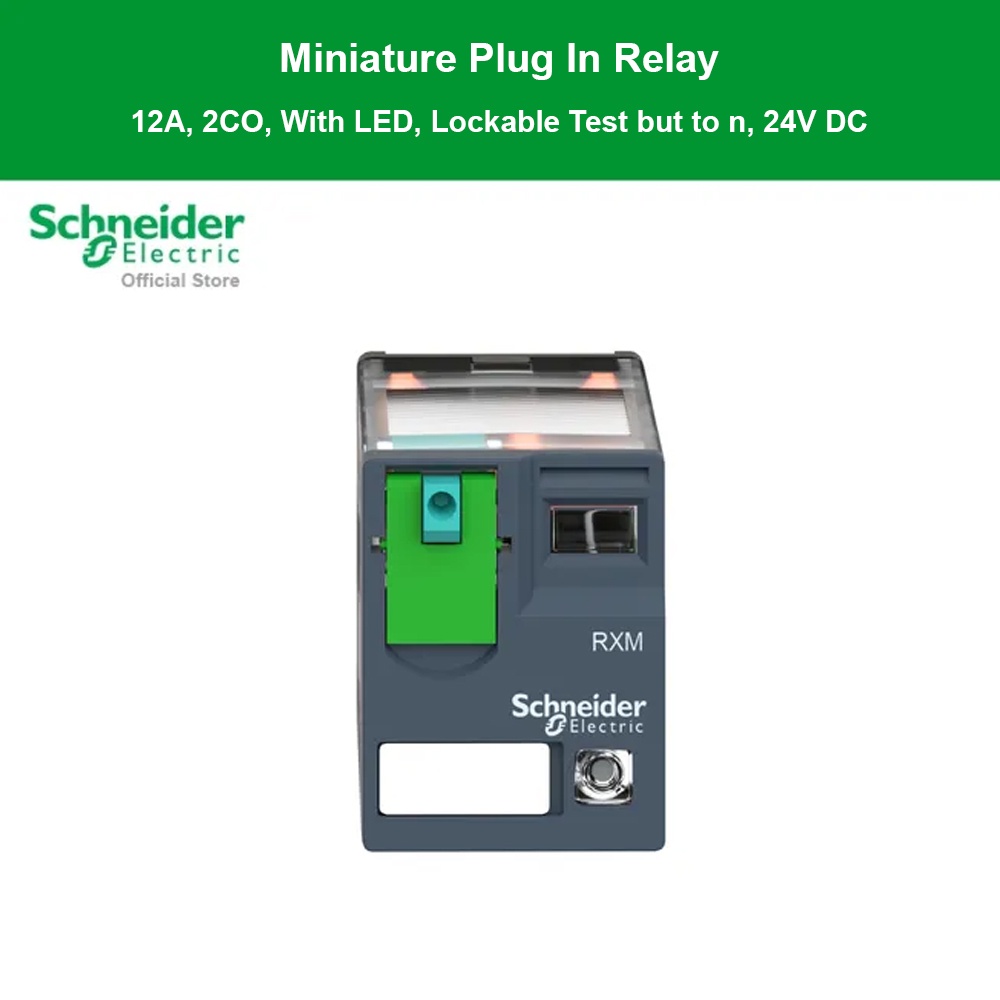

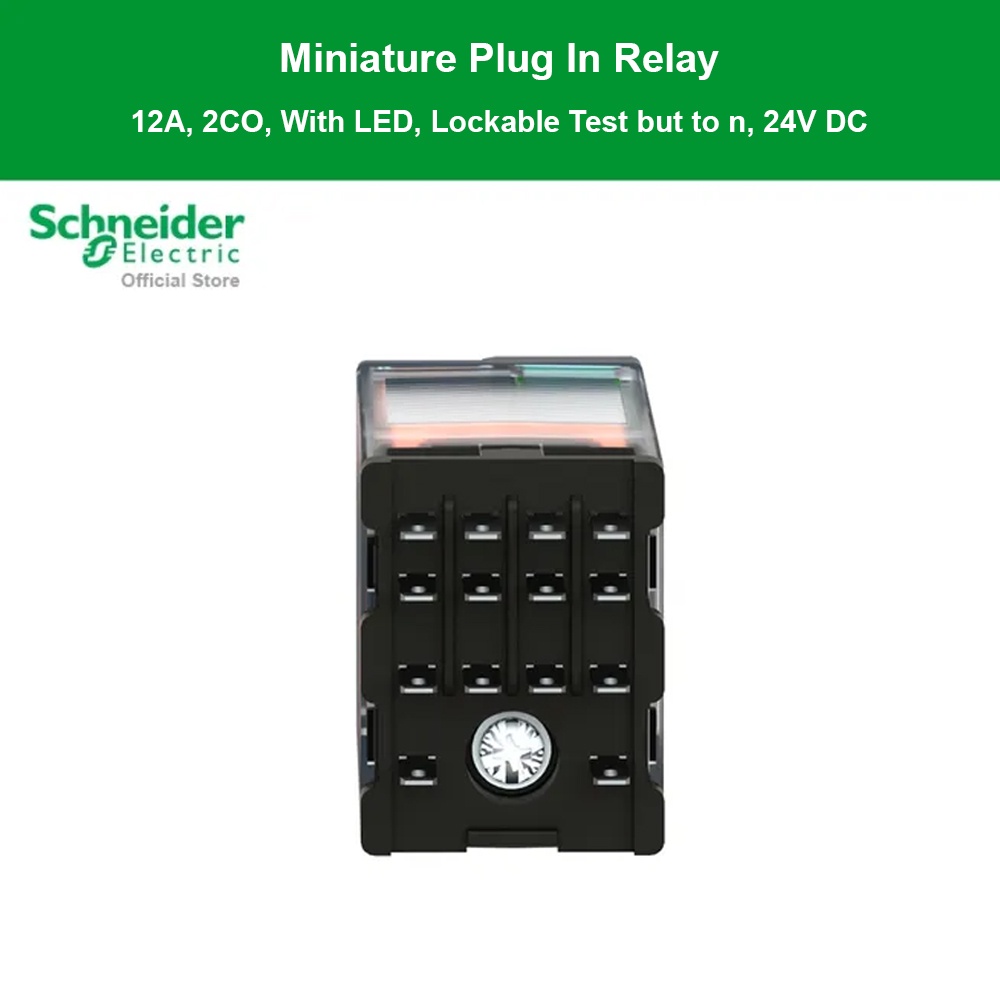

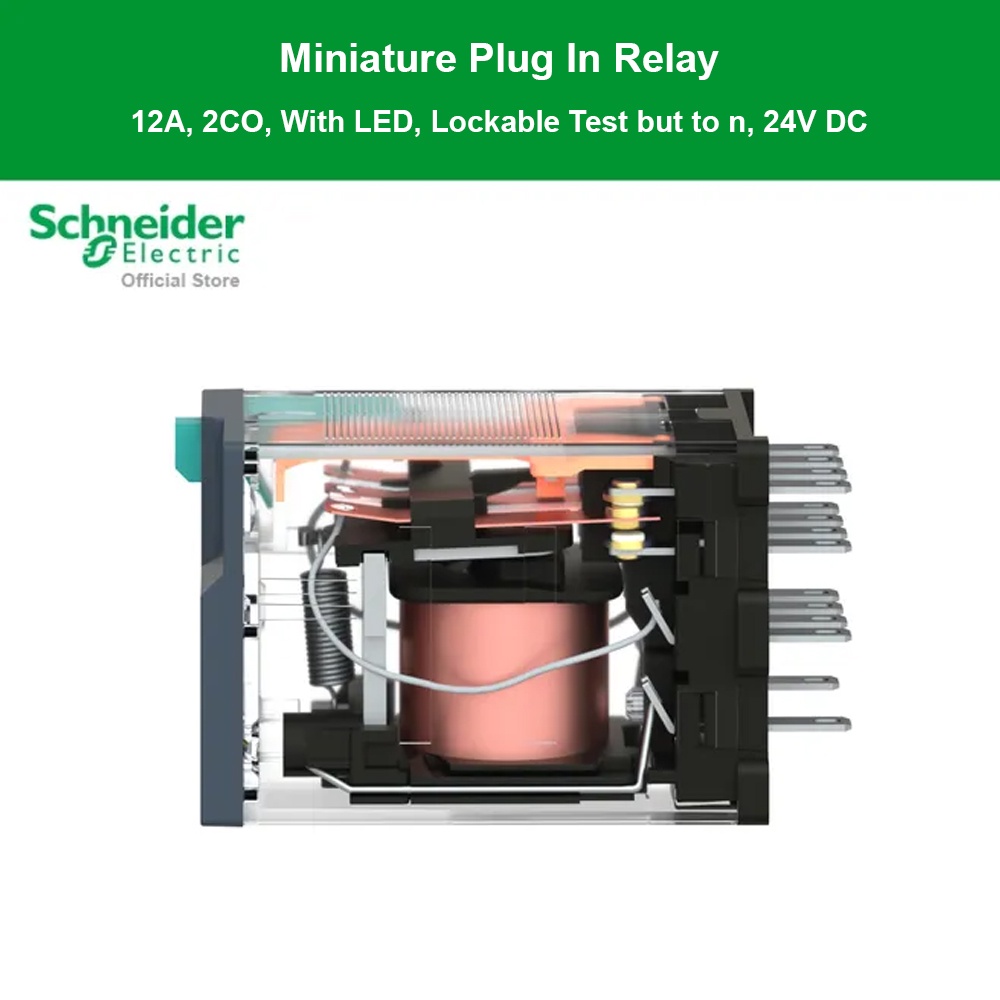

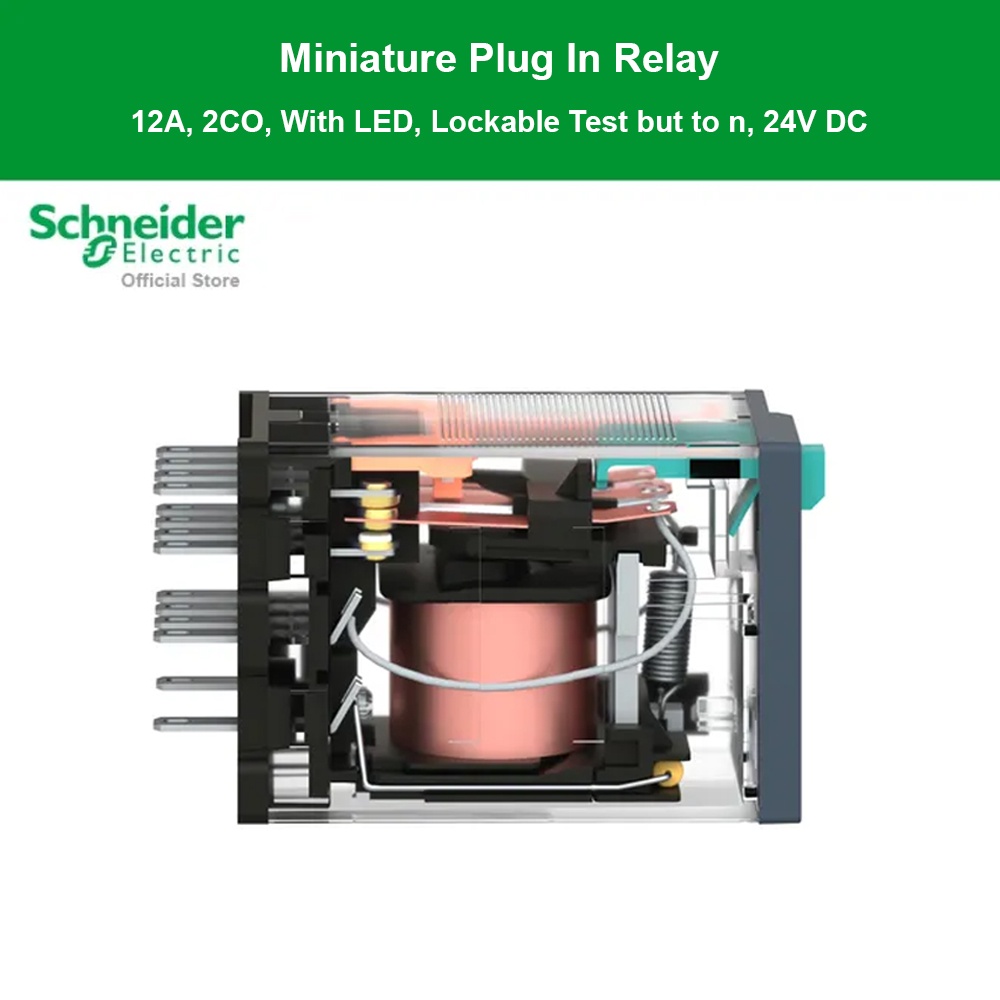

Schneider Electric miniature plug in relay,Harmony,12A,2CO with LED,lockable test but to n,24V DC (RXM2AB2BD)

Schneider Electric Miniature plug in relay ฮาร์โมนี, 12A, 2CO, with LED lockable test button, 24V DC รหัส RXM2AB2BD Main Range of product : Harmony Electromechanical Relays Series name : Miniature Product or component type : Plug-in relay Device short name : RXM Contacts type and composition : 2 C/O [Uc] control circuit voltage : 24 V DC Status LED : With Control type : Lockable test button Utilisation coefficient : 20 % Complementary Shape of pin : Flat [Ui] rated insulation voltage 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL [Uimp] rated impulse withstand voltage : 4 kV during 1.2/50 µs Contacts material : AgNi [Ie] rated operational current 12 A at 28 V (DC) NO conforming to IEC 12 A at 250 V (AC) NO conforming to IEC 6 A at 28 V (DC) NC conforming to IEC 6 A at 250 V (AC) NC conforming to IEC 12 A at 28 V (DC) conforming to UL 12 A at 277 V (AC) conforming to UL Continuous output current : 10 A Maximum switching voltage : 250 V conforming to IEC resistive rated load 12 A at 250 V AC 12 A at 28 V DC Maximum switching capacity : 3000 VA/336 W Minimum switching capacity : 170 mW at 10 mA, 17 V Operating rate <= 1200 cycles/hour under load <= 18000 cycles/hour no-load Mechanical durability : 10000000 cycles Electrical durability : 100000 cycles for resistive load average coil consumption : 0.9 W Drop-out voltage threshold : >= 0.1 Uc operate time : 20 ms release time : 20 ms average coil resistance : 650 Ohm at 20 °C +/- 10 % Rated operational voltage limits : 19.2...26.4 V DC Safety reliability data : B10d = 100000 Protection category : RT I Test levels : Level A group mounting Operating position : Any position Net weight : 0.037 kg Device presentation : Complete product Environment Dielectric strength 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation Product certifications UL Lloyd's CE CSA GOST IECEE CB Scheme Standards CSA C22.2 No 14 IEC 61810-1 UL 508 Ambient air temperature for storage : -40…85 °C Ambient air temperature for operation : -40…55 °C Vibration resistance 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating IP degree of protection : IP40 conforming to IEC 60529 Shock resistance 10 gn for in operation 30 gn for not operating Pollution degree : 3
