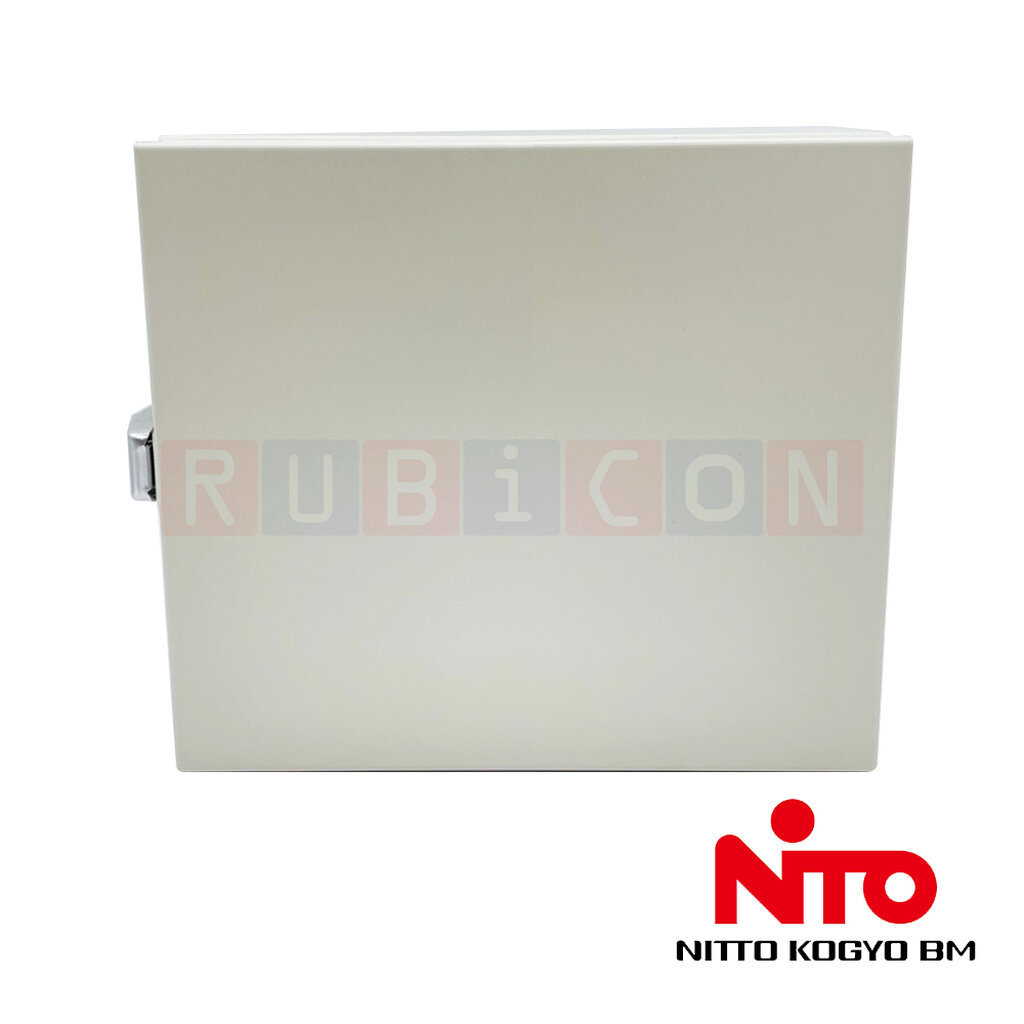

"NITTO KOGYO" CA16-43 ตู้เหล็ก ตู้ไฟสวิทช์บอร์ดแบบกันฝุ่นกันน้ำ IP65 SIZE : W400xH300xD160 mm. ความหนาตัวตู้ 1.2 มม.

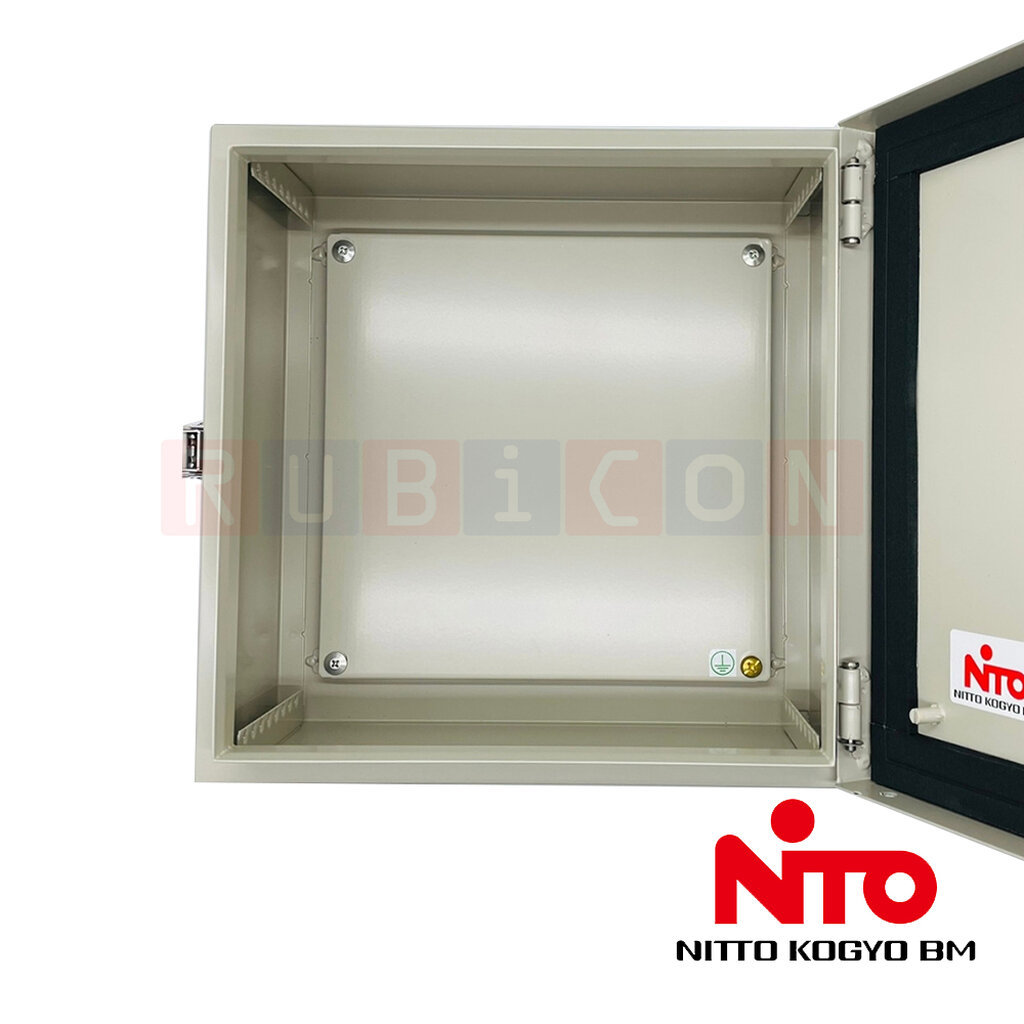

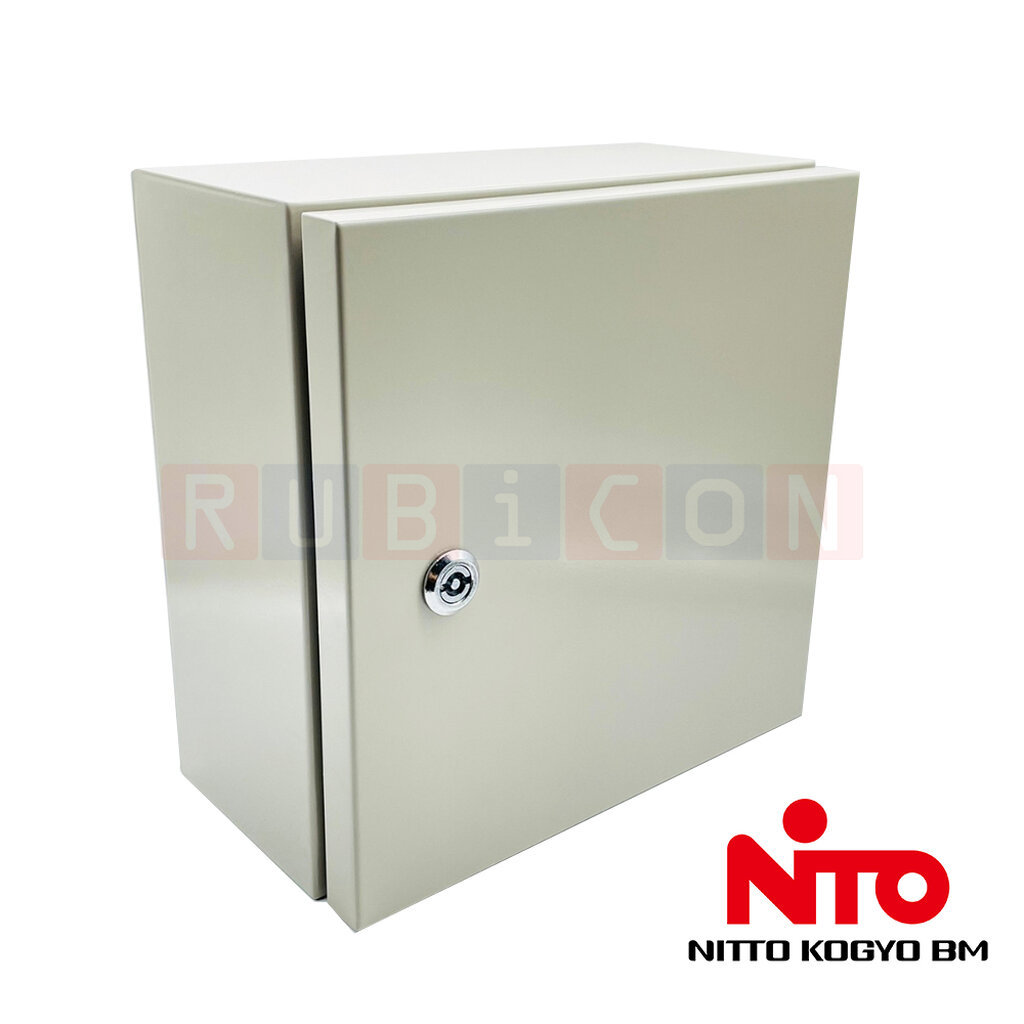

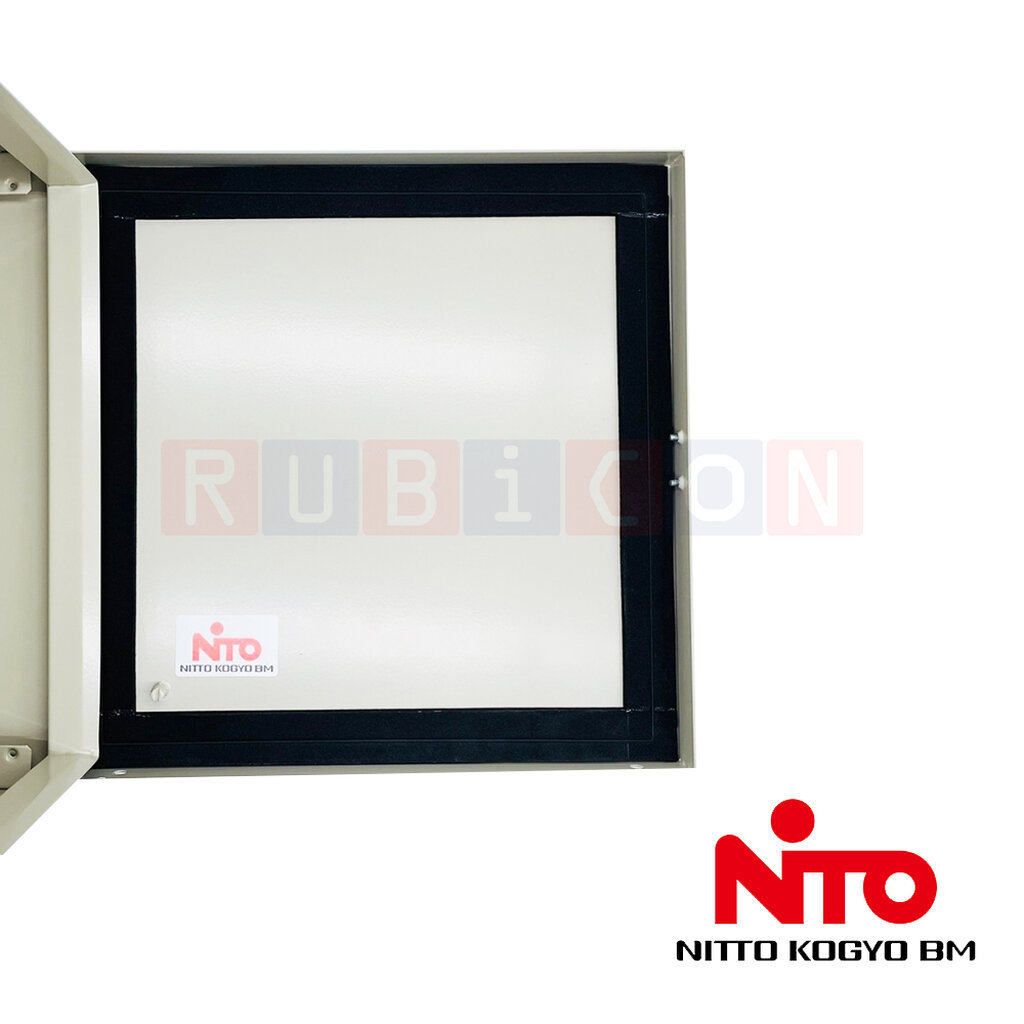

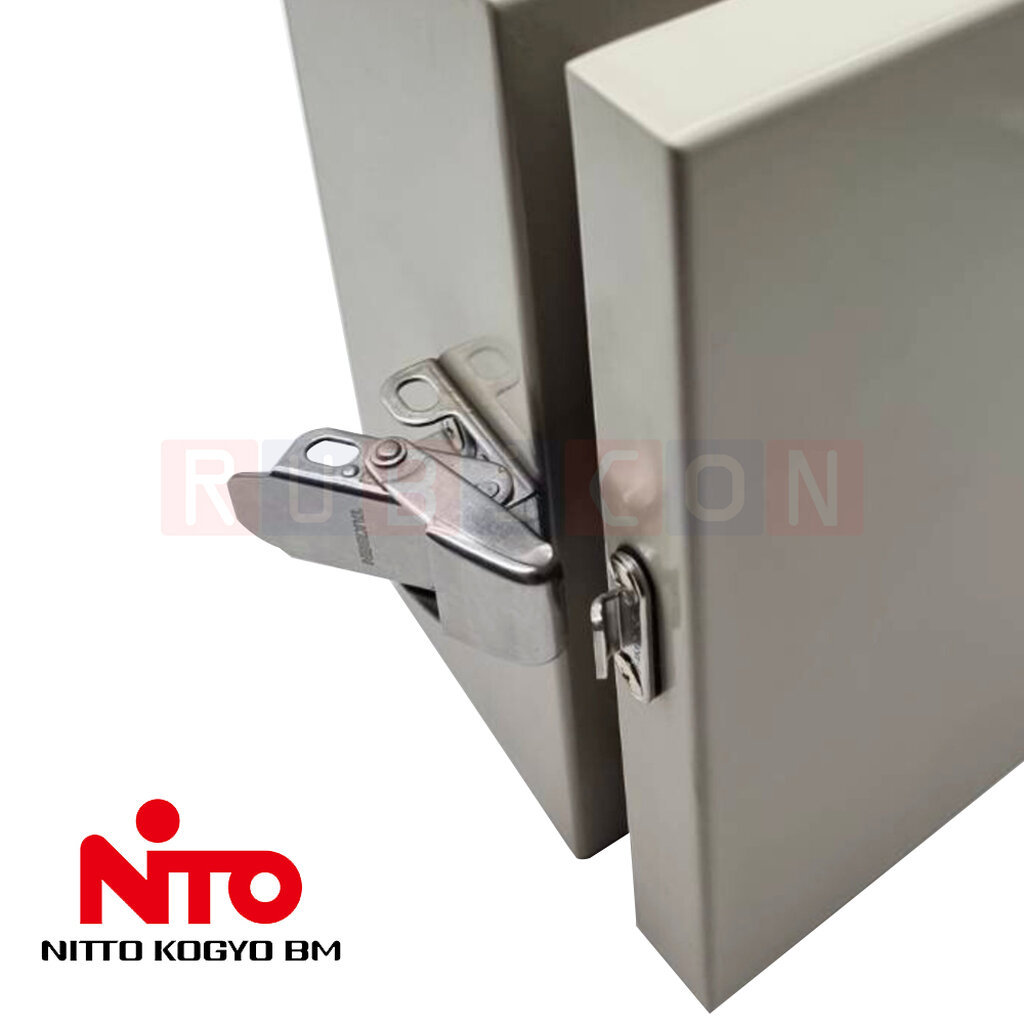

TH-Model Enclosure CA SERIES High IP enclosure - IP65, higher dust-proof and water-proof - 2 types of handle: double-bit cam lock and latch, which provides the largest area on the front surface Color Light beige Paint Powder paint, smooth, without E-coat Material/Thickness Steel/ Door and Body: 1.2mm Mounting plate Steel (t1.5mm) Without grid line Application/IP degree Indoor/Outdoor/IP65 Door Single door Handle Double-bit cam lock CA Series: Double-bit cam lock Model External dimensions (mm) Mounting plate (mm) Usable Depth (mm) Weight (kg) Drawing Download W H D W1 H1 D1 CA16-33 300 300 160 250 250 143 5.1 PDF DXF CA16-34 300 400 160 250 350 143 6.4 PDF DXF CA16-43 400 300 160 350 250 143 6.4 PDF DXF CA16-44 400 400 160 350 350 143 8.0 PDF DXF CA16-45 400 500 160 350 450 143 9.5 PDF DXF CA16-54 500 400 160 450 350 143 9.5 PDF DXF CA16-55 500 500 160 450 450 143 11.4 PDF DXF CA20-33 300 300 200 250 250 183 5.7 PDF DXF CA20-34 300 400 200 250 350 183 7.0 PDF DXF CA20-43 400 300 200 350 250 183 7.0 PDF DXF CA20-44 400 400 200 350 350 183 8.7 PDF DXF CA20-45 400 500 200 350 450 183 10.3 PDF DXF CA20-54 500 400 200 450 350 183 10.3 PDF DXF CA20-55 500 500 200 450 450 183 12.3 PDF DXF CA25-33 300 300 250 250 250 233 6.2 PDF DXF CA25-34 300 400 250 250 350 233 7.8 PDF DXF CA25-43 400 300 250 350 250 233 7.8 PDF DXF CA25-44 400 400 250 350 350 233 9.6 PDF DXF CA25-45 400 500 250 350 450 233 11.2 PDF DXF CA25-54 500 400 250 450 350 233 11.2 PDF DXF CA25-55 500 500 250 450 450 233 13.4 PDF DXF Opetional accessory ■Mounting rail - Alternative of mounting plate - For attaching DIN rail and a panel Model Height of applicable enclosure Drawing CXN-3 300mm PDF DXF CXN-4 400mm PDF DXF CXN-5 500mm PDF DXF ■Side mounting rail - Attachable onto the side hole *Not applicable to D120 enclosure *DIN rail is not included Model Height of applicable enclosure Drawing CXL-3 300mm PDF DXF CXL-4 400mm PDF DXF CXL-5 500mm PDF DXF
