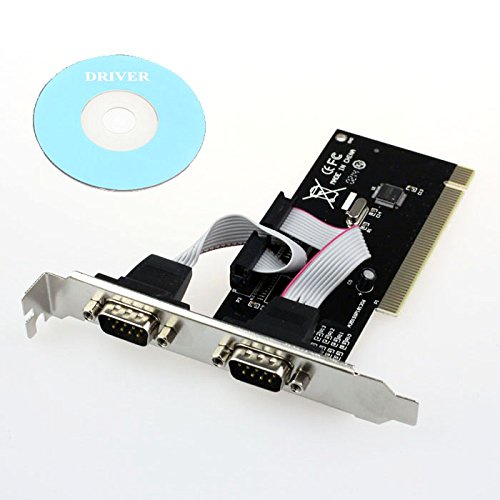

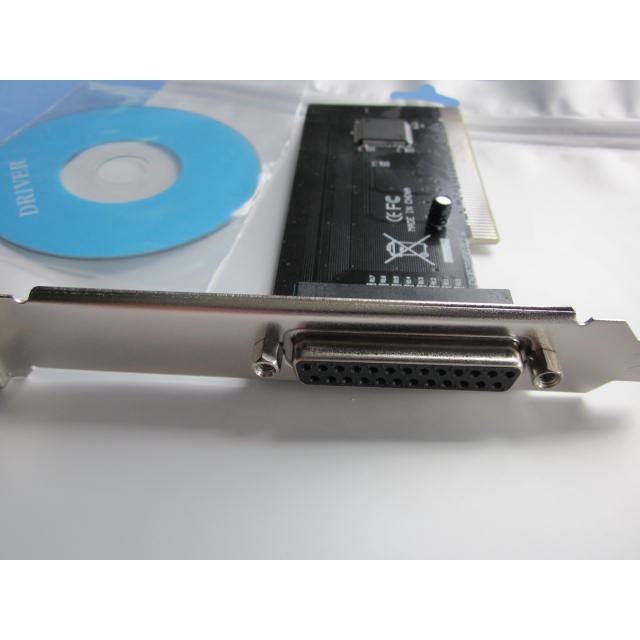

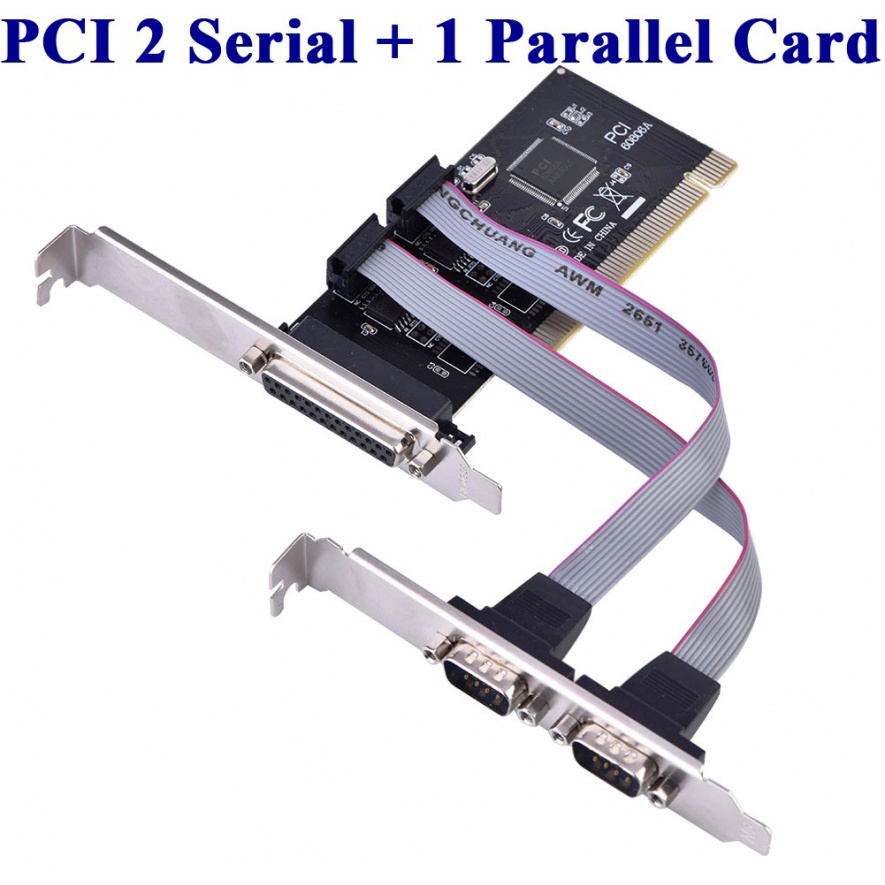

PCI Card to COM 9-pin 2 Serial Series Port RS232 / 25-pin Parallel Port / 2 Serial + 1 Parallel Card Adapter PCI015

CH382 is a dual serial port and printer port chip for PCI-Express bus, including two 16C550 or 16C750 compatible asynchronous serial ports and an EPP/ECP enhanced bidirectional parallel port. The asynchronous serial port provides a 256-byte FIFO buffer with independent transceivers, supports a communication baud rate of up to 8Mbps, and can be used for PCI-E Bus RS232 serial port expansion, PCI-E high-speed serial port with automatic hardware rate control, serial port networking, RS485 communication, parallel port/print port expansion, etc. -The same chip can be configured as dual serial ports, single parallel port/printer port, dual serial ports plus parallel port/printer port of PCI-E bus. -Provides a two-wire serial host interface, which can be connected to serial EEPROM devices like 24C0X to store non-volatile data. -You can set the device identification (Vendor ID, Device ID, Class Code, etc.) of the PCIE board in the EEPROM device. -3.3V power supply voltage, main I/O pins support 5V withstand voltage, and serial port low-power sleep mode. ** Serial port -Two completely independent asynchronous serial ports, compatible with 16C550, 16C552, 16C554 and 16C750 and have been enhanced. -Support 5, 6, 7 or 8 data bits and 1 or 2 stop bits. -Support odd, even, no check, blank 0, mark 1 and other check methods. -Programmable communication baud rate, support 115200bps and communication baud rate up to 8Mbps. -Built-in 256-byte FIFO first-in-first-out buffer, supporting 4 FIFO trigger levels. -Support MODEM modem signals CTS, DSR, RI, DCD, DTR, RTS, which can be converted to RS232 level. -Support hardware flow control signals CTS and RTS automatic handshake and automatic transmission rate control, compatible with TL16C550C. -Support serial frame error detection and Break line interval detection. -Supports full-duplex and half-duplex serial communication. ** Parallel port Support SPP, Nibble, Byte, PS/2, EPP, ECP and other IEEE1284 parallel/printer working modes. Supports two-way data transmission and supports a transmission speed of up to 1M bytes/second. ** Operating system -Windows 98SE/ME/NT 4.0/2000/XP/Vista/Server2003/Win 7, Linux ** Package 1 x CH382L PCI-E serial-parallel combo port card 1 x CD-driver
