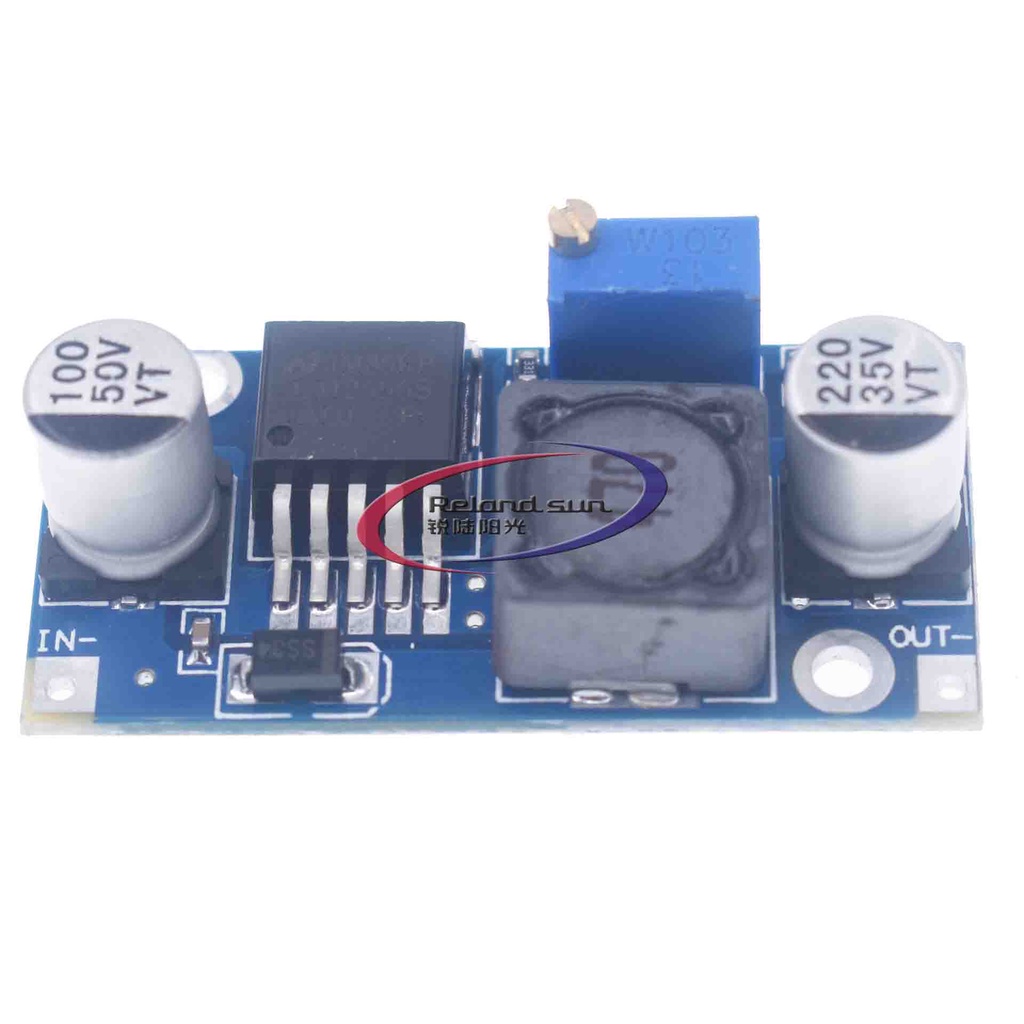

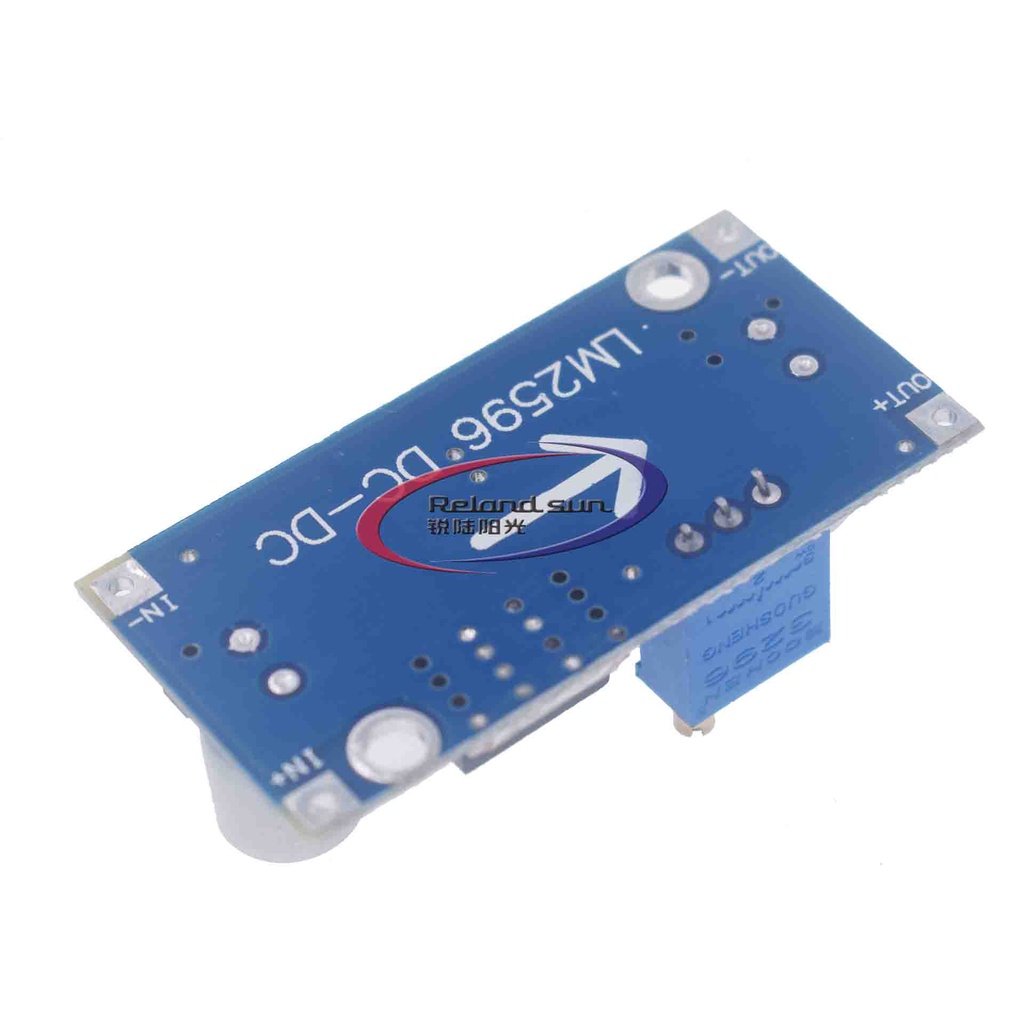

LM2596 โมดูล เพาเวอร์ DC-DC Buck Converter Step Down Module LM2596 จำนวน 1 ชิ้น

LM2596s DC-DC adjustable step-down power supply module Description: Module property:Non-isolation buck Rectification mode:Non-synchronous rectifier Input voltage:3V-40V Output voltage:1.3V-35V Output current:Rated current is 2A,maximum 3A(Additional heatsink is required) Conversion efficiency:92%( highest ) Switching frequency:65KHz Output ripple:30mV( maximum ) Load regulation:±0.5% Voltage regulation:± 2.5% Work temperature:-Minus 40 degrees - 85 degrees dimension:43mm*21mm*14mm(L*W*G) NOTE:This can't be used to step up Voltage Package Include:1 pcs Step Down Module LM2596 Before purchase: 1.All the goods are ready stock, we will arrange the shipment at once if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. 3.No warranty,if you receive a defect item,please contact us at once with item picture. 4.Use the vouchers for more saving. Shipment： 1.1-2 days to ship(except for the pro-order item) and 10-15 days shipment. 2.If you have not received the item after 15 days shipment,Please contact us. After purchase: 1.If you are satisfied，please give us 5 stars praise. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. if you receive a defect item,please contact us at once with item picture or video #lm2596 #LM2596S #DC-DC 3-40V #adjustable #step-down #power Supply module #Voltage regulator #3A #module
