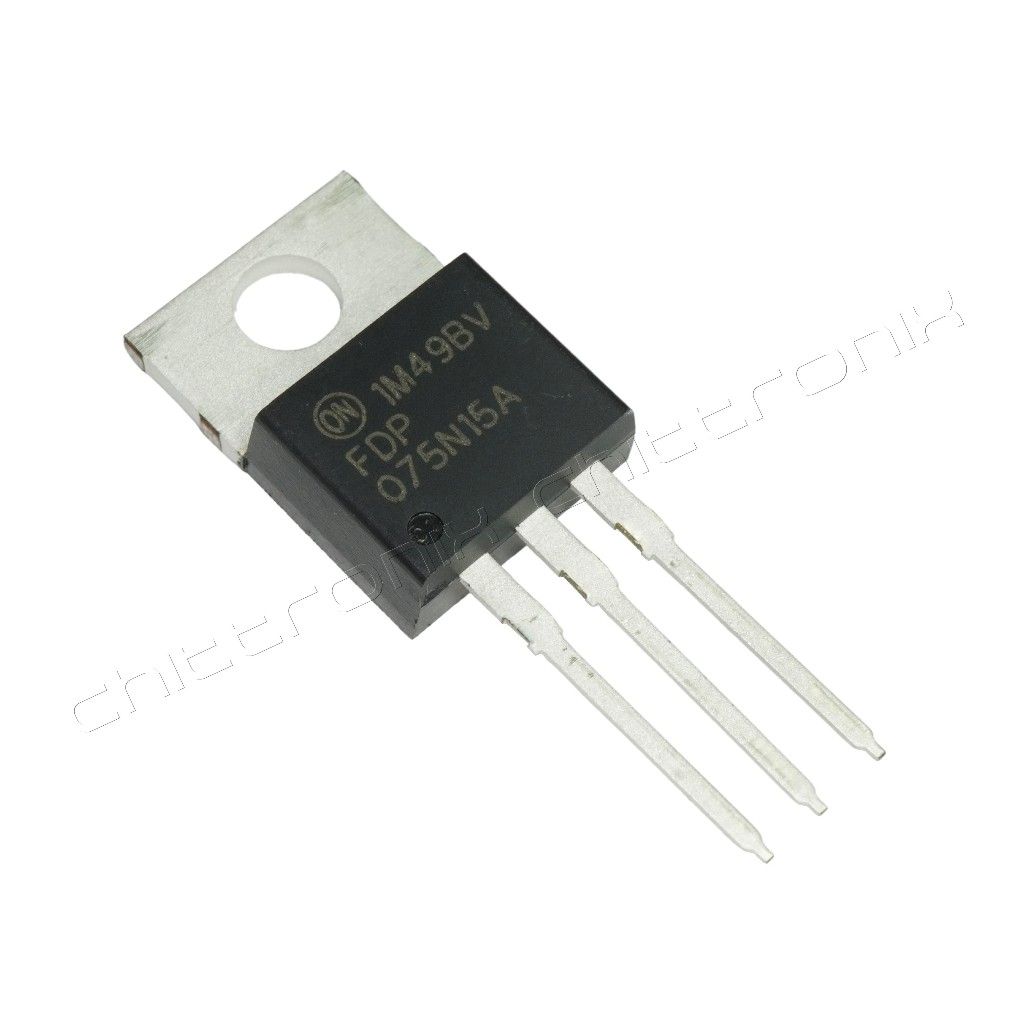

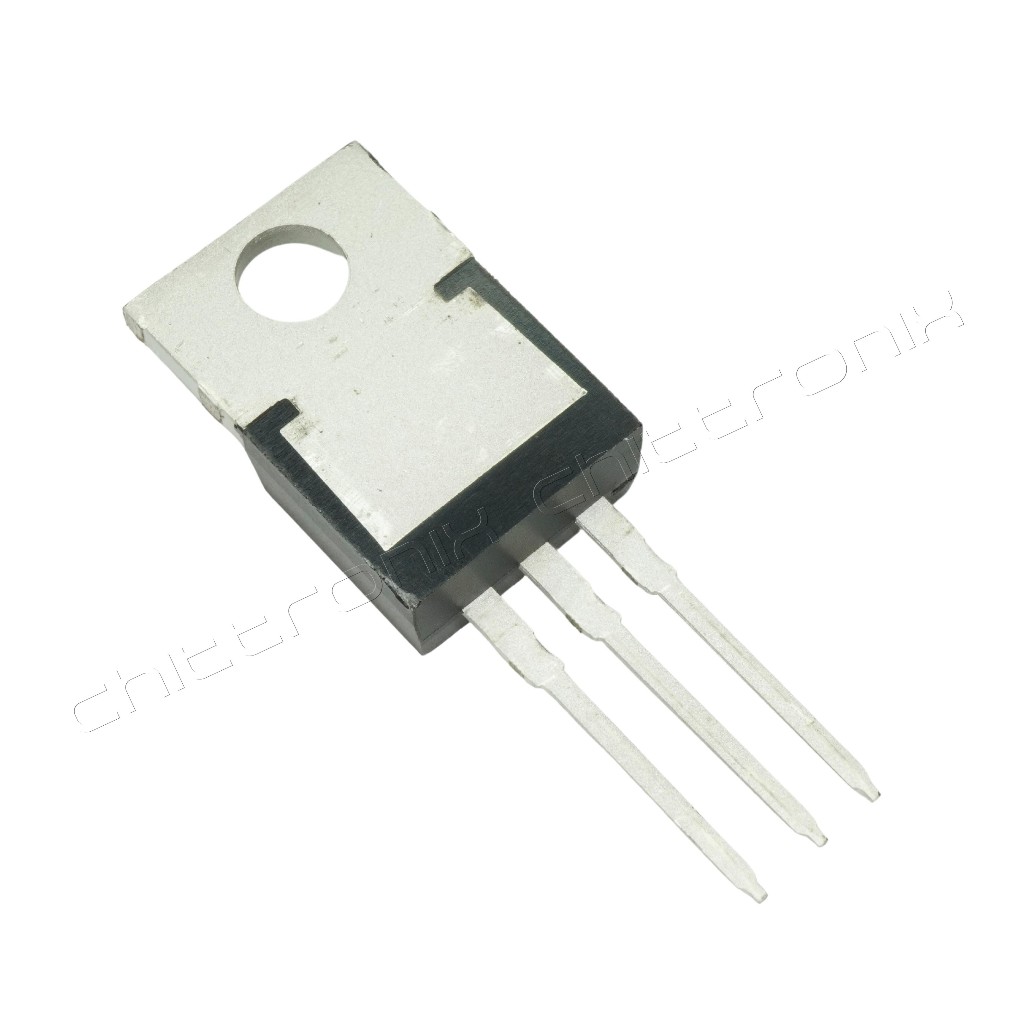

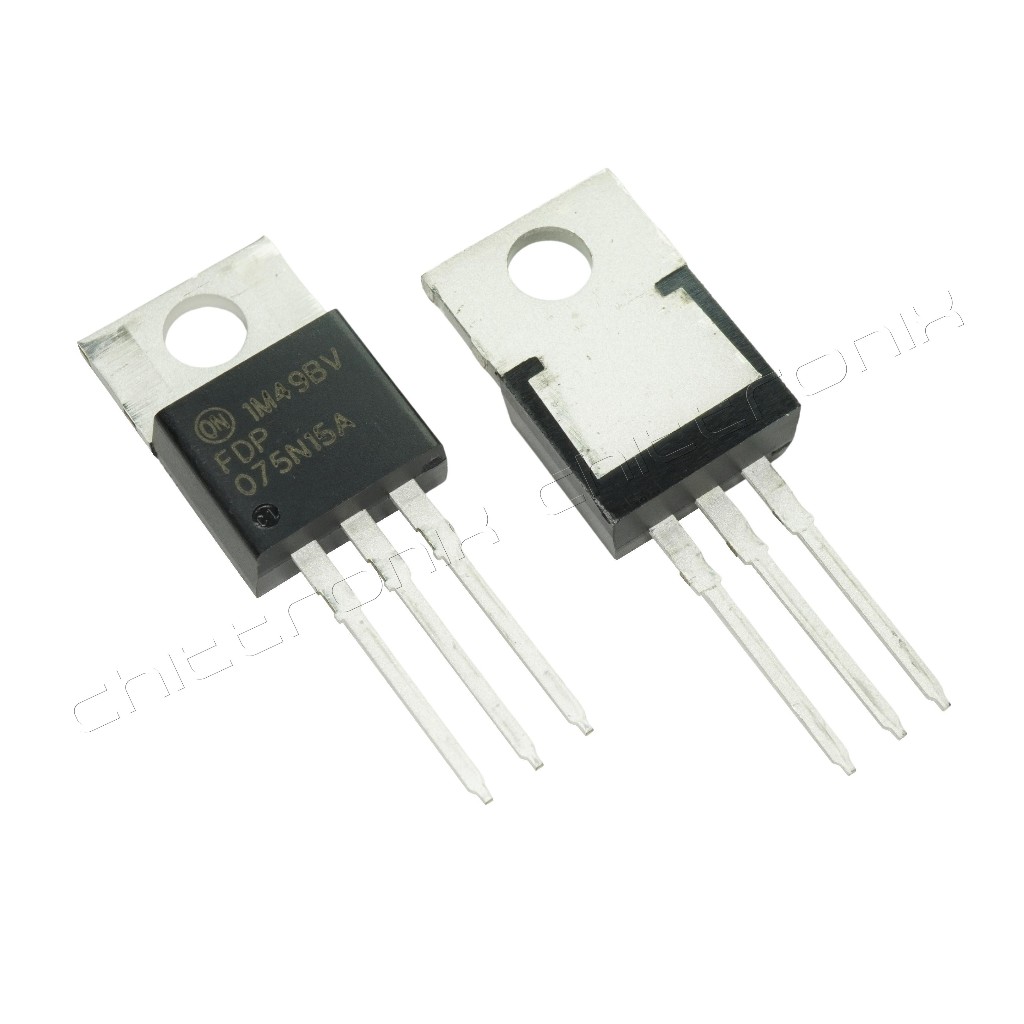

FDP075N15A Mosfet มอสเฟต ภาคจ่ายไฟแอมป์รถยนต์ ยี่ห้อ ON

Manufacturer: ON Semiconductor Product Category: MOSFET Technology: Si Mounting Style: Through Hole Package / Case: TO-220-3 Transistor Polarity: N-Channel Number of Channels: 1 Channel Vds - Drain-Source Breakdown Voltage: 150 V Id - Continuous Drain Current: 130 A Rds On - Drain-Source Resistance: 7.5 mOhms Vgs - Gate-Source Voltage: - 20 V, + 20 V Vgs th - Gate-Source Threshold Voltage: 4 V Qg - Gate Charge: 77 nC Minimum Operating Temperature: - 55 C Maximum Operating Temperature: + 175 C Pd - Power Dissipation: 333 W Channel Mode: Enhancement Packaging: Tube Configuration: Single Height: 16.3 mm Length: 10.67 mm Series: FDP075N15A Width: 4.7 mm Brand: ON Semiconductor / Fairchild Fall Time: 21 ns Product Type: MOSFET Rise Time: 37 ns Subcategory: MOSFETs Typical Turn-Off Delay Time: 62 ns Typical Turn-On Delay Time: 28 ns
