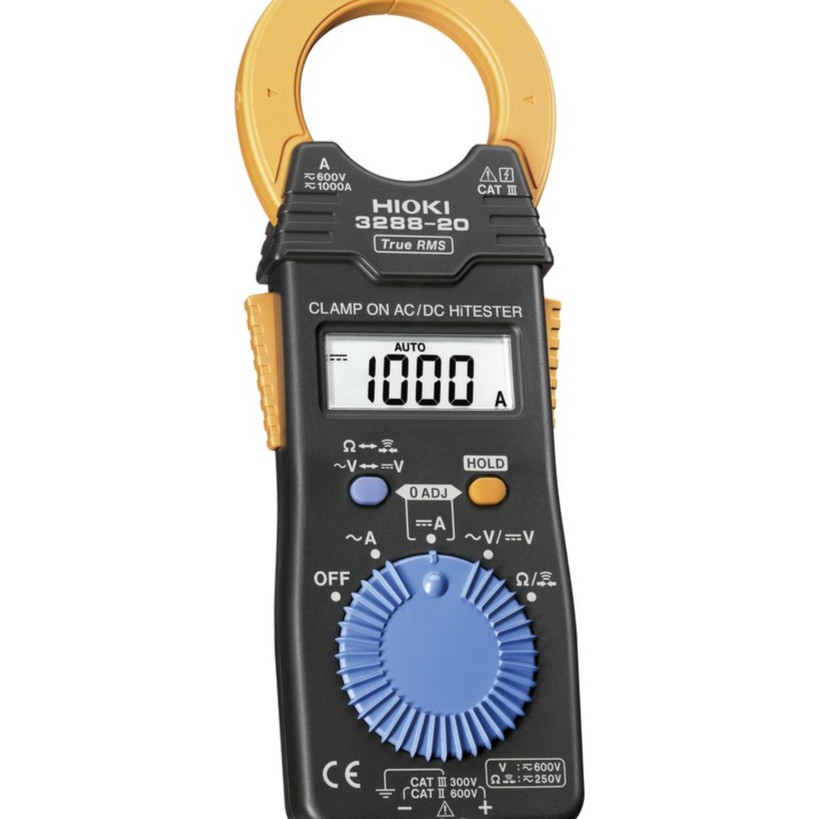

Digitlal clamp meter Hioki 3288-20 -Made IN JAPAN ACA-DCA TRUE RMS onebanmor

Compact & easy, one-touch maintenance on all types of AC/DC equipment Model 3288-20: True RMS Use the 3288 for high current measurements such as UPS emergency batteries and train motors Voltage, Resistance, Continuity check function Basic specifications(Accuracy guaranteed for 1 year, or opening and closing of the clamp sensor 10,000 times) 3288 3288-20 DC Current 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. AC Current 100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt. 100.0/ 1000 A, (10 Hz to 500 Hz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt. DC Voltage 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. AC Voltage 4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, Average rectified) 4.4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, True RMS) Resistance 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. Crest factor None 3 and under (2 at 1000 A range, 1.5 at Voltage) Other function Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s Power supply Coin type lithium battery (CR2032) ×1, Continuous use 60 hours Coin type lithium battery (CR2032) ×1, Continuous use 35 hours Core jaw dia. φ 35 mm (1.38 in) Dimensions, mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz) Supplied accessories Instruction Manual ×1, TEST LEAD L9208 ×1, CARRYING CASE 9398 ×1 #Digitlal #Hioki #3288-20
