YAMAHA MG-06X MIXER มี เอฟเฟค มิกซ์ มิกเซอร์ มิกซ์YAMAHA เครื่องเสียง mg06x mg 06 x MIX MG-06 X เอไอ-ไพศาล +++

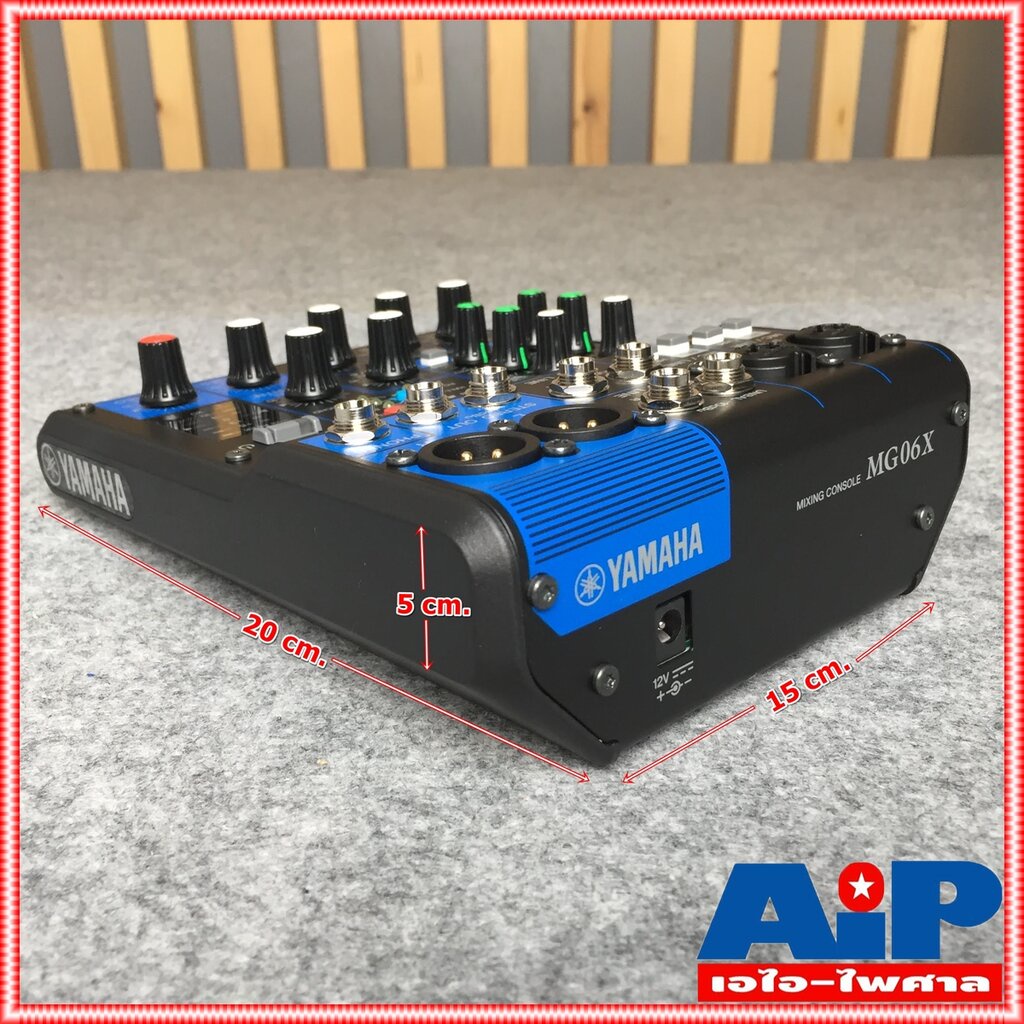

YAMAHA MG-06X MIXER+EFF 6-Channel Mixing Console Max. 2 Mic / 6 ลาย Inputs (2 mono + 2 stereo) 1 Stereo Bus “D-PRE” mic preamps with an inverted Darlington circuit High-grade effects: SPX with 6 programs XLR balanced outputs PAD switch on mono inputs +48V phantom power Metal chassis Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9") Net Weight: 0.9 kg (1.98 lbs.) Specs Outลาย Mixing capability : On-board processors : SPX algorithm : 6 programs I/O : Phantom power : +48 V Input Channels : Mono[MIC/ลาย] : 2 Stereo[ลาย] : 2 Output Channels : STEREO OUT : 2 PHONES : 1 Bus : Stereo: 1 Input Channel Function : PAD : 26 dB (Mono) HPF : 80 Hz, 12 dB/oct (Mono) EQ HIGH : (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ LOW : (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping Level Meter : 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB] General specifications Total harmonic distortion : 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min Frequency response : +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min Hum & noise level : Equivalent input noise : -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) Residual output noise : -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) Crosstalk : -88 dB Power requirements : PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha Power consumption : 12 W Dimensions : W : 149 mm (5.9") H : 62 mm (2.4") D : 202 mm (7.9") Net weight : 0.9 kg (1.98 lbs.) Accessories : Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A Others : Operating Temperature: 0 to +40˚C
