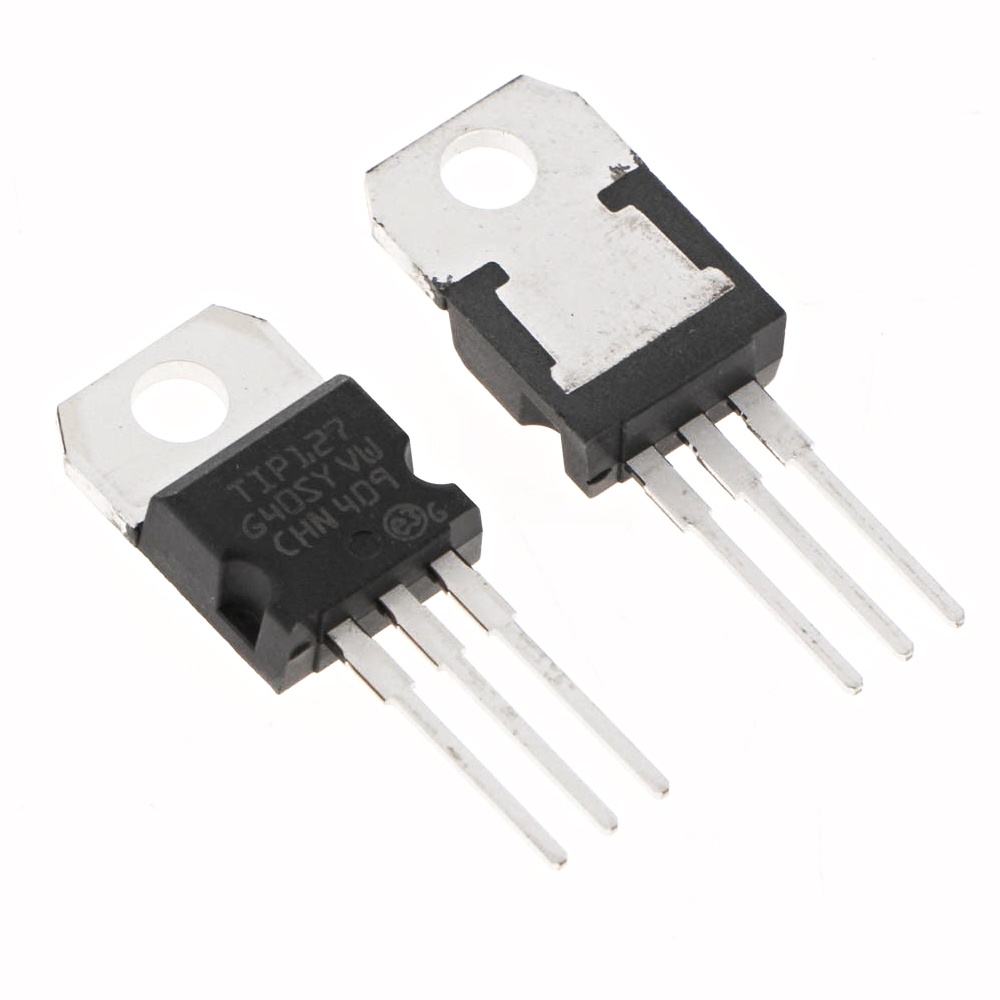

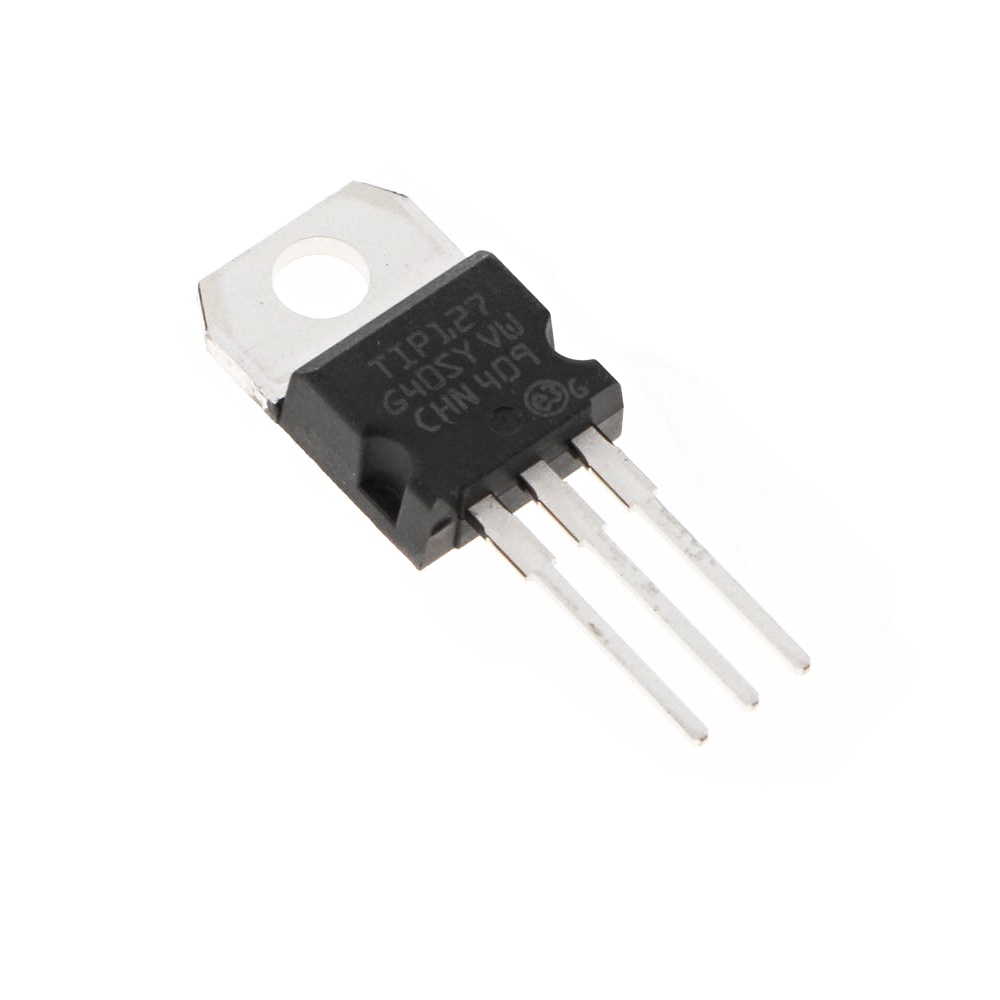

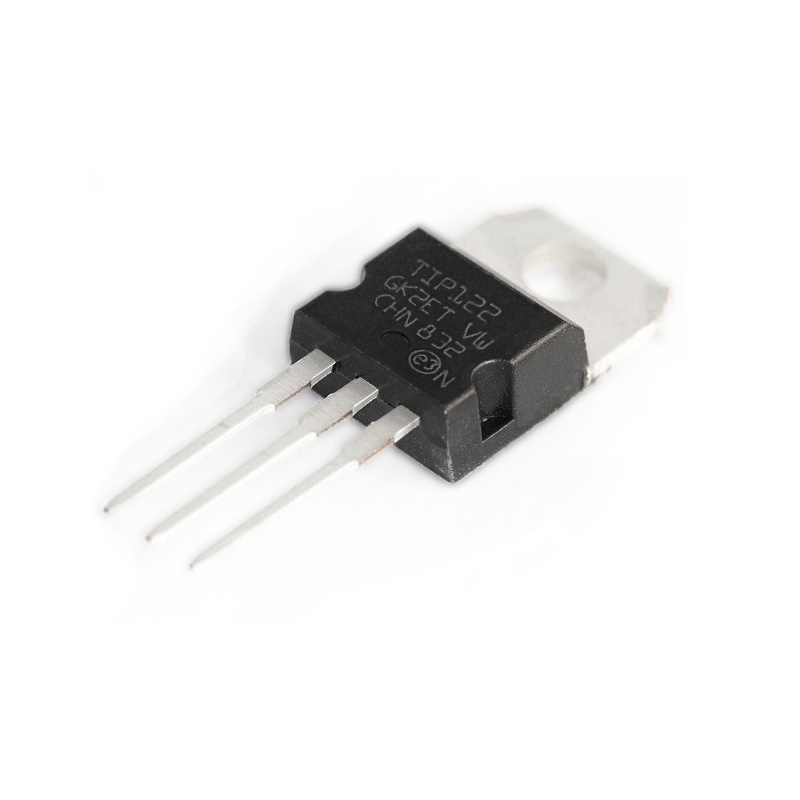

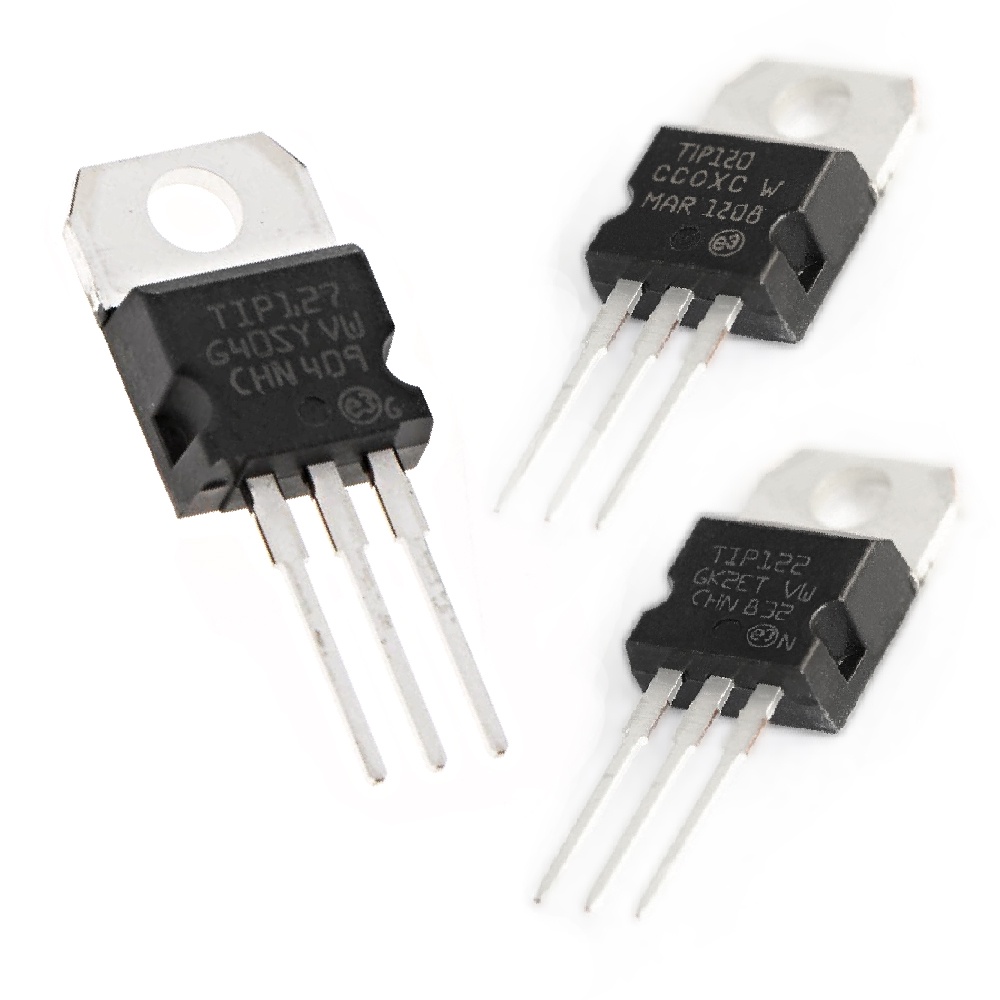

(1ตัว) TIP120 TIP122 NPN TIP127 PNP Medium-power Darlington Transistor , ทรานซิสเตอร์

Feature: High DC Current Gain − hFE = 2500 (Typ) @ IC = 4.0 Adc • Collector−Emitter Sustaining Voltage − @ 100 mAdc VCEO(sus) = 60 Vdc (Min) − TIP120, TIP125 = 80 Vdc (Min) − TIP121, TIP126 = 100 Vdc (Min) − TIP122, TIP127 • Low Collector−Emitter Saturation Voltage − VCE(sat) = 2.0 Vdc (Max) @ IC = 3.0 Adc = 4.0 Vdc (Max) @ IC = 5.0 Adc • Monolithic Construction with Built−In Base−Emitter Shunt Resistors • Pb−Free Packages are Available* Available in To-220 Package Switching of high current loads Used where high amplification is needed To control motor speeds To control solenoid valves In the Inverters Rectifier circuits
