AON4407 AO4407 4407 P-Channel MOSFET SOP-8 สินค้าในไทยพร้อมส่ง

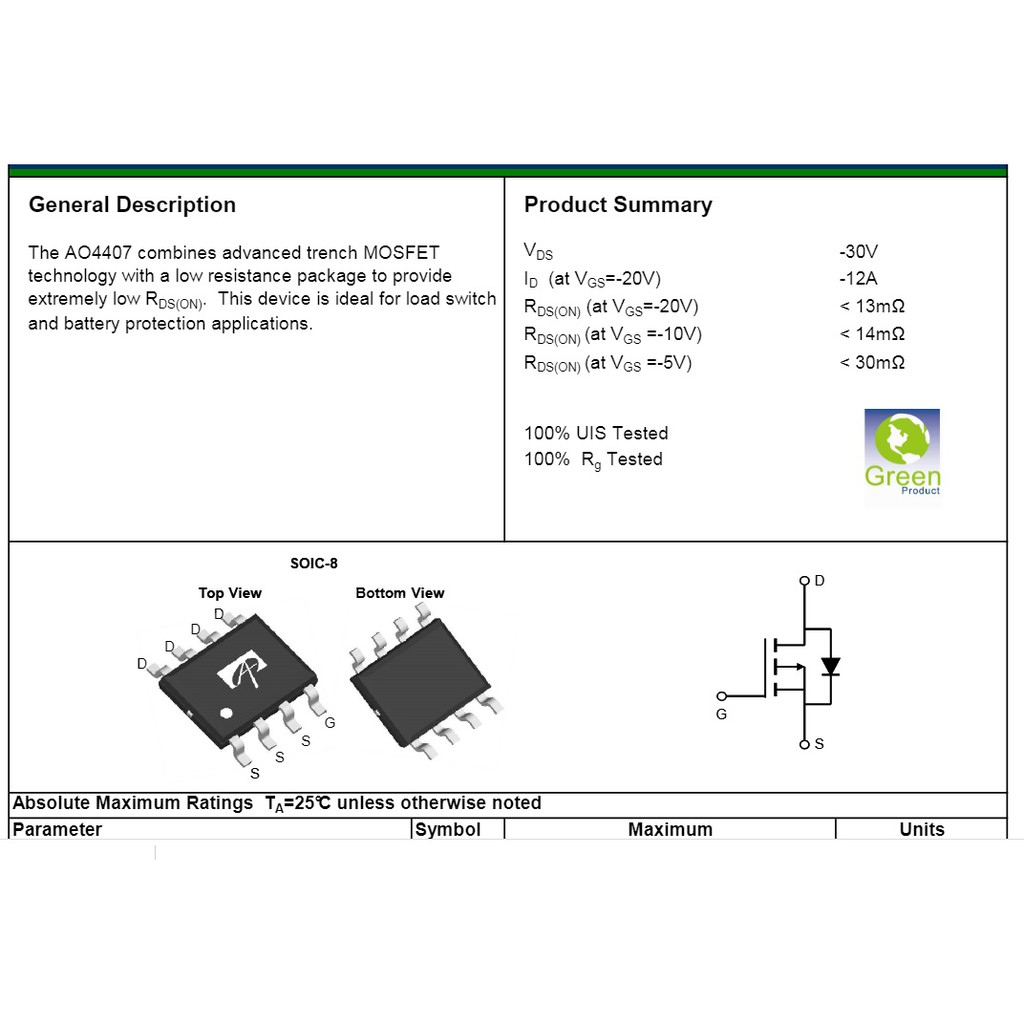

AON4407 AO4407 4407 P-Channel MOSFET SOP-8 Type Designator: AO4407 Type of Transistor: MOSFET Type of Control Channel: P -Channel Maximum Power Dissipation (Pd): 3.1 W Maximum Drain-Source Voltage |Vds|: 30 V Maximum Gate-Source Voltage |Vgs|: 25 V Maximum Gate-Threshold Voltage |Vgs(th)|: 2.8 V Maximum Drain Current |Id|: 12 A Maximum Junction Temperature (Tj): 150 °C Rise Time (tr): 9.4 nS Drain-Source Capacitance (Cd): 370 pF Maximum Drain-Source On-State Resistance (Rds): 0.014 Ohm Package: SO-8
