SW-520D Angle sensor module โมดูลเซนเซอร์สวิตซ์ sw 520 d sw - 520 d สีทอง 1 ชิ้น

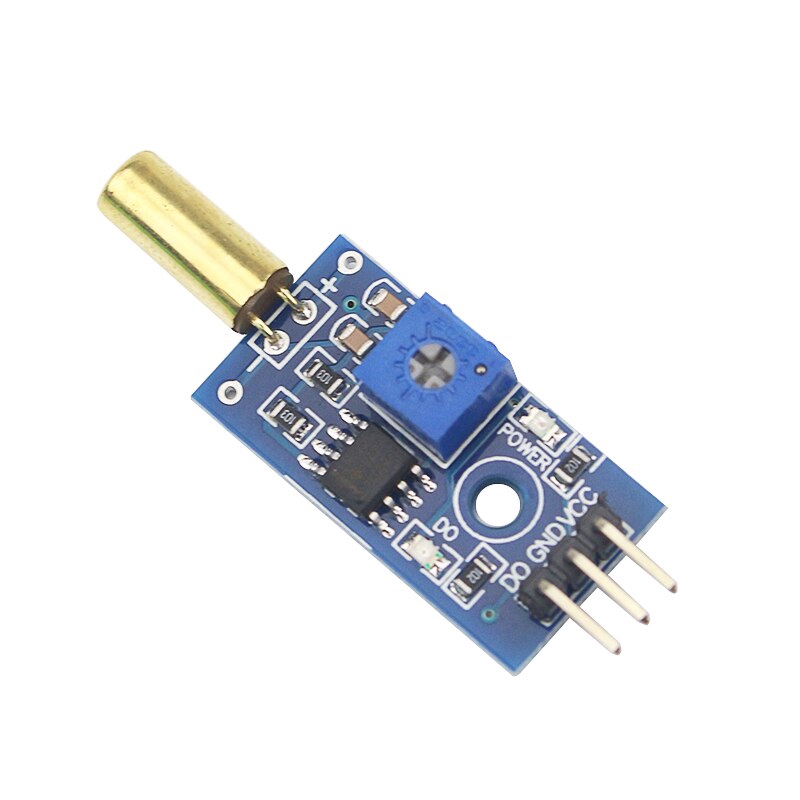

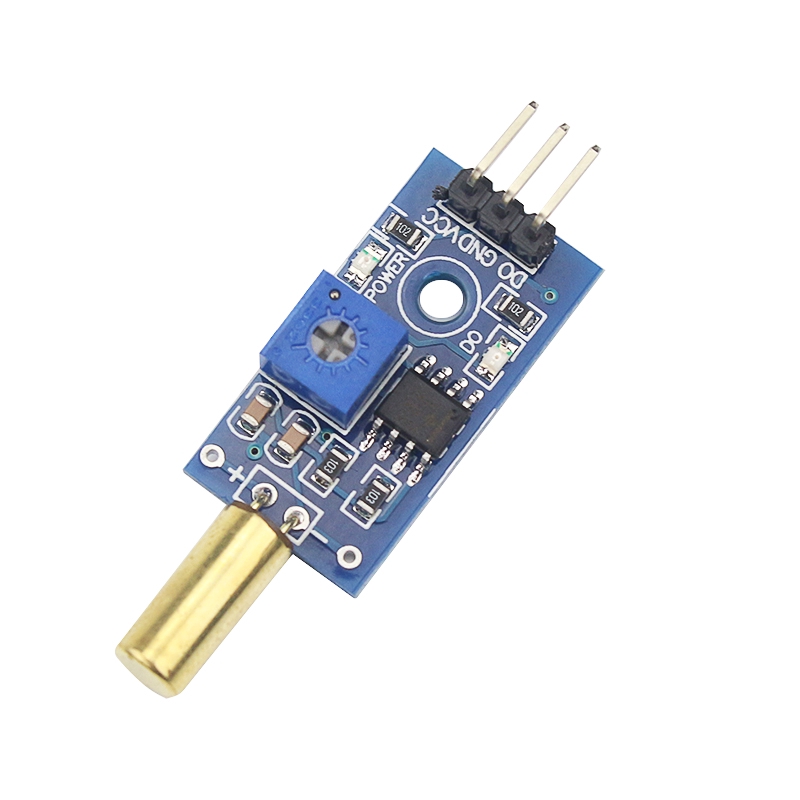

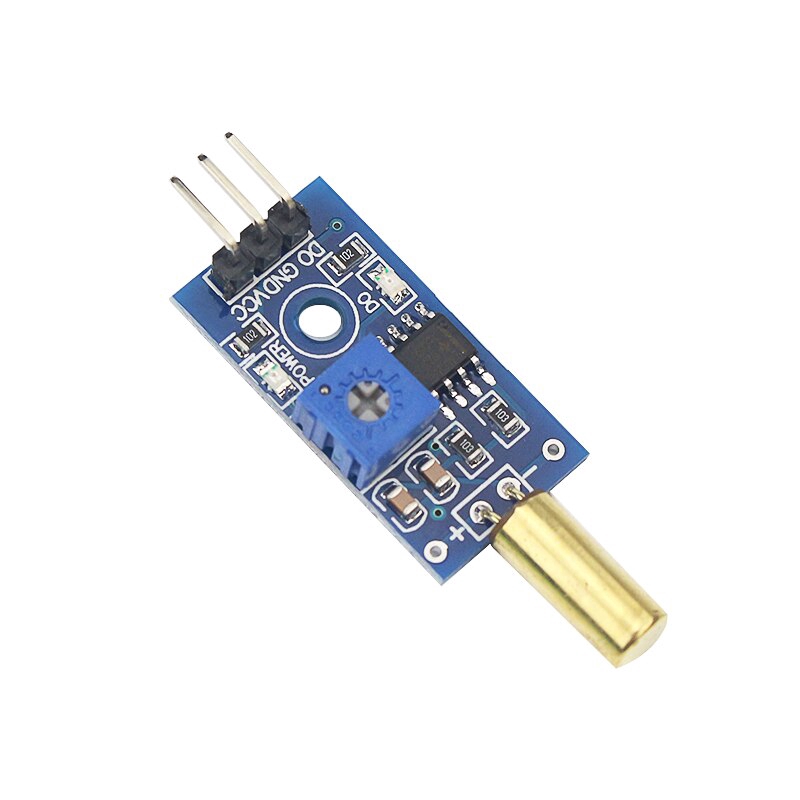

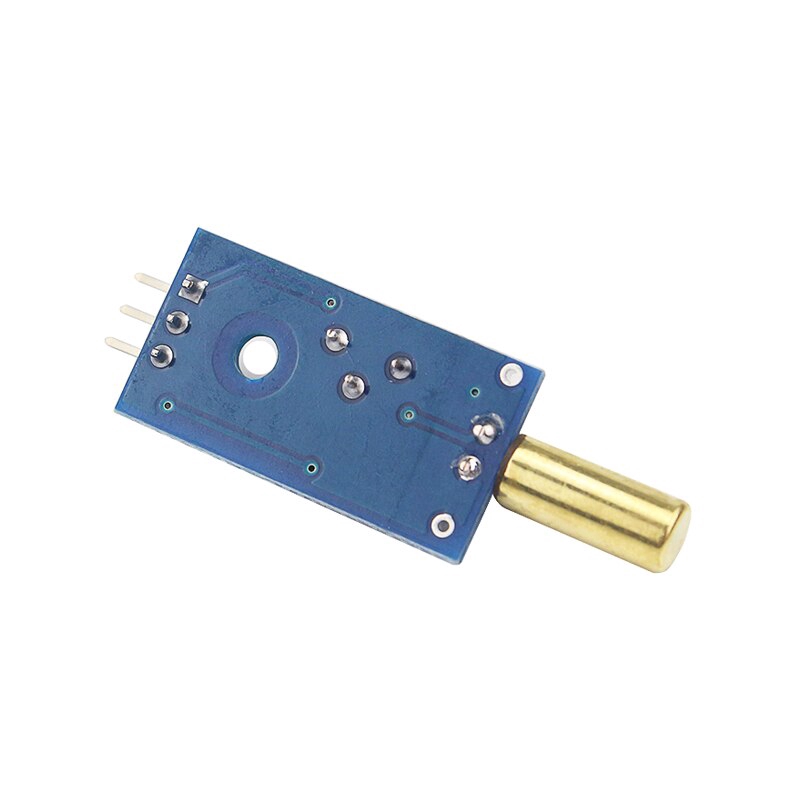

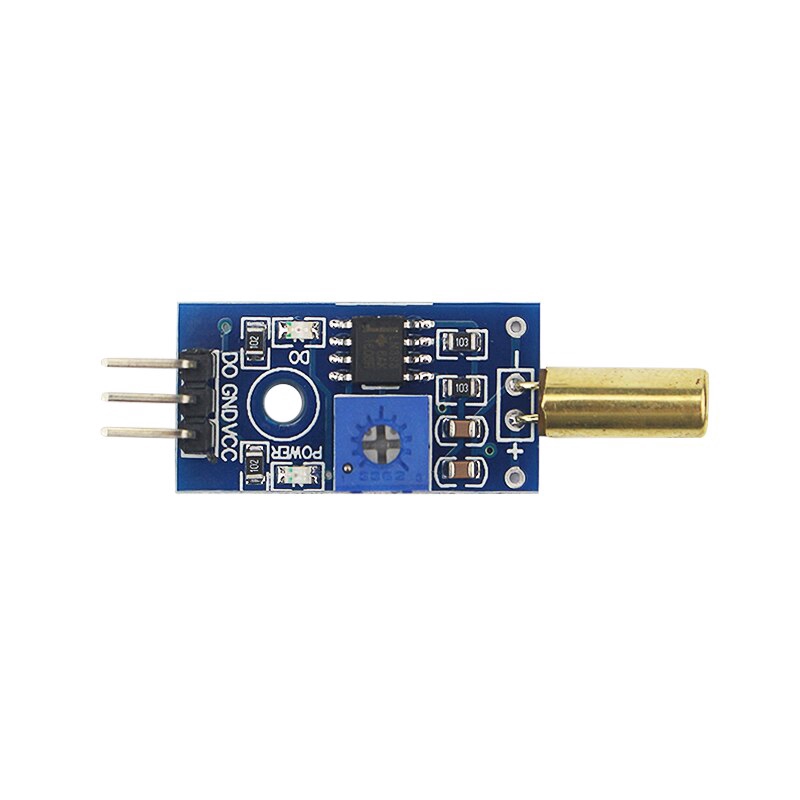

Golden SW520D SW-520D Angle sensor module Ball switch Tilt sensor module Description: 1.Sensor can sense changes in body angle 2.Adjustable sensitivity (shown in blue digital potentiometer adjustment) 4.Operating Voltage 3.3V-5V 5.Output format: digital switching outputs (0 and 1) 6.With fixed bolt hole for easy installation 7.Small PCB board size: 3.2cm * 1.4cm 8 .Power indicator (red) and the digital switch output indicator (green) 9 .Using LM393 comparator chip, stable 10.Life: at room temperature and normal life of up to 100,000 times switch (times / 1sec). Small plate interface specification (3-wire) 1 VCC external 3.3V-5V 2 GND GND External 3 DO small board digital output interfaces (0 and 1) Before purchase: 1.All the goods are ready stock, we will arrange the shipment at once if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. 3.Use the vouchers for more saving. Shipment： 1.1-2 days to ship(except for the pro-order item) After purchase: 1.If you are satisfied，please give us 5 stars praise. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. if you receive a defect item,please contact us at once with item picture or vide #Golden #SW520D #SW-520D #Angle #sensor #module #Ball #switch #Tilt #sensor #module
