🔥รุ่นใหม่🔥 กาลักน้ำทิ้งแอร์ ปั้มน้ำทิ้งแอร์ ยี่ห้อKing Pump รุ่นWater Genius 6M. ใช้กับแอร์ขนาด9,000- 36,000บีทียู.

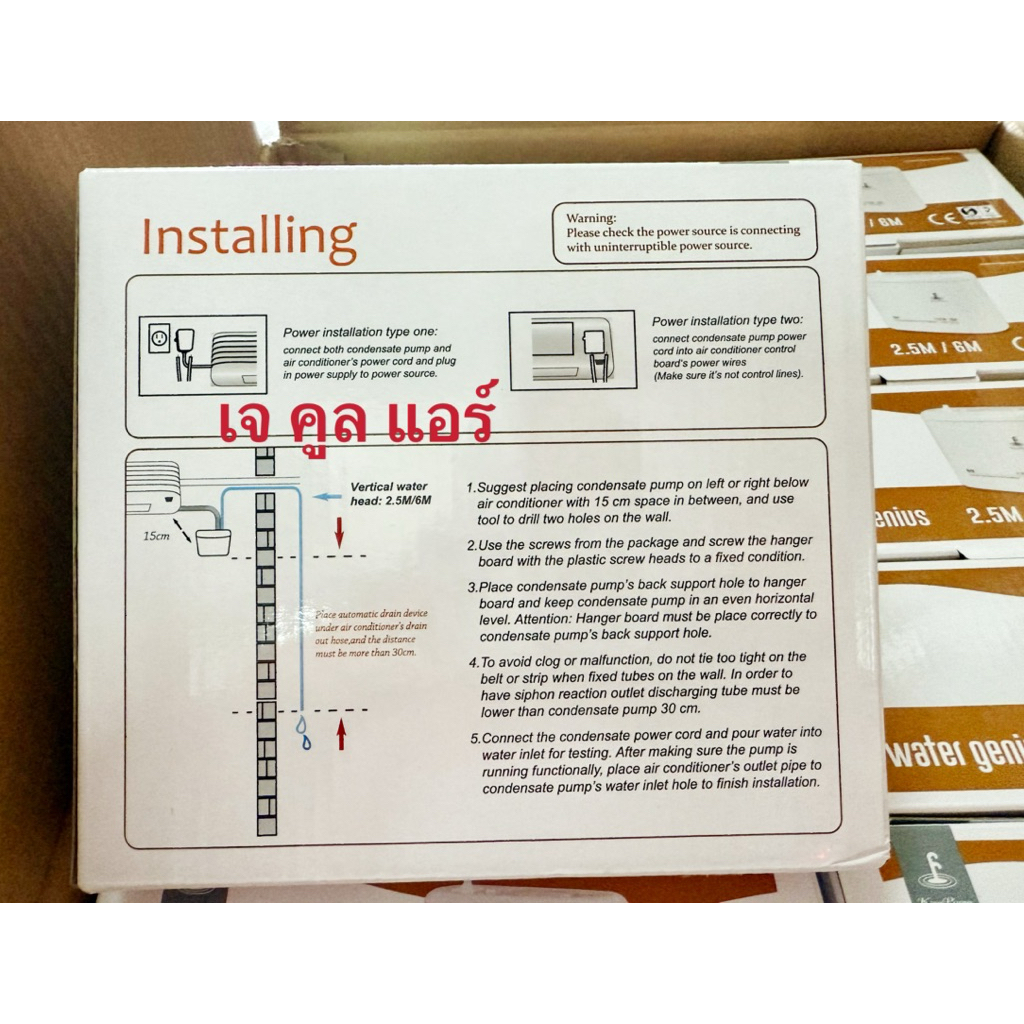

🔥รุ่นใหม่🔥  #กาลักน้ำทิ้งแอร์ #ปั้มน้ำทิ้งแอร์ #ยี่ห้อKing Pump #รุ่นWater Genius 6M. ใช้กับแอร์ ตั้งแต่ ขนาด 9,000 - 36,000บีทียู. #WaterGenius6M. Power installation type one: connect both condensate pump and air conditioner's power cord and plug in power supply to power source Power installation type two: connect condensate pump power cord into air conditioner control board's power wires (Make sure it's not control lines) 1. Suggest placing condensate pump on left or right below air conditioner with 15 cm space in between, and use tool to drill two holes on the wall 2. Use the screws from the package and screw the hanger board with the plastic screw heads to a fixed condition 4. Place condensate pump's back support hole to hanger board and keep condensate pump in an even horizontal level. Attention: Hanger board must be place correctly to condensate pump's back support hole 6. To avoid clog or malfunction, do not tie too tight on the belt or strip when fixed tubes on the wall. In order to have siphon reaction outlet discharging tube must be lower than condensate pump 30 cm. 7. Connect the condensate power cord and pour water into water inlet for testing. After making sure the pump is running functionally, place air conditioner's outlet pipe to condensate pump's water inlet hole to finish installation. ADVANTAGES: 1. Applicable to split type air conditioners below 36,000 B.T.U. 2. Vertical water head up to 6M. high 3. CE Certified. 5. Check valve design, to prevent cooling condensed water setback from inside of drainage pipe, no limit to even high or low water discharging 7. Insulated Housing design, no dew or water coherence on case surface 9. Independent power switch design easy installation and maintenance Warning: Please check the power source is connecting with uninterruptible power source
