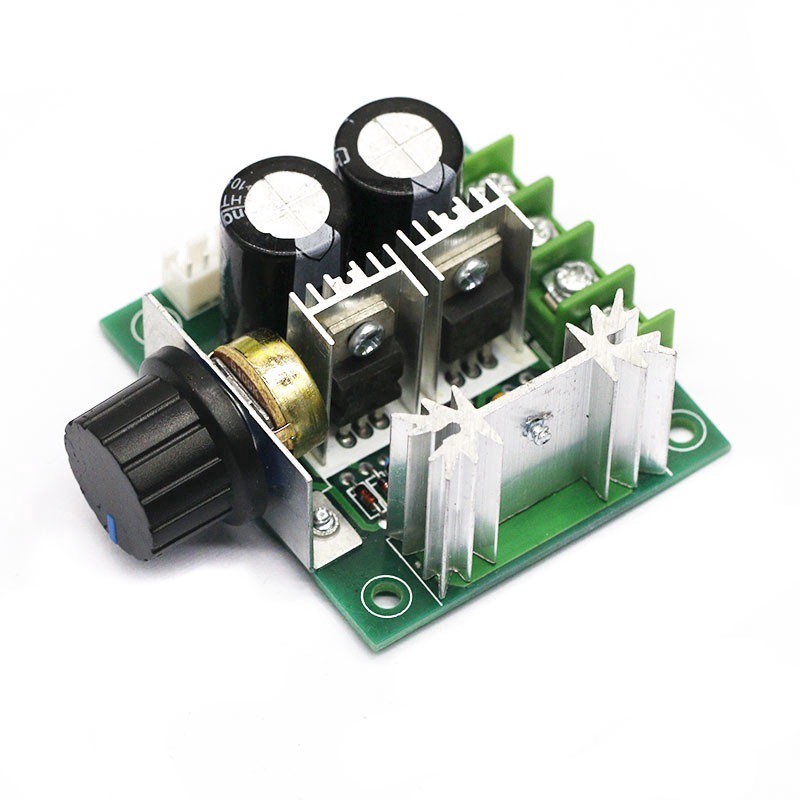

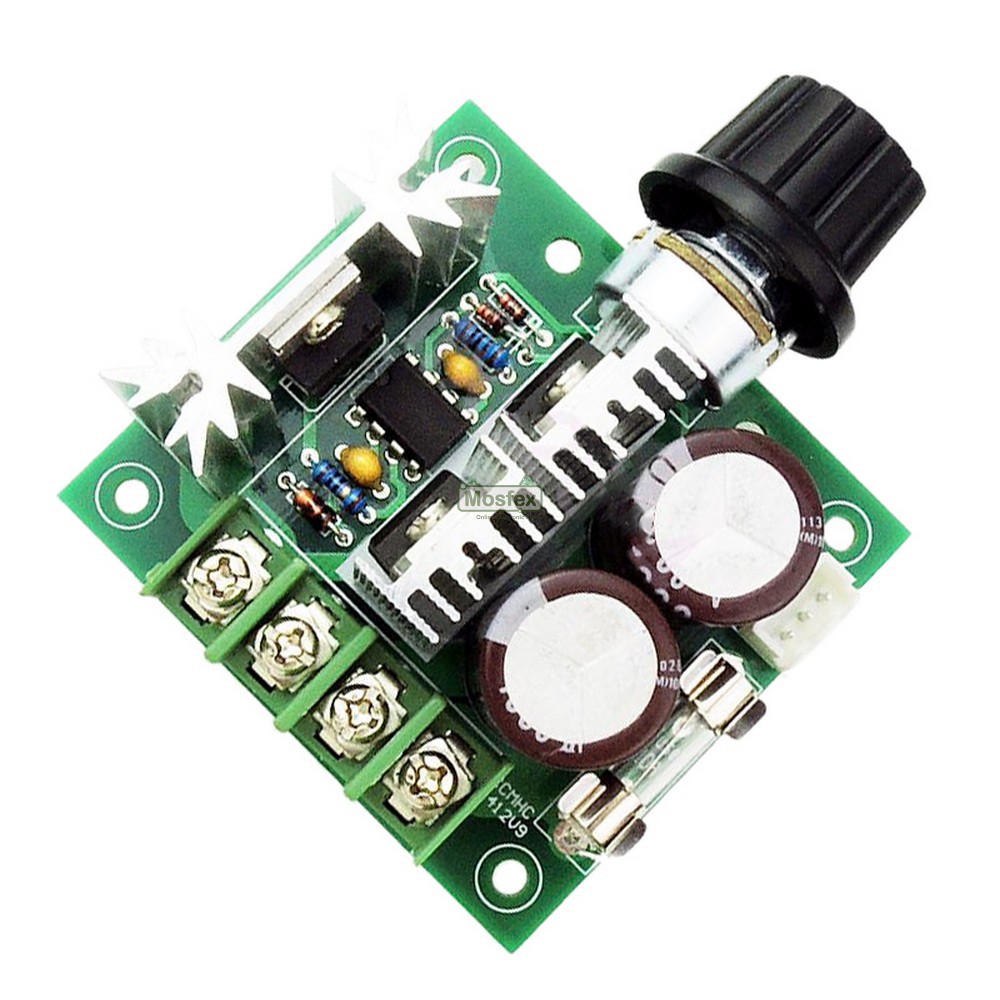

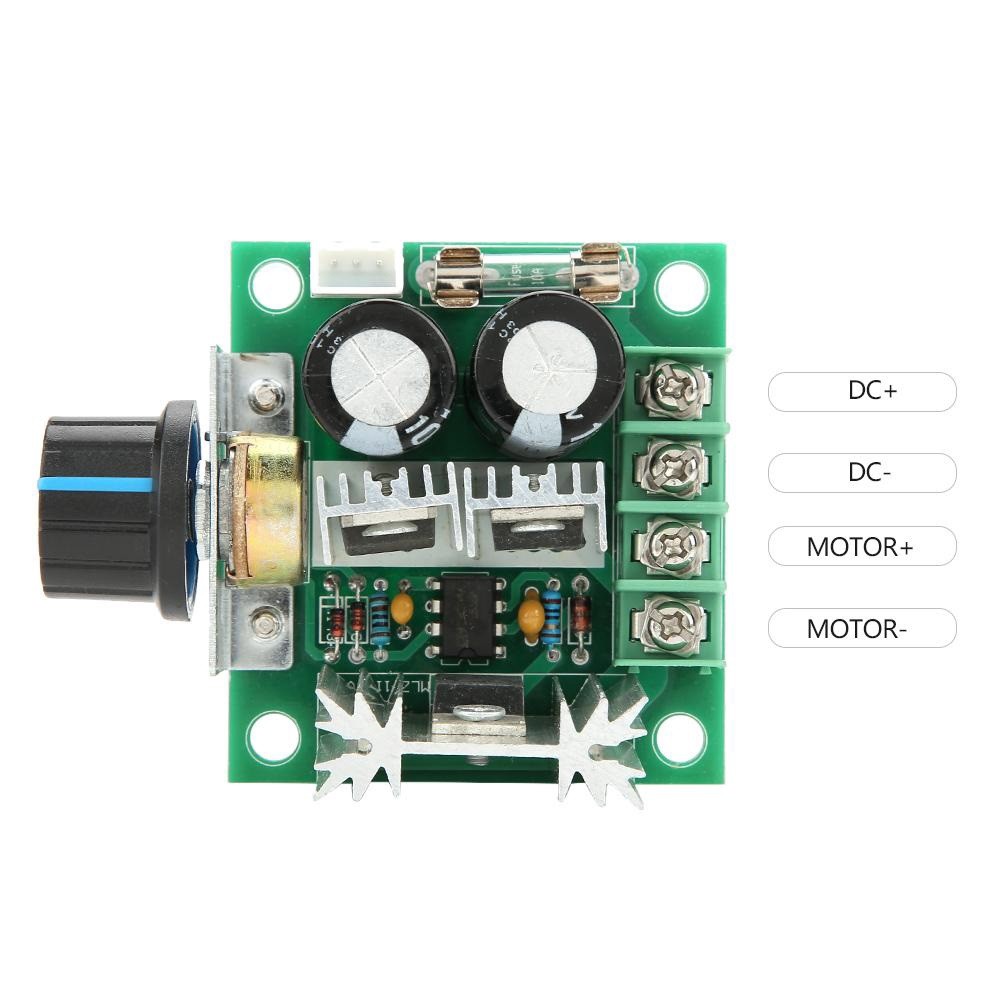

Pulse Modulation 13KHz PWM DC Motor Adjuster Speed Control Switch Modul 12-40VDC 10A บอร์ดควบคุมความเร็วมอเตอร์กระแสตรง

10A 12V-40V Pulse Modulation 13KHz PWM DC Motor Adjuster Speed Control Switch Module 100% brand new and high quality Control the speed of a DC motor with this controller. High efficiency, high torque, low heat generating. With reverse polarity protection, high current protection. Specification Model: CCMHC Working Voltage: DC 12V - DC 40V. Control Power:0.01 - 400W. Current: Rated 8A, Max 10A. Static Current:0.02 A ( Standby ). PWM Duty Cycle:10% -100%. PWM Frequency:13 KHz. Material: Plastic, metal. Size (L*W*H): 6cm x 5.5cm x 2.8cm/2.36"x 2.16"x1.10"(approx) 4 hole diameter: 3 mm(approx) Package Included: 1 x 10A 12V-40V Pulse Modulation 13khz PWM DC Motor Adjuster Speed Control Switch
