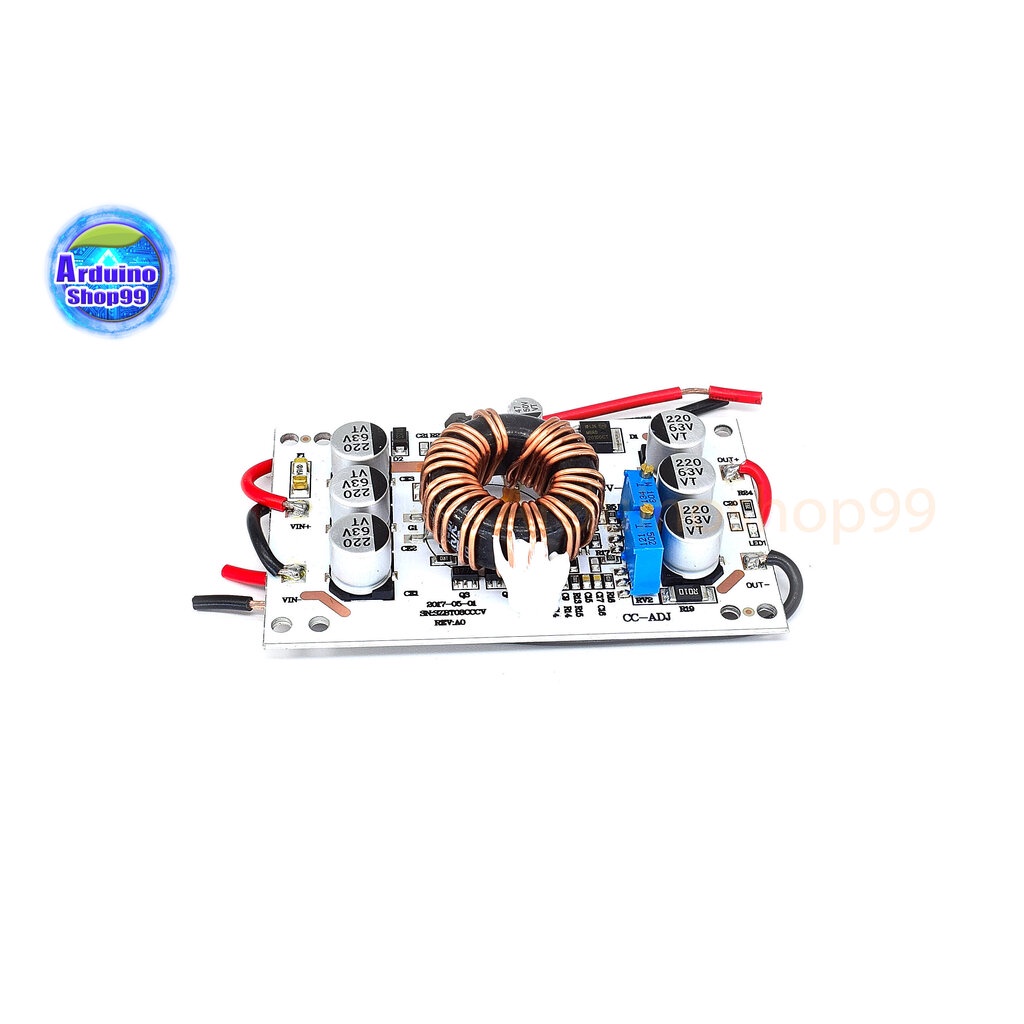

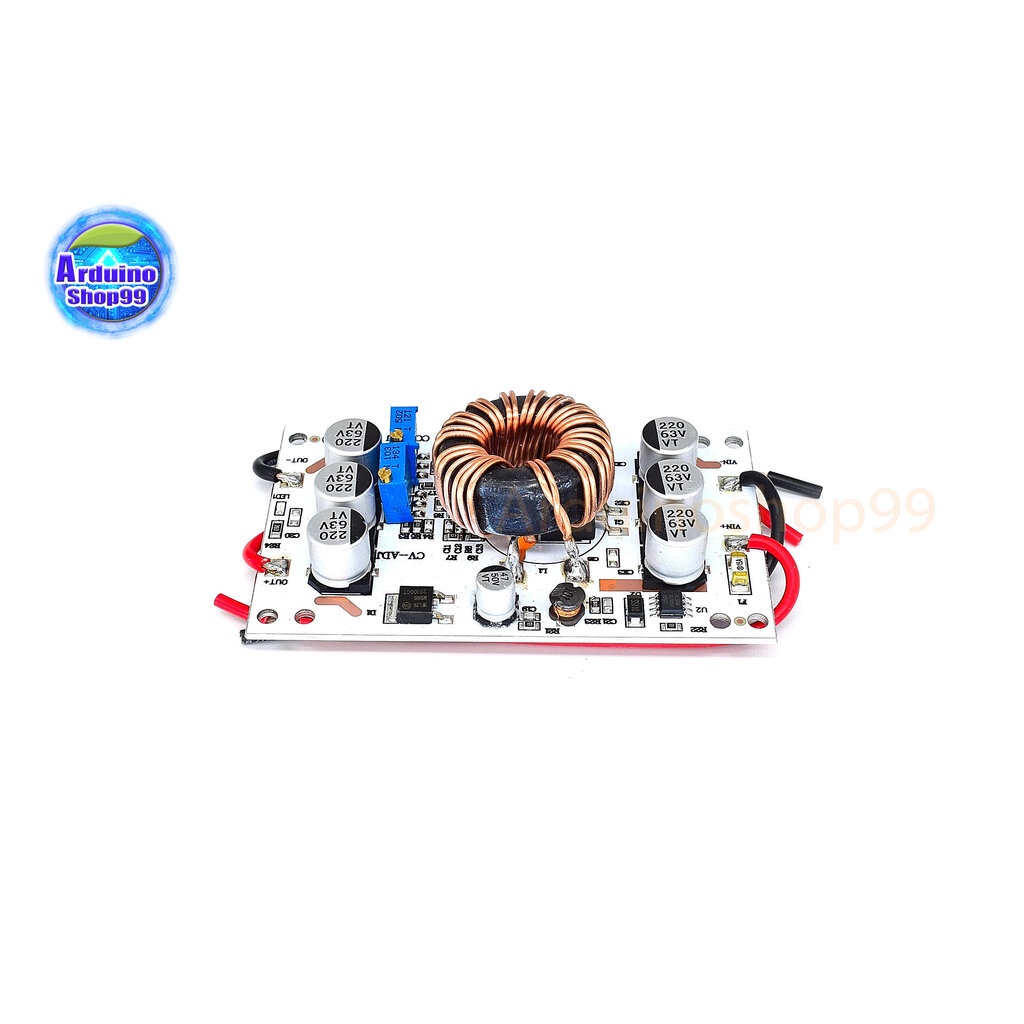

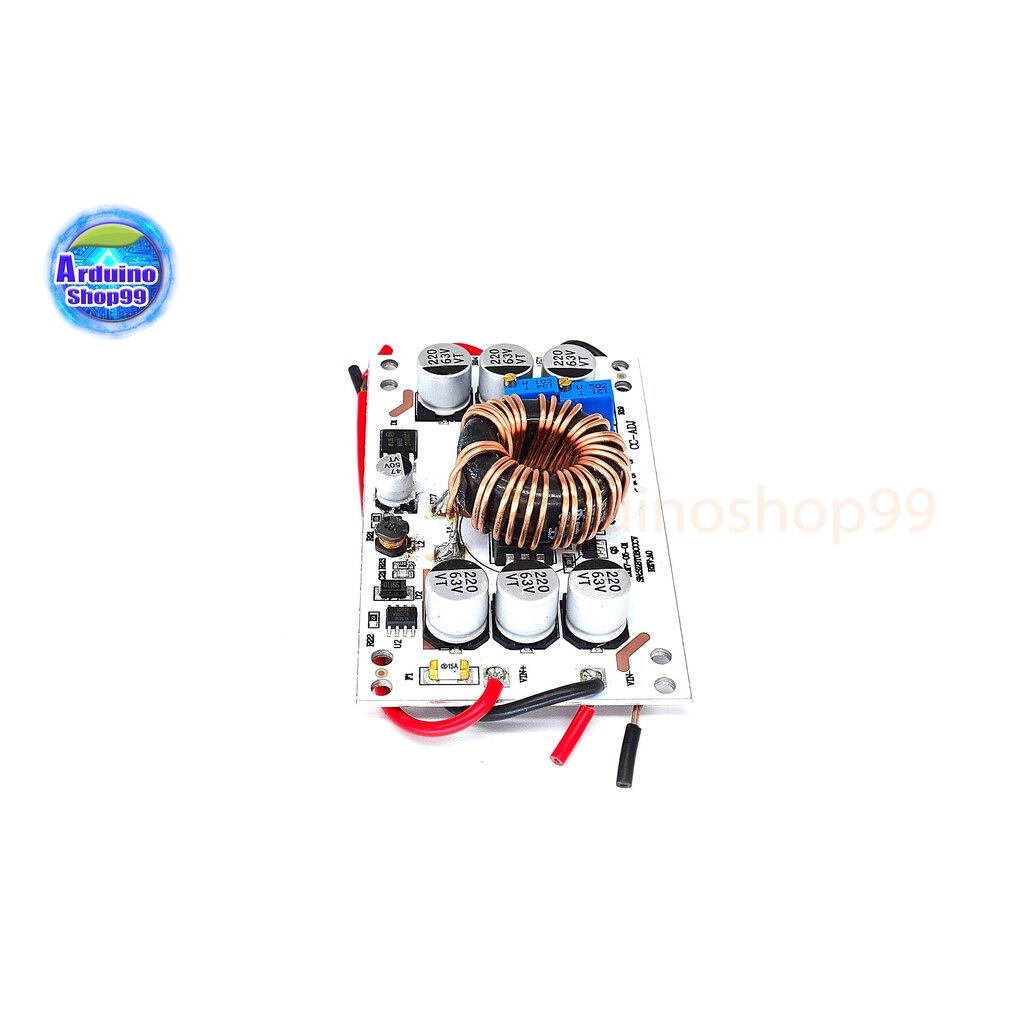

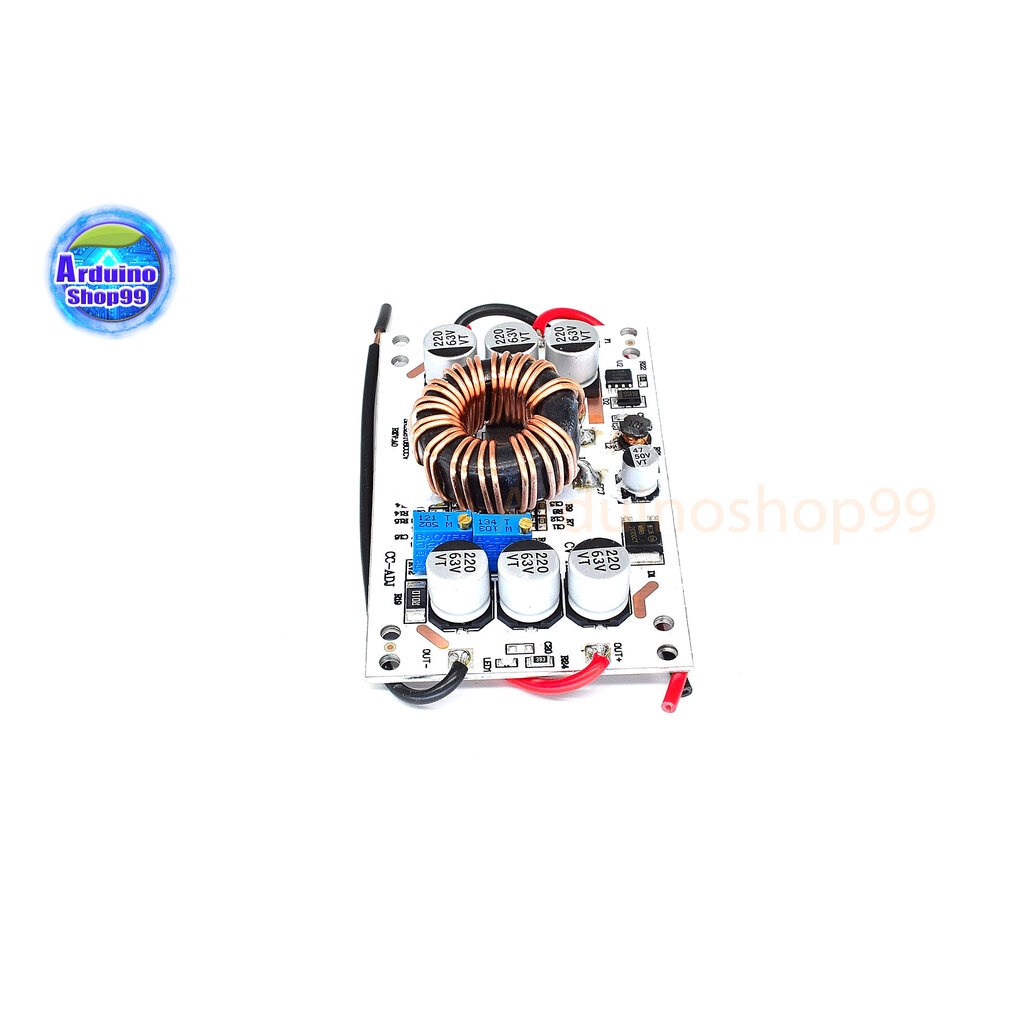

600W Power Supply Module DC10V~60V to 12~60V 10A (Step Up)

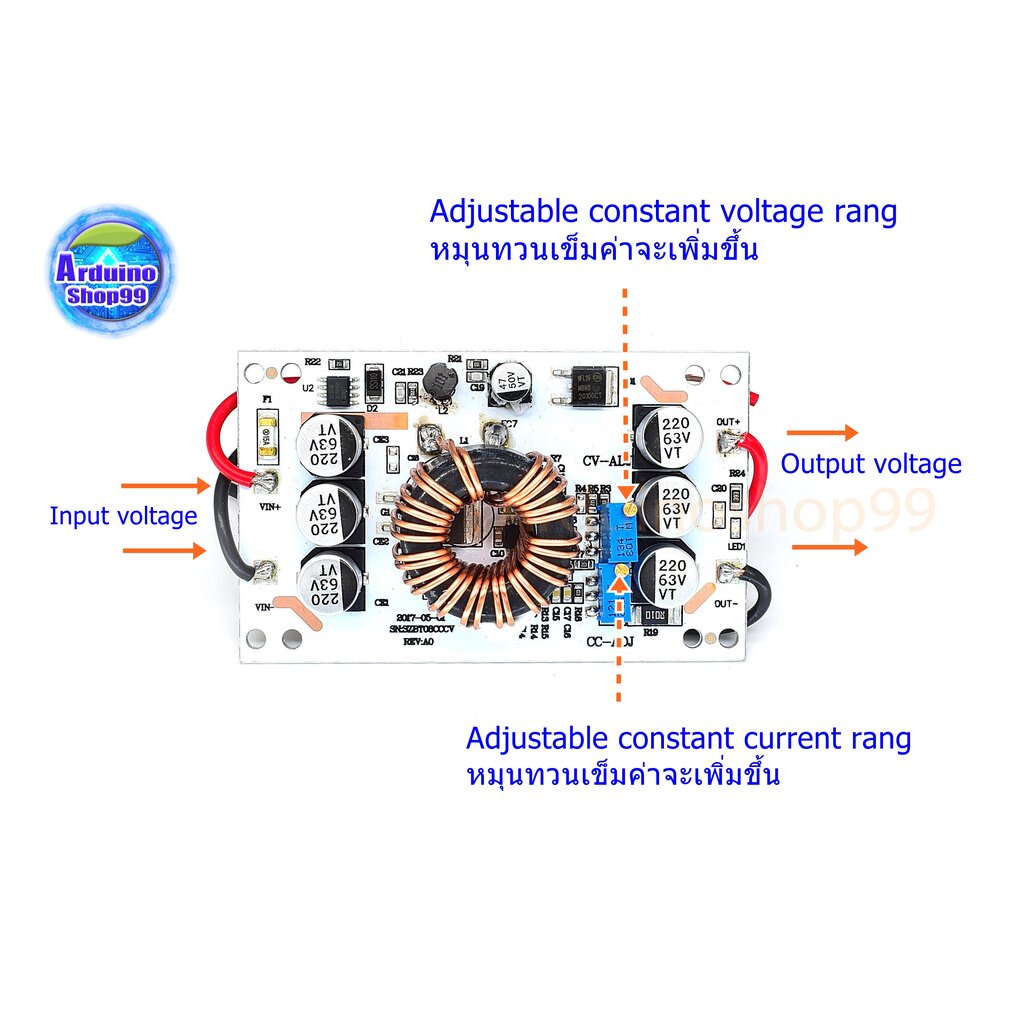

600W Power Supply Module DC10V~60V to 12~60V 10A (Step Up) ที่ input ประมาณ 5 - 7 volt สามารถให้ output ได้ถึง 60 volt(ปรับ Vr ทวนเข็ม) และเมื่อ input เพิ่มขึ้น จะได้ output เท่าเดิม ขึ้นอยู่กับการปรับค่า Vr ด้วย It is a DC 12V 24V 36V 48V Power Converter/Adapter/Charger/Power Supply Module, Input voltage: DC10V~60V, Output voltage: DC 12~60V adjustable（default 19V), Output current: 10A MAX, Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, LED lights, Fan, intercom and monitor system, etc. Parameters: - Input voltage: DC10V~60V - Input current: 10A MAX - Quiescent current: 10mA (12V to 20V, the higher the output voltage, the quiescent current will increase. - Output voltage: DC 12~60V adjustable（default 19V) - Output current: 10A MAX (Please strengthen the cooling of more than 6A) - Constant current range: 0.2~10A - Output power= Input voltage *10A，e.g. 12V*10A=120W; 24V*10A=240W - Working temperature: -40~+85 degree (Please strengthen the heat dissipation when the ambient temperature is too high.) - Working frequency: 150KHz - Transfer efficiency: 92%-96% - Installation: 4*3mm screw hole Using Instructions: 1.VIN+:input power positive, VIN-: input power negative 2.OUT+: output power positive, OUT-: output power negative. 3.Adjustable constant voltage rang: DC12~60V（clockwise to decrease ทดสอบแล้วหมุนทวนเข็มค่าเพิ่ม） 4.Adjustable constant current rang：0.2~10A（clockwise to decrease） 5.Please strengthen the cooling when the input current is over 6A（The aluminum substrate is attached to the flat metal parts） 6.The input voltage cannot be lower 10V or higher 60V. 7. The input current cannot exceed 10A and the power cannot be exceed 600W. 8. It must be ensure that the input voltage lower 2V above than the output voltage. 9. Before connecting to the load, please adjust the required voltage and current when no-load (the no-load voltage should be adjusted high 3-5v in the constant current) 10. When using switching power supply or other secondary power supply, please ensure that the power of power supply should be greater than more than module power more than doubled. How to adjust: 1.Adjust the output voltage: Adjust CV-ADJ potentiometer, clockwise to increase, counterclockwise to reduce. According to the battery /LED, set the output voltage you desired. 2. Adjust the output current: Clockwise CC-ADJ potentiometer about 20 laps, the output current set to the minimum value, connect the LED, adjust the CC-ADJ potentiometer to the current you need. For battery charging, after the battery has been discharged, and then connect to the output, adjust CC-ADJ to your required current. (When using for charging, it must be adjusted with the discharge battery, because the battery remains in the more power, the smaller the charging current. ） NOTE: Please do not use the short-circuit method to adjust the current, because the circuit structure of the booster module cannot be adjusted in the short-circuit way. Precautions: 1. The input and output wires cannot be connected reversed. 2. The input voltage is not less than 10V, too low input voltage will damage the power supply. (When using the battery should pay attention to the battery over-discharge). When it is working, the input/output voltage and the input/output current cannot exceed the maximum values, so as not to damage the battery. 4. In the long-term full load working, it should be taken note of ventilation and cooling, to extend the life of the power supply. 5. Also pay attention to dust and moisture. Applications: 1. DIY a stabilized voltage supply, the input can be 12V, the output can be 12-50V adjustable. 2. It can supply power for your electronic equipments; you can set the output value according to your system voltage. 3. As a car power supply, supply for your laptop, PDA or a variety of digital products. 4. DIY a high-power notebook power bank: coupled with a large capacity of 12V lithium battery pack, so that your books can light up wherever. 5. Solar battery panels regulate voltage. 6. Charge for the battery, lithium battery, etc. 7. Drive high power LED lights. Package includes: 1 x DC-DC Boost Module ( Power Supply Module/Voltage Regulator/Adapter/Charger )
