สวิตช์กลม เปิด/ปิด พร้อมไฟ LED DC 12V 20A ขนาด 20 มม. KCD1-5-101EN ON/OFF Round Rocker Toggle Switch Push Button Sw R20

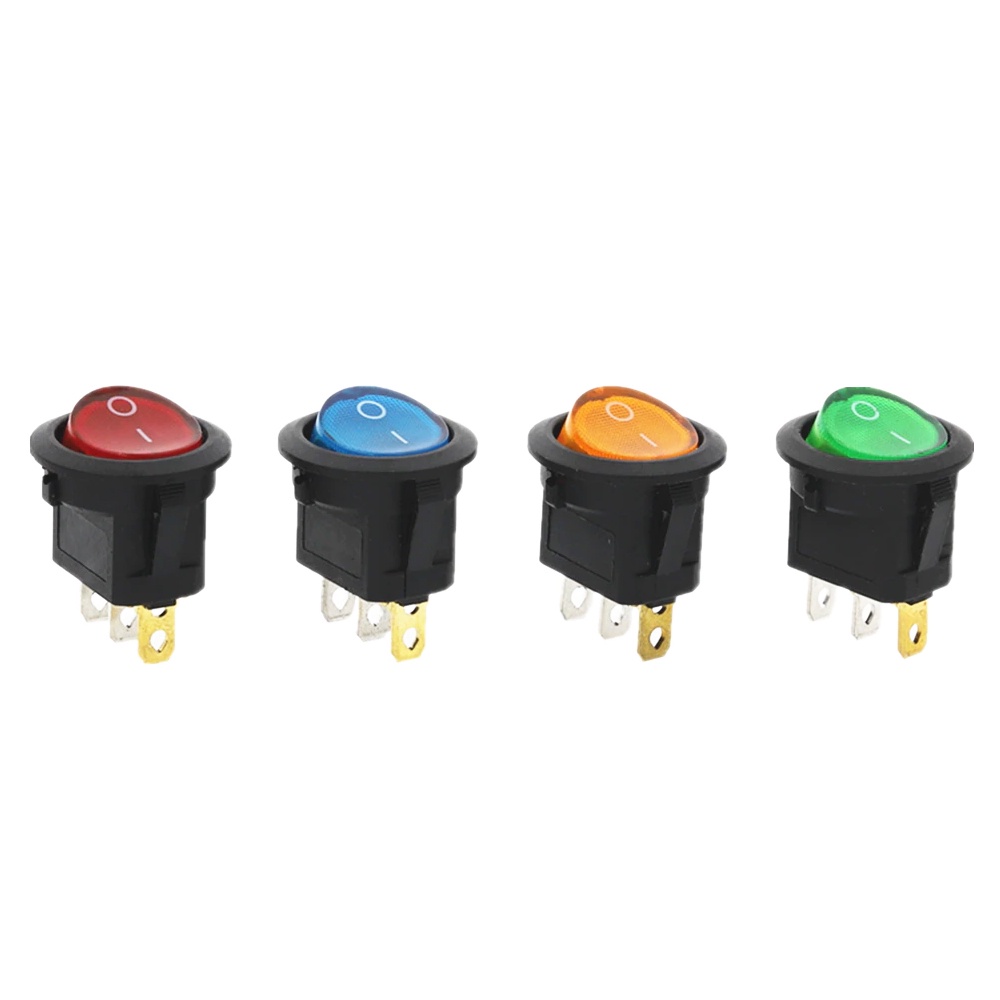

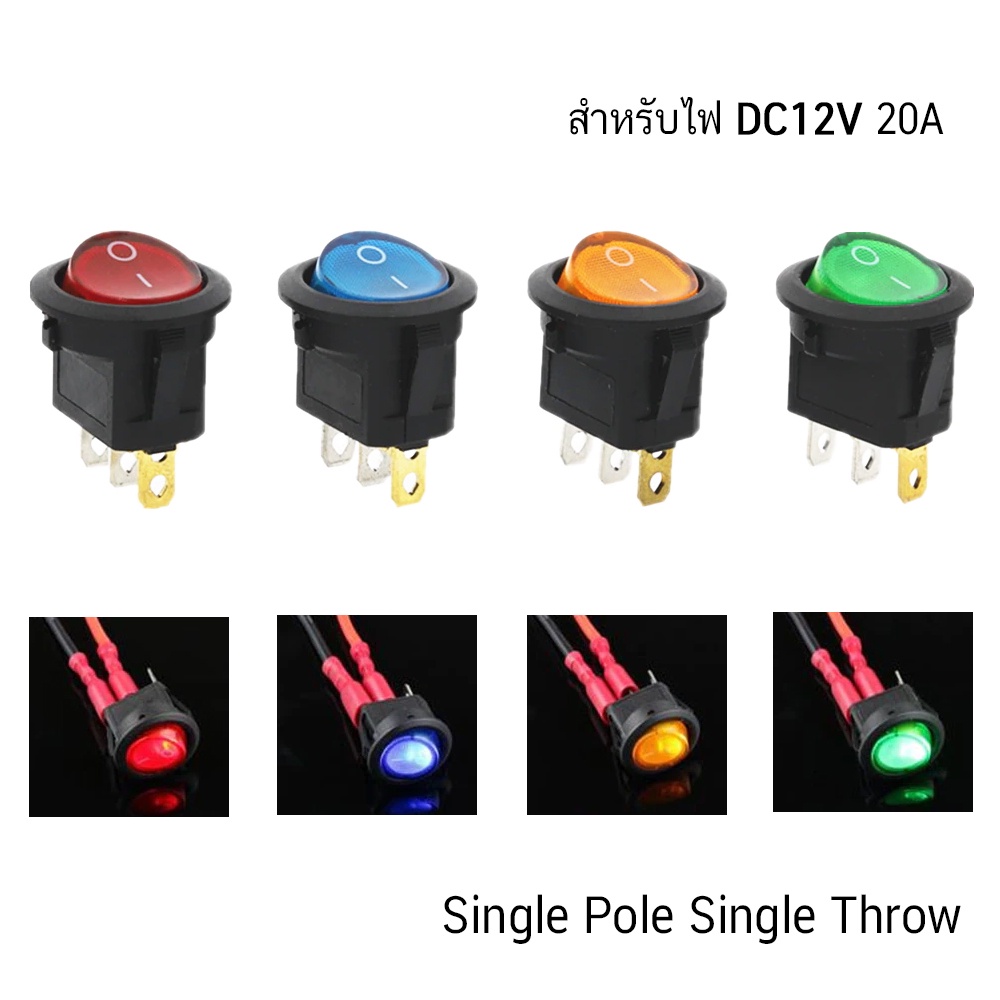

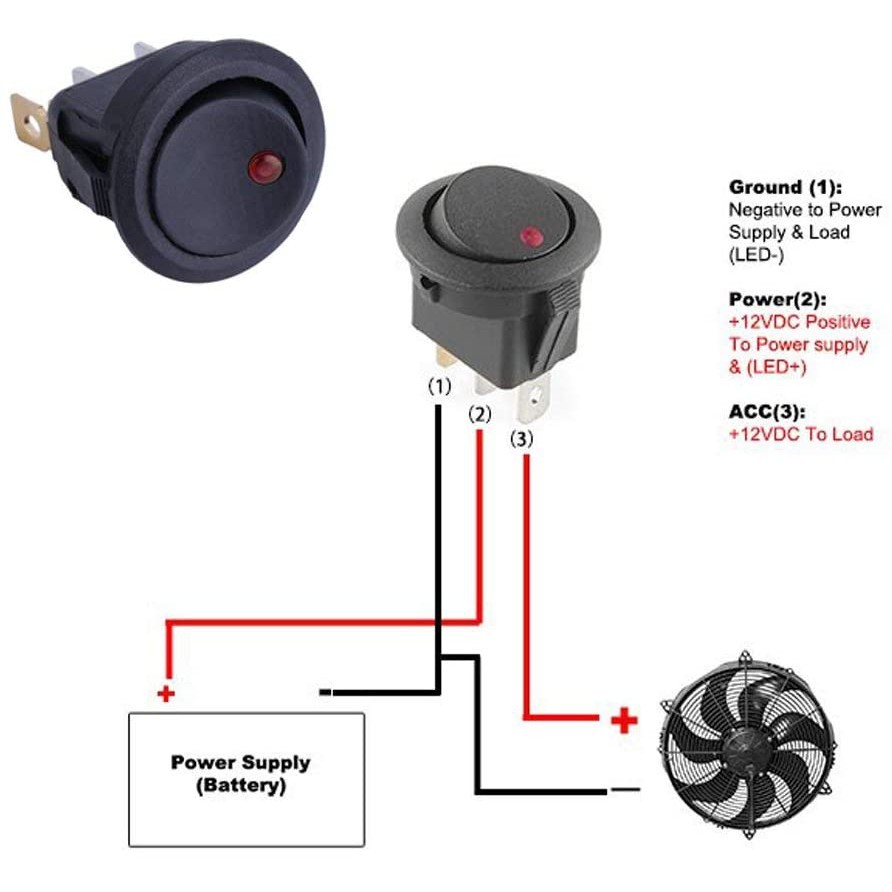

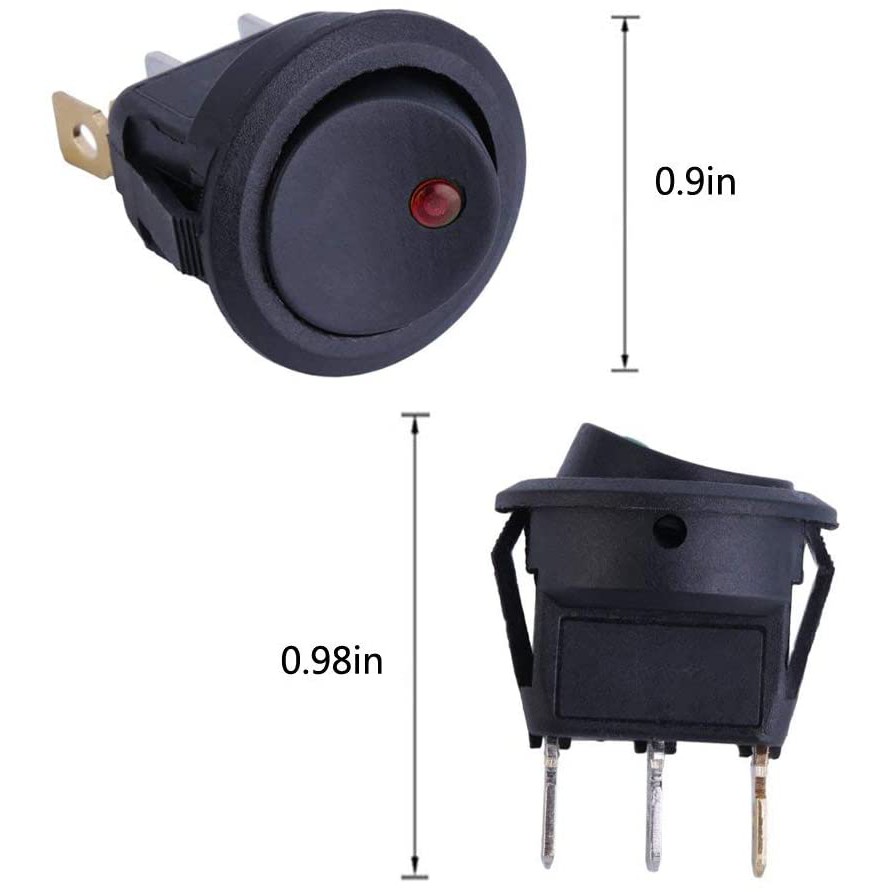

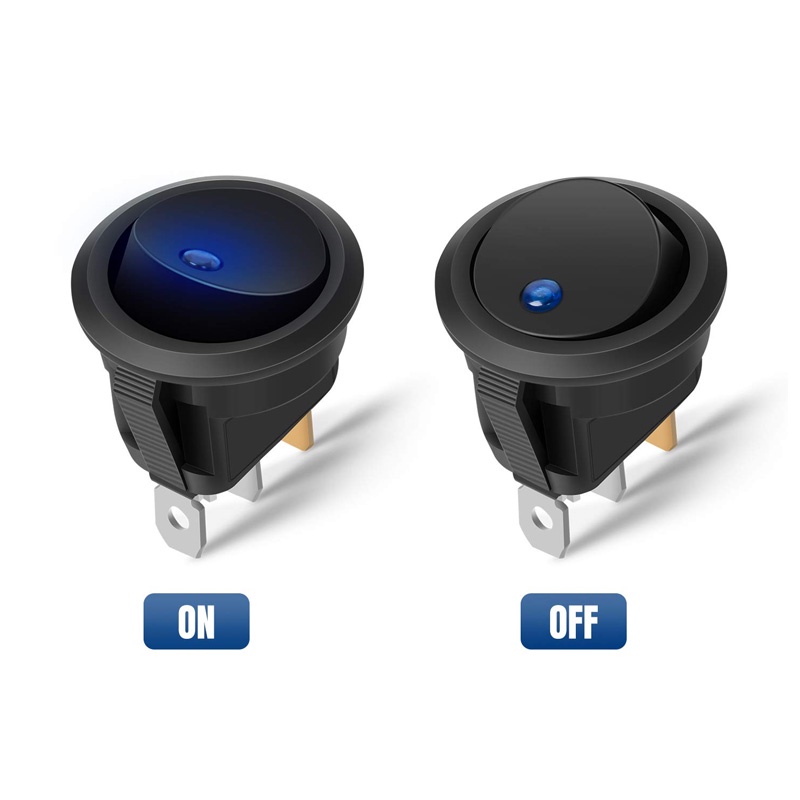

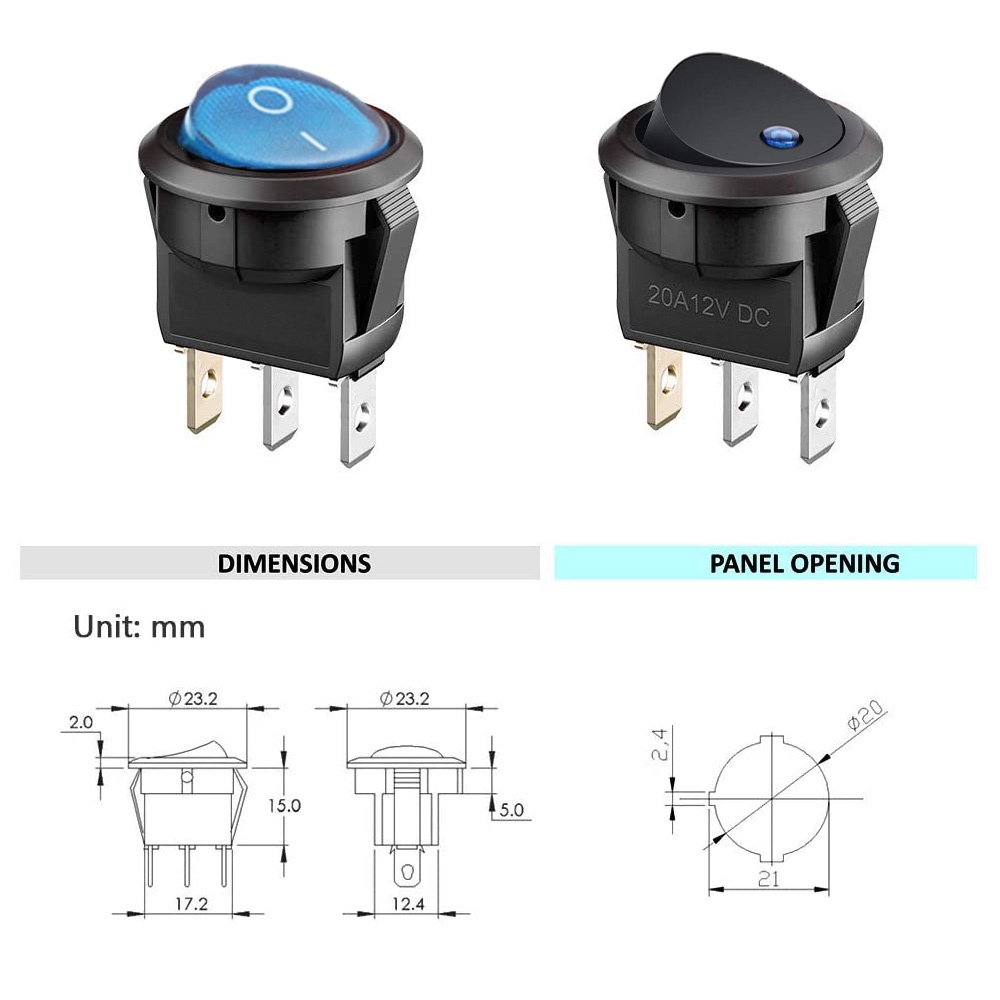

สวิตช์กลม เปิด/ปิด พร้อมไฟ LED DC12V 20A Tap Position: ON - OFF Terminal Type: Pin ( 3 terminals ) ปุ่มสีดำ + ไฟ LED : ฟ้า , เขียว , เหลือง , แดง สวิตช์ อกกแบบมาสำหรับ ไฟ DC12V KCD1-5-101EN (มีไฟ LED) Designed to connect and disconnect an DC12V Overall Size:23×23×29(mm) Mounting Size: 22×22(mm) Contact Arrangement Mode: SPST ( Single Pole Single Throw ) Material: Plastic Contact Material: Copper-Plating Silver Switch Rating: DC12V 20A Insulation Resistance: 500VDC 100MΩ min Dielectric Strength: 1500VAC, 1 Minute Operating Temperature: −25°c ~ +85°c Electrical Life : ≥10,000 Cycles Mechanical Life : ≥20,000 Cycles 20A electrical circuit at will,SPST:ON-OFF control. LED lamp will be lighted up when the switch is turned on. Fits into a 3/4" hole.And it comes with a keyhole slot to prevent unwanted rotation. Coppery pin is connected to the battery negative pole,the next pin is connected to the battery positive pole,the last one is connected to the equipment positive pole. Suitable for almost any motorized vehicle such as car,truck,boat,atv,motorbike etc.Can also use these on water dispenser, running machine,electromobile and other household appliances modification.
