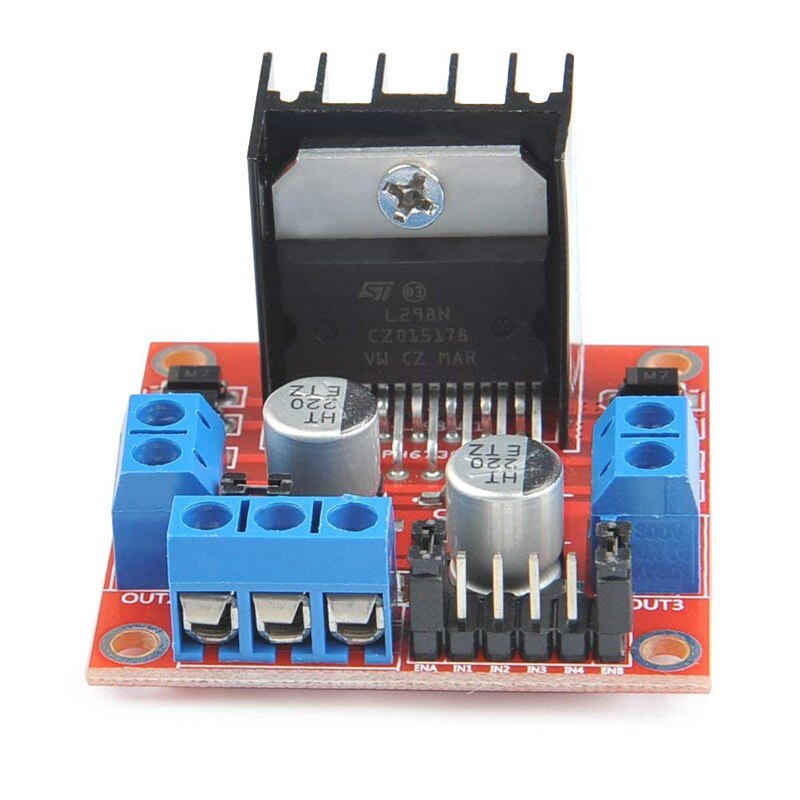

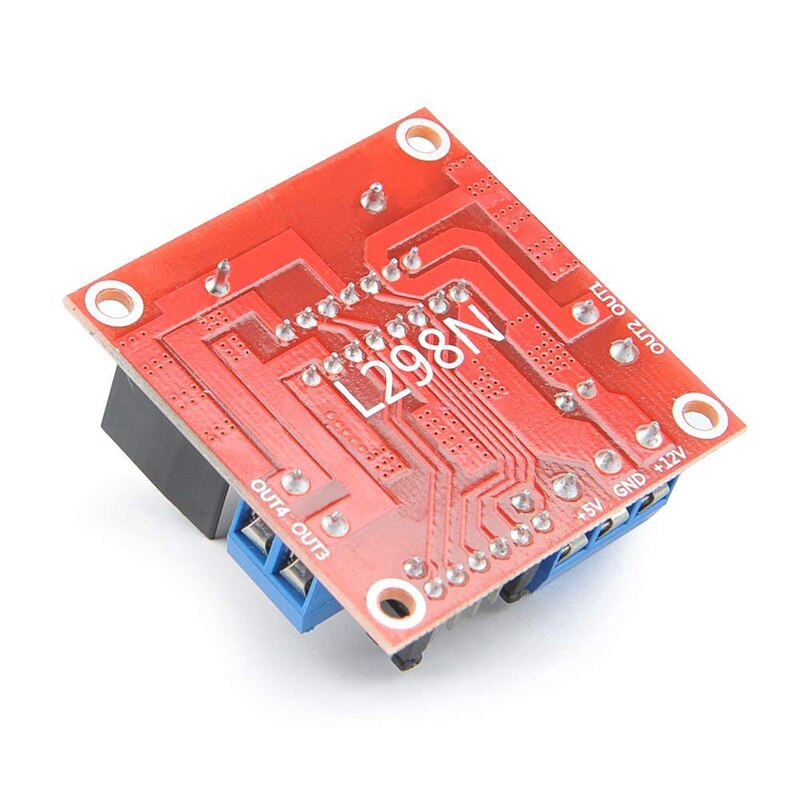

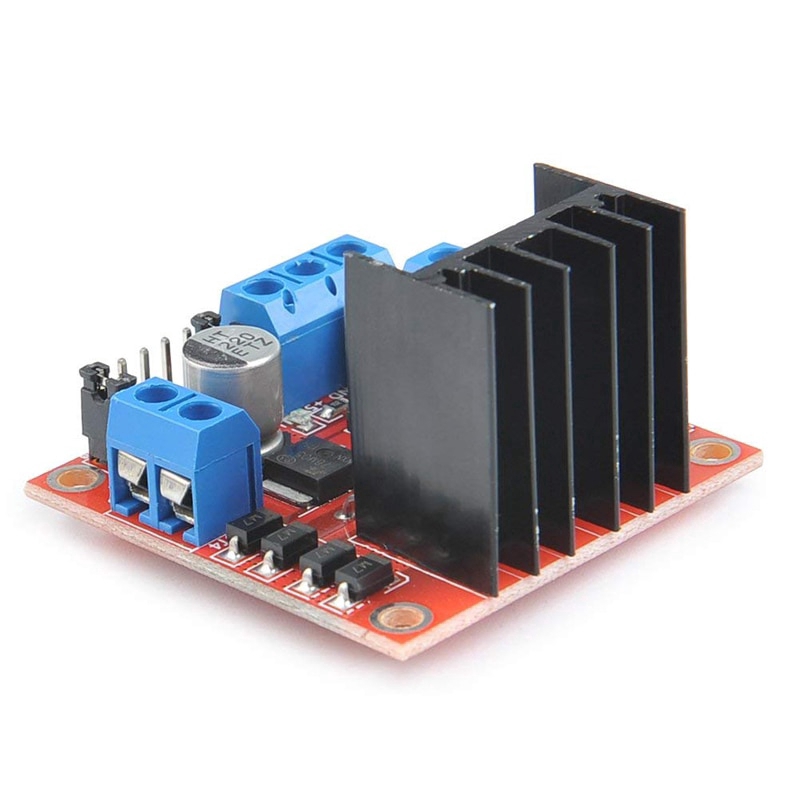

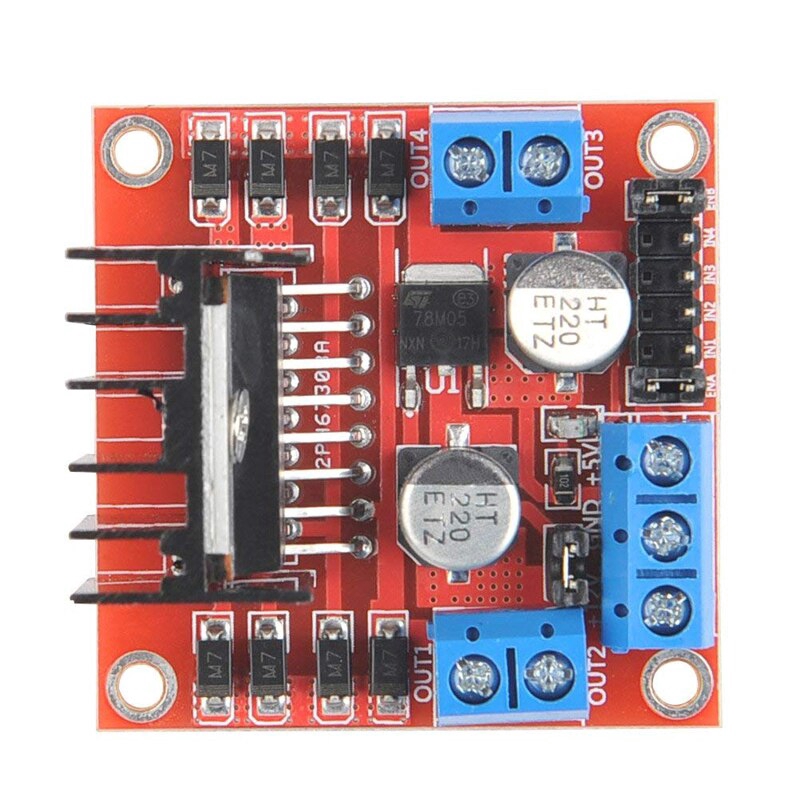

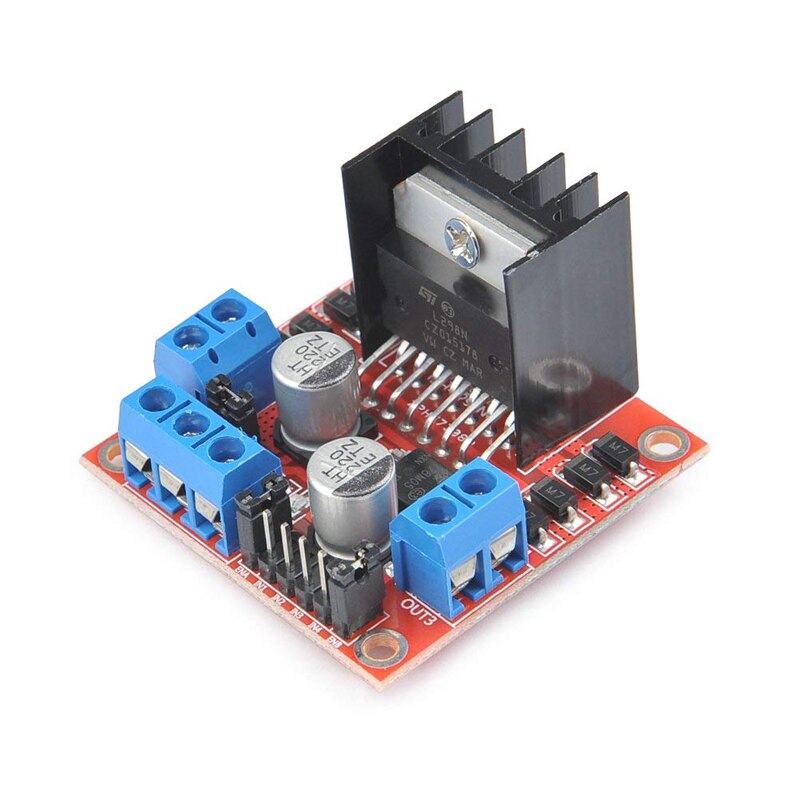

L298N โมดูลบอร์ดควบคุม L298 สเต็ปมอเตอร์ รถหุ่นยนต์ ไดร์เวอร์มอเตอร์กำลังสูง สำหรับ Arduino L298N driver board module

L298N driver board module L298 stepper motor smart car robot breadboard peltier High Power Motor Driver For Arduino Features: Module name : dual H bridge motor drive module Work mode : H bridge drive (double road) Main control chip : L298N Logical voltage : 5V Drive voltage : 5v-35v Logical current : 0mA-36mA Driving current : 2A(MAX single bridge) Storage temperature : - 20 ℃ to + 135 ℃ Maximum power : 25W Weight : 30 g Peripheral dimensions : 43*43*27mm Product features: This module USES L298N as the main drive chip, with strong driving ability, low heat and strong anti-interference ability. Through this module can use the built-in 78 m05 drive power supply parts of their work, but in order to avoid the voltage regulator chip damage, when using the driving voltage is greater than 12 v, please use the external power supply 5 v logic. This module USES a large capacity filter capacitance, a continuation protection diode, can improve reliability. Notes: 1. When you are driving voltage (above logo for the 12 v input, can actually accept input range is 7 to 12 v) for 7 v to 12 v, can make to onboard power supply 5 v logic, when using the onboard after 5 v power supply, interface of + 5 v The power supply does not input voltage, but can yield 5V voltage for external use. ​ 2. When the driving voltage is higher than 12V, it is less than or equal to 24V (the chip manual proposes to support 35V, but according to the book When the maximum voltage is applied to the maximum voltage of 298 conservative applications to 24V, for example, the motor with a rated voltage of 18V shall be driven. You must first remove the board 5V output to enable the jumper cap. Then 5V is accessed outside the 5V output port The 5V enables the power to be a control signal with a level of 5V. When the signal input is valid, and when the power supply is normal in the motor drive module, the motor drive module outputs the current. Otherwise, even if the power supply is normal, there is no current on the motor. Voltage to L298N internal logic circuit power supply. (this is a high-pressure, unconventional app!) Package Included: 1pcs * L298N driver board module Before purchase: 1. All the goods are in stock and we will dispatch immediately if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. 3.Use the vouchers for more saving. Shipment： 1.1-2 days to ship(except for the pro-order item) After purchase: 1.If you are satisfied，please give us 5 stars praise. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. if you receive a defect item,please contact us at once with item picture or video #L298N #driver #board #module #L298 #stepper #motor #smart #car #robot #breadboard #peltier #High #Power #Motor #Driver #For #Arduino
