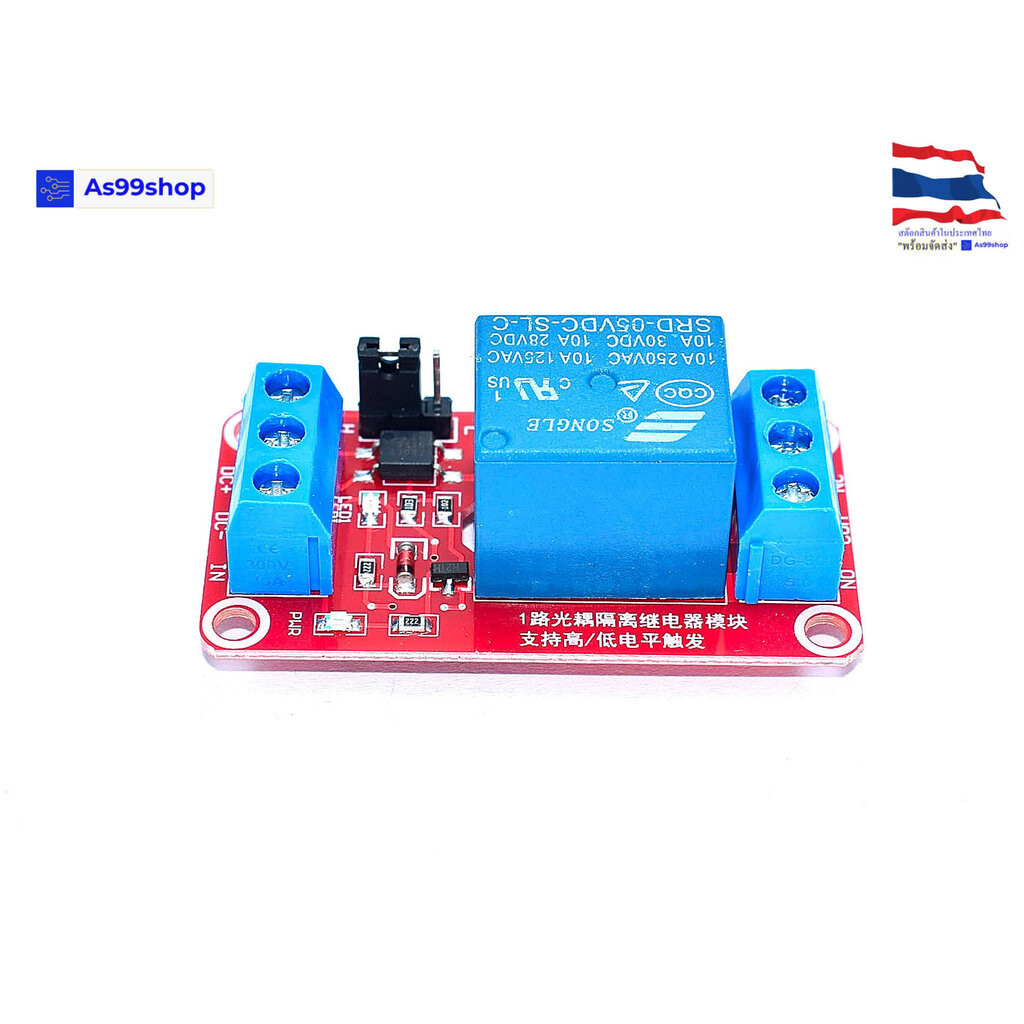

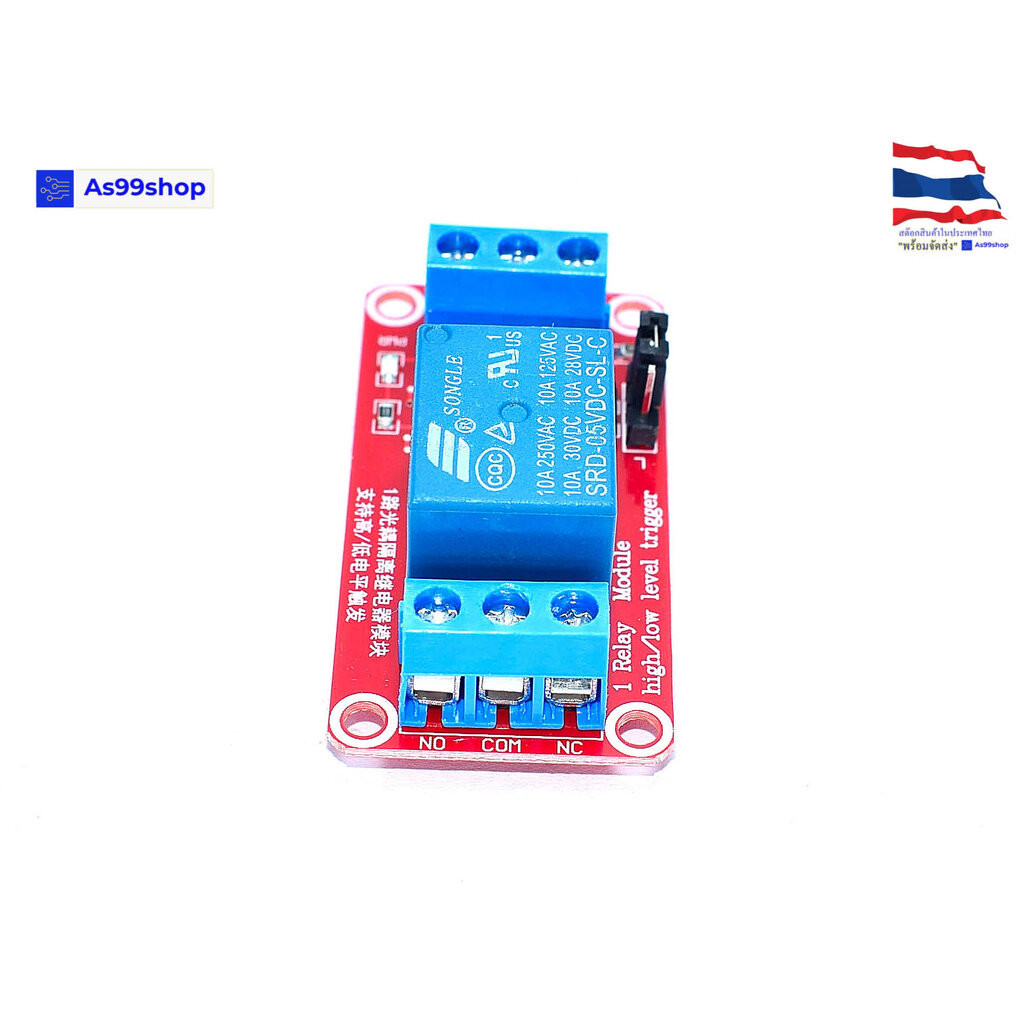

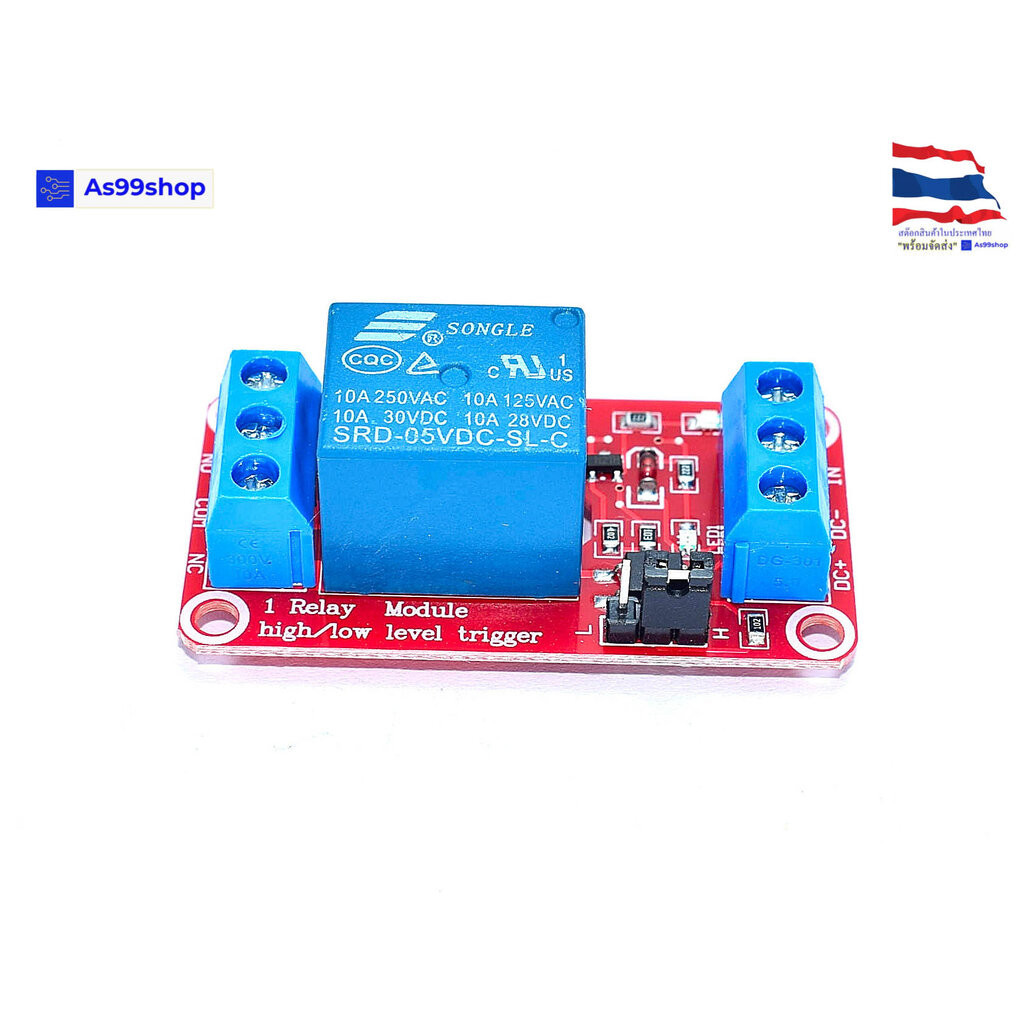

Relay 5V 1 channel 10A 250V แบบ Active High/Low

Relay 5v 1 Channel 10A 250V แบบ Active High/Low สามารถเลือกให้ทำงานได้ทั้ง Active HIGH / Active LOW เพียงแค่เซ็ตจัมเปอร์ที่ตัวบอร์ดเลือก High/Low Feature: Module Size: 50x26x18.5mm (LxWxH) 4 Fixed Holes for Screw: Diameter 3.1mm Work Voltage: 5V Quiescent Current: 5mA Max Current: 190mA Trigger Current: 3-5mA Low Level Trigger Current: 0-1.5V High Level Trigger Current: 3-5V Input Interface: 1. DC: 5V positive power supply 2. DC-: 5V negative power supply 3. IN: corresponding with trigger signal level of relay Output Interface: 1. NO: normally open interface 2. COM: common interface 3. NC: normally close interface Trigger Mode Configuration: The module has a trigger level selection terminal, each relay trigger level can be individually controlled, through the short-circuit cap to control. COM side is common, in the middle; When the LOW (L) terminal is connected to the common terminal, it is a low level trigger; when the HIGH (H) terminal is connected to the common terminal, it is a high level trigger. Normally Open Interface Work Mode: COM port connect with loaded AC live line or DC positive power supply, NO port connects with loaded AC zero line or DC negative power supply, the load circuit is disconnected, when there is trigger signal iniput, relay pick up, and circuit connected, load work. Normally Close Interface Work Mode: COM port connect with loaded AC live line or DC positive power supply, NC port connects with loaded AC zero line or DC negative power supply, the load circuit is close, and load work normally. When there is trigger signal iniput, relay disconnect, and load is off work. Package Include: 1pcs 5V 1 Channel High/Low Trigger Relay Module
