เครื่องชาร์จแบตเตอรี่ Ip5328P Dual USB 18650 Tpye-c 3.7V เป็น 5V 9V 12V QC2.0 QC3.0

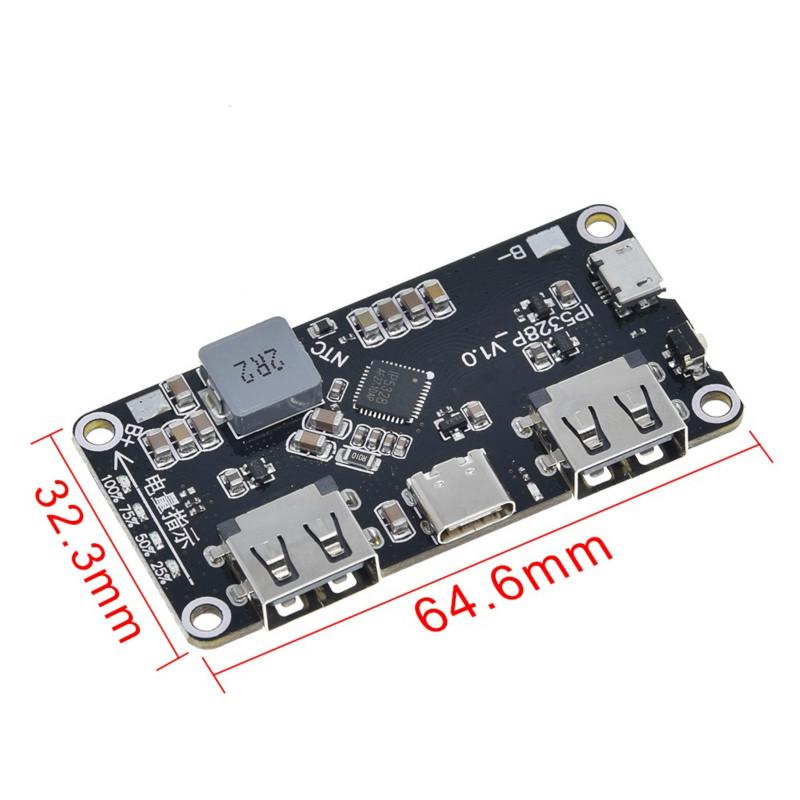

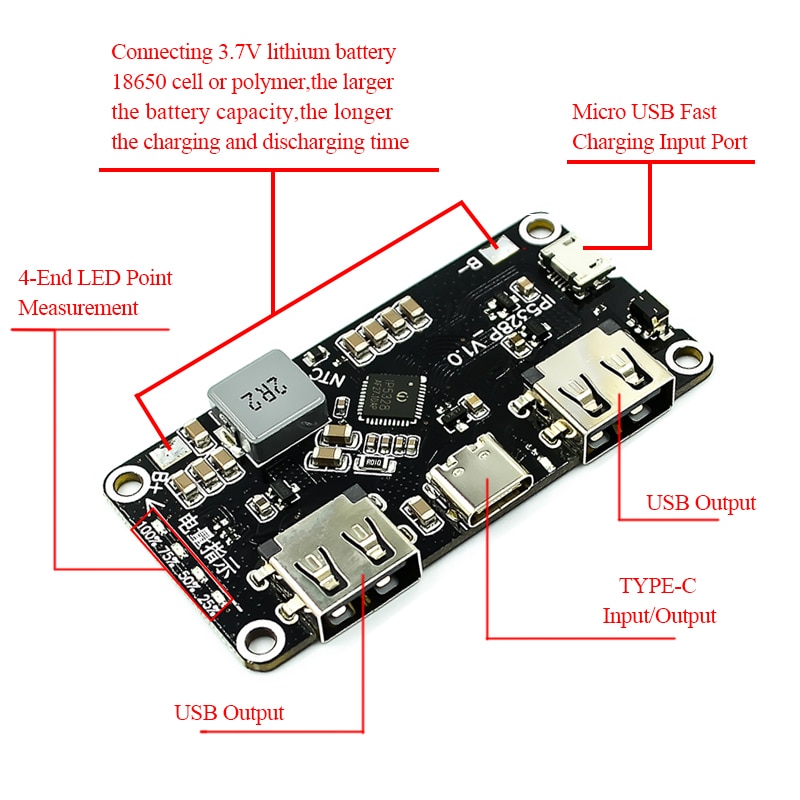

For more product details, please click on the product link picture for more introduction!!! Adopt Infinix IP5328P mobile power solution, four layers of gold plate, optimized layout and wiring, support multiple fast charging protocols, bidirectional 18W fast charging, a total of 4 charging interfaces can be supported: 2 USB-A output interfaces, 1 USB-C interface, 1 Micro USB interface, 4 interfaces all support fast charge, 2 USB-A ports support QC3.0, FCP, AFC, MTK, SFCP fast charge output, power up to 18W; support Apple, Samsung, BC1.2 agreement. The USB-C port supports USB PD bidirectional fast charge, and is compatible with FCP, AFC, SFCP fast charge input and QC3.0, FCP, AFC, MTK, SFCP fast charge output. MicroUSB supports FCP, AFC, SFCP fast charge input. Parameter: Size: 65mm*32.5mm ultra-thin corner hole diameter 3mm Output interface: USBA+USBA+TYPE-C supports fast charge output (see specification for details of fast charge protocol) Input interface: MICRO + TYPE-C supports fast charging input (see specification for details of fast charging protocol) Battery type: 3.7V battery (collection or 18650 lithium battery) connected in parallel in a single cell, the capacity is not limited, the larger the capacity, the longer the charge and discharge time, please add a protection board for safety, the motherboard has positive and negative points, the battery is not allowed If the connection is reversed, the motherboard will be burned at your own risk! Quick charge indication: input and output high voltage fast charge indicator Conversion efficiency: 95% efficiency (varies in power efficiency at different voltages) See the specifications for details Press the key: The duration of the key is longer than 60ms, but less than 2s, which is a short press action. Short press will turn on the power indicator and boost output. Pressing for longer than 10s will reset the entire system. There will be no response to key presses less than 30ms. Mobile phone insertion automatic detection function: IP5328P automatically detects the phone plug-in, immediately wakes up from standby, turns on the boost 5V to charge the phone, saves the key operation, and supports the keyless solution. Function description Low battery lockout and activation When the IP5328P is connected to the battery for the first time, no matter what the battery voltage is, the chip is locked, and the lowest bit of the power light will flash 4 Prompt again; in the non-charging state, if the battery voltage is too low to trigger a low power shutdown, the IP5328P will also enter the locked state. In the locked state, in order to reduce static power consumption, the IP5328P does not have a mobile phone insertion detection function, nor can it be activated by pressing a button. this When the key is pressed, the boost output cannot be activated, but the lowest position of the power light will flash 4 times to prompt. In the locked state, you must enter the charging state to activate the chip function.
