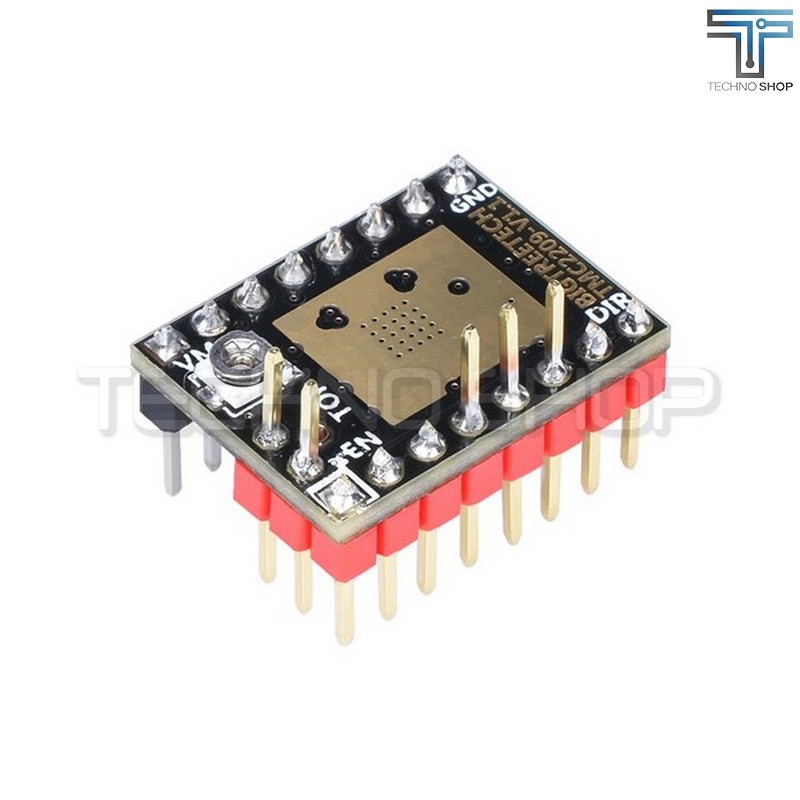

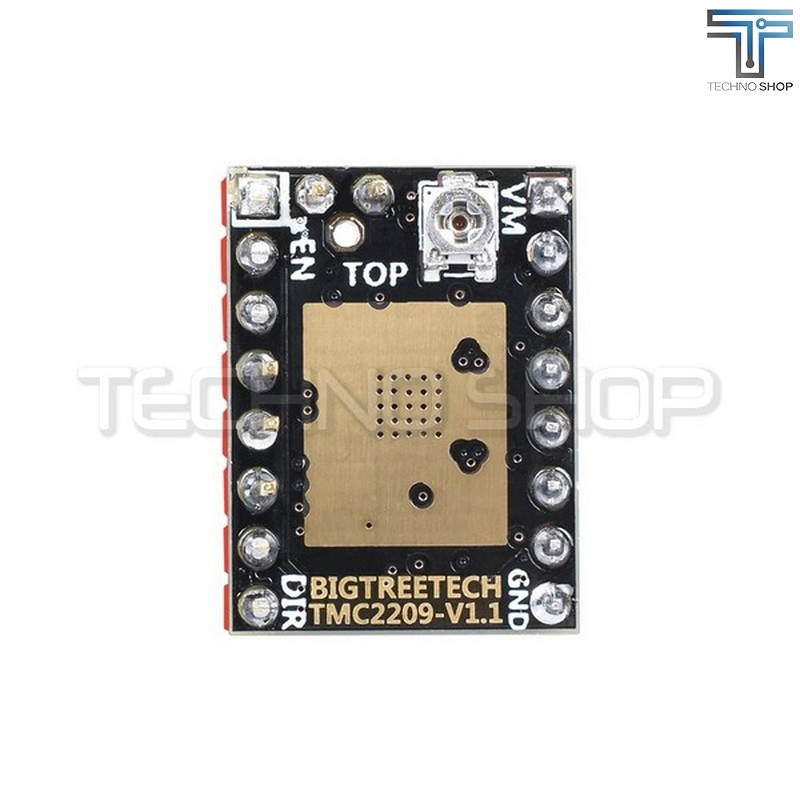

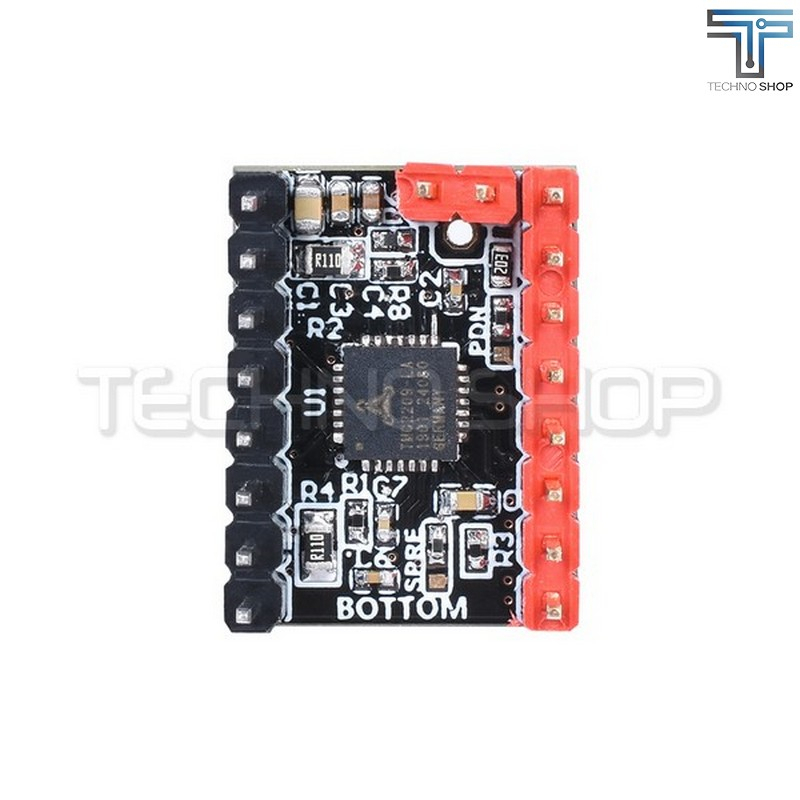

BIGTREETECH TMC2209 Stepper Motor Driver Stepsticks UART Driver 256 2.8A Peak 3d Printer

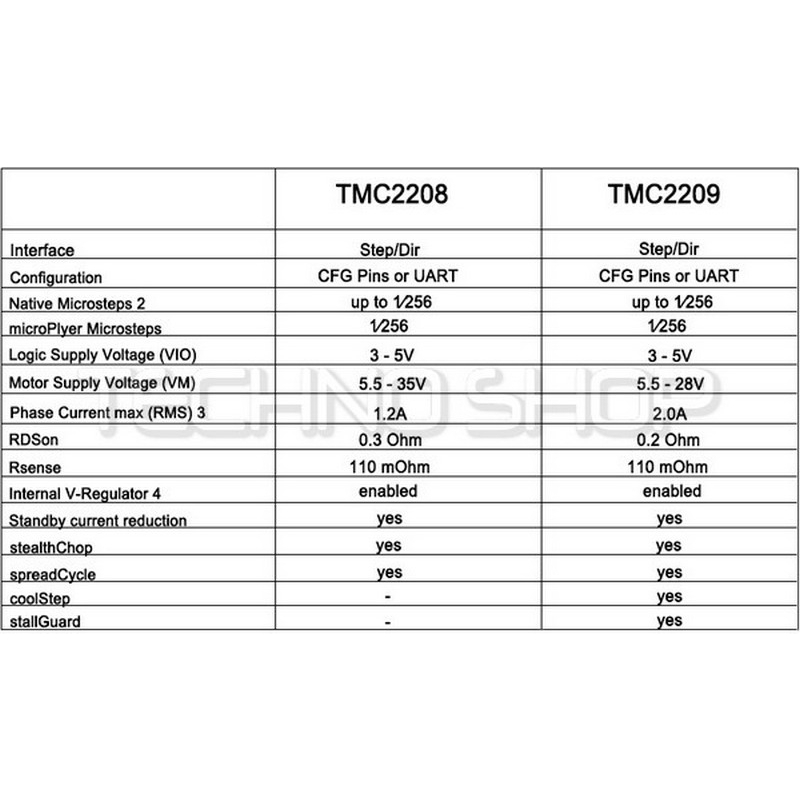

ตัดรอบส่งของ 09.00น. ชำระเงินหลัง 09.00น. จัดส่งวันถัดไป ร้านสามารถออกได้แค่บิลเงินสด แต่ต้องแจ้งล่วงหน้าตอนสั่งของ BIGTREETECH TMC2209 Stepper Motor Driver Stepsticks UART Driver 256 2.8A Peak 3d Printer Parts VS TMC2208 suit SKR TMC2209 VS TMC2208, more of these functions: 1. Blocking rotation detection Stallguard--TMC2209 provides a load and loss of speed detection technology 2. Current dynamic adjustment Coolstep--TMC2209 provides a current dynamic regulation technology that saves up to 75% of electrical energy. Features: Stepper Motor Driver based on a Trinamic TMC2209 - Hardware compatible with StepStick and Pololu A4988 - Step/Dir interface with microstep interpolation (up to 256 microsteps) - Drive capability up to 2.0A (RMS) continuous coil current - 2.8A Peak - Configuration via CFG pins or UART interface - Motor voltage: 5.5...28V - Logic voltage: 3.3...5V - RSense: 0.11 Ohm - stealthChop2 - for quiet operation and smooth motion - spreadCycle - highly dynamic motor control chopper - coolStep - current control for energy savings - stallGuard4 - sensorless motor load detection The hardware of the three modes of UART/DIR/STEP is the same. If you need to use UART mode, just need to modify the firmware.
