LM2596 LM2596S DC-DC Step-down buck converter with digital display

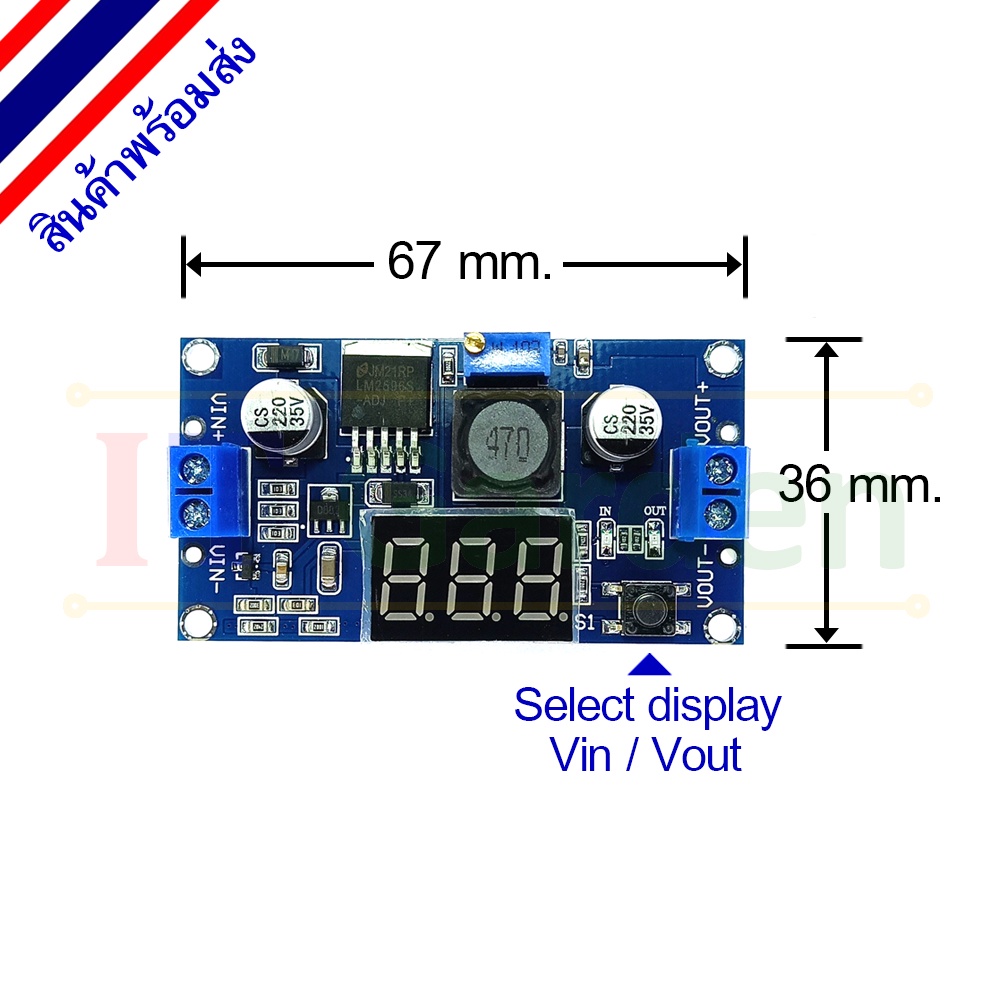

Features : • Input voltage range: 4-40VDC • Output voltage range: 1.25-37VDC adjustable • Output current: 3A(MAX), The maximum output current can be up to 3A, it is recommended to use within 2.0A. • Voltmeter range (LED Display) : 0 to 40V, error ±0.1V • Input reverse polarity protection • Built in output short protection function • Built in thermal shutdown function • Size: L x W x H =67 x 36 x 12 mm • Weight: 22g • LED digital voltmeter tube, the accuracy is adjustable function, can be aimed at your multimeteradjustable accurate. • Press the rightkey to let the display show the input or output voltage. when the right “OUT” led light, it shows output, the left “IN” led show input. How to adjust the accuracy : • Output voltage calibration steps Step 1 : adjust the right button so that "OUT" LED lighted, the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and "OUT" LED flashes in synchronization so that you enter the output voltage calibration mode. Step 2 : press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press. Step 3 : press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save. • Input voltage calibration steps Step 1 : adjust the right button so that "IN" LED lighted, the voltmeter shows the value of input voltage; press the right button for more than 2 seconds, release, voltmeter and "IN" LED flashes in synchronization so that you enter the input voltage calibration mode. Steps 2 and 3 : consistent with the output voltage calibration method.
