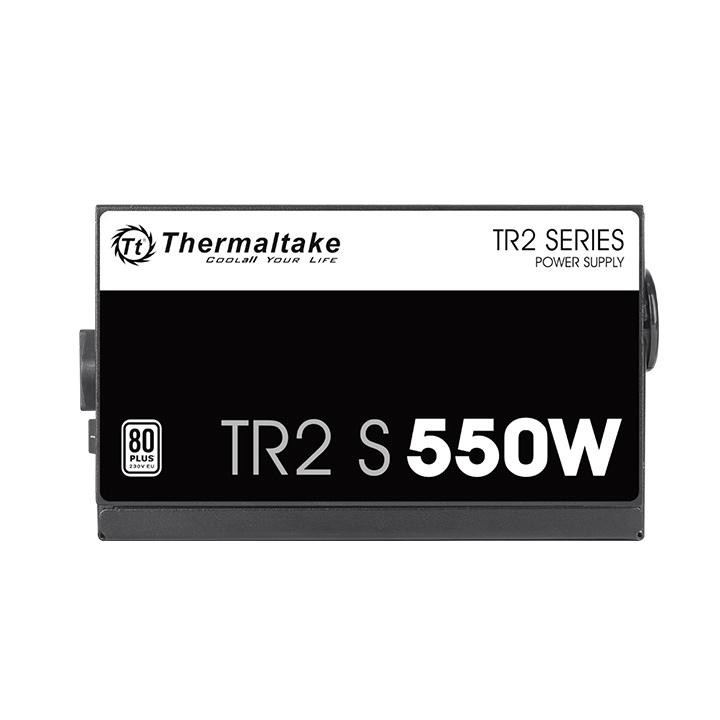

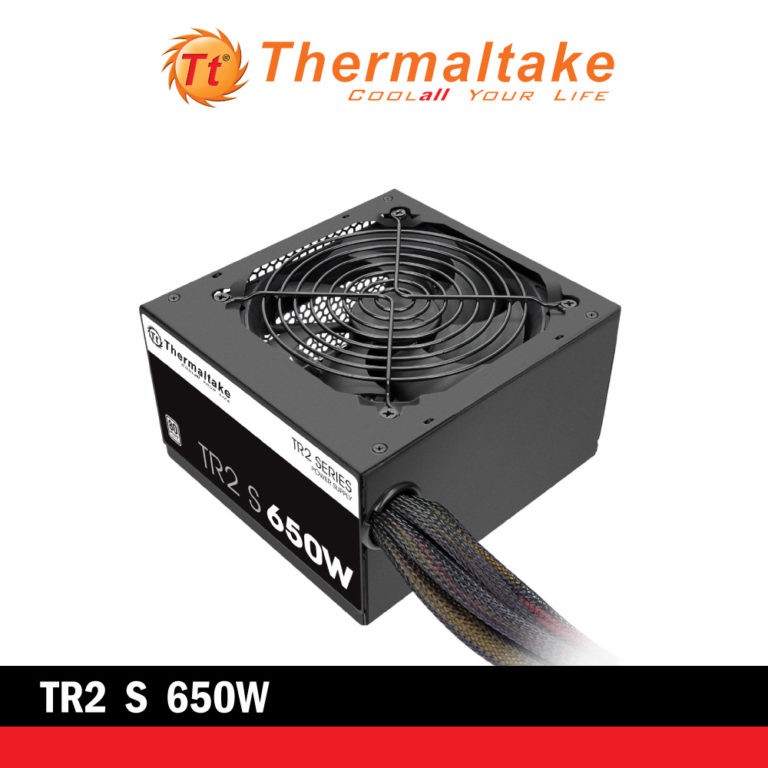

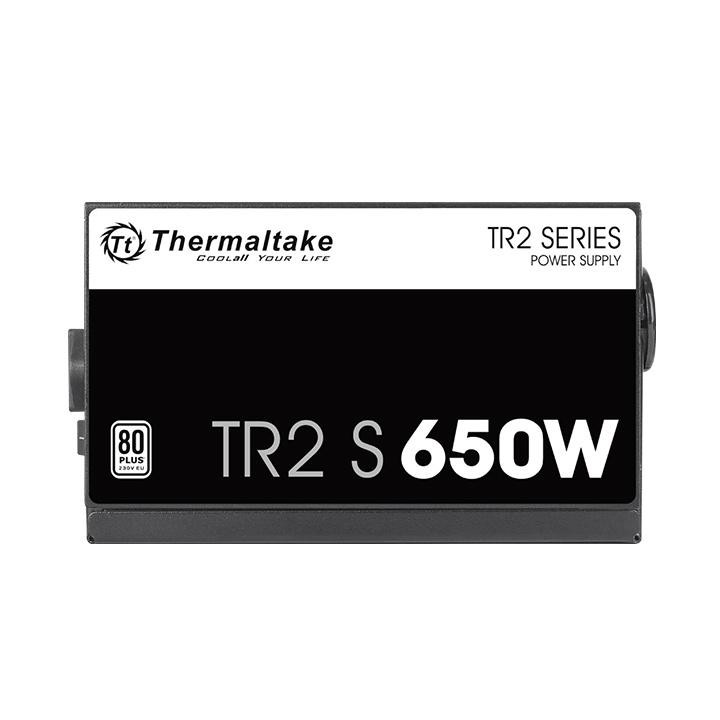

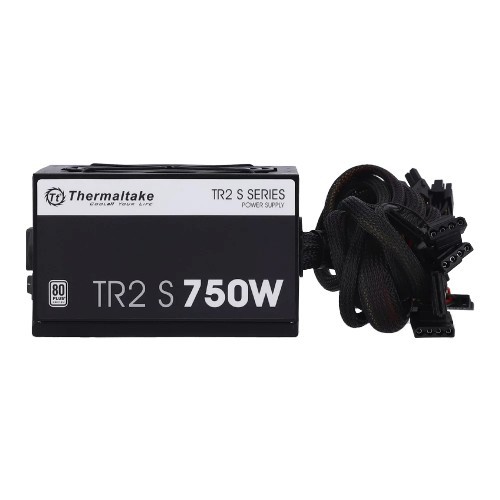

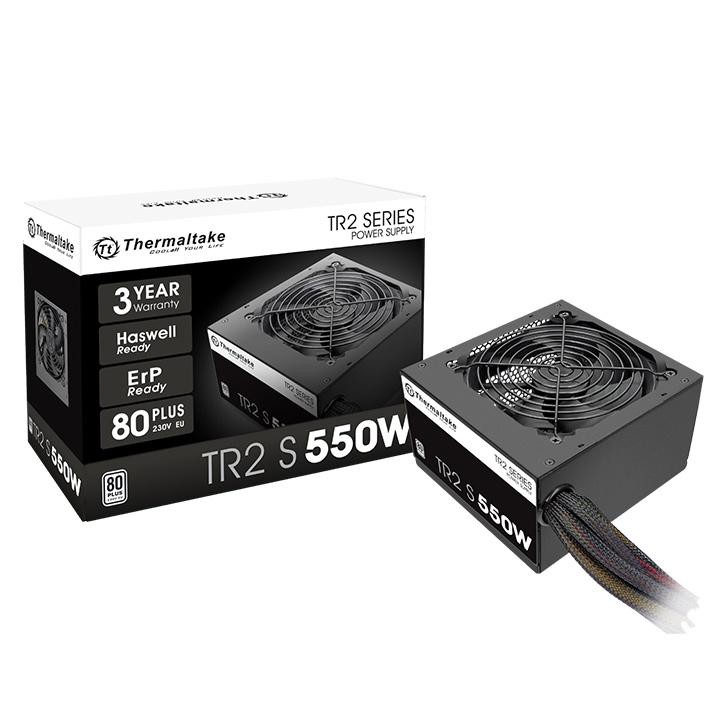

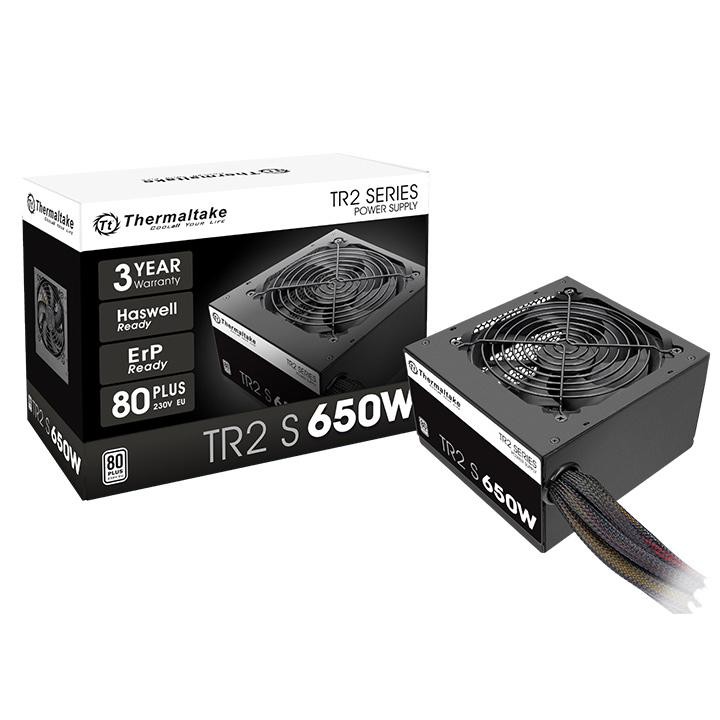

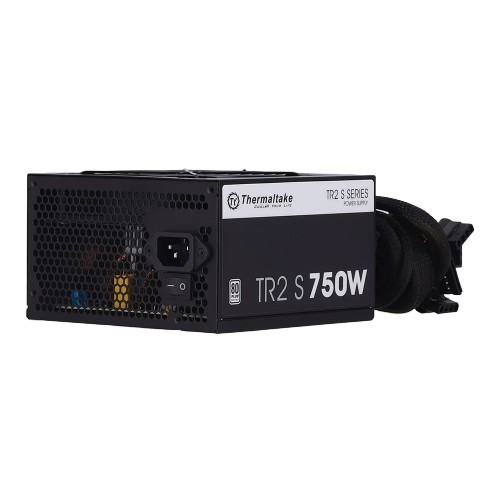

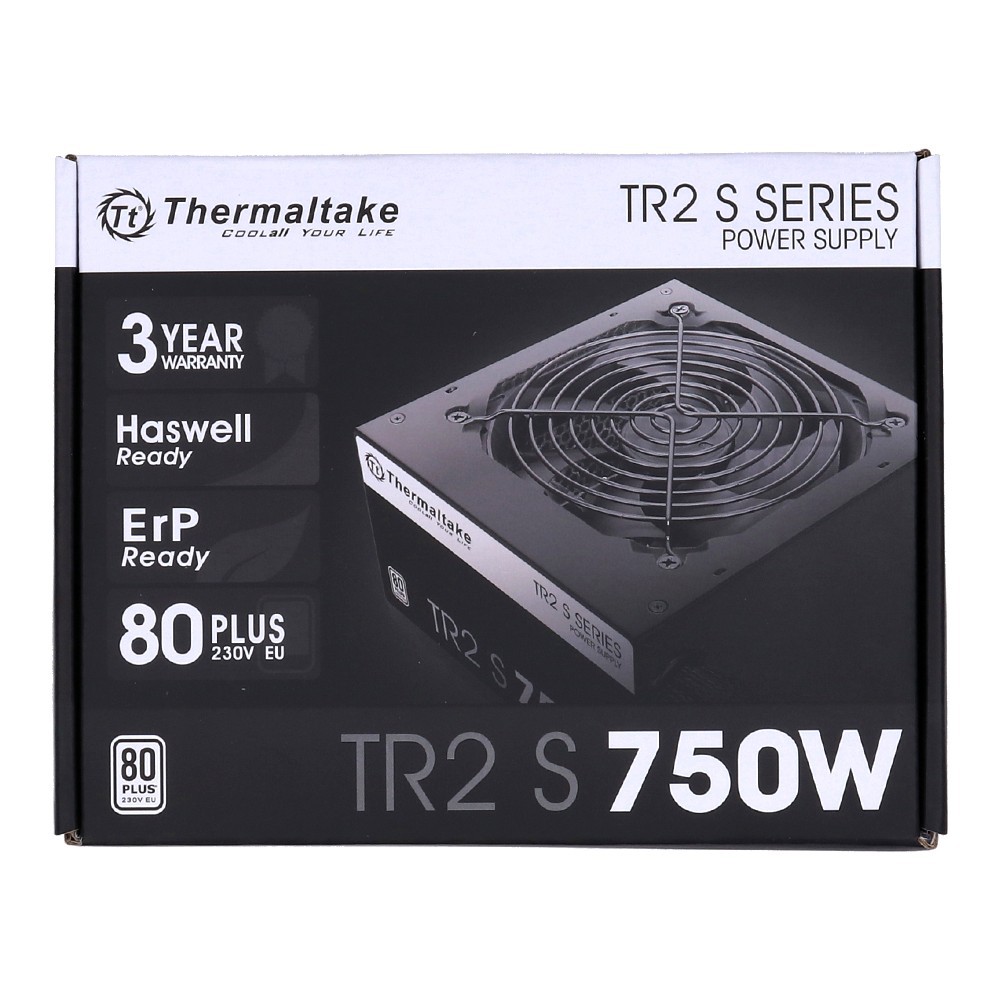

ส่งด่วน POWER SUPPLY (80+ White) ThermalTake TR2 S 550W 650W 750W ของใหม่

SPECIFICATION 750W Model TRS-TRS-0750NN2AWE-1 Type Intel ATX 12V 2.3 Max. Output Capacity 750W Color Black Dimension (H x W x D) 86mm x 150mm x 140mm PFC （Power Factor Correction） Active PFC Power Good Signal 100-500 msec Hold Up Time 16msec (minimum) within 60% load Input current 9A max Input Frequency Range 50 Hz - 60 Hz Input Voltage 230 Vac Operating Temperature ℃ to +40℃ Operating Humidity 20% to 85%,non-condensing Storage Temperature -40 ℃ to +55 ℃ Storage Humidity 10% to 95%, non-condensing Cooling System 120mm Fan: 1800 R.P.M. ± 10% Efficiency 82-86% efficiency @ 20-100% load MTBF 100,000 hrs minimum Safety Approval CE/CB/TUV PCI-E Connector PCI-E 6+2pin x 2 ---------------------------------------------------------------------------------------------------------- SPECIFICATION 650W P/N PS-TRS-0650NPCW**-2 WATTS 650W RGB FANNo FORM FACTOR ATX MODEL TRS-650AH2NK TYPE Intel ATX 12V 2.3 MAX. OUTPUT CAPACITY 650W COLOR Black PFC (POWER FACTOR CORRECTION) Active PFC POWER GOOD SIGNAL 100-500 msec HOLD UP TIME 16msec (minimum) within 60% load INPUT CURRENT 9A max INPUT FREQUENCY RANGE 50 Hz - 60 Hz INPUT VOLTAGE 230 Vac OPERATING TEMPERATURE ℃ to +40℃ OPERATING HUMIDITY 20% to 85%,non-condensing STORAGE TEMPERATURE -40 ℃ to +55 ℃ STORAGE HUMIDITY 10% to 95%, non-condensing COOLING SYSTEM 120mm Fan: 1800 R.P.M. ± 10% EFFICIENCY 82-86% efficiency @ 20-100% load MTBF 100,000 hrs minimum SAFETY APPROVAL CE/CB/TUV PCI-E 6+2PIN PCI-E 6+2pin x 2 ---------------------------------------------------------------------------------------------------------- SPECIFICATION P/N PS-TRS-0550NPCW**-2 WATTS 550W RGB FAN No FORM FACTOR ATX MODEL TRS-550AH2NK TYPE Intel ATX 12V 2.3 MAX. OUTPUT CAPACITY 550W COLOR Black PFC (POWER FACTOR CORRECTION) Active PFC POWER GOOD SIGNAL 100-500 msec HOLD UP TIME 16msec (minimum) within 60% load INPUT CURRENT 7A max INPUT FREQUENCY RANGE 50 Hz - 60 Hz INPUT VOLTAGE 230 Vac OPERATING TEMPERATURE 5℃ to +40℃ OPERATING HUMIDITY 20% to 85%,non-condensing STORAGE TEMPERATURE -40 ℃ to +55 ℃ STORAGE HUMIDITY 10% to 95%, non-condensing COOLING SYSTEM 120mm Fan: 1800 R.P.M. ± 10% EFFICIENCY 82-86% efficiency @ 20-100% load MTBF 100,000 hrs minimum SAFETY APPROVAL CE/CB/TUV PCI-E 6+2PIN PCI-E 6+2pin x 2 ========================================================================================== Model Aura GP550 Brand Gamdias specification ขนาด 140 x 150 x 86 mm รองรับไฟขาเข้า 230 VAC ระบบป้องกันไฟเกิน - มาตราฐานรับรอง - สามารถถอดสายได้ NON Modular Floppy Connector 1 Molex Connector 2 Sata Connector 5 PCI Ex Connector 2 x 6+2 Pin CPU Connector 1 x 4+4 Pin Mainboard Connector 1 x 20+4 Pin Power Factor Correction - Fan Size 120 mm กำลังไฟสูงสุด 550 W warranty การรับประกัน 2 Years
