Betafpv Air75 II อุปกรณ์โดรน Drone

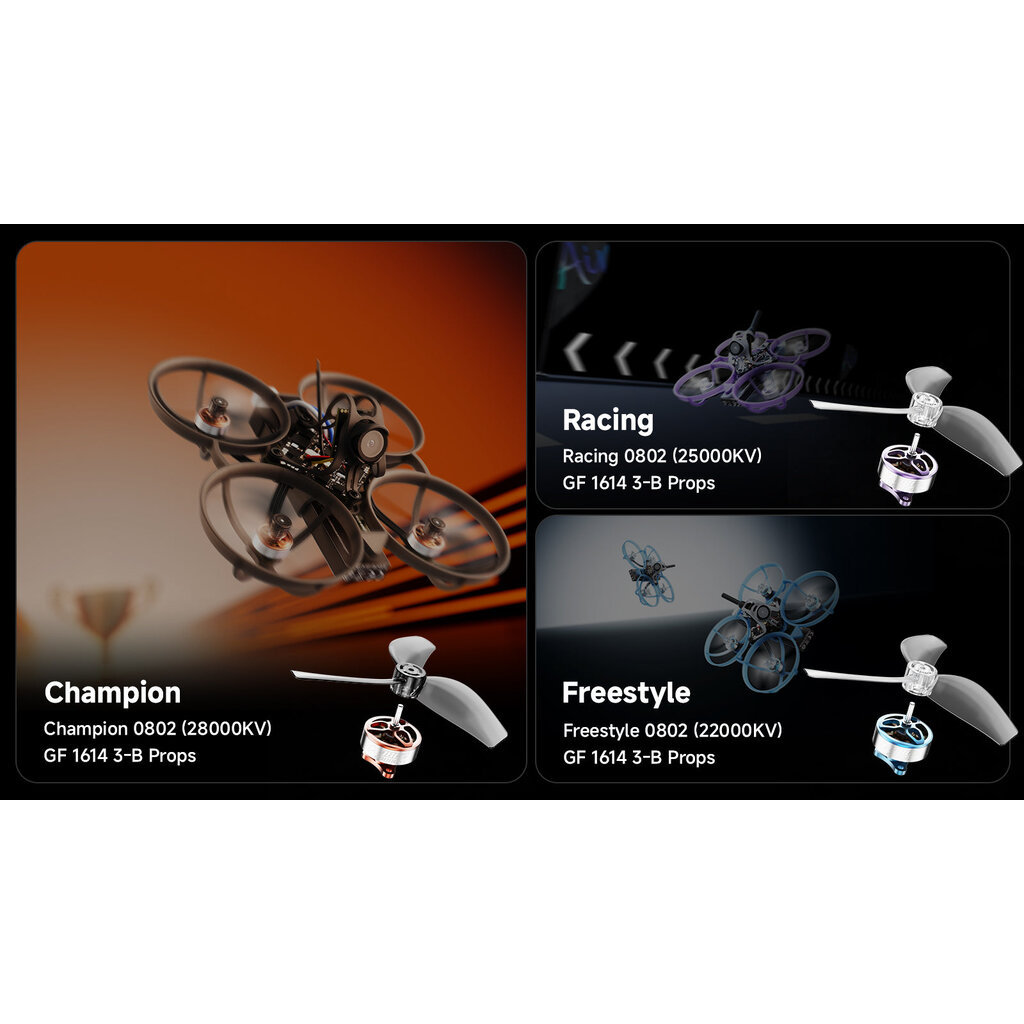

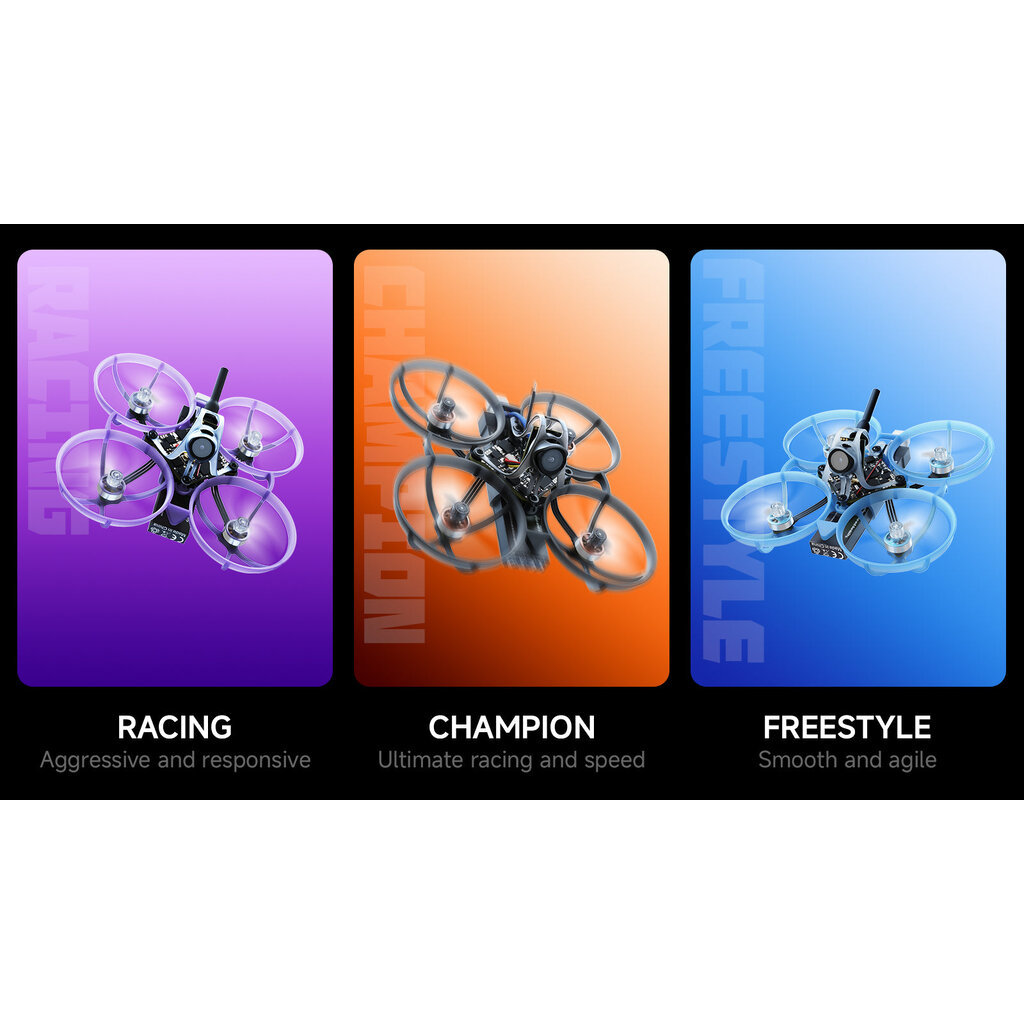

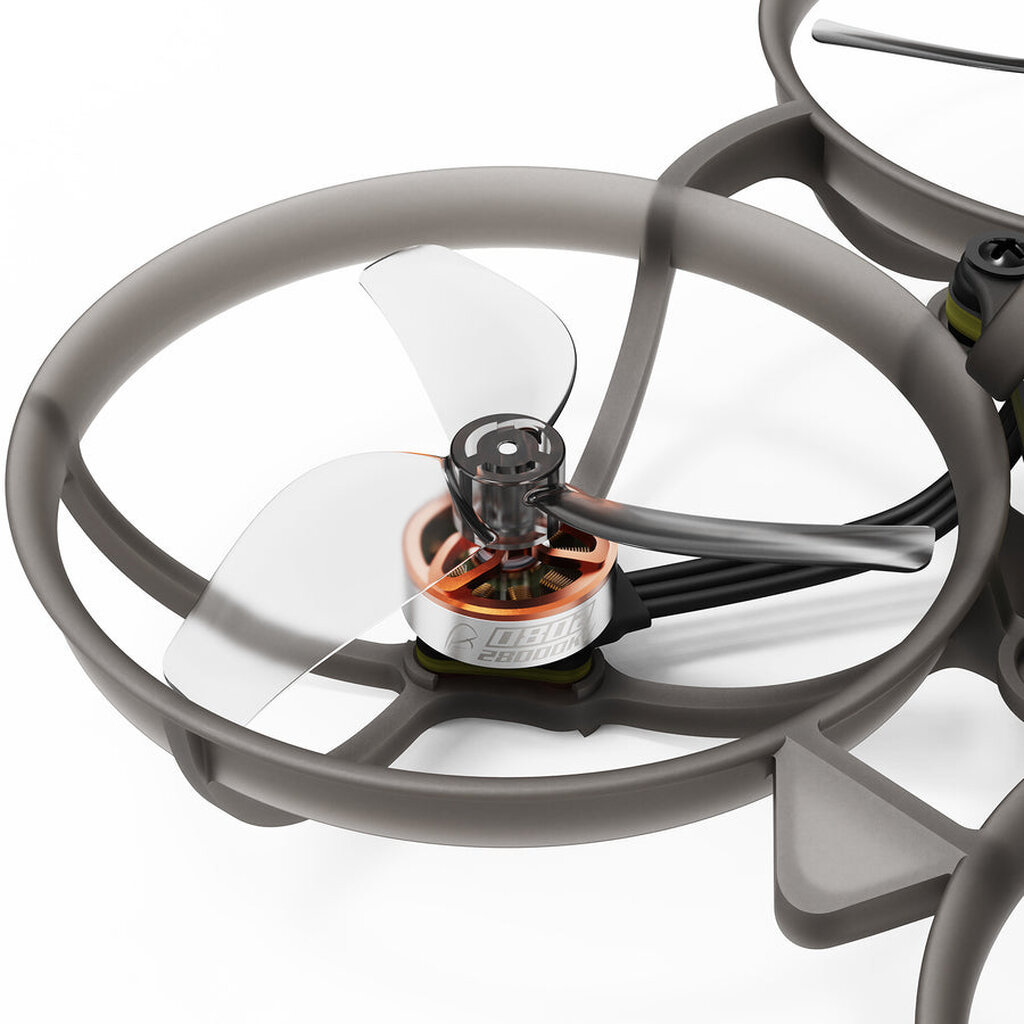

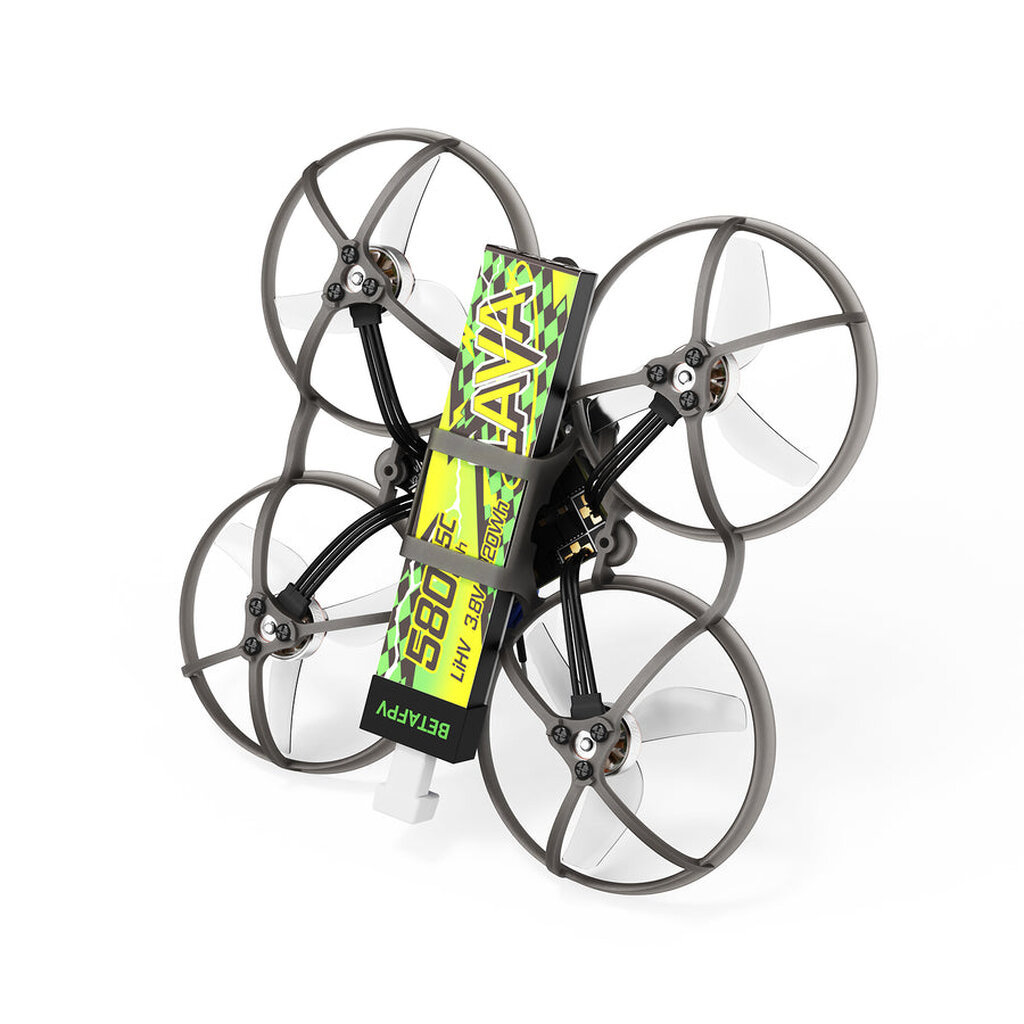

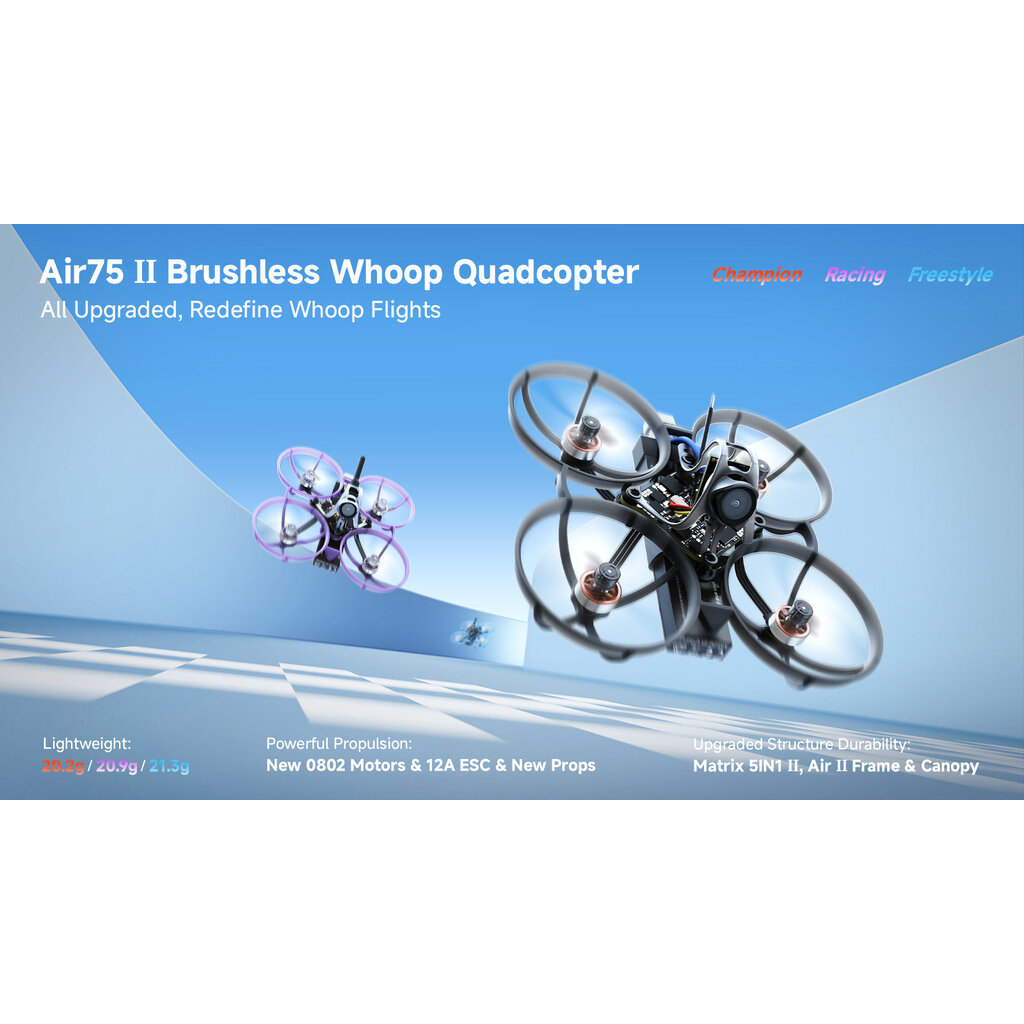

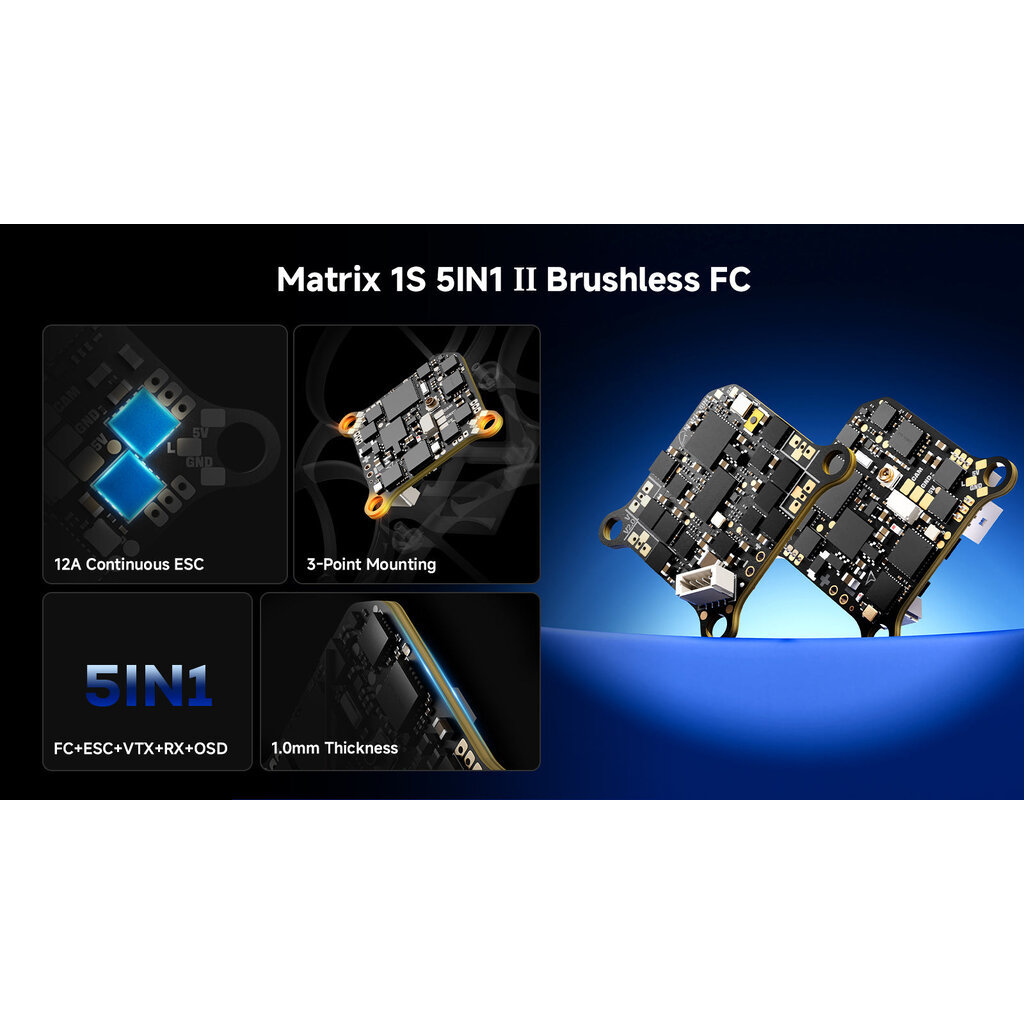

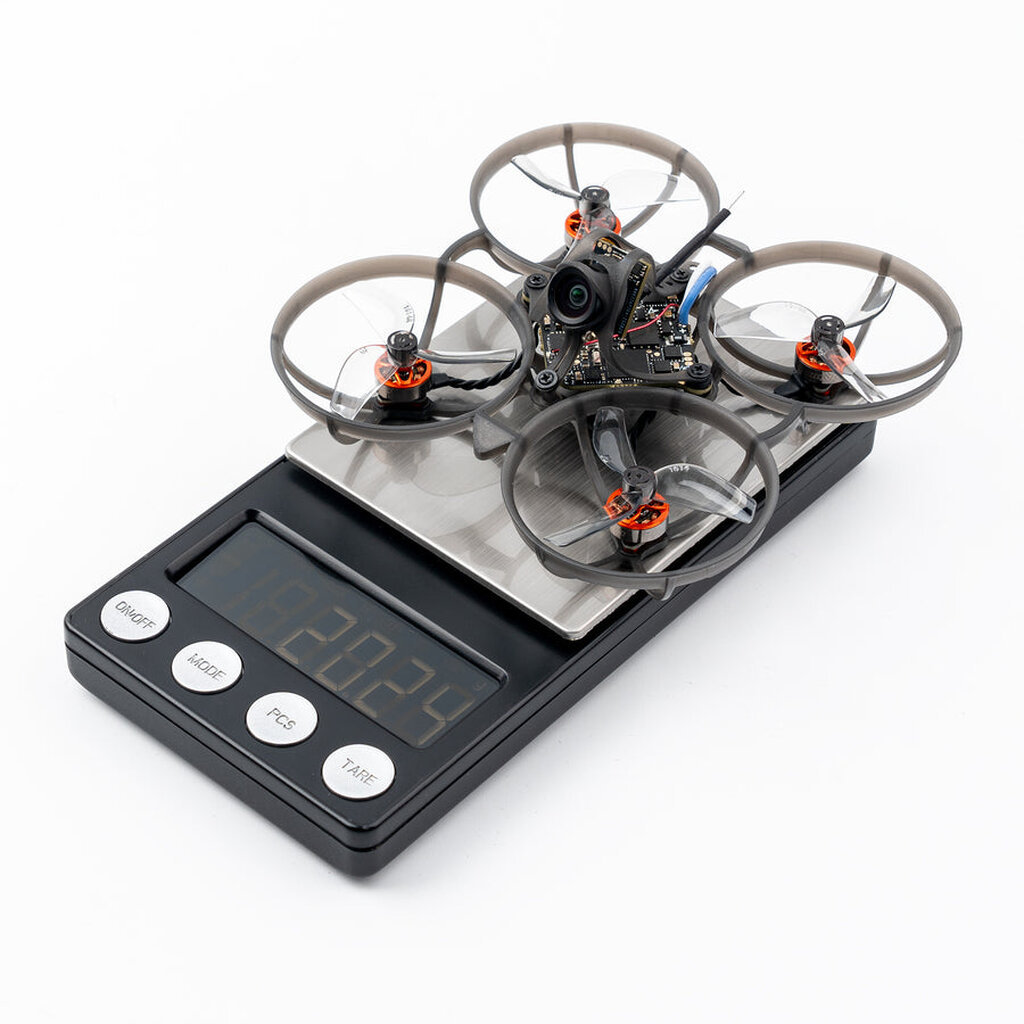

Bullet Points - Three Performance-Tuned Versions: Choose the setup that fits your style. - Champion: Max-power 0802 28000KV motors & GF 1614 3-B Props for pro racing. - Racing: 0802 25000KV motors & GF 1614 3-B Props for razor-sharp throttle response on technical courses. - Freestyle: 0802 22000KV motors & GF 1614 3-B Props for smooth, efficient, and cinematic flying. - 0802 Brushless Motors (2026): Feature a revolutionary 0.1mm stator core, specific magnetic and winding designs for Champion, Racing and Freestyle versions. - Matrix 5IN1 II FC: Features a robust 12A continuous ESC, 3-point mounting, and a 1.0mm thickened PCB for superior power and resilience. - Air II Canopy: Features upgraded materials, strategic reinforcements and a redesigned curve with a 15 to 45 adjustable camera angle. - Air75 II Frame: Its optimized ducts, connecting braces, and PP blend ensure stable, reliable flights. - Lightweight & Flight Time: An ultra-lightweight design achieves up to 7:30 flight time with the LAVA II 1S 480mAh battery. Specifications Champion Racing Freestyle Weight 20.2g 20.9g 21.3g Antenna Whip Copper pipe Frame Air75 II Wheelbase 75mm Canopy Air II Canopy FC Matrix 1S 5IN1 II ESC 1S 12A VTX Onboard 5.8G 25mw~400mw RX Onboard Serial ELRS 2.4G Camera C03 Props GF 1614 3-B Motors Champion 0802 (28000KV) - dual-ball bearings Racing 0802 (25000KV) - brass bushings Freestyle 0802 (22000KV) - brass bushings Motor Connection Soldering JST1.25 3Pin connector JST1.25 3Pin connector Flight Time (with LAVA II 1S 480mAh Batt) 6:50 7:00 7:30 Battery Connector BT2.0 U Cable Pigtail Recommended Battery LAVA II 1S 480mAh/580mAh Three Propulsion Systems The Air75 II expands its lineup with three distinct performance profiles: Champion, Racing, and Freestyle. Each version is powered by new 0802 brushless motors, featuring an industry-first 0.1mm stator core, specific magnetic and winding designs for superior efficiency and power. Combined with the new GF 1614 3-blade props and driven by the high-output Matrix 1S 5IN1 II Flight Controllerwith a 12A continuous (18A peak) ESCthis system is built to reliably meet extreme current demands. The Champion is equipped with dual‑ball bearing Champion 0802 Motors (28000KV) for maximum power, achieving an exceptional 7.1:1 thrust‑to‑weight ratio for explosive acceleration and track dominance. The Racing features Racing 0802 Motors (25000KV) tuned for razor‑sharp throttle response and agility on technical courses. The Freestyle utilizes Freestyle 0802 Motors (22000KV) optimized for smooth control, superior low‑end torque, and efficient, fluid flying. Package - 1 * Air75 II Brushless Whoop Quadcopter | Champion/Racing/Freestyle - 4 * GF 1614 3-B Props - 4 * M1.4*3 Screws - 1 * Air II Canopy - 2 * M1.4*5 Self-tapping Screws - 4 * M1.4*4 Self-tapping Screws - 2 * H0.8 Shock-absorbing Balls - 1 * Type-C to SH1.0 Adapter Board - 1 * SH1.0-4Pin Adapter Cable
