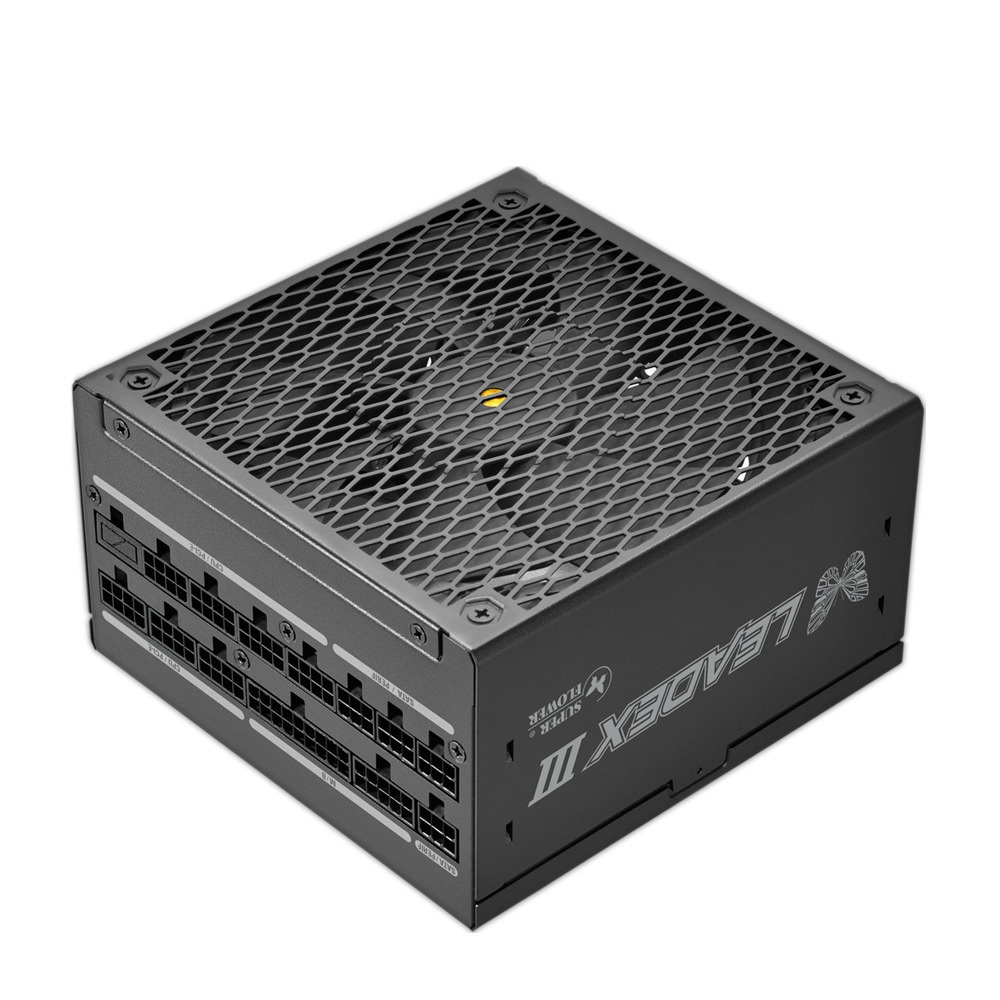

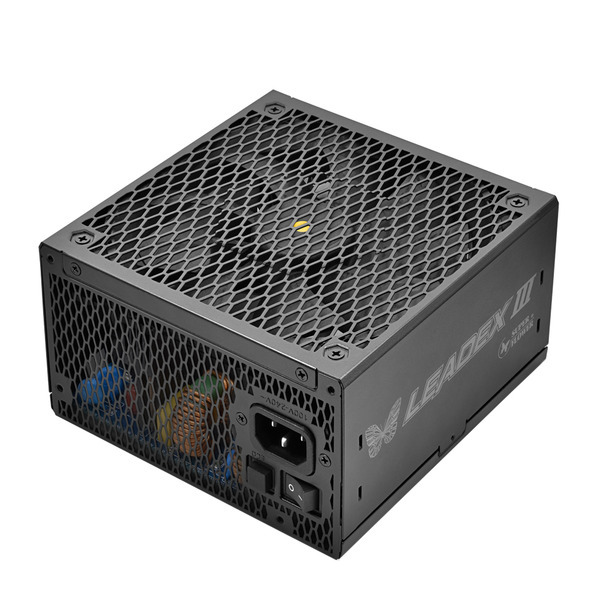

SUPER FLOWER LEADEX III GOLD 1000W ATX3.1 POWER SUPPLY 10 Year Warranty (SF-1000F14GE)

Specification LEADEX III GE is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode ★ 140mm F.D.B Fan: Unique 9-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA). ★ Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span. ★ New patented technology of Buckle (20+4) Pin connector (Patent No.: Taiwan M563575 ; China 7566010) ★ Innovative Design for gaming System & PSU protection 1. DC output +12V/+5V/+3.3V remain stable 2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V 3. +12V Output With Exceptional Low Ripple Measurements 4. Low Output Voltage Ripple ★ ECO-design 1. Auto & ECO Fan control 2. High efficiency on all rails, including 5VSB ★ 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management. ★ 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load. ★ Japanese Main Capacitor ★ Full Range Auto Voltage Detection Design 100V~240V (Active PFC) ★ Comply With ATX 12V v3.1, EPS 12V v2.92 Specification. ★ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation ★ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection ★ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready) ★ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card ★ More than 2,000 times On/Off test ★ Lead-free Green Materials with RoHS / WEEE Compliance ★ Perfect For Professional & High Performance Gaming System ★ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement. Cable Wires 20+4 Pin One Cable (600mm) 8(4+4) Pin CPU Two Cables (700mm) PCI 6+2 Pin Four Cables (700mm) 4 SATA Two Cables (550+130+130+130mm) 4 Molex One Cable (550+150+150+150mm) PCIe 12V-2x6 One Cable (700mm)
