HOZAN Z-340 Level Gauge

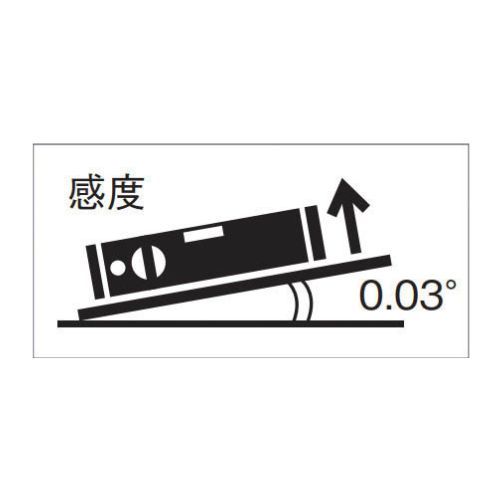

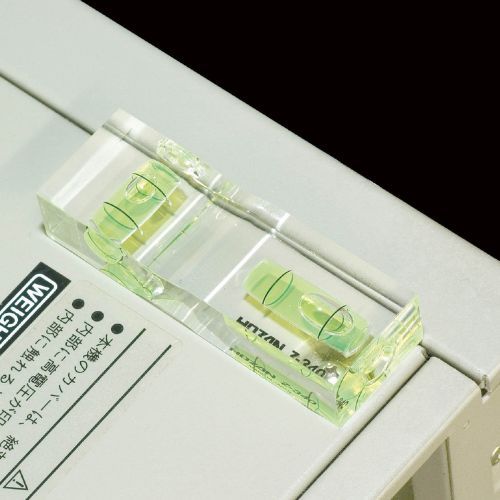

Specifications (Individual): ●Thickness (mm): 15 ●Height (mm): 25 ●Length (mm): 75 ●Sensitivity (mm/m): 0.5 (=0.03°) ●Accuracy (mm/m): ±2.5 (=±0.14° or less) ●Weight (g): 31 Features (Common): ●This product does not contain specific hazardous substances regulated by RoHS. Features (Individual): ●For checking the horizontal alignment when installing equipment. ●Allows simultaneous tilt checking in two directions. (See attached image) Applications (Common): Applications (Individual): Set Contents/Accessories: Precautions: Remarks: ●Sensitivity is the tilt angle at which the bubble starts to move visually. Accuracy is the overall measurement error of the spirit level. (See attached image)
