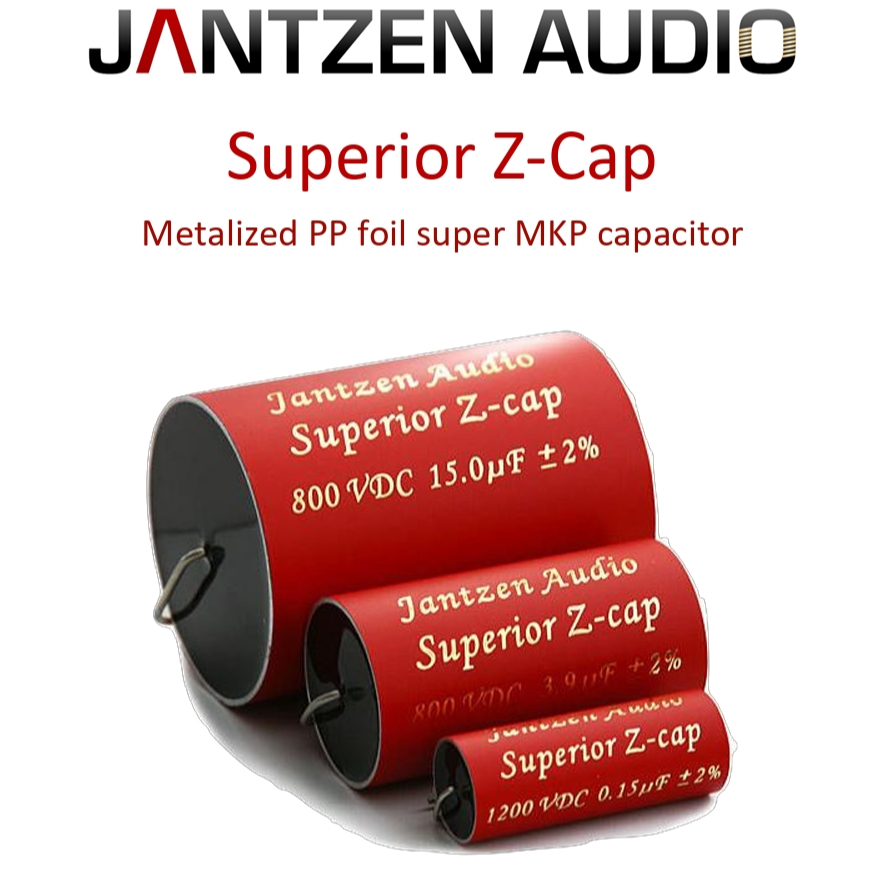

Jantzen Audio SUPERIOR-Z CAP (Super MKP) Metalized polypropylene foil super-capacitor

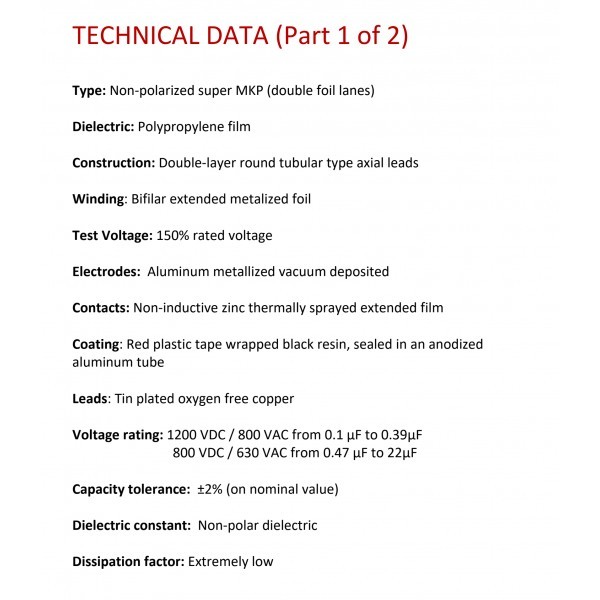

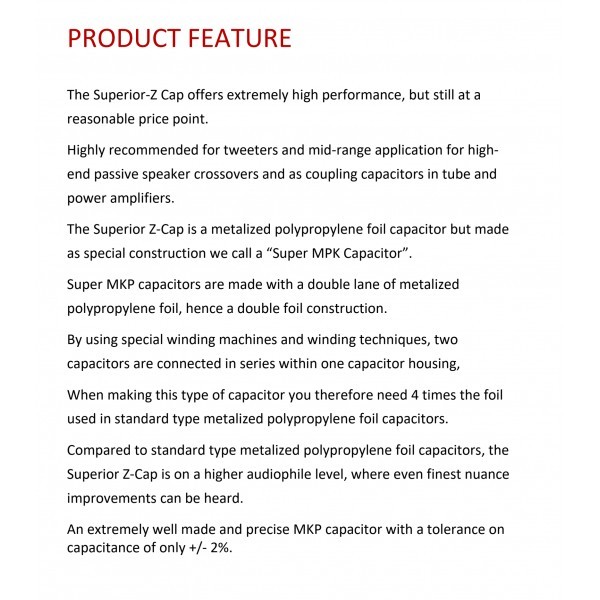

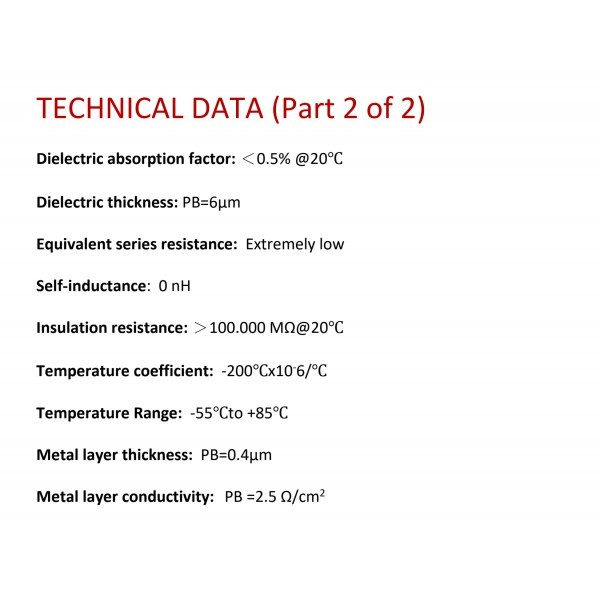

PRODUCT FEATURE   © The Superior Z-Cap is a metalized polypropylene foil capacitor but made as special construction we call a “Super Cap”. © A “Super cap” is made with a special double lane metalized polypropylene foil and using special winding machines and techniques, two capacitors are connected in series within one capacitor housing. © When making a “Super Cap” you therefore need 4 times the foil used in standard type metalized polypropylene foil capacitors. © Compared to standard type metalized polypropylene foil capacitors, the Superior Z-Cap is on a higher audiophile level, where even finest nuance improvements can be heard. © Nitrogen filled instead of dielectric fluid, which means having more foil per capacitor and eliminating risk of evaporation. © An extremely well made and precise MKP capacitor with a tolerance on capacitance of only +/- 2%.   TECHNICAL DATA Type: Non-polarized super MKP (double foil lanes) Dielectric: Polypropylene film Construction: Double-layer round tubular type axial leads Winding: Bifilar extended metalized foil Test Voltage: 150% rated voltage Electrodes: Aluminum metallized vacuum deposited Contacts: Non-inductive zinc thermally sprayed extended film Coating: Red plastic tape wrapped black resin, sealed in an anodized aluminum tube Leads: Tin plated oxygen free copper (99,99% purity) Voltage rating: 1200 VDC / 800 VAC from 0.1 μF to 0.39μF 800 VDC / 630 VAC from 0.47 μF to 22μF Capacity tolerance: ±2% (on nominal value) Dielectric constant: Non-polar dielectric Dissipation factor: Extremely low Dielectric absorption factor: ＜0.5% @20℃ Dielectric thickness: PB=6µm Equivalent series resistance: Extremely low Self-inductance: 0 nH Insulation resistance: ＞100.000 MΩ@20℃ Temperature coefficient: -200℃x10-6/℃ Temperature Range: -55℃to +85℃ Metal layer thickness: PB=0.4µm Metal layer conductivity: PB =2.5 Ω/cm2 รายละเอียดค่าและขนาดของสินค้า Jantzen Audio SUPERIOR-Z CAP (Super MKP) Metalized polypropylene foil super-capacitor 800VDC/1200VDC 2% 0.10uF/1200VDC ขนาด D x L = 19 x 43 mm. 0.22uF/1200VDC ขนาด D x L = 23 x 45 mm. 0.33uF/1200VDC ขนาด D x L = 26 x 45 mm. 0.39uF/1200VDC ขนาด D x L = 31 x 45 mm. 0.47uF/800VDC ขนาด D x L = 19 x 43 mm. 0.56uF/800VDC ขนาด D x L = 19 x 43 mm. 0.68uF/800VDC ขนาด D x L = 19 x 43 mm. 1.00uF/800VDC ขนาด D x L = 19 x 43 mm. 1.50uF/800VDC ขนาด D x L = 23 x 45 mm. 2.20uF/800VDC ขนาด D x L = 26 x 45 mm. 2.70uF/800VDC ขนาด D x L = 31 x 45 mm. 3.30uF/800VDC ขนาด D x L = 31 x 45 mm. 3.90uF/800VDC ขนาด D x L = 31 x 57 mm. 4.70uF/800VDC ขนาด D x L = 35 x 57 mm. 5.60uF/800VDC ขนาด D x L = 35 x 65 mm. 6.80uF/800VDC ขนาด D x L = 35 x 65 mm 8.20uF/800VDC ขนาด D x L = 35 x 70 mm 10.0uF/800VDC ขนาด D x L = 46 x 70 mm 12.0uF/800VDC ขนาด D x L = 46 x 70 mm 15.0uF/800VDC ขนาด D x L = 46 x 70 mm 22.0uF/800VDC ขนาด D x L = 55 x 70 mm ****สำคัญมากโปรดอ่านค่ะ**** ****ราคาขายสินค้าต่อชิ้นนะค่ะ**** ##ตรวจสอบ รุ่น ค่า และขนาดก่อน กดสั่งซื้อนะค่ะ ##สินค้าไม่รับเปลี่ยนคืนทุกกรณี ยกเวันทางร้านส่งผิดค่ะ
