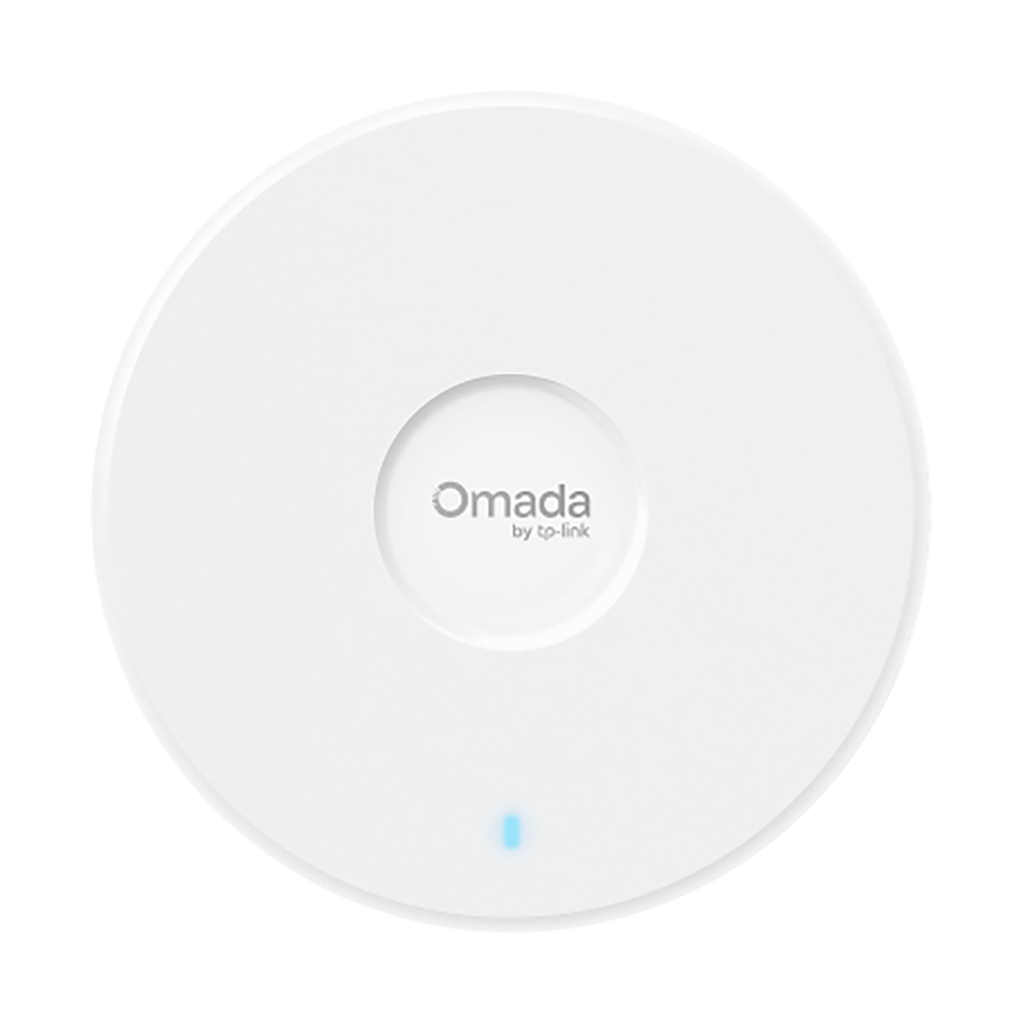

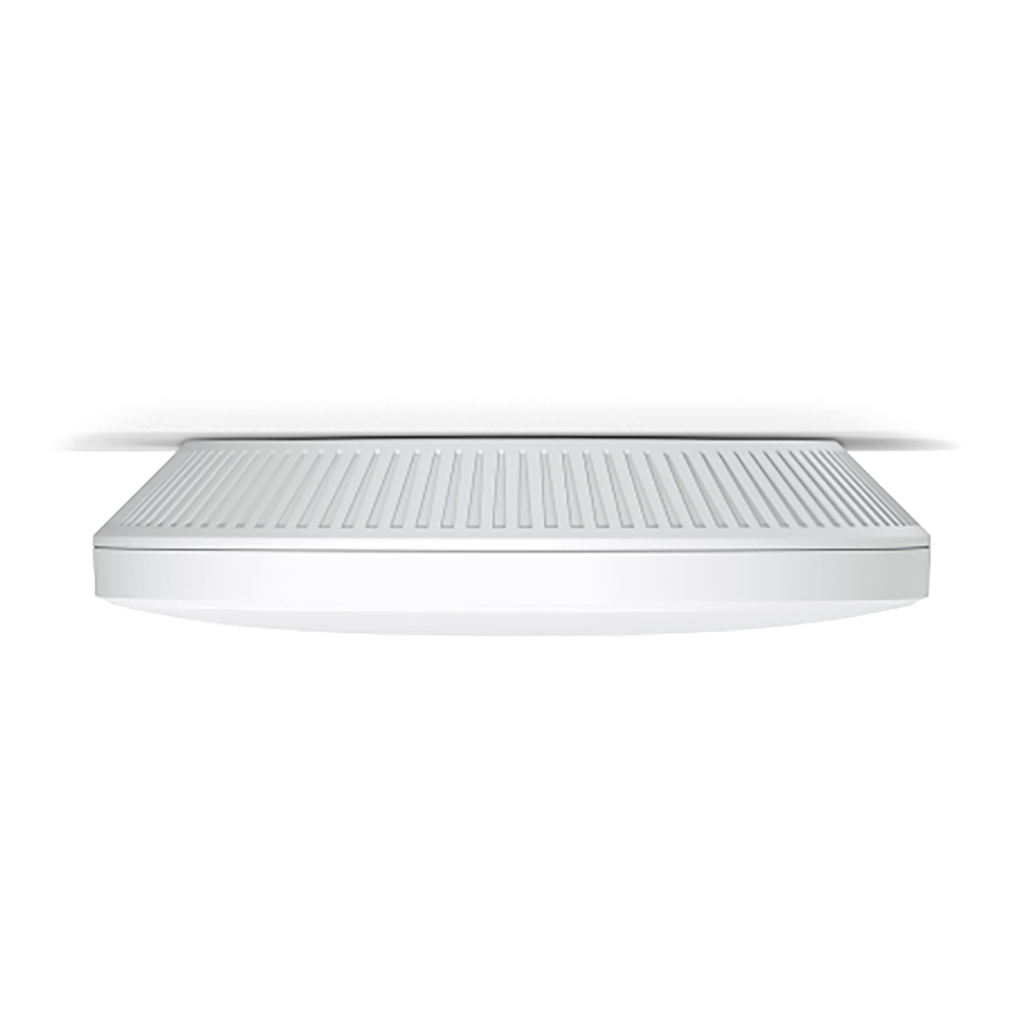

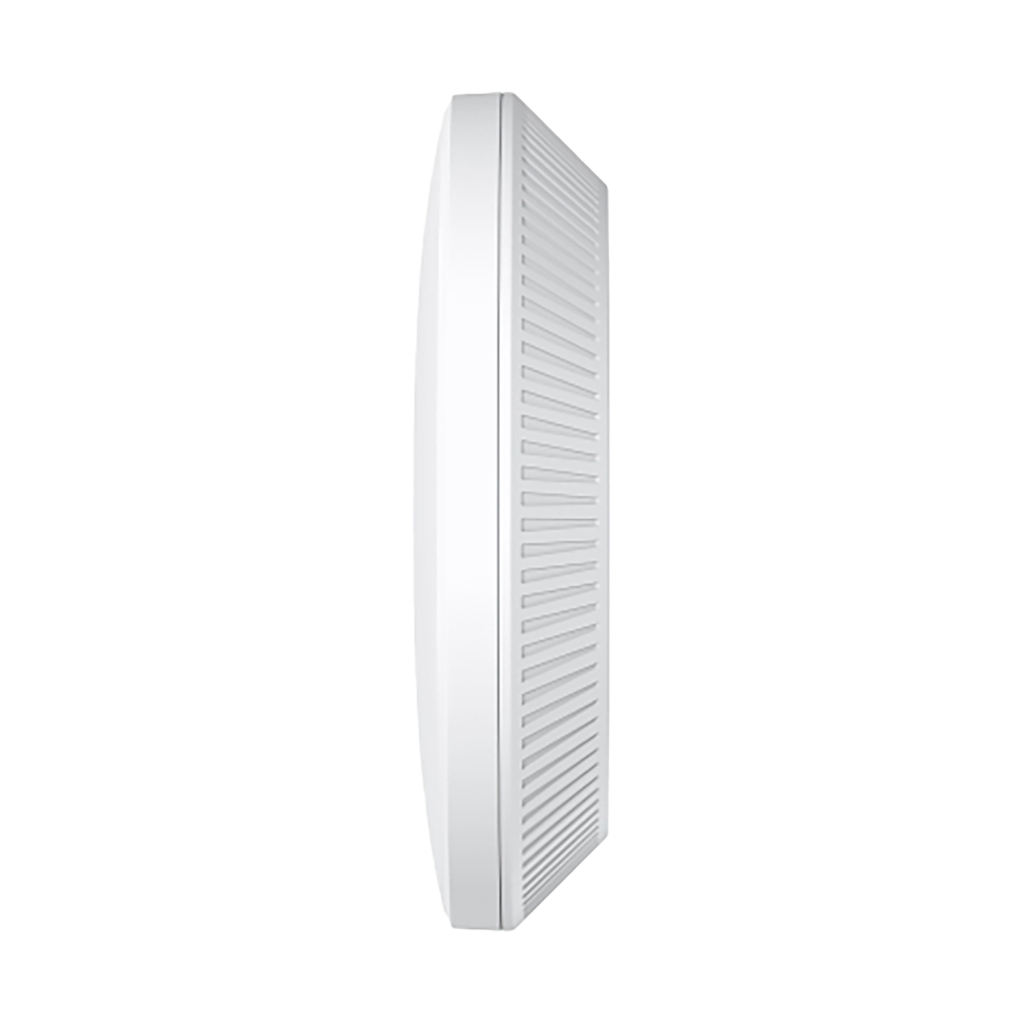

TP-Link EAP720 (EAP720) BE5000 Wi-Fi 7 Access Point

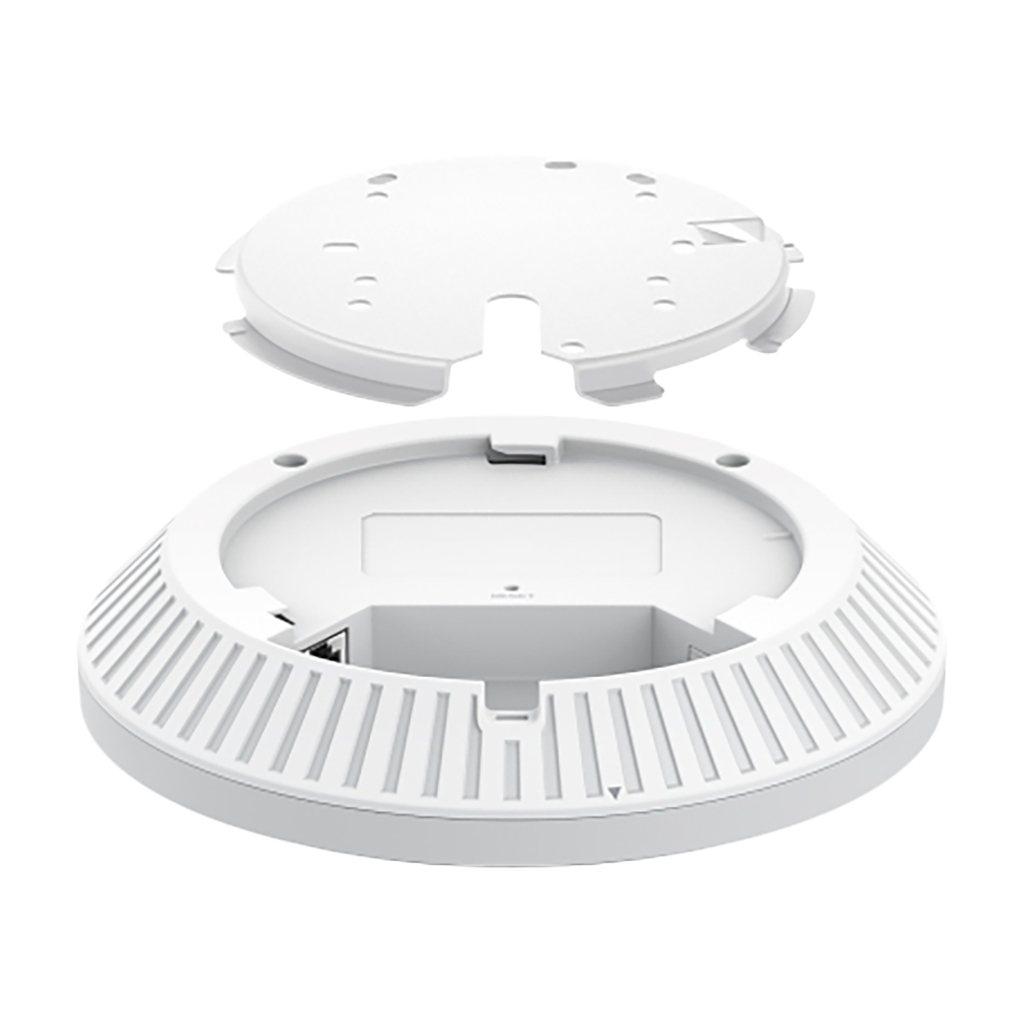

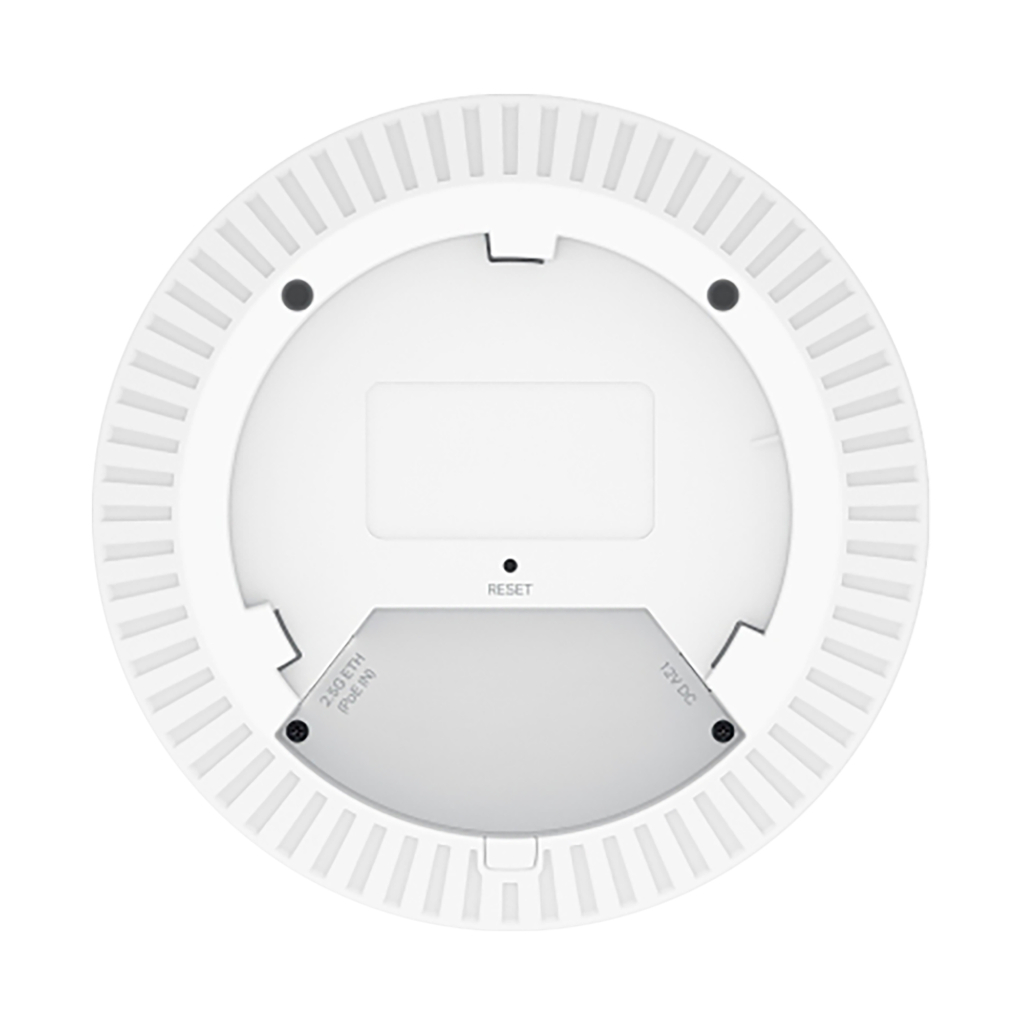

HARDWARE FEATURES Interface • 1× 2.5G Ethernet Port Button • Reset Power Supply • 802.3at PoE or 12V/1.5A DC (Power Adapter Included) Max. Power Consumption • 17.83 W (For PoE); • 13.99 W (For DC) Dimensions ( W x D x H ) • 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) Antenna • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi Mounting • Ceiling / Wall / Junction Box Mounting (Kits Included) Management Features Omada App • Yes Centralized Management • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller Cloud Access • Yes. Require the use of Omada Controller. Email Alerts • Yes LED ON/OFF Control • Yes Management MAC Access Control • Yes SNMP • v1, v2c, v3 System Logging Local/Remote Syslog • Yes Web-based Management • Yes WIRELESS FEATURES Coverage • 1500 ft² (140㎡)* Concurrent Clients • 250+** Wireless Standards • IEEE 802.11 a/b/g/n/ac/ax/be Frequency • 2.4 GHz and 5 GHz Signal Rate • 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) Wireless Functions • MLO‡ • 4K-QAM‡ • Seamless Roaming • 240 MHz Bandwidth‡ • Mesh△ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication Wireless Security • Captive Portal Authentication△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power < 25 dBm (2.4 GHz) < 25 dBm (5 GHz, UNII-1&UNII-4) < 24 dBm (5 GHz, UNII-2&UNII-3) OTHERS Certification • CE, FCC, RoHS, IC Package Content • Omada Wi-Fi 7 Ceiling Mount Access Point EAP720 • Installation Guide • Ceiling/Wall/Juntion Box Mounting Kit • Power Adapter Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;
