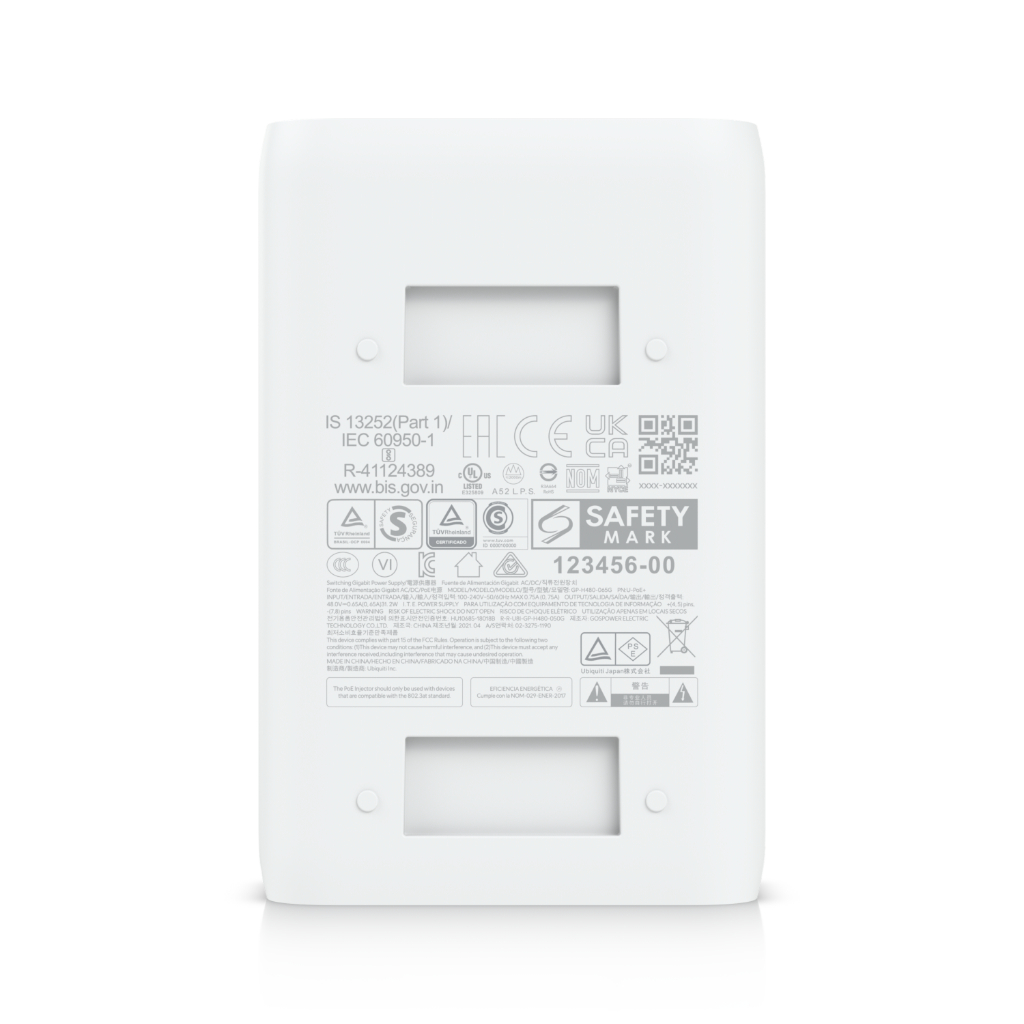

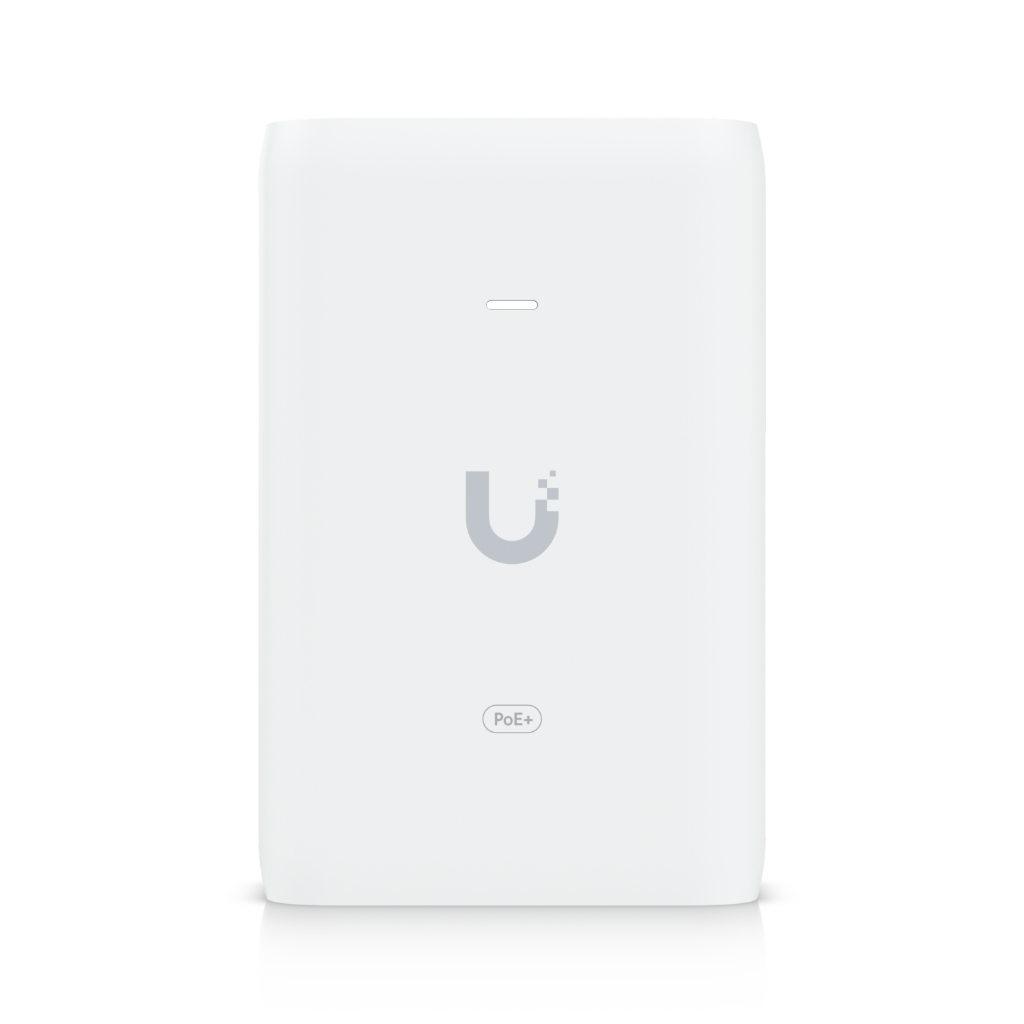

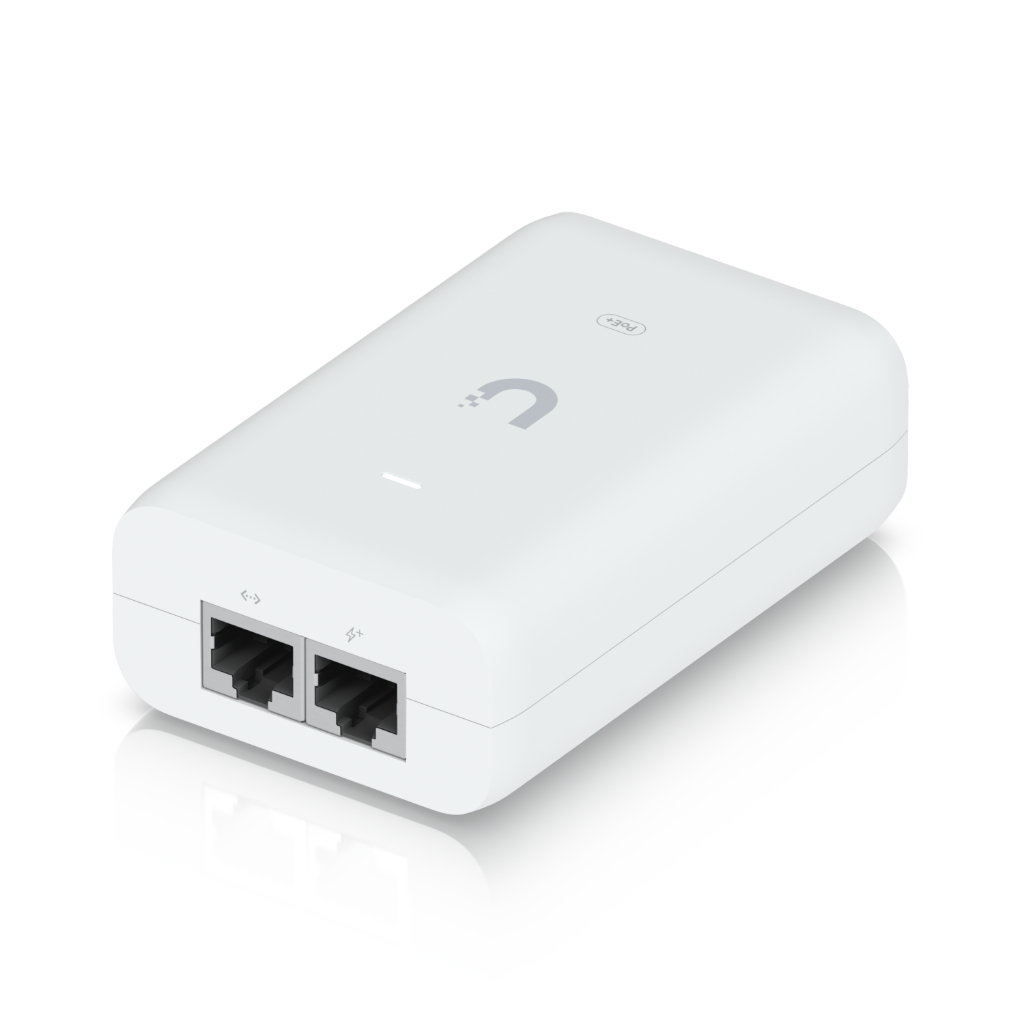

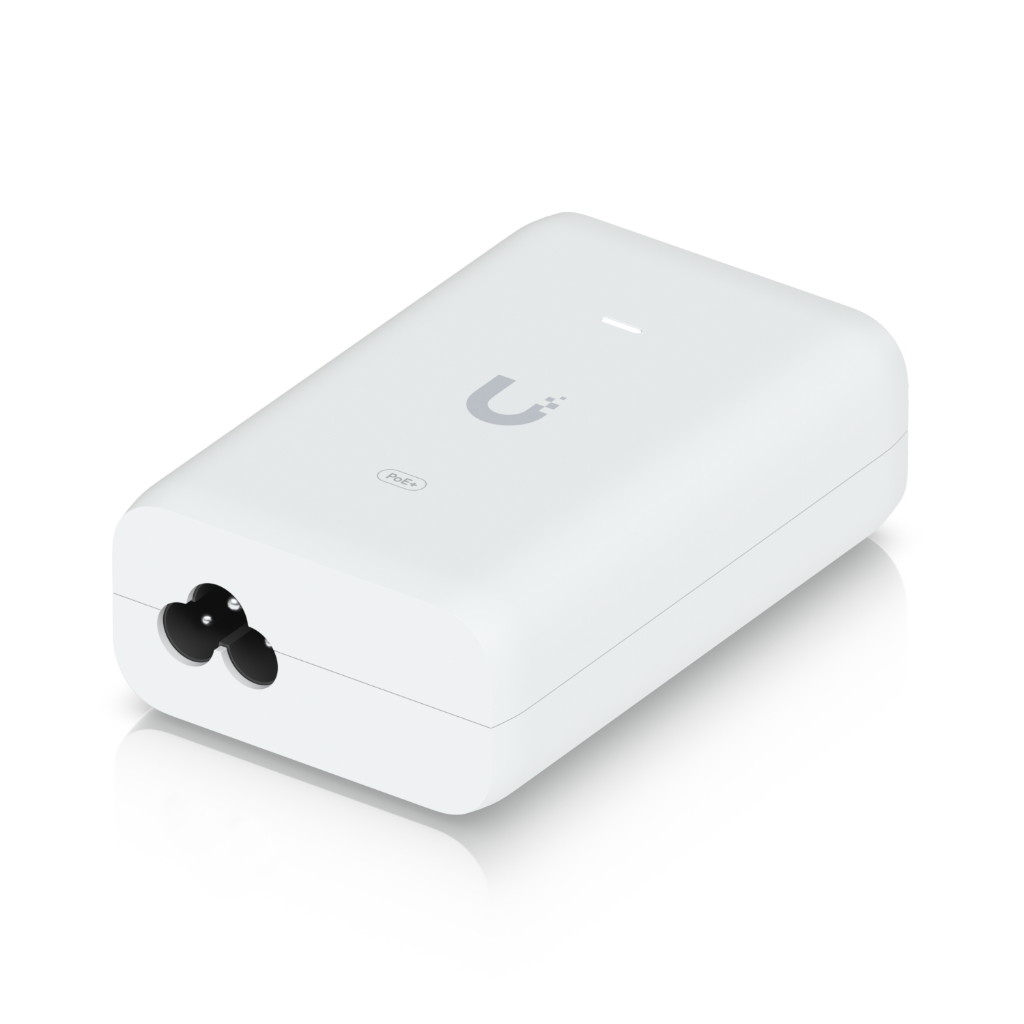

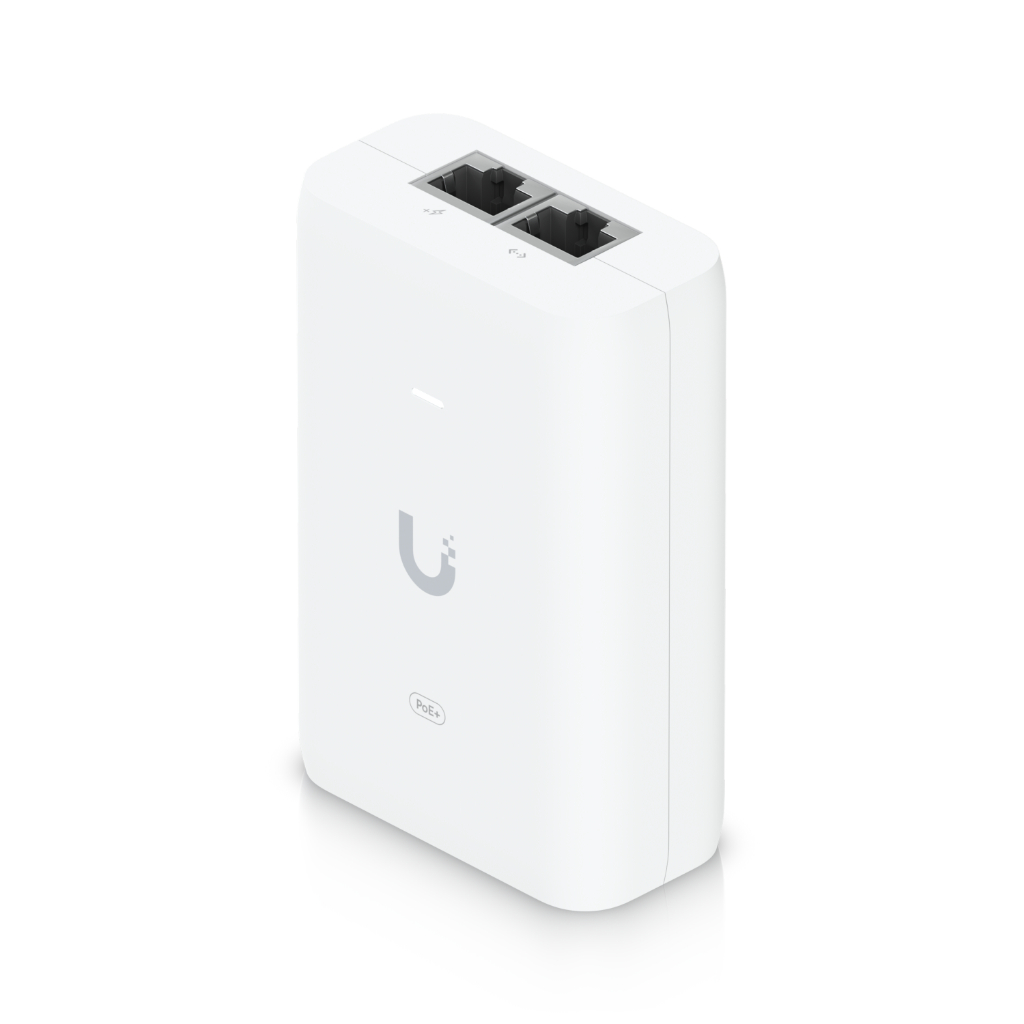

Ubiquiti PoE+ Adapter (30W) รุ่น UQT-POE-PLUS (U-POE+) สำหรับ U6-LR U6-Pro U6-LITE

Overview Dimensions 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") Weight 156 g (5.5 oz) Output Voltage 48V DC @ 0.65A Rated Voltage 100—240V AC @ 50/60Hz Gigabit LAN Port ✓ 2-pair Powering Pins 4, 5 (+) and 7, 8 (-) AC Connector IEC-320 C6 Clamping Protection 11V Data, 60V power Data In / PoE RJ45 Shielded Socket Input Current 0.75A Max. Inrush Current <100A peak at 26°C Efficiency 87% Switching Frequency 70 kHz Max. Output Ripple 1% Max. Line Regulation ≤ 3% Load Regulation ≤ 5% Max. Surge Discharge 1500A (8/20 μs) power Peak Pulse Current 36A (10/1000 μs) data Response Time <1 ns Shunt Capacitance <5 pF data Surge Protection Difference and common mode Ambient Storage Temperature -30 to 70°C (-22 to 158° F) Ambient Operating Temperature 0 to 40° C (32 to 104° F) Ambient Operating Humidity 10 to 95% noncondensing NDAA Compliant ✓ Certifications CE, FCC, IC, UL, CCC
