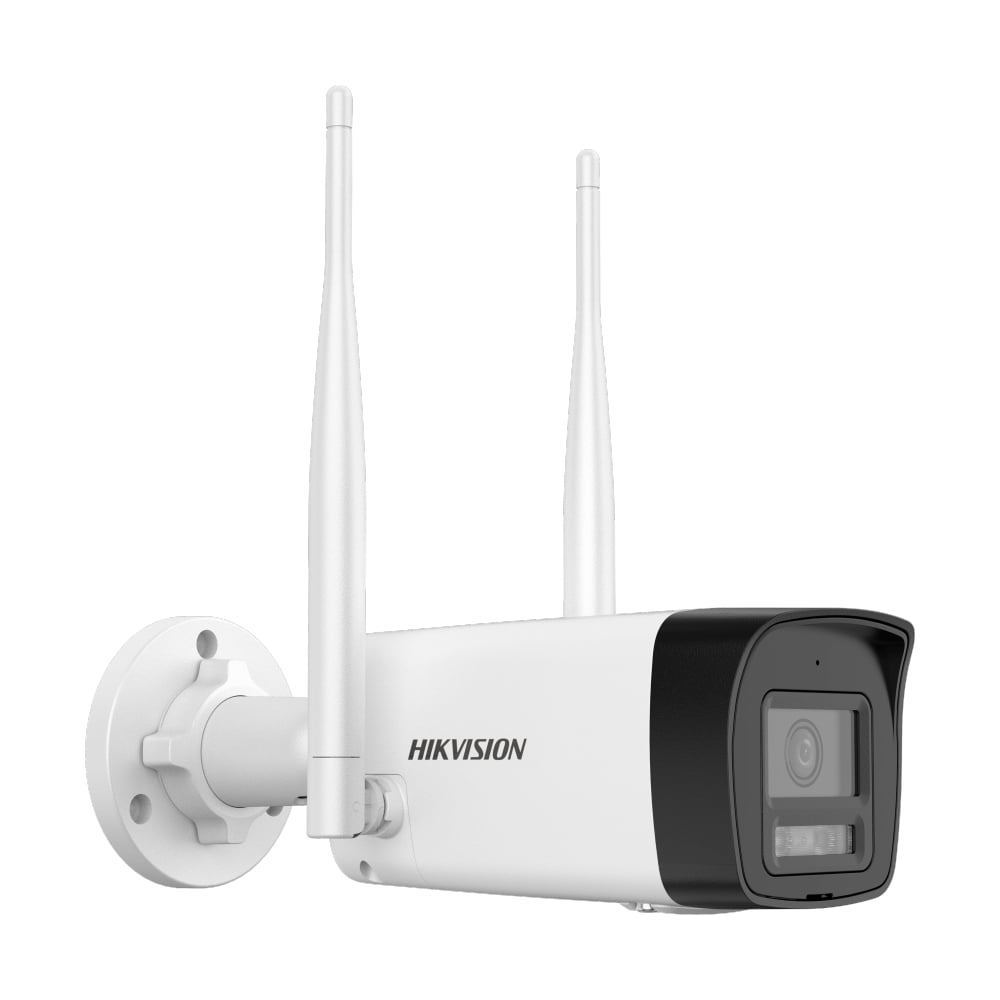

HIKVISION Smart IP Camera (2.0MP) DS-2CV1023G2-LIDWF - A0175067

Brand : HIKVISION Model : DS-2CV1023G2-LIDWF Image Sensor : 2MP , 1/3" Progressive Scan CMOS Lens : 2.8mm Lens Mount : M12 Focus : N/A Zoom : N/A Angle of View : horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114° Adjustment Angle : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Shutter : 1/3 s to 1/100,000 s Minimum Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR IR : 30m Day/Night : IR cut filter WDR : Digital WDR Video Resolution : 1920 × 1080 Video Compression : Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG Frame Rate : Main Stream 50 Hz: 20 fps (2560 x 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 x 1440, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 20 fps (768 × 432) 60 Hz: 20 fps (768 × 432) Audio : Two-Way Solar Cell : NONE Network : Wi-Fi Protocol : IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax Frequency Range : 2.4 GHz to 2.4835 GHz Channel Bandwidth : 20/40 MHz Modulation 802.11n: QPSK, BPSK,16QAM, 64QAM, 802.11b: CCK, QPSK, BPSK, 802.11g: QPSK, BPSK,16QAM, 64QAM Transfer Rate : 11n: up to 300 Mbps Battery : NONE Storage Slot : Micro SD Card Slot (up to 512GB) Interface : 1x RJ45 10 M/100 M self-adaptive Ethernet port Reset Button : YES Alarm : Motion detection (support alarm triggering by specified target types (human and vehicle)),exception ONVIF : ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP Function : Heartbeat, anti-banding, mirror, password protection PoE : NONE Power : 12 VDC ± 25%, 0.55 A Power Consumption : max. 6.5 W,Ø5.5 mm Working Environment : Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F) Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F) Humidity 95% or less (non-condensing) Ingress Protection : IP66 Package Content : N/A Dimension (W x D x H) : 11.39 x 26.09 x 6.74 cm Net Weight : 0.31 Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm Gross Weight : 0.00 Volume : 0.00 ประกัน : 3 ปี
